Bluetooth Subsystem of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

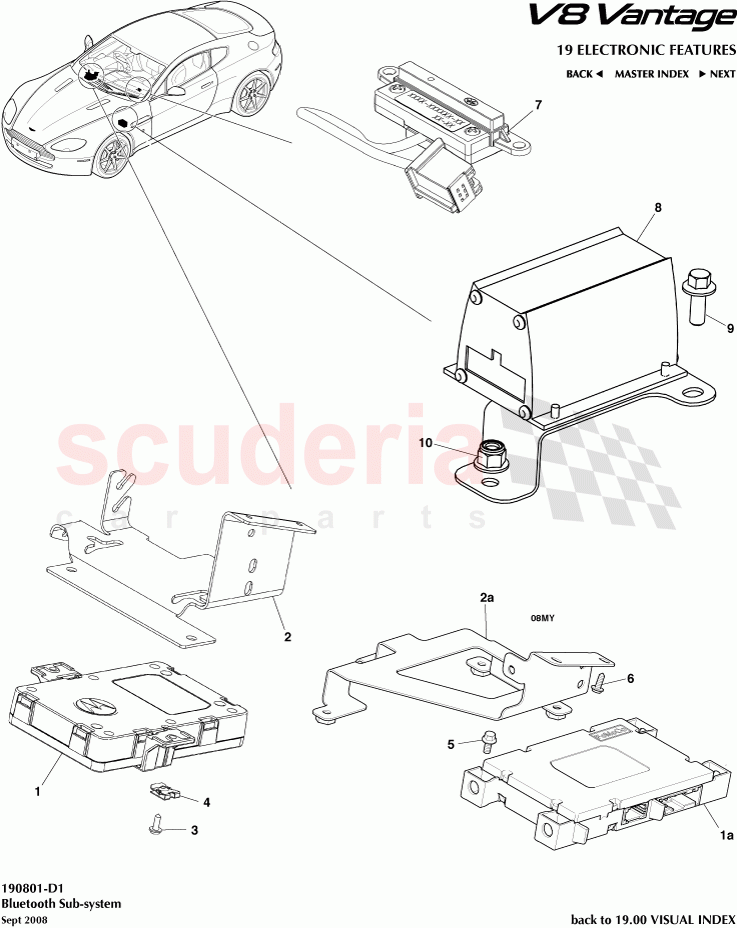

Aston Martin V8 Vantage (upto 2016) - Bluetooth Subsystem

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7G433710990	BLUETOOTH UPGRDE-RHD	Enquire	To Order
	FD433710167	BLUETOOTH MODULE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4319A393AK	PHONE MODULE BRACKET RHD	Enquire	To Order
	4G4319A393BK	PHONE MODULE BRACKET LHD	Enquire	To Order
	8D3319A393AB	Bracket, Blue Tooth Phone Module, RHD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	707613	SCREW M4.2 X 13 FLANGE BLACK	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703278	Screw, M6 x 10, Flange Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W703268S443	Screw, Self Tapping, 4.8 x 1.59 x 19	Enquire	To Order
	707613	SCREW M4.2 X 13 FLANGE BLACK	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G3313D767AA	BLUETOOTH LIGHT MODULE ANTHRACITE	Enquire	To Order
	4G4313D767BB	BLUETOOTH LIGHT MODULE PLATINUM	Enquire	To Order
	7G3313D767AA	BLUETOOTH LIGHT MODULE GRAPHITE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G433711054	BLUETOOTH SWITCHER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7G433710990	BLUETOOTH UPGRDE-RHD	7G433710990 BLUETOOTH UPGRDE-RHD	-	1	Enquire
1	FD433710167	BLUETOOTH MODULE IN STOCK	FD433710167 BLUETOOTH MODULE From (V) D07649 IN STOCK	-	1	Enquire
2	4G4319A393AK	PHONE MODULE BRACKET RHD	4G4319A393AK PHONE MODULE BRACKET RHD 07MY	-	1	Enquire
2	4G4319A393BK	PHONE MODULE BRACKET LHD	4G4319A393BK PHONE MODULE BRACKET LHD 07MY	-	1	Enquire
2	8D3319A393AB	Bracket, Blue Tooth Phone Module, RHD	8D3319A393AB Bracket, Blue Tooth Phone Module, RHD 08MY From (V) D07649	-	1	Enquire
2	8D3319A393BB	Bracket, Blue Tooth Phone Module, LHD	8D3319A393BB Bracket, Blue Tooth Phone Module, LHD 08MY From (V) D07649	-	1	Enquire
3	707613	SCREW M4.2 X 13 FLANGE BLACK IN STOCK	707613 SCREW M4.2 X 13 FLANGE BLACK IN STOCK	-	2	Enquire
4	701448	Spring Nut, U Type, 4.2 x 2.1 IN STOCK	701448 Spring Nut, U Type, 4.2 x 2.1 IN STOCK	-	2	Enquire
5	703278	Screw, M6 x 10, Flange Hex Head	703278 Screw, M6 x 10, Flange Hex Head	-	3	Enquire
6	W703268S443	Screw, Self Tapping, 4.8 x 1.59 x 19	W703268S443 Screw, Self Tapping, 4.8 x 1.59 x 19 from 09MY	-	3	Enquire
6	707613	SCREW M4.2 X 13 FLANGE BLACK IN STOCK	707613 SCREW M4.2 X 13 FLANGE BLACK to 09MY IN STOCK	-	3	Enquire
7	6G3313D767AA	BLUETOOTH LIGHT MODULE ANTHRACITE	6G3313D767AA BLUETOOTH LIGHT MODULE ANTHRACITE	-	1	Enquire
7	4G4313D767BB	BLUETOOTH LIGHT MODULE PLATINUM	4G4313D767BB BLUETOOTH LIGHT MODULE PLATINUM	-	1	Enquire
7	7G3313D767AA	BLUETOOTH LIGHT MODULE GRAPHITE	7G3313D767AA BLUETOOTH LIGHT MODULE GRAPHITE	-	1	Enquire
8	7G433711054	BLUETOOTH SWITCHER KIT	7G433711054 BLUETOOTH SWITCHER KIT	-	1	Enquire
9	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head IN STOCK	-	1	Enquire
10	703163	Nut, M6, Hex Flange Head, Locking IN STOCK	703163 Nut, M6, Hex Flange Head, Locking IN STOCK	-	1	Enquire
