Name: Electronic Antenna (2009)
Rating: 5.0 (1 reviews)

Electronic Antenna (2009) of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

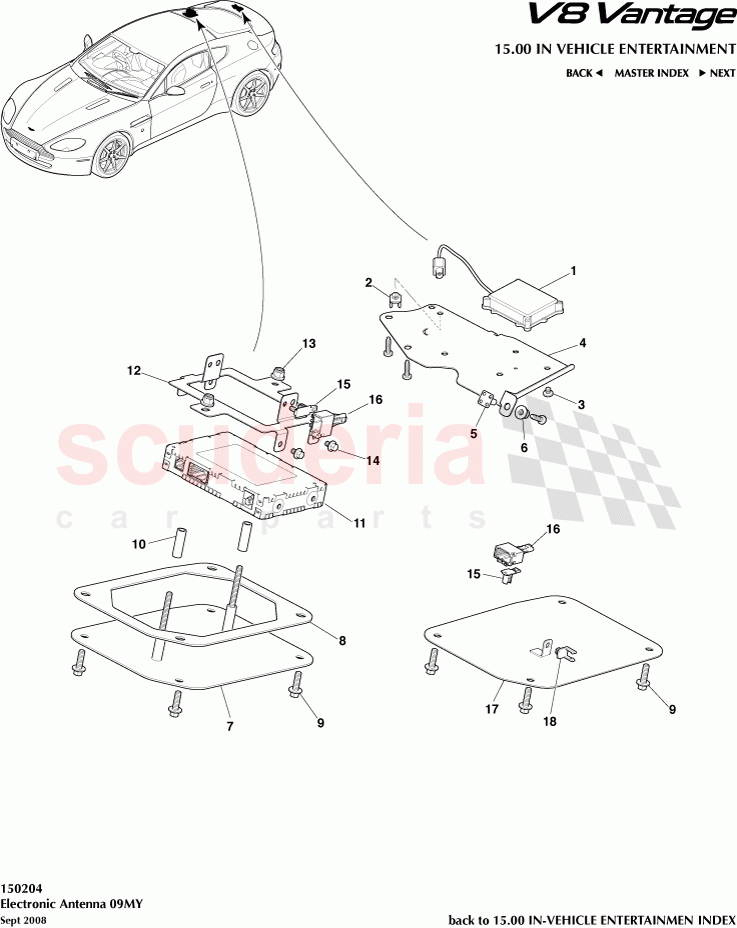

Aston Martin V8 Vantage (upto 2016) - Electronic Antenna (2009)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G4319C089AB	Antenna, SDARS	$338.96	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4314A163CA	Clip, Antenna Connector Retaining	$0.27	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43487464AA	Screw and Washer, M5 x 6, Pan Head	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3310E921AE	SDARS & GPS PLATE	$37.58	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3338354AA	Stud, M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318K876AA	SDARS TUNER BASEPLAT	$160.85	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319A070CA	Gasket, Blanking Plate	$25.50	To Order

Photo	Part No	Description	Price (each)	Stock
	700607	Screw Hex Flange Head M6 x 16mm	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318K833AA	30MM TUNER SPACER	$4.53	To Order

Photo	Part No	Description	Price (each)	Stock
	9G433711005	SATELLITE RADIOTUNER	$448.13	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3319C183AA	SDARS TUNER MODULE BRKT	$30.79	To Order

Photo	Part No	Description	Price (each)	Stock
	702429	LOCKNUT M6	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	703206	SCREW-M5 x 8 HEX FLG CHROME FREE	$1.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G430110042	Retainer, Connector	$0.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4318C951HB	Media Oriented System transport (MOST), Service Loop	$21.57	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318K876BD	Blanking plate, non SDARS	$24.10	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4314A163CA	Clip, Antenna Connector Retaining	$0.27	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G4319C089AB	Antenna, SDARS	8G4319C089AB Antenna, SDARS	$338.96	1
2	8G4314A163CA	Clip, Antenna Connector Retaining	8G4314A163CA Clip, Antenna Connector Retaining	$0.27	1
3	8G43487464AA	Screw and Washer, M5 x 6, Pan Head	8G43487464AA Screw and Washer, M5 x 6, Pan Head	$0.52	2
4	8G3310E921AE	SDARS & GPS PLATE	8G3310E921AE SDARS & GPS PLATE	$37.58	1
5	6G3338354AA	Stud, M6 x 16	6G3338354AA Stud, M6 x 16	-	1	Enquire
6	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	$0.50	1
7	8D3318K876AA	SDARS TUNER BASEPLAT	8D3318K876AA SDARS TUNER BASEPLAT	$160.85	1
8	4G4319A070CA	Gasket, Blanking Plate	4G4319A070CA Gasket, Blanking Plate	$25.50	1
9	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	$0.21	4
10	8D3318K833AA	30MM TUNER SPACER	8D3318K833AA 30MM TUNER SPACER	$4.53	2
11	9G433711005	SATELLITE RADIOTUNER	9G433711005 SATELLITE RADIOTUNER	$448.13	1
12	8D3319C183AA	SDARS TUNER MODULE BRKT	8D3319C183AA SDARS TUNER MODULE BRKT	$30.79	1
13	702429	LOCKNUT M6	702429 LOCKNUT M6	$0.18	2
14	703206	SCREW-M5 x 8 HEX FLG CHROME FREE IN STOCK	703206 SCREW-M5 x 8 HEX FLG CHROME FREE IN STOCK	$1.68	2
15	6G430110042	Retainer, Connector IN STOCK	6G430110042 Retainer, Connector IN STOCK	$0.37	2
16	4G4318C951HB	Media Oriented System transport (MOST), Service Loop	4G4318C951HB Media Oriented System transport (MOST), Service Loop	$21.57	2
17	8D3318K876BD	Blanking plate, non SDARS	8D3318K876BD Blanking plate, non SDARS	$24.10	1
18	8G4314A163CA	Clip, Antenna Connector Retaining	8G4314A163CA Clip, Antenna Connector Retaining	$0.27	1
