Wiring Assembly, Body (Roadster) of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

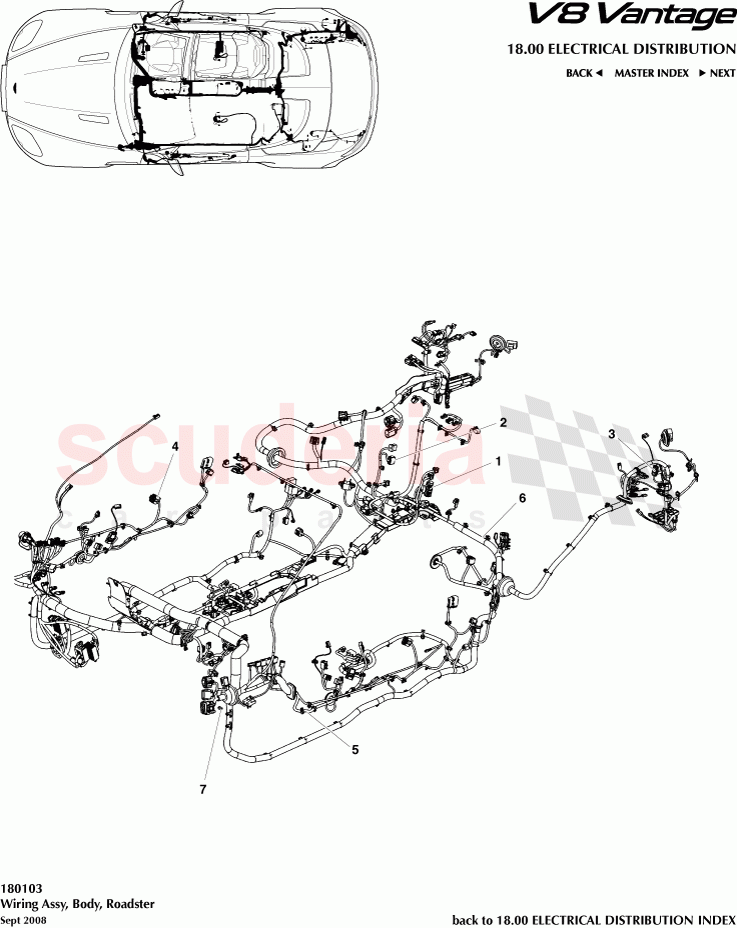

Aston Martin V8 Vantage (upto 2016) - Wiring Assembly, Body (Roadster)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G339137HC	ALPINE LINK LEAD LOW LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G339137GB	ALPINE LINK HEAD HIGH LINE	Enquire	To Order
	6G339137GC	ALPINE LINK LEAD HIGH LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339137KE	CPS LINK HARNESS	Enquire	To Order
	6G339137LA	TMC LINK HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3314630BB	HARNESS ASSY PASSENGER DOOR LHD	Enquire	To Order
	8G3314631AB	HARNESS ASSY DRIVERS DOOR RHD	Enquire	To Order
	7G3314630BD	HARNESS ASSY PASSENGER DOOR LHD	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8G3314630AB	HARNESS ASSY PASSENGER DOOR RHD	Enquire	To Order
	8G3314631BB	HARNESS ASSY DRIVERS DOOR LHD	Enquire	To Order
	7G3314630AD	HARNESS ASSY PASSENGER DOOR RHD	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8G3314K103TB	RH CABIN HARNESS RHD ROADSTER MANUAL	Enquire	To Order
	8G3314K103VB	RH CABIN HARNESS RHD ROADSTER ASM	Enquire	To Order
	8G3314A005TB	LH CABIN HARNESS LHD ROADSTER MANUAL	Enquire	To Order

...and 29 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	700607	Screw Hex Flange Head M6 x 16mm	Enquire	To Order
	4G4314A280FC	Earth Braid, Antenna Module	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G339137HC	ALPINE LINK LEAD LOW LINE	6G339137HC ALPINE LINK LEAD LOW LINE	-	1	Enquire
2	9G339137GB	ALPINE LINK HEAD HIGH LINE	9G339137GB ALPINE LINK HEAD HIGH LINE 09MY	-	1	Enquire
2	6G339137GC	ALPINE LINK LEAD HIGH LINE	6G339137GC ALPINE LINK LEAD HIGH LINE	-	1	Enquire
3	6G339137KE	CPS LINK HARNESS	6G339137KE CPS LINK HARNESS	-	1	Enquire
3	6G339137LA	TMC LINK HARNESS	6G339137LA TMC LINK HARNESS	-	1	Enquire
4	8G3314630BB	HARNESS ASSY PASSENGER DOOR LHD	8G3314630BB HARNESS ASSY PASSENGER DOOR LHD 08MY From (V) D07649	-	1	Enquire
4	8G3314631AB	HARNESS ASSY DRIVERS DOOR RHD	8G3314631AB HARNESS ASSY DRIVERS DOOR RHD 08MY From (V) D07649	-	1	Enquire
4	7G3314630BD	HARNESS ASSY PASSENGER DOOR LHD	7G3314630BD HARNESS ASSY PASSENGER DOOR LHD 07MY	-	1	Enquire
4	9G3314630BA	HARNESS ASSY PASSENGER DOOR LHD	9G3314630BA HARNESS ASSY PASSENGER DOOR LHD 09MY	-	1	Enquire
4	BG3314630BA	Harness Assy, Passenger Door, LHD	BG3314630BA Harness Assy, Passenger Door, LHD 11MY	-	1	Enquire
4	7G3314631AD	HARNESS ASSY DRIVERS DOOR RHD	7G3314631AD HARNESS ASSY DRIVERS DOOR RHD 07MY	-	1	Enquire
4	9G3314631AA	HARNESS ASSY DRIVERSDOOR RHD	9G3314631AA HARNESS ASSY DRIVERSDOOR RHD 09MY	-	1	Enquire
4	BG3314631AA	Harness Assy, Drivers Door, RHD	BG3314631AA Harness Assy, Drivers Door, RHD 11MY	-	1	Enquire
5	8G3314630AB	HARNESS ASSY PASSENGER DOOR RHD	8G3314630AB HARNESS ASSY PASSENGER DOOR RHD 08MY From (V) D07649	-	1	Enquire
5	8G3314631BB	HARNESS ASSY DRIVERS DOOR LHD	8G3314631BB HARNESS ASSY DRIVERS DOOR LHD 08MY From (V) D07649	-	1	Enquire
5	7G3314630AD	HARNESS ASSY PASSENGER DOOR RHD	7G3314630AD HARNESS ASSY PASSENGER DOOR RHD 07MY	-	1	Enquire
5	9G3314630AA	HARNESS ASSY PASSENGER DOOR RHD	9G3314630AA HARNESS ASSY PASSENGER DOOR RHD 09MY	-	1	Enquire
5	BG3314630AA	Harness Assy, Passenger Door, RHD	BG3314630AA Harness Assy, Passenger Door, RHD 11MY	-	1	Enquire
5	7G3314631BD	HARNESS ASSY DRIVERS DOOR LHD	7G3314631BD HARNESS ASSY DRIVERS DOOR LHD 07MY	-	1	Enquire
5	9G3314631BA	HARNESS ASSY DRIVERSDOOR LHD	9G3314631BA HARNESS ASSY DRIVERSDOOR LHD 09MY	-	1	Enquire
5	BG3314631BA	Harness Assy, Drivers Door, LHD	BG3314631BA Harness Assy, Drivers Door, LHD 11MY	-	1	Enquire
6	8G3314K103TB	RH CABIN HARNESS RHD ROADSTER MANUAL	8G3314K103TB RH CABIN HARNESS RHD ROADSTER MANUAL 08MY From (V) D07649	-	1	Enquire
6	8G3314K103VB	RH CABIN HARNESS RHD ROADSTER ASM	8G3314K103VB RH CABIN HARNESS RHD ROADSTER ASM 08MY From (V) D07649	-	1	Enquire
6	8G3314A005TB	LH CABIN HARNESS LHD ROADSTER MANUAL	8G3314A005TB LH CABIN HARNESS LHD ROADSTER MANUAL 08MY From (V) D07649	-	1	Enquire
6	8G3314A005VB	LH CABIN HARNESS LHD ROADSTER ASM	8G3314A005VB LH CABIN HARNESS LHD ROADSTER ASM 08MY From (V) D07649	-	1	Enquire
6	8G3314K103UB	RH CABIN HARNESS RHD ROADSTER MANUAL	8G3314K103UB RH CABIN HARNESS RHD ROADSTER MANUAL 08MY From (V) D07649	-	1	Enquire
6	8G3314A005UB	LH CABIN HARNESS LHD ROADSTER MANUAL	8G3314A005UB LH CABIN HARNESS LHD ROADSTER MANUAL 08MY From (V) D07649	-	1	Enquire
6	8G3314A005WB	LH CABIN HARNESS LHD ROADSTER ASM	8G3314A005WB LH CABIN HARNESS LHD ROADSTER ASM 08MY From (V) D07649	-	1	Enquire
6	8G3314K103WB	RH CABIN HARNESS RHD ROADSTER ASM	8G3314K103WB RH CABIN HARNESS RHD ROADSTER ASM 08MY From (V) D07649	-	1	Enquire
6	6G3314K103TC	RH CABIN HARNESS RHD ROADSTER MANUAL	6G3314K103TC RH CABIN HARNESS RHD ROADSTER MANUAL 07MY	-	1	Enquire
6	9G3314K103TD	Harness, cabin, man, phne/sat nav/PDC/TMC/traker, RHD	9G3314K103TD Harness, cabin, man, phne/sat nav/PDC/TMC/traker, RHD 09MY	-	1	Enquire
6	6G3314K103VC	RH CABIN HARNESS RHD ROADSTER ASM	6G3314K103VC RH CABIN HARNESS RHD ROADSTER ASM 07MY	-	1	Enquire
6	9G3314K103VD	RH CABIN HARNESS RHDROADSTER ASM	9G3314K103VD RH CABIN HARNESS RHDROADSTER ASM 09MY	-	1	Enquire
6	6G3314A005TC	LH CABIN HARNESS LHD ROADSTER MANUAL	6G3314A005TC LH CABIN HARNESS LHD ROADSTER MANUAL 07MY	-	1	Enquire
6	9G3314A005TD	LH CABIN HARNESS LHD ROADSTER MANUAL	9G3314A005TD LH CABIN HARNESS LHD ROADSTER MANUAL 09MY	-	1	Enquire
6	6G3314A005VC	LH CABIN HARNESS LHD ROADSTER ASM	6G3314A005VC LH CABIN HARNESS LHD ROADSTER ASM 07MY	-	1	Enquire
6	9G3314A005VD	LH CABIN HARNESS LHD ROADSTER ASM	9G3314A005VD LH CABIN HARNESS LHD ROADSTER ASM 09MY	-	1	Enquire
6	CG3314A005ND	Harness, cabin, LHD, MANUAL, B&O, LHD	CG3314A005ND Harness, cabin, LHD, MANUAL, B&O, LHD 12MY	-	1	Enquire
6	CG3314A103ND	Harness, cabin, LHD, MANUAL, B&O, RHD	CG3314A103ND Harness, cabin, LHD, MANUAL, B&O, RHD 12MY	-	1	Enquire
6	CG3314A005TD	Harness, cabin, MANUAL, Alpine, LHD	CG3314A005TD Harness, cabin, MANUAL, Alpine, LHD 12MY	-	1	Enquire
6	CG3314A005RD	Harness, cabin, LHD, AUTO, B&O, LHD	CG3314A005RD Harness, cabin, LHD, AUTO, B&O, LHD 12MY	-	1	Enquire
6	CG3314A103TD	Harness, cabin, MANUAL, Alpine, RHD	CG3314A103TD Harness, cabin, MANUAL, Alpine, RHD 12MY	-	1	Enquire
6	CG3314A103RD	Harness, cabin, LHD, AUTO, B&O, RHD	CG3314A103RD Harness, cabin, LHD, AUTO, B&O, RHD 12MY	-	1	Enquire
6	CG3314A005VD	LH CABIN HARNESS LHD ROADSTER ASM	CG3314A005VD LH CABIN HARNESS LHD ROADSTER ASM 12MY	-	1	Enquire
6	CG3314A103VD	Harness, cabin, AUTO, Alpine, RHD	CG3314A103VD Harness, cabin, AUTO, Alpine, RHD 12MY	-	1	Enquire
6	6G3314K103UC	RH CABIN HARNESS RHD ROADSTER MANUAL	6G3314K103UC RH CABIN HARNESS RHD ROADSTER MANUAL 07MY	-	1	Enquire
6	9G3314K103UD	Harness, cabin, manual, std, RHD	9G3314K103UD Harness, cabin, manual, std, RHD 09MY	-	1	Enquire
6	6G3314A005UC	LH CABIN HARNESS LHD ROADSTER MANUAL	6G3314A005UC LH CABIN HARNESS LHD ROADSTER MANUAL 07MY	-	1	Enquire
6	9G3314A005UD	Harness, cabin, manual std, LHD	9G3314A005UD Harness, cabin, manual std, LHD 09MY	-	1	Enquire
6	6G3314A005WC	LH CABIN HARNESS LHD ROADSTER ASM	6G3314A005WC LH CABIN HARNESS LHD ROADSTER ASM 07MY	-	1	Enquire
6	9G3314A005WD	Harness, cabin, ASM, std, LHD	9G3314A005WD Harness, cabin, ASM, std, LHD 09MY	-	1	Enquire
6	6G3314K103WC	RH CABIN HARNESS RHD ROADSTER ASM	6G3314K103WC RH CABIN HARNESS RHD ROADSTER ASM 07MY	-	1	Enquire
6	9G3314K103WD	Harness, cabin, ASM, std, RHD	9G3314K103WD Harness, cabin, ASM, std, RHD 09MY	-	1	Enquire
7	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	-	1	Enquire
7	4G4314A280FC	Earth Braid, Antenna Module	4G4314A280FC Earth Braid, Antenna Module	-	1	Enquire
