Receiver and Audio Media System

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Receiver and Audio Media System

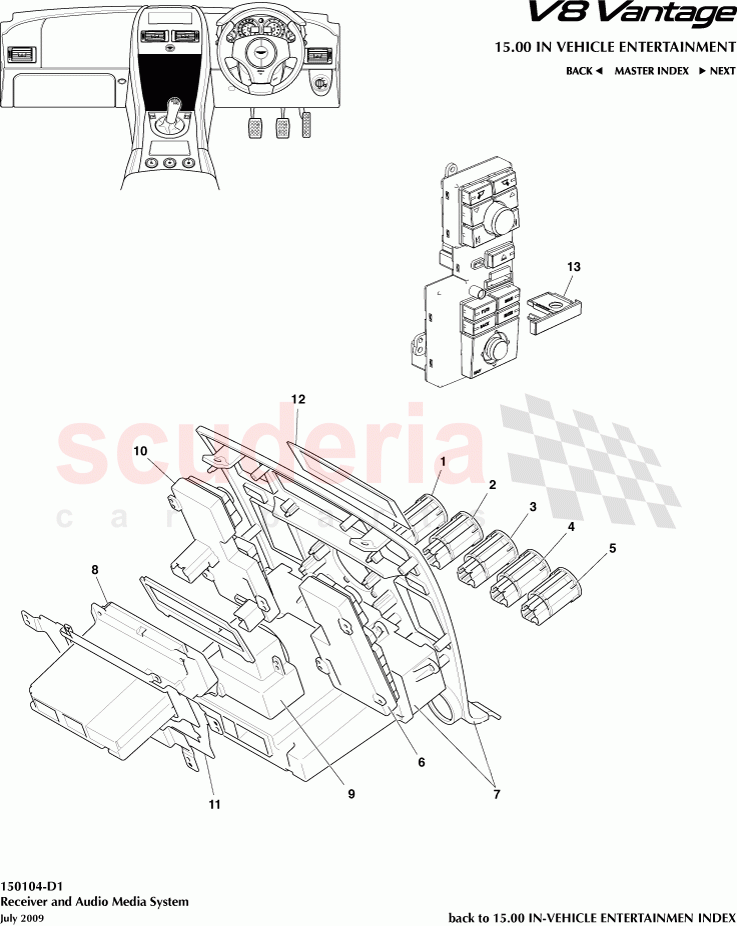

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G3315K237BB FOGLAMP SWITCH $47.23 To Order
Photo Part No Description Price (each) Stock
6G332C418AA DSC CONTROL SWITCH $51.54 To Order
Photo Part No Description Price (each) Stock
6G3313A350AA HAZARD WARNING SWITCH $55.88 To Order
Photo Part No Description Price (each) Stock
4G4319E755AE AIRCON RECIRCULATION SWITCH $89.48 To Order
Photo Part No Description Price (each) Stock
6G3319E755BA AIRCON REQUEST SWITCH $136.55 To Order
Photo Part No Description Price (each) Stock
8D3313D734AB AUDIO CTRL MODULE $267.90 To Order
4G4313D734DE TELEPHONE SWITCHPACK $902.16 To Order
7G3313D734GA TELEPHONE SWITCHPACK $902.16 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
7G3318C612AA HVAC ECU/CCM $1,732.65 To Order
4G4318C612AJ Module, HVAC control $2,238.02 To Order
6G3318C612AH Module, HVAC control, Inc face plt, anthracite Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8G4318K810AA ICM HARDWARE $3,080.26 To Order
6G3318K810AA INTEGRATED CONTROL MODULE DRIVER INTERFACE (WHITE) $1,267.61 To Order
4G433810585 DRIVER INFO MODULE (KPH) & ICM KIT MADE TO ORDER in24Hr $4,038.77 To Order
Photo Part No Description Price (each) Stock
4G4315000AD ANALOGUE CLOCK $721.71 To Order
Photo Part No Description Price (each) Stock
7G4313D734AA NAVIGATION SWITCHPACK WITH PAD LAMP $913.30 To Order
7G4313D734JA Switchpack, non nav with pad lamp, graphite Enquire To Order
7G3313D734JA NON NAV SWITCHPACK ASSEMBLY WITH PAD LAMP $876.52 To Order
...and 16 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G4318C830DB SUPPORT BRACKET $231.90 To Order
701157PK Screw & Washer 4.2 x 16 (Pack of 10) $2.80 To Order
Photo Part No Description Price (each) Stock
4G433710223 RADIO VISOR PANEL $317.91 To Order
Photo Part No Description Price (each) Stock
4G4313D734GB SIM CARD HOLDER DRAWER $20.29 To Order
7G3313D734KA GRAPHITE $20.29 To Order
6G3313D734KA SIM CARD HOLDER DRAWER ANTHRACITE $20.29 To Order
View All
Receiver and Audio Media System of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8G3318C815FB
CENTRE STACK ASSY NON NAV /PAD LHD
08MY (V) D07649 - Federal 		$5,248.87 1
- 8G3318C815EB
CENTRE STACK ASSY NAV /PAD LHD
08MY (V) D07649 - Federal 		$5,248.87 1
- 8G3318C858KB
Centre stack assy, LHD, non nav, PAD, graphite, Federal
08MY (V) D07649 		- 1 Enquire
- 8G3318C858EB
Centre stack assy, LHD, nav, no tel, no tele, graphite
08MY (V) D07649 		- 1 Enquire
- 8G3318C858JB
Centre stack assy, LHD, nav, PAD, graphite, Federal
08MY (V) D07649 		- 1 Enquire
- 8G3318C858AB
Centre stack assy, LHD, no nav, no tel, graphite
08MY (V) D07649 		- 1 Enquire
- 8G3318C858BB
Centre stack assy, RHD, tel, no nav, graphite
08MY (V) D07649 		- 1 Enquire
- 8G3318C858FB
Centre stack assy, RHD, nav, no tel, graphite
08MY (V) D07649 		- 1 Enquire
- 8G3318C815AB
CENTRE STACK ASSY NON NAV WITHOUT
08MY (V) D07649 		$5,002.75 1
- 8G3318C815CB
CENTRE STACK ASSY NAV WITHOUT PHONE
08MY (V) D07649 		$5,002.75 1
- 7G3318C858NA
Centre stack assy, LHD, no nav, no tel, PAD, graphite- FED
07MY Federal 		- 1 Enquire
- 7G4318C858BA
CENTRE STACK ASSY NON NAV / PAD
07MY Federal 		- 1 Enquire
- 7G4318C858AA
CENTRE STACK ASSY NAV / PAD
07MY Federal 		- 1 Enquire
- 7G3318C858BA
Centre stack assy, LHD, no nav, PAD, anthracite- FED
07MY Federal 		- 1 Enquire
- 7G3318C858LA
Centre stack assy, RHD, nav tel PAD, graphite- FED
07MY Federal 		- 1 Enquire
- 7G3318C858AA
Centre stack assy, LHD, nav, PAD, anthracite- FED
07MY Federal 		- 1 Enquire
- 7G3318C858MA
Centre stack assy, LHD, nav, PAD, graphite- FED
07MY Federal 		- 1 Enquire
- 7G3318C815DA
CENTRE STACK ASSY NON NAV / PAD
07MY 		$5,002.75 1
- 7G4318C815BA
CENTRE STACK ASSY NON NAV / PAD
07MY 		$5,002.75 1
- 7G3318C815FA
CENTRE STACK ASSY NON NAV / TEL
07MY 		$5,002.75 1
- 7G3318C815EA
CENTRE STACK ASSY NON NAV / NON TEL
07MY 		$5,002.75 1
- 7G4318C815AA
CENTRE STACK ASSY NAV / PAD
07MY 		$5,002.75 1
- 7G3318C815BA
CENTRE STACK ASSY NON NAV / PAD
07MY 		$5,002.75 1
- 7G3318C815HA
CENTRE STACK ASSY NAV / TEL
07MY 		$5,002.75 1
- 4G4318C815BB
CENTRE STACK ASSY NON NAV / TEL
07MY 		$4,018.63 1
- 7G3318C858CA
Centre stack assy, LHD, non nav, no tel, graphite
07MY 		- 1 Enquire
- 4G4318C815CB
CENTRE STACK ASSY NAV / NON TEL
07MY 		$5,002.75 1
- 7G3318C815GA
CENTRE STACK ASSY NAV/ NON TEL
07MY 		$5,002.75 1
- 7G3318C815AA
CENTRE STACK ASSY NAV / PAD
07MY 		$5,002.75 1
- 6G4318C858AB
CENTRE STACK ASSY NON NAV/NON TEL LHD
07MY 		- 1 Enquire
- 7G3318C858DA
Centre stack assy, RHD, no nav no tel, graphite
07MY 		- 1 Enquire
- 7G3318C858FA
Centre stack assy, RHD, no nav/ tel, graphite
07MY 		- 1 Enquire
- 4G4318C815DB
CENTRE STACK ASSY NAV / TEL
07MY 		$5,002.75 1
- 7G3318C858EA
Centre stack assy, LHD, no nav, tel, graphite
07MY 		- 1 Enquire
- 7G3318C858GA
Centre stack assy, LHD, nav, no tel, graphite
07MY 		- 1 Enquire
- 7G3318C815CA
CENTRE STACK ASSY NAV/PAD
07MY 		$5,002.75 1
- 6G4318C858CB
CENTRE STACK ASSY NON NAV/TEL LHD
07MY 		- 1 Enquire
- 6G4318C858EB
CENTRE STACK ASSY NAV / NON TEL LHD
07MY 		$5,293.77 1
- 6G4318C858DB
CENTRE STACK ASSY NON NAV/TEL RHD
07MY 		$5,293.77 1
- 6G4318C858FB
CENTRE STACK ASSY NAV / NON TEL RHD
07MY 		$5,293.77 1
- 7G3318C858JA
Centre stack assy, RHD, nav no tel, graphite
07MY 		- 1 Enquire
- 4G4318C815AB
CENTRE STACK ASSY NON NAV/NON TEL
07MY 		$4,018.63 1
- 7G3318C858KA
Centre stack assy, LHD, nav, tel, graphite
07MY 		- 1 Enquire
- 6G4318C858GB
CENTRE STACK ASSY NAV / TEL LHD
07MY 		$5,293.77 1
- 6G4318C858HB
CENTRE STACK ASSY NAV / TEL RHD
07MY 		$5,293.77 1
- 6G4318C858BB
CENTRE STACK ASSY NON NAV/NON TEL RHD
07MY 		- 1 Enquire
- 6G3318C858AB
CENTRE STACK ASSY - NON NAV / NON TEL / NON TELEMATICS LHD 		- 1 Enquire
- 6G3318C858CB
CENTRE STACK ASSY - NON NAV / TEL NON TELEMATICS LHD 		- 1 Enquire
- 6G3318C858EB
CENTRE STACK ASSY - NAV / NON TEL / NON TELEMATICS LHD 		- 1 Enquire
- 6G3318C858GB
CENTRE STACK ASSY - NAV / TEL NON TELEMATICS LHD 		- 1 Enquire
- 6G3318C815FA
CENTRE STACK ASSY NON NAV WITH PHONE BLACK 		- 1 Enquire
- 6G3318C815EA
CENTRE STACK ASSY NON NAV WITHOUT PHONE - BLACK 		- 1 Enquire
- 6G3318C858DB
CENTRE STACK TEL NAV 		- 1 Enquire
- 6G3318C858HB
CENTRE STACK ASSY NAV WITH PHONE RHD 		$5,293.77 1
- 6G3318C815HA
CENTRE STACK ASSY NAV WITH PHONE BLACK 		- 1 Enquire
- 6G3318C815DB
CENTRE STACK ASSY NAV WITH PHONE 		$4,920.77 1
- 6G3318C858KA
CENTRE STACK ASSY - NON NAV WITH PHONE LHD - BLACK 		- 1 Enquire
- 6G3318C858BB
CTR STACK TEL NO NAV 		- 1 Enquire
- 6G3318C858FB
CENTRE STACK ASSY NAV W/OUT PHONE RHD 		- 1 Enquire
- 6G3318C858LA
CENTRE STACK ASSY NON NAV WITH PHONE RHD - BLACK 		- 1 Enquire
- 6G3318C815GA
CENTRE STACK ASSY NAV WITHOUT PHONE BLACK 		- 1 Enquire
- 6G3318C815BB
CENTRE STACK ASSY NON NAV WITH PHONE 		$4,264.67 1
- 6G3318C858IA
CENTRE STACK ASSY - NON NAV WITHOUT PHONE LHD - BLACK 		- 1 Enquire
- 6G3318C858OA
CENTRE STACK ASSY - NAV WITH PHONE LHD BLACK 		- 1 Enquire
- 6G3318C858PA
CENTRE STACK ASSY NAV WITH PHONE RHD BLACK 		- 1 Enquire
- 6G3318C815AB
CENTRE STACK ASSY NON NAV WITHOUT PHONE 		$3,936.63 1
- 6G3318C858JA
CENTRE STACK ASSY NON NAV WITHOUT PHONE RHD - BLACK 		- 1 Enquire
- 6G3318C858MA
CENTRE STACK ASSY - NAV WITHOUT PHONE LHD - BLACK 		- 1 Enquire
- 6G3318C858NA
CENTRE STACK ASSY NAV WITHOUT PHONE RHD - BLACK 		- 1 Enquire
- 6G3318C815CB
CENTRE STACK ASSY NAV WITHOUT PHONE 		$4,264.67 1
1 6G3315K237BB
FOGLAMP SWITCH 		$47.23 1
2 6G332C418AA
DSC CONTROL SWITCH 		$51.54 1
3 6G3313A350AA
HAZARD WARNING SWITCH 		$55.88 1
4 4G4319E755AE
AIRCON RECIRCULATION SWITCH 		$89.48 1
5 6G3319E755BA
AIRCON REQUEST SWITCH 		$136.55 1
6 8D3313D734AB
AUDIO CTRL MODULE
08MY (V) D07649 		$267.90 1
6 4G4313D734DE
TELEPHONE SWITCHPACK
07MY 		$902.16 1
6 7G3313D734GA
TELEPHONE SWITCHPACK
07MY 		$902.16 1
6 6G3313D734EA
TEL SWITCHPACK 		$893.07 1
7 7G3318C612AA
HVAC ECU/CCM
08MY (V) D07649 		$1,732.65 1
7 4G4318C612AJ
Module, HVAC control 		$2,238.02 1
7 6G3318C612AH
Module, HVAC control, Inc face plt, anthracite 		- 1 Enquire
7 7G3318C612AA
HVAC ECU/CCM 		$1,732.65 1
8 8G4318K810AA
ICM HARDWARE
08MY (V) D07649 		$3,080.26 1
8 6G3318K810AA
INTEGRATED CONTROL MODULE DRIVER INTERFACE (WHITE)
07MY 		$1,267.61 1
8 4G433810585
DRIVER INFO MODULE (KPH) & ICM KIT MADE TO ORDER in24Hr 		$4,038.77 1
9 4G4315000AD
ANALOGUE CLOCK 		$721.71 1
10 7G4313D734AA
NAVIGATION SWITCHPACK WITH PAD LAMP
08MY (V) D07649 - Federal 		$913.30 1
10 7G4313D734JA
Switchpack, non nav with pad lamp, graphite
08MY (V) D07649 		- 1 Enquire
10 7G3313D734JA
NON NAV SWITCHPACK ASSEMBLY WITH PAD LAMP
07MY - Federal 		$876.52 1
10 7G3313D734BA
NON NAVIGATION SWITCHPACK WITH PAD LAMP
07MY 		$876.52 1
10 4G4313D734FE
NON-NAV SWITCHPACK WITHOUT SIM
07MY 		$867.68 1
10 7G3313D734AA
NAVIGATION SWITCHPACK WITH PAD LAMP
07MY 		$922.59 1
10 7G4313D734AA
NAVIGATION SWITCHPACK WITH PAD LAMP
07MY 		$913.30 1
10 7G4313D734BA
NON NAVIGATION SWITCHPACK WITH PAD LAMP
07MY 		$867.68 1
10 4G4313D734CE
NON-NAV SWITCHPACK WITH SIM
07MY 		$876.52 1
10 4G4313D734EE
NAV SWITCHPACK WITHOUT SIM
07MY 		$913.30 1
10 4G4313D734AE
NAVIGATION SWITCHPACK WITH SIM
07MY 		$922.59 1
10 7G3313D734CA
NON NAV SWITCHPACK ASSEMBLY WITHOUT SIM
07MY 		$876.52 1
10 7G3313D734DA
NON NAV SWITCHPACK ASSEMBLY WITH SIM
07MY 		$876.52 1
10 7G3313D734EA
NAV SWITCHPACK ASSEMBLY WITHOUT SIM
07MY 		$941.11 1
10 7G3313D734FA
NAV SWITCHPACK ASSEMBLY WITH SIM
07MY 		$922.59 1
10 7G3313D734HA
NAV SWITCHPACK ASSEMBLY WITH PAD LAMP
07MY 		$922.59 1
10 6G3313D734IA
Switchpack, no nav without SIM, anthracite 		- 1 Enquire
10 6G3313D734BA
NAV SWITCHPACK WITHOUT SIM 		$913.30 1
10 6G3313D734HA
Switchpack, no nav with SIM, anthracite 		- 1 Enquire
11 4G4318C830DB
SUPPORT BRACKET 		$231.90 1
11 701157PK
Screw & Washer 4.2 x 16 (Pack of 10) 		$2.80 4
12 4G433710223
RADIO VISOR PANEL
upto 08 MY 		$317.91 1
13 4G4313D734GB
SIM CARD HOLDER DRAWER
07MY 		$20.29 1
13 7G3313D734KA
GRAPHITE
07MY 		$20.29 1
13 6G3313D734KA
SIM CARD HOLDER DRAWER ANTHRACITE 		$20.29 1
