Air Con Lines and Fittings (LHD) of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Air Con Lines and Fittings (LHD)

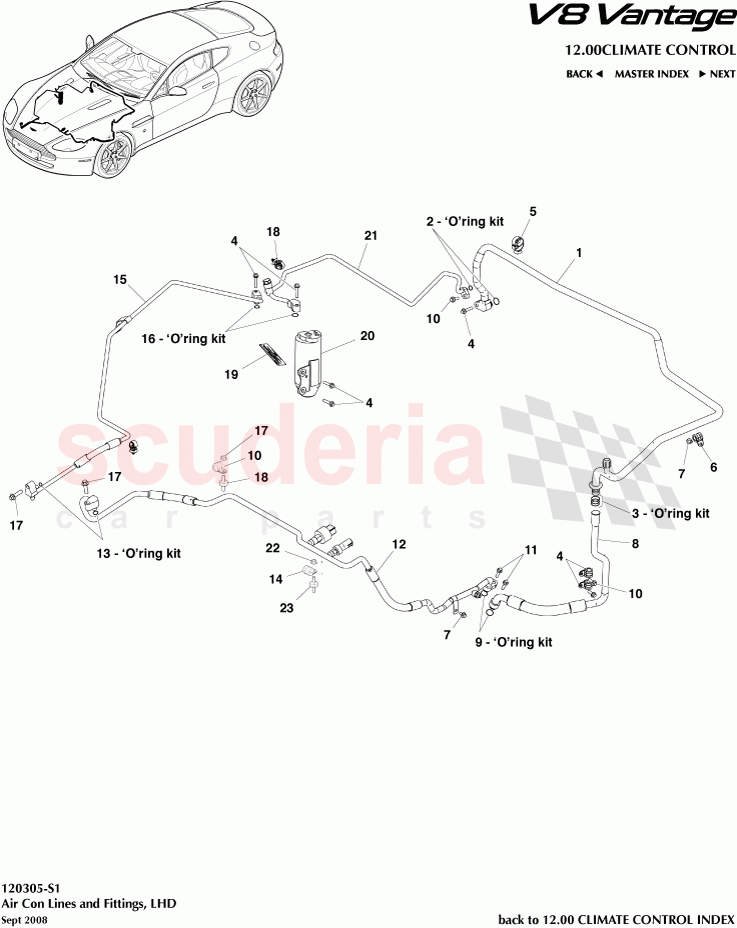

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AG3319A705BA	A/C TUBE-TXV TO COMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703199	Bolt M6x30 HEX FLG Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702291	Clip, 11-18 x 6.5 x 7	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699699	'P' CLIP - 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3319A705AA	TUBE-A/C EVAP OUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HG3319972AA	AIR CONDITIONING HOSE PIPE	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	699634	P-Clip,13 x 15 x M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HG3319D719AA	TUBE AC DEHY INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701180	Clip, 14 x 4, Push In	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319E891AD	Air Conditioning Drier	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3319835BA	TUB ASY A/C DEHY TO	Enquire	To Order
	AG3319835BA	TUB ASY A/C DEHY TO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G336C778BA	Isolator, Oil Cooler Pipe Mounting	Enquire	To Order
	4G43717B19AB	Air con refrigerant	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AG3319A705BA	A/C TUBE-TXV TO COMP	AG3319A705BA A/C TUBE-TXV TO COMP	-	1	Enquire
2	6G438910446PK	O RING-V8 EVAPORATOR PACK OF 2	6G438910446PK O RING-V8 EVAPORATOR PACK OF 2	-	1	Enquire
3	4G438910912PK	O-RINGS-EVAP & COND A/C PIPES (PACK OF 3)	4G438910912PK O-RINGS-EVAP & COND A/C PIPES (PACK OF 3)	-	1	Enquire
4	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free	-	5	Enquire
5	702291	Clip, 11-18 x 6.5 x 7	702291 Clip, 11-18 x 6.5 x 7	-	1	Enquire
6	699699	'P' CLIP - 16	699699 'P' CLIP - 16	-	3	Enquire
7	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
8	AG3319A705AA	TUBE-A/C EVAP OUT	AG3319A705AA TUBE-A/C EVAP OUT	-	1	Enquire
9	4G438910909PK	O-Ring Compressor (Pack of 2)	4G438910909PK O-Ring Compressor (Pack of 2)	-	1	Enquire
10	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	3	Enquire
11	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head	-	2	Enquire
12	HG3319972AA	AIR CONDITIONING HOSE PIPE ARRIVING SOON	HG3319972AA AIR CONDITIONING HOSE PIPE ARRIVING SOON	-	1	Enquire
13	4G438910910PK	O Rings-DB9 & V8 Condenser (Pack of 2)	4G438910910PK O Rings-DB9 & V8 Condenser (Pack of 2)	-	1	Enquire
14	699634	P-Clip,13 x 15 x M6	699634 P-Clip,13 x 15 x M6	-	2	Enquire
15	HG3319D719AA	TUBE AC DEHY INLET	HG3319D719AA TUBE AC DEHY INLET	-	1	Enquire
16	4G438910908PK	O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)	4G438910908PK O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)	-	1	Enquire
17	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	2	Enquire
18	701180	Clip, 14 x 4, Push In	701180 Clip, 14 x 4, Push In	-	5	Enquire
20	4G4319E891AD	Air Conditioning Drier	4G4319E891AD Air Conditioning Drier	-	1	Enquire
21	AG3319835BA	TUB ASY A/C DEHY TO	AG3319835BA TUB ASY A/C DEHY TO 08MY From (V) D07649	-	1	Enquire
21	AG3319835BA	TUB ASY A/C DEHY TO	AG3319835BA TUB ASY A/C DEHY TO 07MY	-	1	Enquire
22	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	2	Enquire
23	6G336C778BA	Isolator, Oil Cooler Pipe Mounting	6G336C778BA Isolator, Oil Cooler Pipe Mounting	-	2	Enquire
23	4G43717B19AB	Air con refrigerant	4G43717B19AB Air con refrigerant	-	-	Enquire
