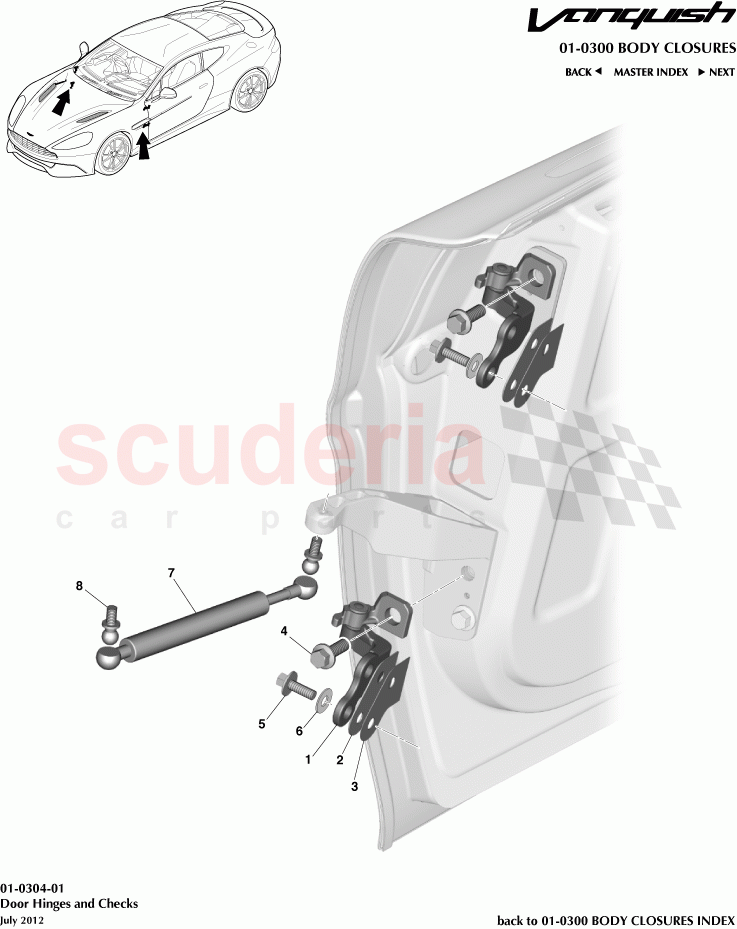

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G436510055	HINGE FRONT DOOR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD3322817AA	Shim, Door Hinge, 1.2mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD3322816AA	Shim, Door Hinge, 0.6mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43201262AA	Screw/Washer, M8 x 25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697452	Washer, M8 x 24 x 1.8, Black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4323504AB	Stay Front Door	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12640101AA	Ball Stud	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G436510056	Hinge Assy, Front Door, LH	4G436510056 Hinge Assy, Front Door, LH	-	2	Enquire
1	4G436510055	HINGE FRONT DOOR RH	4G436510055 HINGE FRONT DOOR RH	-	2	Enquire
2	DD3322817AA	Shim, Door Hinge, 1.2mm	DD3322817AA Shim, Door Hinge, 1.2mm	-	8	Enquire
3	DD3322816AA	Shim, Door Hinge, 0.6mm	DD3322816AA Shim, Door Hinge, 0.6mm	-	8	Enquire
4	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Pack of 10	-	4	Enquire
5	DG43201262AA	Screw/Washer, M8 x 25	DG43201262AA Screw/Washer, M8 x 25	-	8	Enquire
6	697452	Washer, M8 x 24 x 1.8, Black	697452 Washer, M8 x 24 x 1.8, Black	-	4	Enquire
7	4G4323504AB	Stay Front Door	4G4323504AB Stay Front Door	-	2	Enquire
8	1R12640101AA	Ball Stud	1R12640101AA Ball Stud	-	4	Enquire
