Aston Martin Vanquish (2012+) - Body Dash and Cowl, VOLANTE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ED33L03014BC Frame Assembly, Windshield $5,830.79 To Order
Photo Part No Description Price (each) Stock
GOGG33F02526AA REINF FRT BDY PLR $332.81 To Order
Photo Part No Description Price (each) Stock
6G3368676AC Rivet Structural 6.5 x 14, Blind $1.25 To Order
Photo Part No Description Price (each) Stock
GODG43F292650AC Plenum, Lower $318.30 To Order
Photo Part No Description Price (each) Stock
GODD4371023AE Cowl, Reinforcement Casting Enquire To Order
Photo Part No Description Price (each) Stock
DG4316430AA Reinforcement, Hood Striker Plate, RH $59.58 To Order
Photo Part No Description Price (each) Stock
DG4316431AA Reinforcement, Hood Striker Plate, LH $48.44 To Order
Photo Part No Description Price (each) Stock
6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni $0.68 To Order
Photo Part No Description Price (each) Stock
6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni $1.93 To Order
Photo Part No Description Price (each) Stock
8G43199901AA Nutplate, M6 Headlamp Bracket $6.13 To Order
Photo Part No Description Price (each) Stock
6G3337949AA DIA 4.8 X 13.9 BLIND RIVET $0.12 To Order
Photo Part No Description Price (each) Stock
GODG4317F790BA Nutplate, Shotgun, M10 $50.76 To Order
Photo Part No Description Price (each) Stock
GODG4319414AA Adaptor, Plenum Lower, RH $23.44 To Order
Photo Part No Description Price (each) Stock
GODG4319415AA Adaptor, Plenum Lower, LH $23.44 To Order
Photo Part No Description Price (each) Stock
AG339N790BA Spacer Assy, Accelerator Pedal, RHD Enquire To Order
Photo Part No Description Price (each) Stock
GOED33F02660AA Pillar, Front Body, Lower Front, RH Enquire To Order
Photo Part No Description Price (each) Stock
GOED33F02661AA Pillar, Front Body, Lower Front, LH $179.96 To Order
Photo Part No Description Price (each) Stock
ED3371491AA Nutplate, A Post Hinge, Upper, LH $38.96 To Order
Photo Part No Description Price (each) Stock
6G3315111AB Nutplate M8, ??post hinge, lower, LH $8.79 To Order
Photo Part No Description Price (each) Stock
ED3371490AA Nutplate, A Post Hinge, Upper, RH $39.46 To Order
Photo Part No Description Price (each) Stock
6G3315110AB Nutplate M8, ??post hinge, lower, RH $13.44 To Order
Photo Part No Description Price (each) Stock
GOED33F02662AA Extrusion, Front Body Pillar Lower, RH Enquire To Order
Photo Part No Description Price (each) Stock
GOED33F02663AA Extrusion, Front Body Pillar Lower, LH $99.90 To Order
Photo Part No Description Price (each) Stock
6G33486226AA Nutplate, M8, IP beam $9.75 To Order
Photo Part No Description Price (each) Stock
DD3318178AA Bracket, Gas Damper Mounting $62.44 To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.29 IN STOCK
Photo Part No Description Price (each) Stock
6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head $0.37 To Order
Photo Part No Description Price (each) Stock
7G43C2437AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE $149.25 To Order
View All

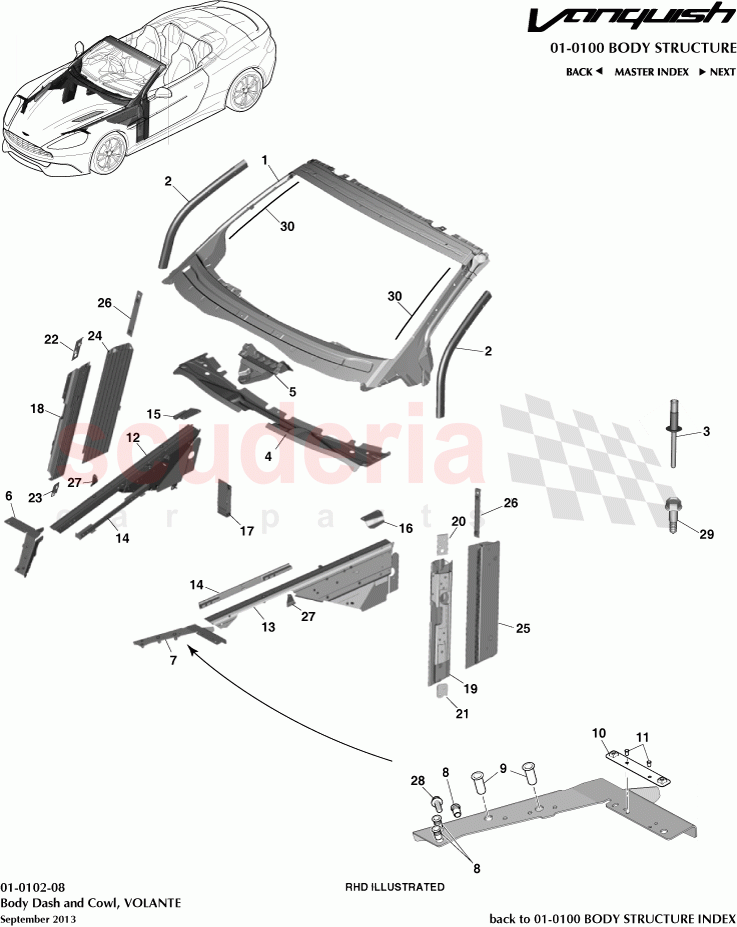

Body Dash and Cowl, VOLANTE of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 ED33L03014BC
Frame Assembly, Windshield
Structural. Cat A Only 		$5,830.79 1
2 GOGG33F02526AA
REINF FRT BDY PLR
Structural. Cat A Only 		$332.81 2
3 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		$1.25 A/R
4 GODG43F292650AC
Plenum, Lower
Structural. Cat A Only 		$318.30 1
5 GODD4371023AE
Cowl, Reinforcement Casting
Structural. Cat A Only 		- 1 Enquire
6 DG4316430AA
Reinforcement, Hood Striker Plate, RH
Includes Items 8 and 9, Structural. Cat A Only 		$59.58 1
7 DG4316431AA
Reinforcement, Hood Striker Plate, LH
Includes Items 8 and 9, Structural. Cat A Only 		$48.44 1
8 6G3356316AA
RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni 		$0.68 6
9 6G3346768AA
RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni 		$1.93 4
10 8G43199901AA
Nutplate, M6 Headlamp Bracket
Structural. Cat A Only 		$6.13 2
11 6G3337949AA
DIA 4.8 X 13.9 BLIND RIVET 		$0.12 4
14 GODG4317F790BA
Nutplate, Shotgun, M10
Structural. Cat A Only 		$50.76 2
15 GODG4319414AA
Adaptor, Plenum Lower, RH
Structural. Cat A Only 		$23.44 1
16 GODG4319415AA
Adaptor, Plenum Lower, LH
Structural. Cat A Only 		$23.44 1
17 AG339N790BA
Spacer Assy, Accelerator Pedal, RHD
RHD, Structural. Cat A Only 		- 1 Enquire
18 GOED33F02660AA
Pillar, Front Body, Lower Front, RH
Structural. Cat A Only 		- 1 Enquire
19 GOED33F02661AA
Pillar, Front Body, Lower Front, LH
Structural. Cat A Only 		$179.96 1
20 ED3371491AA
Nutplate, A Post Hinge, Upper, LH
Structural. Cat A Only 		$38.96 1
21 6G3315111AB
Nutplate M8, ??post hinge, lower, LH
Structural. Cat A Only 		$8.79 1
22 ED3371490AA
Nutplate, A Post Hinge, Upper, RH
Structural. Cat A Only 		$39.46 1
23 6G3315110AB
Nutplate M8, ??post hinge, lower, RH
Structural. Cat A Only 		$13.44 1
24 GOED33F02662AA
Extrusion, Front Body Pillar Lower, RH
Structural. Cat A Only 		- 1 Enquire
25 GOED33F02663AA
Extrusion, Front Body Pillar Lower, LH
Structural. Cat A Only 		$99.90 1
26 6G33486226AA
Nutplate, M8, IP beam
Structural. Cat A Only 		$9.75 2
27 DD3318178AA
Bracket, Gas Damper Mounting
Structural. Cat A Only 		$62.44 2
28 703121
Screw, M8 x 25, Hex Flange Head
IN STOCK 		$0.29 2
29 6G33375732AB
Screw, 5.5 x 19, Self Drill, Hex Flange head 		$0.37 2
30 7G43C2437AAW
CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE 		$149.25 2
