Grille Opening Panel

Aston Martin Vanquish (2012+)

Find Your Part

Aston Martin Vanquish (2012+) - Grille Opening Panel

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CD338136BB GRL ASSY RAD CTR Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
CG43403D62AA Seal, Upper Panel, Air Vent Enquire To Order
Photo Part No Description Price (each) Stock
FD43F01991AB PNL VEN AIR LH Enquire To Order
Photo Part No Description Price (each) Stock

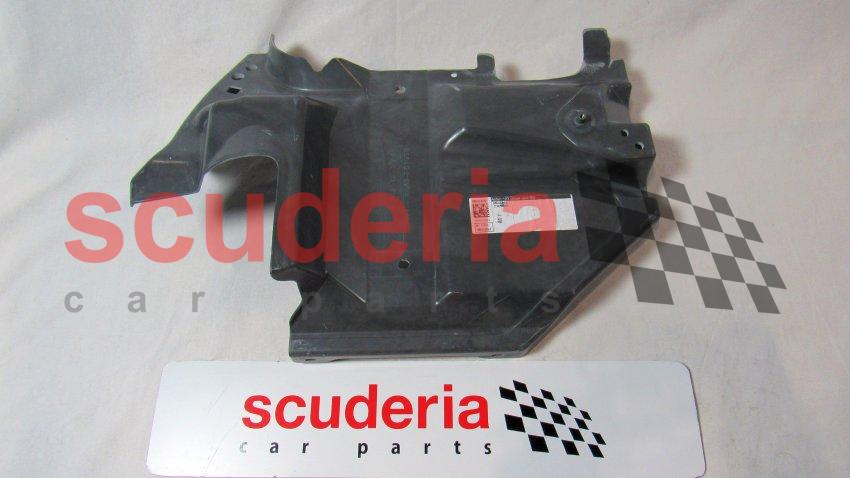

DG43F01990AC Panel, Air Vent, RH Enquire To Order
Photo Part No Description Price (each) Stock
703740 NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG Enquire To Order
Photo Part No Description Price (each) Stock
703139 Screw/Washer M8x20 Chrome Free Enquire To Order
Photo Part No Description Price (each) Stock
703201 SCREW M8 x 30 HEX FLANGE CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
697452 Washer, M8 x 24 x 1.8, Black Enquire To Order
Photo Part No Description Price (each) Stock
8D332D207AB DCT BRK CNTR COOL LH Enquire To Order
Photo Part No Description Price (each) Stock
8D332D206AB DCT BRK CNTR COOL RH Enquire To Order
Photo Part No Description Price (each) Stock
7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
8G432943751AB Beam, Radiator Support Lower Enquire To Order
Photo Part No Description Price (each) Stock

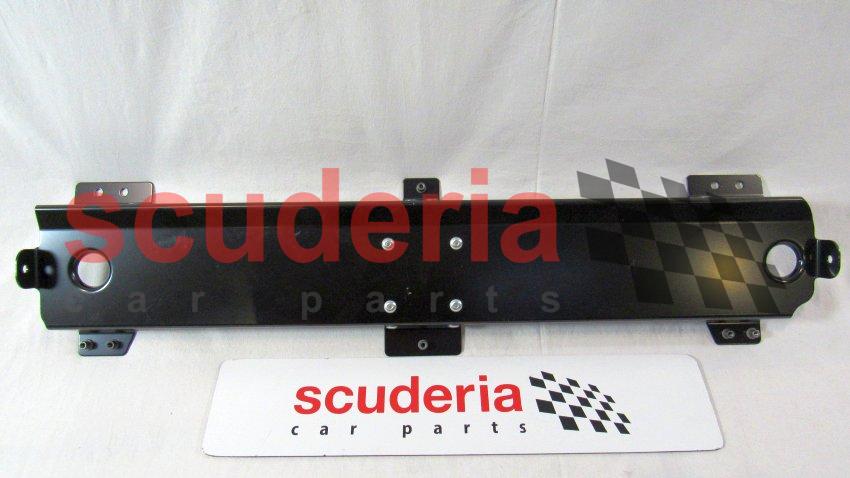

DG438052AA Cover Assembly, Radiator Support Lower Enquire To Order
Photo Part No Description Price (each) Stock
703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) Enquire To Order
Photo Part No Description Price (each) Stock
8D3342761AA Foam Pad, Cover Assy Radiator Support Enquire To Order
Photo Part No Description Price (each) Stock
CD33334611AA Foam, Bumper, LH Enquire To Order
Photo Part No Description Price (each) Stock
CD33334610AA Foam, Bumper, RH Enquire To Order
Photo Part No Description Price (each) Stock
4G43L41041AA Edge Strip, Black 2 x 40 Enquire To Order
Photo Part No Description Price (each) Stock
200020135PK Screw, M6 x 16, Flange Hex Head Enquire To Order
Photo Part No Description Price (each) Stock
CD338K070AA Nut Plate, Radiator Support Lower Enquire To Order
Photo Part No Description Price (each) Stock
CD3317E671AA Foam, Bumper, Upper, LH Enquire To Order
Photo Part No Description Price (each) Stock
CD3317E670AA Foam Bumper Upper RH Enquire To Order
Photo Part No Description Price (each) Stock

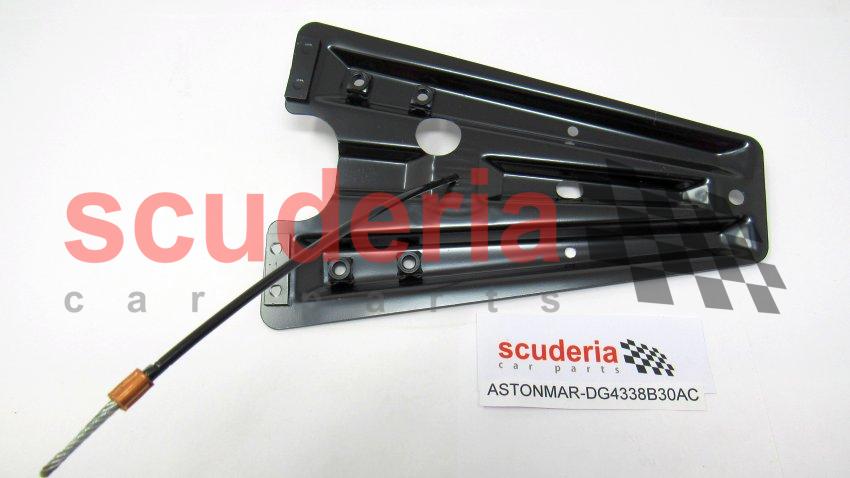

DG4338B30AC CENTRE CHAIN STRAP Enquire To Order
Photo Part No Description Price (each) Stock
697517PK WASHER-M6 LGE OD BLK PACK OF 20 Enquire To Order
Photo Part No Description Price (each) Stock
702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
DG4318B944AA Pad, Anti Rattle, 20 x 20 Enquire To Order
View All

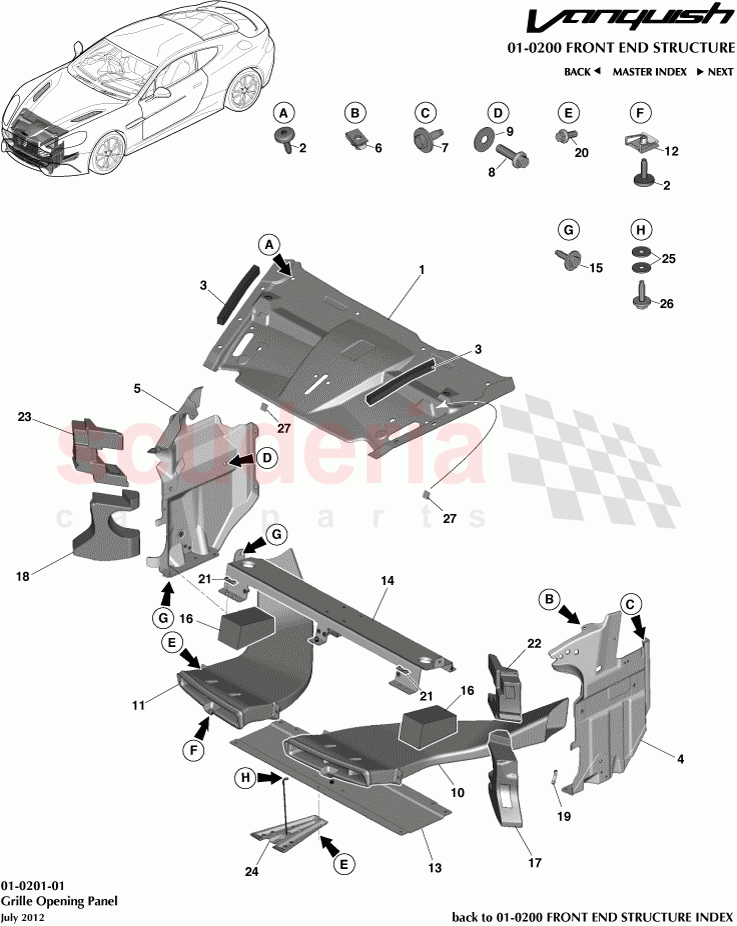

Grille Opening Panel of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
-- 703069
Screw, M6 x 16, Hex Flange Hd
Black 		- 11 Enquire
1 CD338136BB
GRL ASSY RAD CTR 		- 1 Enquire
2 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
Pack of 20 		- 18 Enquire
3 CG43403D62AA
Seal, Upper Panel, Air Vent 		- 2 Enquire
4 FD43F01991AB
PNL VEN AIR LH 		- 1 Enquire
5 DG43F01990AC
Panel, Air Vent, RH 		- 1 Enquire
6 703740
NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG 		- 2 Enquire
7 703139
Screw/Washer M8x20 Chrome Free 		- 4 Enquire
8 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE 		- 4 Enquire
9 697452
Washer, M8 x 24 x 1.8, Black 		- 4 Enquire
10 8D332D207AB
DCT BRK CNTR COOL LH 		- 1 Enquire
11 8D332D206AB
DCT BRK CNTR COOL RH 		- 1 Enquire
12 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
Pack of 10
ARRIVING SOON 		- 2 Enquire
13 8G432943751AB
Beam, Radiator Support Lower 		- 1 Enquire
14 DG438052AA
Cover Assembly, Radiator Support Lower 		- 1 Enquire
15 703152PK
Screw & Washer M6 x 20 Hex Head (Pack of 10)
Pack of 10 		- 6 Enquire
16 8D3342761AA
Foam Pad, Cover Assy Radiator Support 		- 2 Enquire
17 CD33334611AA
Foam, Bumper, LH 		- 1 Enquire
18 CD33334610AA
Foam, Bumper, RH 		- 1 Enquire
19 4G43L41041AA
Edge Strip, Black 2 x 40 		- 1 Enquire
20 200020135PK
Screw, M6 x 16, Flange Hex Head
Bright 		- 11 Enquire
21 CD338K070AA
Nut Plate, Radiator Support Lower 		- 2 Enquire
22 CD3317E671AA
Foam, Bumper, Upper, LH 		- 1 Enquire
23 CD3317E670AA
Foam Bumper Upper RH 		- 1 Enquire
24 DG4338B30AC
CENTRE CHAIN STRAP 		- 1 Enquire
25 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
Pack of 20 		- 2 Enquire
26 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20)
Pack of 10 		- 1 Enquire
27 DG4318B944AA
Pad, Anti Rattle, 20 x 20 		- 2 Enquire
