Underbody, VOLANTE of Aston Martin Aston Martin Vanquish (2012+)

View All

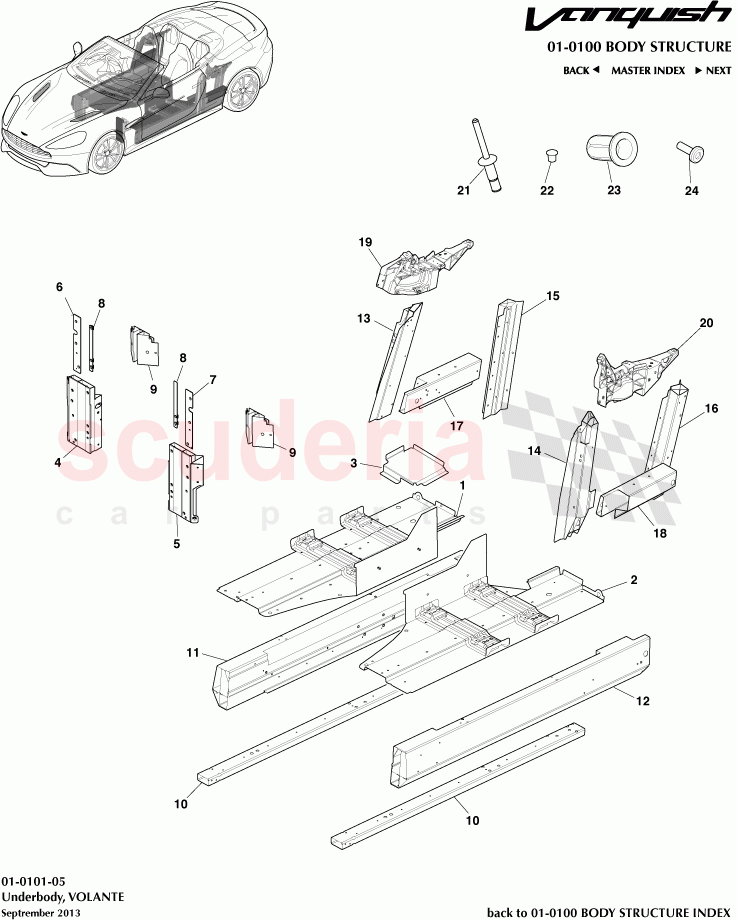

Aston Martin Vanquish (2012+) - Underbody, VOLANTE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G431610879S	Panel assy, floor, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD3311141AC	PANEL FLOOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4367342AA	SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432010876	FRONT SUBFRAME UPRIGHT ASSY RH-DB9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432010877	FRONT SUBFRAME UPRIGHT ASSY-LH DB9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F001K28AA	Bracket, tunnel upper inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4310120AA	Member, Floor, Side Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43L10116AD	Member, Floor Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33L10117AA	Member, Floor Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43L24312AC	Pillar, Centre Body, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43L24313AC	Pillar, Centre Body, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43L24314AA	Pillar, Centre Body, Outer Rear, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43L24315AA	Pillar, Centre Body, Outer Rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33101D06AA	Extrusion Member, Rear Floor Side Lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33101D07AA	Extrusion Member, Rear Floor Side Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33L243A60AE	REINF CTR BDY UPR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33L243A61AE	REINF CTR BDY UPR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368676AC	Rivet Structural 6.5 x 14, Blind	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368885AB	SELF PIERCING RIVET 5.0 x 6.0mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3333800AA	Rivnut, 7/16UNF hex flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G431610879S	Panel assy, floor, RH	4G431610879S Panel assy, floor, RH Vin Stamp Required, Structural Cat. A Only	-	1	Enquire
2	FD3311141AC	PANEL FLOOR LH	FD3311141AC PANEL FLOOR LH Structural Cat. A Only	-	1	Enquire
3	8G4367342AA	SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH	8G4367342AA SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH Structural Cat. A Only	-	1	Enquire
4	4G432010876	FRONT SUBFRAME UPRIGHT ASSY RH-DB9	4G432010876 FRONT SUBFRAME UPRIGHT ASSY RH-DB9 Structural Cat. A Only	-	1	Enquire
5	4G432010877	FRONT SUBFRAME UPRIGHT ASSY-LH DB9	4G432010877 FRONT SUBFRAME UPRIGHT ASSY-LH DB9 Structural Cat. A Only	-	1	Enquire
6	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	8G43434K10AA NUTPLATE FRONT END MOUNTING OUTER RH M12 Structural Cat. A Only	-	1	Enquire
7	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	8G43434K11AA NUTPLATE FRONT END MOUNTING OUTER LH M12 Structural Cat. A Only	-	1	Enquire
8	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	8G43390725AA NUT PLATE FRONT END MOUNTING INR M12 Structural Cat. A Only	-	2	Enquire
9	GOAG33F001K28AA	Bracket, tunnel upper inner	GOAG33F001K28AA Bracket, tunnel upper inner Structural Cat. A Only	-	2	Enquire
10	DG4310120AA	Member, Floor, Side Front	DG4310120AA Member, Floor, Side Front Structural Cat. A Only	-	2	Enquire
11	DG43L10116AD	Member, Floor Side, RH	DG43L10116AD Member, Floor Side, RH Structural Cat. A Only	-	1	Enquire
12	ED33L10117AA	Member, Floor Side, LH	ED33L10117AA Member, Floor Side, LH Structural Cat. A Only	-	1	Enquire
13	DG43L24312AC	Pillar, Centre Body, RH	DG43L24312AC Pillar, Centre Body, RH Structural Cat. A Only	-	1	Enquire
14	DG43L24313AC	Pillar, Centre Body, LH	DG43L24313AC Pillar, Centre Body, LH Structural Cat. A Only	-	1	Enquire
15	DG43L24314AA	Pillar, Centre Body, Outer Rear, RH	DG43L24314AA Pillar, Centre Body, Outer Rear, RH Structural Cat. A Only	-	1	Enquire
16	DG43L24315AA	Pillar, Centre Body, Outer Rear, LH	DG43L24315AA Pillar, Centre Body, Outer Rear, LH Structural Cat. A Only	-	1	Enquire
17	ED33101D06AA	Extrusion Member, Rear Floor Side Lower, RH	ED33101D06AA Extrusion Member, Rear Floor Side Lower, RH Structural Cat. A Only	-	1	Enquire
18	ED33101D07AA	Extrusion Member, Rear Floor Side Lower, LH	ED33101D07AA Extrusion Member, Rear Floor Side Lower, LH Structural Cat. A Only	-	1	Enquire
19	ED33L243A60AE	REINF CTR BDY UPR	ED33L243A60AE REINF CTR BDY UPR Structural Cat. A Only	-	1	Enquire
20	ED33L243A61AE	REINF CTR BDY UPR	ED33L243A61AE REINF CTR BDY UPR Structural Cat. A Only	-	1	Enquire
21	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	A/R	Enquire
22	6G3368885AB	SELF PIERCING RIVET 5.0 x 6.0mm	6G3368885AB SELF PIERCING RIVET 5.0 x 6.0mm	-	A/R	Enquire
23	6G3333800AA	Rivnut, 7/16UNF hex flange	6G3333800AA Rivnut, 7/16UNF hex flange	-	A/R	Enquire
24	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	A/R	Enquire
