Aston Martin Vanquish (2012+) - Body Rear End, VOLANTE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ED33L45108AE TRUNK LID SURROUND Enquire To Order
Photo Part No Description Price (each) Stock
ED33L47124AE PANEL FLOOR TRUNK Enquire To Order
Photo Part No Description Price (each) Stock
ED33L41623AD REINF DECKLID SUPT B Enquire To Order
Photo Part No Description Price (each) Stock
ED33L40334AC Panel, Upper Back Centre Enquire To Order
Photo Part No Description Price (each) Stock
ED33L10514AB Panel, Rear Floor Side Outer, RH Enquire To Order
Photo Part No Description Price (each) Stock
ED33L10515AB Panel, Rear Floor Side Outer, LH Enquire To Order
Photo Part No Description Price (each) Stock
GOED33L416W20AD REINF DECKLID SPRT B Enquire To Order
Photo Part No Description Price (each) Stock
GOED33L416W21AD REINF DECKLID SUPRT Enquire To Order
Photo Part No Description Price (each) Stock
ED33L46302AD Reinforcement, Tonneau Actuator, RH Enquire To Order
Photo Part No Description Price (each) Stock
ED33L46303AD Reinforcement, Tonneau Actuator, LH Enquire To Order
Photo Part No Description Price (each) Stock
CD3317F034BA Absorber Assembly, Bumper Rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
CD3317F035BA Absorber Assembly, Bumper Rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
CD3340338AD Reinforced Lower Back Centre Panel Enquire To Order
Photo Part No Description Price (each) Stock
DG43501B0AA Nut Plate, Rear Sub Frame, RH Enquire To Order
Photo Part No Description Price (each) Stock
DG43501B1AA Nut Plate, Rear Sub Frame, LH Enquire To Order
Photo Part No Description Price (each) Stock
ED33L41038AA Panel, Rear Corner, RH Enquire To Order
Photo Part No Description Price (each) Stock
ED33L41033AA Panel, Rear Corner, LH Enquire To Order
Photo Part No Description Price (each) Stock
ED33280C02AA Gasket, Rear Corner Panel, RH Enquire To Order
Photo Part No Description Price (each) Stock
ED33280C03AA Gasket, Rear Corner Panel, LH Enquire To Order
Photo Part No Description Price (each) Stock
ED33L279A54AE Panel, Quarter Wheel Housing Inner Rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
ED33L279A55AB Panel, Quarter Wheel Housing Inner Rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
ED33L41036AA Panel, Rear Quarter Infill Rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
ED33L41037AA Nut Plate, Rear Subframe, RH Enquire To Order
Photo Part No Description Price (each) Stock
6G33L205196AB Plug, Drain TLS Enquire To Order
Photo Part No Description Price (each) Stock
GOED33L36282AB Drain Pipe, TLS Enquire To Order
Photo Part No Description Price (each) Stock
6G33L80840AD Drain Plug, Rear Quarter Enquire To Order
Photo Part No Description Price (each) Stock
699094 Clip, Hose, Spring Loaded, 16-25 Enquire To Order
Photo Part No Description Price (each) Stock
ED33L82844AA Drain Pipe, Rear Quarter Enquire To Order
Photo Part No Description Price (each) Stock
6G3358500W04AB Grommet, Drain Hose Enquire To Order
Photo Part No Description Price (each) Stock
CD3328614AA Sealing Washer, Foam Enquire To Order
Photo Part No Description Price (each) Stock
CD3343422AA Washer, 81 x 21 x 1.6 Enquire To Order
Photo Part No Description Price (each) Stock
1R12640101AA Ball Stud Enquire To Order
Photo Part No Description Price (each) Stock
6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head Enquire To Order
Photo Part No Description Price (each) Stock
703120 Screw M8-1.25-90 Hex Socket Head Shoulder Enquire To Order
Photo Part No Description Price (each) Stock
4G435867827AB GAS STRUT BALL STUD M8 Enquire To Order
Photo Part No Description Price (each) Stock
703131 WASHER PLAIN FORM A M8 CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free Enquire To Order
View All

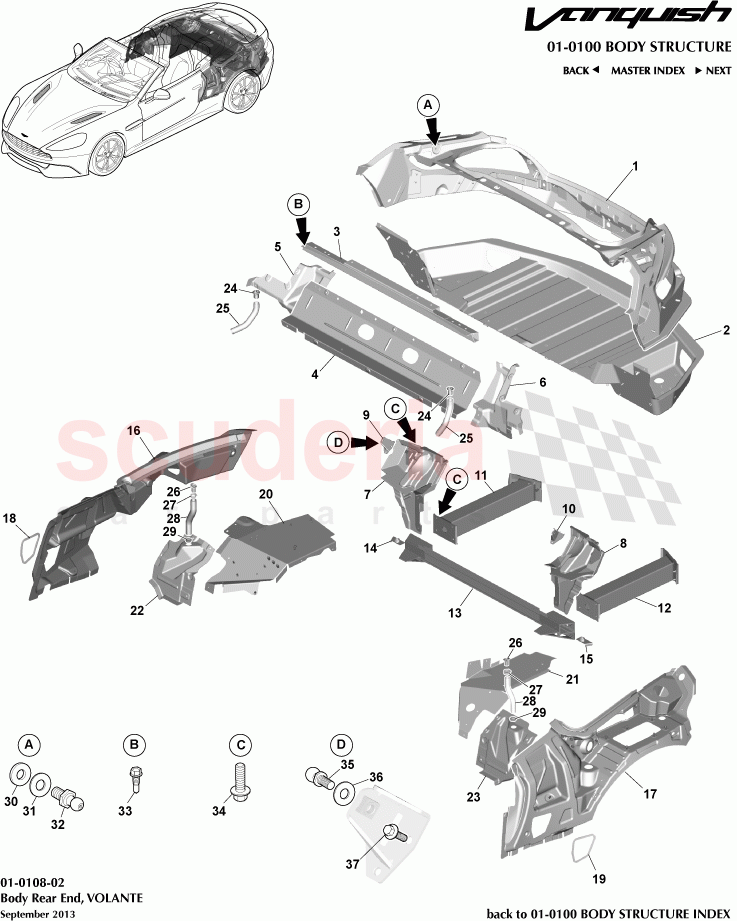

Body Rear End, VOLANTE of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 6G3368676AC
Rivet Structural 6.5 x 14, Blind
Not Illustrated 		- A/R Enquire
1 ED33L45108AE
TRUNK LID SURROUND
Structural. Cat A Only 		- 1 Enquire
2 ED33L47124AE
PANEL FLOOR TRUNK
Structural. Cat A Only 		- 1 Enquire
3 ED33L41623AD
REINF DECKLID SUPT B
Structural. Cat A Only 		- 1 Enquire
4 ED33L40334AC
Panel, Upper Back Centre
Structural. Cat A Only 		- 1 Enquire
5 ED33L10514AB
Panel, Rear Floor Side Outer, RH
Structural. Cat A Only 		- 1 Enquire
6 ED33L10515AB
Panel, Rear Floor Side Outer, LH
Structural. Cat A Only 		- 1 Enquire
7 GOED33L416W20AD
REINF DECKLID SPRT B
Structural. Cat A Only 		- 1 Enquire
8 GOED33L416W21AD
REINF DECKLID SUPRT
Structural. Cat A Only 		- 1 Enquire
9 ED33L46302AD
Reinforcement, Tonneau Actuator, RH 		- 1 Enquire
10 ED33L46303AD
Reinforcement, Tonneau Actuator, LH 		- 1 Enquire
11 CD3317F034BA
Absorber Assembly, Bumper Rear, RH
Structural. Cat A Only 		- 1 Enquire
12 CD3317F035BA
Absorber Assembly, Bumper Rear, LH
Structural. Cat A Only 		- 1 Enquire
13 CD3340338AD
Reinforced Lower Back Centre Panel
Structural. Cat A Only 		- 1 Enquire
14 DG43501B0AA
Nut Plate, Rear Sub Frame, RH 		- 1 Enquire
15 DG43501B1AA
Nut Plate, Rear Sub Frame, LH 		- 1 Enquire
16 ED33L41038AA
Panel, Rear Corner, RH
Structural. Cat A Only 		- 1 Enquire
17 ED33L41033AA
Panel, Rear Corner, LH
Structural. Cat A Only 		- 1 Enquire
18 ED33280C02AA
Gasket, Rear Corner Panel, RH 		- 1 Enquire
19 ED33280C03AA
Gasket, Rear Corner Panel, LH 		- 1 Enquire
20 ED33L279A54AE
Panel, Quarter Wheel Housing Inner Rear, RH
Structural. Cat A Only 		- 1 Enquire
21 ED33L279A55AB
Panel, Quarter Wheel Housing Inner Rear, LH
Structural. Cat A Only 		- 1 Enquire
22 ED33L41036AA
Panel, Rear Quarter Infill Rear, RH
Structural. Cat A Only 		- 1 Enquire
23 ED33L41037AA
Nut Plate, Rear Subframe, RH
Structural. Cat A Only 		- 1 Enquire
24 6G33L205196AB
Plug, Drain TLS 		- 2 Enquire
25 GOED33L36282AB
Drain Pipe, TLS 		- 2 Enquire
26 6G33L80840AD
Drain Plug, Rear Quarter 		- 2 Enquire
27 699094
Clip, Hose, Spring Loaded, 16-25 		- 2 Enquire
28 ED33L82844AA
Drain Pipe, Rear Quarter 		- 2 Enquire
29 6G3358500W04AB
Grommet, Drain Hose 		- 2 Enquire
30 CD3328614AA
Sealing Washer, Foam 		- 2 Enquire
31 CD3343422AA
Washer, 81 x 21 x 1.6 		- 2 Enquire
32 1R12640101AA
Ball Stud 		- 2 Enquire
33 6G33375732AB
Screw, 5.5 x 19, Self Drill, Hex Flange head 		- 2 Enquire
34 703120
Screw M8-1.25-90 Hex Socket Head Shoulder 		- 14 Enquire
35 4G435867827AB
GAS STRUT BALL STUD M8 		- 2 Enquire
36 703131
WASHER PLAIN FORM A M8 CHROME FREE 		- 2 Enquire
37 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 6 Enquire
