Body Dash and Cowl, COUPE of Aston Martin Aston Martin Vanquish (2012+)

View All

Aston Martin Vanquish (2012+) - Body Dash and Cowl, COUPE

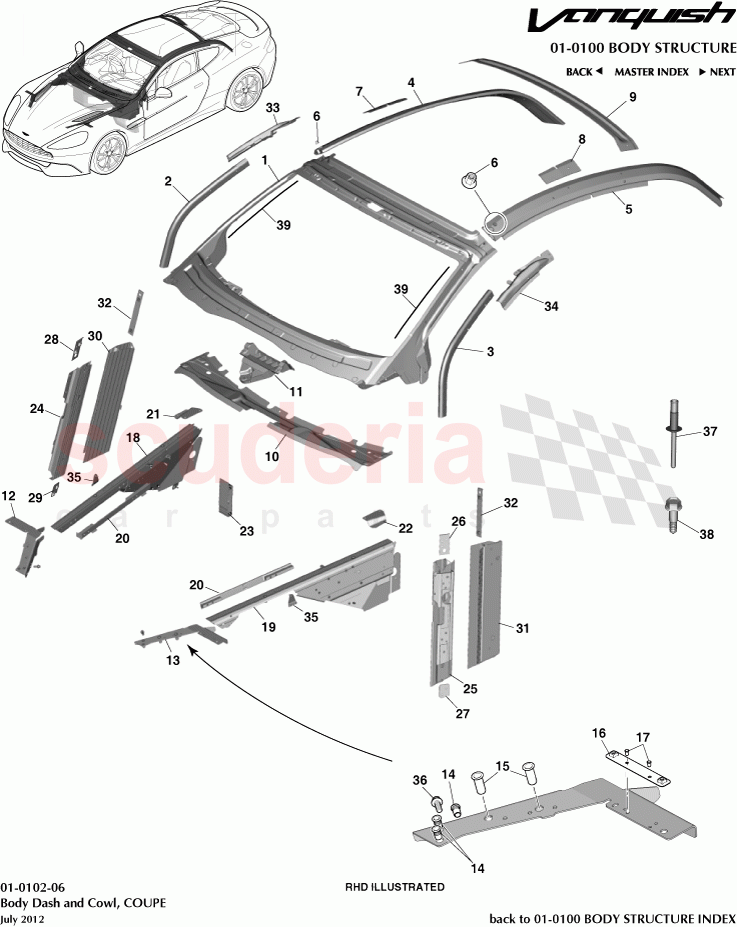

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DG43C03014AF	Frame Assembly, Windshield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOCD33F02526AB	Reinforcement, Front Body Pillar, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOCD33F02527AB	Reinforcement, Front Body Pillar, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43C513A07BA	REINF RF SD RL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43C513A08BA	REINF RF SD RL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4390907AA	Barrel Nut, M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOCD33C513A10AB	Cantrail to Roof Reinforcement, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOCD33C513A11AB	Cantrail to Roof Reinforcement, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG43C42220BA	Frame, Back Window, Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG43F292650AC	Plenum, Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODD4371023AE	Cowl, Reinforcement Casting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4316430AA	Reinforcement, Hood Striker Plate, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4316431AA	Reinforcement, Hood Striker Plate, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43199901AA	Nutplate, M6 Headlamp Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD4316184AC	Extrusion, Front Wing RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD4316185AC	Extrusion, Front Wing LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG4317F790BA	Nutplate, Shotgun, M10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG4319414AA	Adaptor, Plenum Lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG4319415AA	Adaptor, Plenum Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG339N790BA	Spacer Assy, Accelerator Pedal, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG43F02660AB	Pillar, Front Body, Lower Front, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG43F02661AB	Pillar, Front Body, Lower Front, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3394545AA	Nutplate, A Post Hinge, Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3315111AB	Nutplate M8, ??post hinge, lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3371490AA	Nutplate, A Post Hinge, Upper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3315110AB	Nutplate M8, ??post hinge, lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG43F02662AC	Extrusion, Front Body Pillar Lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG43F02663AC	Extrusion, Front Body Pillar Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33486226AA	Nutplate, M8, IP beam	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODD33279E20AD	Reinforcement, A Pillar Upper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODD33279E21AD	Reinforcement, A Pillar Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD3318178AA	Bracket, Gas Damper Mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368676AC	Rivet Structural 6.5 x 14, Blind	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	EG43C03014AC	Frame Assembly, Windshield	EG43C03014AC Frame Assembly, Windshield From 14MY, Structural. Cat A Only	-	1	Enquire
-	GOED33F02526AA	Reinforcement, Front Body Pillar, LH	GOED33F02526AA Reinforcement, Front Body Pillar, LH 14.5MY, Structural. Cat A Only	-	1	Enquire
-	GOED33F02527AA	Reinforcement, Front Body Pillar, LH	GOED33F02527AA Reinforcement, Front Body Pillar, LH 14.5MY, Structural. Cat A Only	-	1	Enquire
1	DG43C03014AF	Frame Assembly, Windshield	DG43C03014AF Frame Assembly, Windshield Up to 14MY, Structural. Cat A Only	-	1	Enquire
2	GOCD33F02526AB	Reinforcement, Front Body Pillar, RH	GOCD33F02526AB Reinforcement, Front Body Pillar, RH Structural. Cat A Only	-	1	Enquire
3	GOCD33F02527AB	Reinforcement, Front Body Pillar, LH	GOCD33F02527AB Reinforcement, Front Body Pillar, LH Structural. Cat A Only	-	1	Enquire
4	DG43C513A07BA	REINF RF SD RL RH	DG43C513A07BA REINF RF SD RL RH Structural. Cat A Only	-	1	Enquire
5	DG43C513A08BA	REINF RF SD RL LH	DG43C513A08BA REINF RF SD RL LH Structural. Cat A Only	-	1	Enquire
6	9G4390907AA	Barrel Nut, M6	9G4390907AA Barrel Nut, M6	-	2	Enquire
7	GOCD33C513A10AB	Cantrail to Roof Reinforcement, RH	GOCD33C513A10AB Cantrail to Roof Reinforcement, RH Structural. Cat A Only	-	1	Enquire
8	GOCD33C513A11AB	Cantrail to Roof Reinforcement, LH	GOCD33C513A11AB Cantrail to Roof Reinforcement, LH Structural. Cat A Only	-	1	Enquire
9	GODG43C42220BA	Frame, Back Window, Upper	GODG43C42220BA Frame, Back Window, Upper Structural. Cat A Only	-	1	Enquire
10	GODG43F292650AC	Plenum, Lower	GODG43F292650AC Plenum, Lower Structural. Cat A Only	-	1	Enquire
11	GODD4371023AE	Cowl, Reinforcement Casting	GODD4371023AE Cowl, Reinforcement Casting Structural. Cat A Only	-	1	Enquire
12	DG4316430AA	Reinforcement, Hood Striker Plate, RH	DG4316430AA Reinforcement, Hood Striker Plate, RH Includes Items 14, 15 and 16, Structural. Cat A Only	-	1	Enquire
13	DG4316431AA	Reinforcement, Hood Striker Plate, LH	DG4316431AA Reinforcement, Hood Striker Plate, LH Includes Items 14, 15 and 16, Structural. Cat A Only	-	1	Enquire
14	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	-	6	Enquire
15	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	-	4	Enquire
16	8G43199901AA	Nutplate, M6 Headlamp Bracket	8G43199901AA Nutplate, M6 Headlamp Bracket Structural. Cat A Only	-	2	Enquire
17	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	4	Enquire
18	DD4316184AC	Extrusion, Front Wing RH	DD4316184AC Extrusion, Front Wing RH Structural. Cat A Only	-	1	Enquire
19	DD4316185AC	Extrusion, Front Wing LH	DD4316185AC Extrusion, Front Wing LH Structural. Cat A Only	-	1	Enquire
20	GODG4317F790BA	Nutplate, Shotgun, M10	GODG4317F790BA Nutplate, Shotgun, M10 Structural. Cat A Only	-	2	Enquire
21	GODG4319414AA	Adaptor, Plenum Lower, RH	GODG4319414AA Adaptor, Plenum Lower, RH Structural. Cat A Only	-	1	Enquire
22	GODG4319415AA	Adaptor, Plenum Lower, LH	GODG4319415AA Adaptor, Plenum Lower, LH Structural. Cat A Only	-	1	Enquire
23	AG339N790BA	Spacer Assy, Accelerator Pedal, RHD	AG339N790BA Spacer Assy, Accelerator Pedal, RHD Structural. Cat A Only	-	1	Enquire
24	GODG43F02660AB	Pillar, Front Body, Lower Front, RH	GODG43F02660AB Pillar, Front Body, Lower Front, RH Structural. Cat A Only	-	1	Enquire
25	GODG43F02661AB	Pillar, Front Body, Lower Front, LH	GODG43F02661AB Pillar, Front Body, Lower Front, LH Structural. Cat A Only	-	1	Enquire
26	6G3394545AA	Nutplate, A Post Hinge, Upper, LH	6G3394545AA Nutplate, A Post Hinge, Upper, LH Structural. Cat A Only	-	1	Enquire
27	6G3315111AB	Nutplate M8, ??post hinge, lower, LH	6G3315111AB Nutplate M8, ??post hinge, lower, LH Structural. Cat A Only	-	1	Enquire
28	6G3371490AA	Nutplate, A Post Hinge, Upper, RH	6G3371490AA Nutplate, A Post Hinge, Upper, RH Structural. Cat A Only	-	1	Enquire
29	6G3315110AB	Nutplate M8, ??post hinge, lower, RH	6G3315110AB Nutplate M8, ??post hinge, lower, RH Structural. Cat A Only	-	1	Enquire
30	GODG43F02662AC	Extrusion, Front Body Pillar Lower, RH	GODG43F02662AC Extrusion, Front Body Pillar Lower, RH Structural. Cat A Only	-	1	Enquire
31	GODG43F02663AC	Extrusion, Front Body Pillar Lower, LH	GODG43F02663AC Extrusion, Front Body Pillar Lower, LH Structural. Cat A Only	-	1	Enquire
32	6G33486226AA	Nutplate, M8, IP beam	6G33486226AA Nutplate, M8, IP beam Structural. Cat A Only	-	2	Enquire
33	GODD33279E20AD	Reinforcement, A Pillar Upper, RH	GODD33279E20AD Reinforcement, A Pillar Upper, RH Structural. Cat A Only	-	1	Enquire
34	GODD33279E21AD	Reinforcement, A Pillar Upper, LH	GODD33279E21AD Reinforcement, A Pillar Upper, LH Structural. Cat A Only	-	1	Enquire
35	DD3318178AA	Bracket, Gas Damper Mounting	DD3318178AA Bracket, Gas Damper Mounting Structural. Cat A Only	-	2	Enquire
36	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	2	Enquire
37	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	A/R	Enquire
38	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head	-	2	Enquire
39	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	7G43C2437AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	-	2	Enquire
