Hood Latch System

Aston Martin Vanquish (2012+)

Find Your Part

Aston Martin Vanquish (2012+) - Hood Latch System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G436411062 Lever, Bonnet Release $194.41 To Order
Photo Part No Description Price (each) Stock
701553 Screw, M6 x 16, Pan Head $0.21 IN STOCK
Photo Part No Description Price (each) Stock
CD3316C730AA Bracket, Hood Release Handle Mounting $26.08 To Order
Photo Part No Description Price (each) Stock
4G436410063 Bonnet Latch $33.48 IN STOCK
Photo Part No Description Price (each) Stock
DD435284AD Striker, Primary With Secondary Release Handle $100.50 IN STOCK
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) $21.68 IN STOCK
Photo Part No Description Price (each) Stock
703149 SCREW M6x16 PAN FLG TORX CHROME FRE $0.75 IN STOCK
Photo Part No Description Price (each) Stock
DD4316B769AD LATCH ASY HOOD SE RH $121.36 IN STOCK
Photo Part No Description Price (each) Stock
701580PK Rivet Dome Head (Pack of 20) $11.36 IN STOCK
Photo Part No Description Price (each) Stock
DD4316A945AA Striker Bar, Secondary Latch, RH $342.53 To Order
Photo Part No Description Price (each) Stock
CD333804AC Bracket, Bonnet Latch Mounting $333.19 IN STOCK
Photo Part No Description Price (each) Stock
7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) $10.29 IN STOCK
Photo Part No Description Price (each) Stock
AD4316C656AC CABLE ASSY HOOD LATC $64.86 To Order
Photo Part No Description Price (each) Stock
DD43405C45AD Cable, Secondary Latch Release $90.43 IN STOCK
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.36 IN STOCK
Photo Part No Description Price (each) Stock
704443 Clip, Plastic, 5 x 6.5 x 2 $0.89 IN STOCK
Photo Part No Description Price (each) Stock
CD3316K662AB Cable Abutment, Hood Secondary Release $8.90 To Order
Photo Part No Description Price (each) Stock
705464 Screw, 4.2 x 16, Washer Head, Self Tapping $0.11 To Order
Photo Part No Description Price (each) Stock
701448 Spring Nut, U Type, 4.2 x 2.1 $1.25 IN STOCK
View All

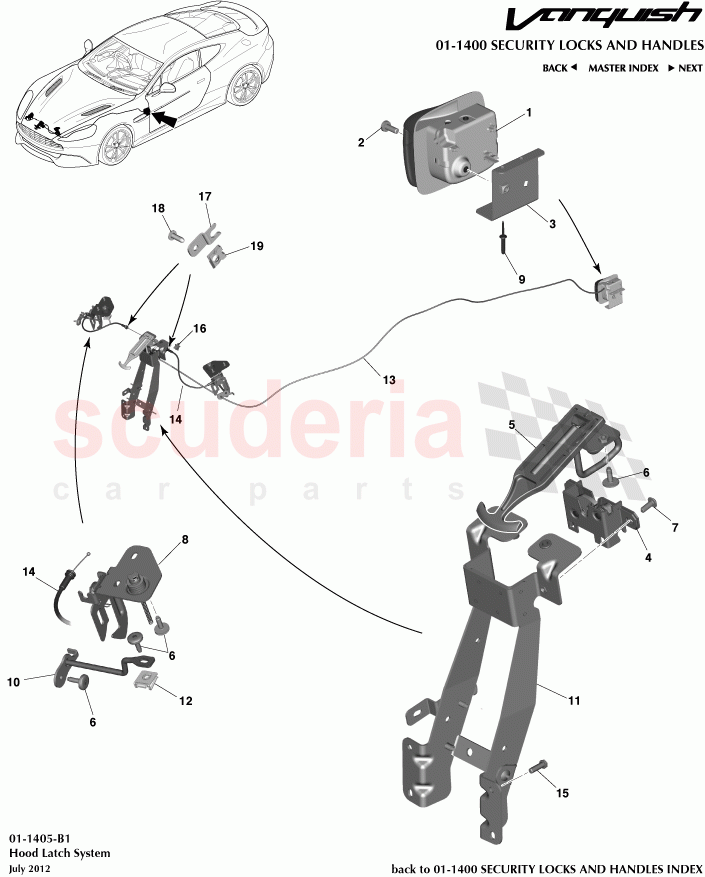

Hood Latch System of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- DD4316B768AD
LATCH ASY HOD SEC LH 		$121.36 1
- DD4316A944AA
Striker Bar, Secondary Latch, LH 		$342.53 1
1 9G436411062
Lever, Bonnet Release 		$194.41 1
2 701553
Screw, M6 x 16, Pan Head
IN STOCK 		$0.21 1
3 CD3316C730AA
Bracket, Hood Release Handle Mounting 		$26.08 1
4 4G436410063
Bonnet Latch
IN STOCK 		$33.48 1
5 DD435284AD
Striker, Primary With Secondary Release Handle
IN STOCK 		$100.50 1
6 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
Pack of 20
IN STOCK 		$21.68 12
7 703149
SCREW M6x16 PAN FLG TORX CHROME FRE
IN STOCK 		$0.75 2
8 DD4316B769AD
LATCH ASY HOOD SE RH
IN STOCK 		$121.36 1
9 701580PK
Rivet Dome Head (Pack of 20)
Pack of 20
IN STOCK 		$11.36 3
10 DD4316A945AA
Striker Bar, Secondary Latch, RH 		$342.53 1
11 CD333804AC
Bracket, Bonnet Latch Mounting
IN STOCK 		$333.19 1
12 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
Pack of 10
IN STOCK 		$10.29 2
13 AD4316C656AC
CABLE ASSY HOOD LATC 		$64.86 1
14 DD43405C45AD
Cable, Secondary Latch Release
IN STOCK 		$90.43 1
15 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.36 4
16 704443
Clip, Plastic, 5 x 6.5 x 2
IN STOCK 		$0.89 2
17 CD3316K662AB
Cable Abutment, Hood Secondary Release 		$8.90 2
18 705464
Screw, 4.2 x 16, Washer Head, Self Tapping 		$0.11 2
19 701448
Spring Nut, U Type, 4.2 x 2.1
IN STOCK 		$1.25 2
