Body Rear End, Coupe

Aston Martin Vanquish (2012+)

Find Your Part

Aston Martin Vanquish (2012+) - Body Rear End, COUPE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CD33C45108AF TRGH L/C DR OPG DRN $3,227.56 To Order
Photo Part No Description Price (each) Stock
1R12640101AA Ball Stud $5.94 IN STOCK
Photo Part No Description Price (each) Stock
CD3311027AA Blanking Plug $1.84 To Order
Photo Part No Description Price (each) Stock
DD33F37521AA Blanking Plug, 14mm ID $3.08 To Order
Photo Part No Description Price (each) Stock
CD3324443AB Panel, Closer, LH $74.83 To Order
Photo Part No Description Price (each) Stock
CD3324442AB Panel, Closer, RH $74.83 To Order
Photo Part No Description Price (each) Stock
CD3347124AE Floor Panel, Trunk $1,859.27 To Order
Photo Part No Description Price (each) Stock
702804 Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In $2.73 To Order
Photo Part No Description Price (each) Stock
CD33C416W21AA Reinforcement, Tail Gate Hinge, LH $90.46 To Order
Photo Part No Description Price (each) Stock
CD33C416W20AA Reinforcement, Tail Gate Hinge, RH $90.46 To Order
Photo Part No Description Price (each) Stock
CD33C10515AB Panel, Reinforced Rear Quarter, LH $143.25 To Order
Photo Part No Description Price (each) Stock
CD33C10514AC Panel, Reinforced Rear Quarter, RH Enquire To Order
Photo Part No Description Price (each) Stock
6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head $0.37 To Order
Photo Part No Description Price (each) Stock
CD33101C83AA Extrusion Bracket, Side Member Rear, LH $113.86 To Order
Photo Part No Description Price (each) Stock
CD33101C82AA Extrusion Bracket, Side Member Rear, RH $113.86 To Order
Photo Part No Description Price (each) Stock
CD3343025AA Gaiter, Decklid Hinge, LH $54.24 To Order
Photo Part No Description Price (each) Stock
CD3343024AA Gaiter, Decklid Hinge, RH $54.24 To Order
Photo Part No Description Price (each) Stock
CD3317F035BA Absorber Assembly, Bumper Rear, LH $284.60 To Order
Photo Part No Description Price (each) Stock
CD3317F034BA Absorber Assembly, Bumper Rear, RH $284.60 To Order
Photo Part No Description Price (each) Stock
703120 Screw M8-1.25-90 Hex Socket Head Shoulder $6.10 IN STOCK
Photo Part No Description Price (each) Stock
CD3340338AD Reinforced Lower Back Centre Panel $570.68 To Order
Photo Part No Description Price (each) Stock
DG43501B1AA Nut Plate, Rear Sub Frame, LH $76.50 To Order
Photo Part No Description Price (each) Stock
DG43501B0AA Nut Plate, Rear Sub Frame, RH $76.50 To Order
Photo Part No Description Price (each) Stock
CD33C41033AC Rear Quarter Inner Assembly, LH $1,708.54 To Order
Photo Part No Description Price (each) Stock
CD33C41038AB Rear Quarter Inner Assembly, RH $1,444.91 To Order
Photo Part No Description Price (each) Stock
CD33C279A55AB Panel, Quarter Wheelhouse Inner Rear, LH $596.09 To Order
Photo Part No Description Price (each) Stock
CD33C279A54AC Panel, Quarter Wheelhouse Inner Rear RH $596.09 To Order
Photo Part No Description Price (each) Stock
6G3368676AC Rivet Structural 6.5 x 14, Blind $1.25 To Order
Photo Part No Description Price (each) Stock
6G3337949AA DIA 4.8 X 13.9 BLIND RIVET $0.12 To Order
Photo Part No Description Price (each) Stock
CD3341037AA Infill, Rear Quarter Panel, LH $34.21 To Order
Photo Part No Description Price (each) Stock
CD3341036AA Infill, Rear Quarter Panel, RH $34.21 To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.29 IN STOCK
View All

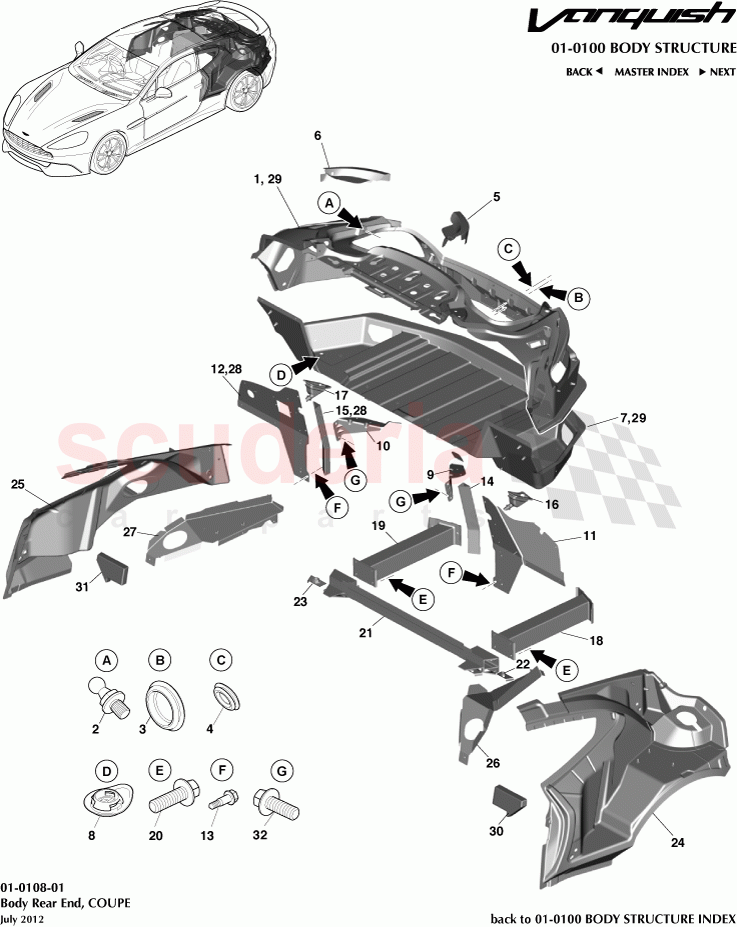

Body Rear End, COUPE of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 CD33C45108AF
TRGH L/C DR OPG DRN
Structural. Cat A Only 		$3,227.56 1
2 1R12640101AA
Ball Stud
IN STOCK 		$5.94 2
3 CD3311027AA
Blanking Plug 		$1.84 1
4 DD33F37521AA
Blanking Plug, 14mm ID 		$3.08 1
5 CD3324443AB
Panel, Closer, LH
Structural. Cat A Only 		$74.83 1
6 CD3324442AB
Panel, Closer, RH
Structural. Cat A Only 		$74.83 1
7 CD3347124AE
Floor Panel, Trunk 		$1,859.27 1
8 702804
Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In 		$2.73 4
9 CD33C416W21AA
Reinforcement, Tail Gate Hinge, LH
Structural. Cat A Only 		$90.46 1
10 CD33C416W20AA
Reinforcement, Tail Gate Hinge, RH
Structural. Cat A Only 		$90.46 1
11 CD33C10515AB
Panel, Reinforced Rear Quarter, LH
Structural. Cat A Only 		$143.25 1
12 CD33C10514AC
Panel, Reinforced Rear Quarter, RH
Structural. Cat A Only 		- 1 Enquire
13 6G33375732AB
Screw, 5.5 x 19, Self Drill, Hex Flange head 		$0.37 4
14 CD33101C83AA
Extrusion Bracket, Side Member Rear, LH
Structural. Cat A Only 		$113.86 1
15 CD33101C82AA
Extrusion Bracket, Side Member Rear, RH
Structural. Cat A Only 		$113.86 1
16 CD3343025AA
Gaiter, Decklid Hinge, LH 		$54.24 1
17 CD3343024AA
Gaiter, Decklid Hinge, RH 		$54.24 1
18 CD3317F035BA
Absorber Assembly, Bumper Rear, LH
Structural. Cat A Only 		$284.60 1
19 CD3317F034BA
Absorber Assembly, Bumper Rear, RH
Structural. Cat A Only 		$284.60 1
20 703120
Screw M8-1.25-90 Hex Socket Head Shoulder
IN STOCK 		$6.10 12
21 CD3340338AD
Reinforced Lower Back Centre Panel
Structural. Cat A Only 		$570.68 1
22 DG43501B1AA
Nut Plate, Rear Sub Frame, LH
Structural. Cat A Only 		$76.50 1
23 DG43501B0AA
Nut Plate, Rear Sub Frame, RH
Structural. Cat A Only 		$76.50 1
24 CD33C41033AC
Rear Quarter Inner Assembly, LH
Structural. Cat A Only 		$1,708.54 1
25 CD33C41038AB
Rear Quarter Inner Assembly, RH
Structural. Cat A Only 		$1,444.91 1
26 CD33C279A55AB
Panel, Quarter Wheelhouse Inner Rear, LH
Structural. Cat A Only 		$596.09 1
27 CD33C279A54AC
Panel, Quarter Wheelhouse Inner Rear RH
Structural. Cat A Only 		$596.09 1
28 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		$1.25 A/R
29 6G3337949AA
DIA 4.8 X 13.9 BLIND RIVET 		$0.12 6
30 CD3341037AA
Infill, Rear Quarter Panel, LH
Structural. Cat A Only 		$34.21 1
31 CD3341036AA
Infill, Rear Quarter Panel, RH
Structural. Cat A Only 		$34.21 1
32 703121
Screw, M8 x 25, Hex Flange Head
IN STOCK 		$0.29 4
