Underbody, COUPE of Aston Martin Aston Martin Vanquish (2012+)

View All

Aston Martin Vanquish (2012+) - Underbody, COUPE

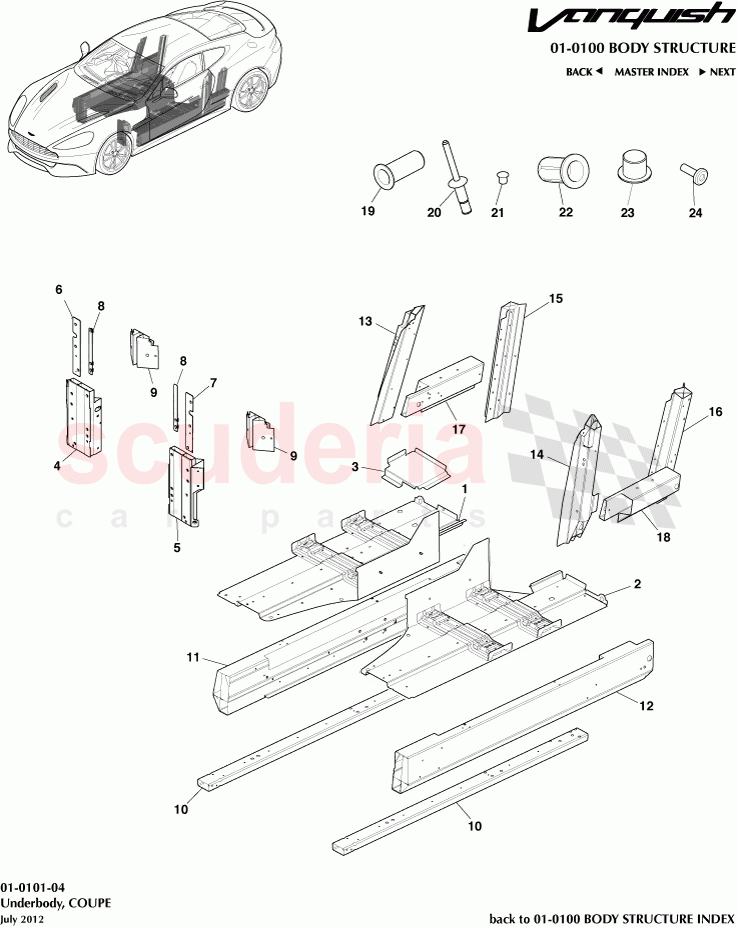

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G431610879S	Panel assy, floor, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD3311141AC	PANEL FLOOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4367342AA	SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432010876	FRONT SUBFRAME UPRIGHT ASSY RH-DB9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432010877	FRONT SUBFRAME UPRIGHT ASSY-LH DB9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F001K28AA	Bracket, tunnel upper inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4310120AA	Member, Floor, Side Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43C10116AD	Member, Floor Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43C10117AD	Member, Floor Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43C24312AD	Pillar, Centre Body, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43C24313AD	Pillar, Centre Body, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG4324314BA	Pillar, Centre Body, Outer Rear, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG4324315BA	Pillar, Centre Body, Outer Rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG43101D06AA	Extrusion Member, Rear Floor Side Lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG43101D07AA	Extrusion Member, Rear Floor Side Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368676AC	Rivet Structural 6.5 x 14, Blind	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368885AB	SELF PIERCING RIVET 5.0 x 6.0mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3333800AA	Rivnut, 7/16UNF hex flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G431610879S	Panel assy, floor, RH	4G431610879S Panel assy, floor, RH Vin Stamp Required, Structural. Cat A Only	-	1	Enquire
2	FD3311141AC	PANEL FLOOR LH	FD3311141AC PANEL FLOOR LH Structural. Cat A Only	-	1	Enquire
3	8G4367342AA	SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH	8G4367342AA SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH Structural. Cat A Only	-	1	Enquire
4	4G432010876	FRONT SUBFRAME UPRIGHT ASSY RH-DB9	4G432010876 FRONT SUBFRAME UPRIGHT ASSY RH-DB9 Structural. Cat A Only	-	1	Enquire
5	4G432010877	FRONT SUBFRAME UPRIGHT ASSY-LH DB9	4G432010877 FRONT SUBFRAME UPRIGHT ASSY-LH DB9 Structural. Cat A Only	-	1	Enquire
6	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	8G43434K10AA NUTPLATE FRONT END MOUNTING OUTER RH M12 Structural. Cat A Only	-	1	Enquire
7	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	8G43434K11AA NUTPLATE FRONT END MOUNTING OUTER LH M12 Structural. Cat A Only	-	1	Enquire
8	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	8G43390725AA NUT PLATE FRONT END MOUNTING INR M12 Structural. Cat A Only	-	2	Enquire
9	GOAG33F001K28AA	Bracket, tunnel upper inner	GOAG33F001K28AA Bracket, tunnel upper inner Structural. Cat A Only	-	2	Enquire
10	DG4310120AA	Member, Floor, Side Front	DG4310120AA Member, Floor, Side Front Structural. Cat A Only	-	2	Enquire
11	DG43C10116AD	Member, Floor Side, RH	DG43C10116AD Member, Floor Side, RH Structural. Cat A Only	-	1	Enquire
12	DG43C10117AD	Member, Floor Side, LH	DG43C10117AD Member, Floor Side, LH Structural. Cat A Only	-	1	Enquire
13	DG43C24312AD	Pillar, Centre Body, RH	DG43C24312AD Pillar, Centre Body, RH Structural. Cat A Only	-	1	Enquire
14	DG43C24313AD	Pillar, Centre Body, LH	DG43C24313AD Pillar, Centre Body, LH Structural. Cat A Only	-	1	Enquire
15	GODG4324314BA	Pillar, Centre Body, Outer Rear, RH	GODG4324314BA Pillar, Centre Body, Outer Rear, RH Structural. Cat A Only	-	1	Enquire
16	GODG4324315BA	Pillar, Centre Body, Outer Rear, LH	GODG4324315BA Pillar, Centre Body, Outer Rear, LH Structural. Cat A Only	-	1	Enquire
17	GODG43101D06AA	Extrusion Member, Rear Floor Side Lower, RH	GODG43101D06AA Extrusion Member, Rear Floor Side Lower, RH Structural. Cat A Only	-	1	Enquire
18	GODG43101D07AA	Extrusion Member, Rear Floor Side Lower, LH	GODG43101D07AA Extrusion Member, Rear Floor Side Lower, LH Structural. Cat A Only	-	1	Enquire
19	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	-	A/R	Enquire
20	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	A/R	Enquire
21	6G3368885AB	SELF PIERCING RIVET 5.0 x 6.0mm	6G3368885AB SELF PIERCING RIVET 5.0 x 6.0mm	-	A/R	Enquire
22	6G3333800AA	Rivnut, 7/16UNF hex flange	6G3333800AA Rivnut, 7/16UNF hex flange	-	A/R	Enquire
23	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	4G43N800631AA Rubber Plug, 11mm, Black Thermoplastic	-	A/R	Enquire
24	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	A/R	Enquire
