Aston Martin Vanquish (2012+) - Body Ancillary Parts, VOLANTE - Page 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DD43108A75DA Brace Assembly, Front Cross Enquire To Order
Photo Part No Description Price (each) Stock
DG4300512AA Screw (Taptite), M10 x 40 Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
702209 Bolt, M10 x 25, Torque Drive Enquire To Order
Photo Part No Description Price (each) Stock
GOED33108A87AA Bracket, Front Cross Brace, LH Enquire To Order
Photo Part No Description Price (each) Stock
GOED33108A86AB BRKT FRT CS BRA RH Enquire To Order
Photo Part No Description Price (each) Stock
703120 Screw M8-1.25-90 Hex Socket Head Shoulder Enquire To Order
Photo Part No Description Price (each) Stock
ED3318A009AB HEX BLK BRK LH Enquire To Order
Photo Part No Description Price (each) Stock
ED3318A008AB HEX BLK BRK RH Enquire To Order
Photo Part No Description Price (each) Stock
ED3310875AA Hexcell Block Assy, LH Enquire To Order
Photo Part No Description Price (each) Stock
ED3310874AA Hexcell Block Assy, RH Enquire To Order
Photo Part No Description Price (each) Stock
DG435341AA Bracket, ECU Mounting, LH Enquire To Order
Photo Part No Description Price (each) Stock
DG435340AA Bracket, ECU Mounting, RH Enquire To Order
Photo Part No Description Price (each) Stock
703194 BOLT M8x45 HEX FLNG CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
CD33106160AA Stud, M6, Threaded Enquire To Order
Photo Part No Description Price (each) Stock
DG43F27A06AA Plate, Mounting Enquire To Order
Photo Part No Description Price (each) Stock
DG4316A682AA Reinforcement, Hood Hinge on Body, LH Enquire To Order
Photo Part No Description Price (each) Stock
DG4316A681AA Reinforcement, Hood Hinge on Body, RH Enquire To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free Enquire To Order
Photo Part No Description Price (each) Stock
8G43199901AA Nutplate, M6 Headlamp Bracket Enquire To Order
Photo Part No Description Price (each) Stock
6G3337949AA DIA 4.8 X 13.9 BLIND RIVET Enquire To Order
Photo Part No Description Price (each) Stock
DG43043B20AA Tube, Passenger Air Bag Initiator, LH Enquire To Order
Photo Part No Description Price (each) Stock
DG43043B19AA Tube, Passenger Air Bag Initiator, RH Enquire To Order
Photo Part No Description Price (each) Stock
DG4313069AC PNL HD/LP MNTG LH Enquire To Order
Photo Part No Description Price (each) Stock
DG4313068AC PNL HD/LP MTNG RH Enquire To Order
Photo Part No Description Price (each) Stock
GOCD3320416AA Reinforcement, Door to Sill Enquire To Order
Photo Part No Description Price (each) Stock
6G3368676AC Rivet Structural 6.5 x 14, Blind Enquire To Order
Photo Part No Description Price (each) Stock
9G4311262BA Reinforcement Assembly, Floor Pan Front Enquire To Order
Photo Part No Description Price (each) Stock
703268 Screw and Washer, M8 x 21 Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
700229 Bolt, M8 x 35, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
GODG431660AA Spacer, Tunnel Reinforcement, Front Enquire To Order
Photo Part No Description Price (each) Stock
GODG43111K36AC Tunnel Reinforcement, Front Enquire To Order
Photo Part No Description Price (each) Stock
4G43111K37AE Tunnel Reinforcement, Centre Enquire To Order
Photo Part No Description Price (each) Stock
4G43111C61AE Panel, Dummy Floor Front, RHD Enquire To Order
Photo Part No Description Price (each) Stock
701553 Screw, M6 x 16, Pan Head Enquire To Order
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
4G43111B48AB Panel, Dummy Floor Cover, Front Enquire To Order
Photo Part No Description Price (each) Stock
DAC402716AA Edge Protection Strip, 170mm Enquire To Order
Photo Part No Description Price (each) Stock
ED33L025C51AA Trough, Upper Front Body Pillar, LH Enquire To Order
Photo Part No Description Price (each) Stock
ED33L025C50AA Trough, Upper Front Body Pillar, RH Enquire To Order
Photo Part No Description Price (each) Stock
FD33L17C857AB SHIELD-RR BMPR OPG Enquire To Order
Photo Part No Description Price (each) Stock
702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Enquire To Order
Photo Part No Description Price (each) Stock
ED3310N660AA Panel, Battery Cover Enquire To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
ED3367518AA Panel, Rear Seat Heel Board, RH Enquire To Order
View All

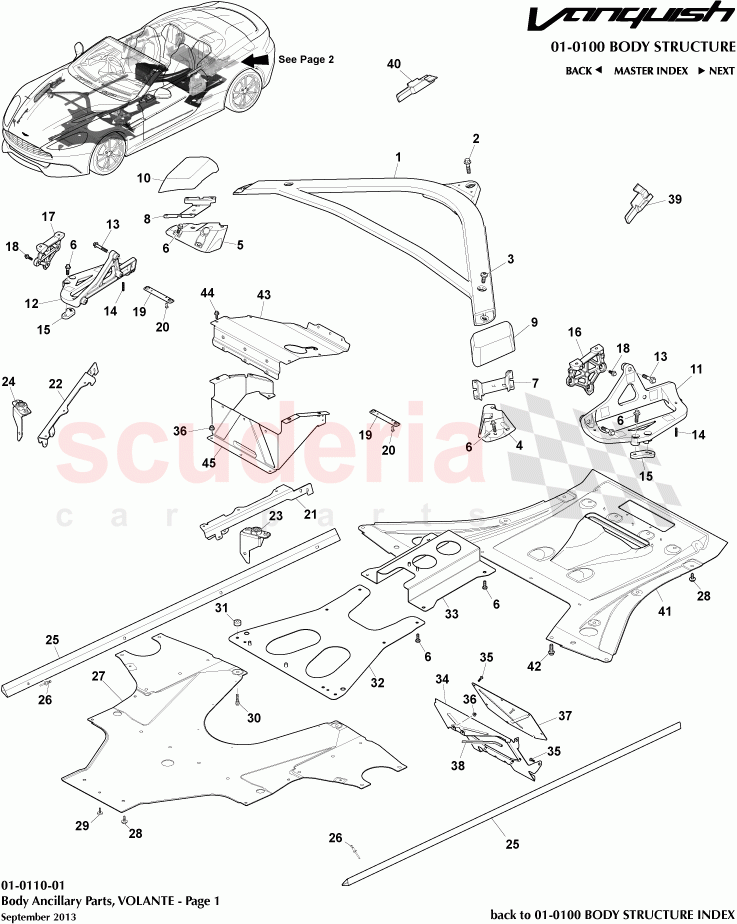

Body Ancillary Parts, VOLANTE - Page 1 of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9G43111C60GF
Panel, Dummy Floor Front, LHD
LHD 		- 1 Enquire
1 DD43108A75DA
Brace Assembly, Front Cross 		- 1 Enquire
2 DG4300512AA
Screw (Taptite), M10 x 40 Hex Flange Head 		- 1 Enquire
3 702209
Bolt, M10 x 25, Torque Drive 		- 4 Enquire
4 GOED33108A87AA
Bracket, Front Cross Brace, LH 		- 1 Enquire
5 GOED33108A86AB
BRKT FRT CS BRA RH 		- 1 Enquire
6 703120
Screw M8-1.25-90 Hex Socket Head Shoulder 		- 12 Enquire
7 ED3318A009AB
HEX BLK BRK LH 		- 1 Enquire
8 ED3318A008AB
HEX BLK BRK RH 		- 1 Enquire
9 ED3310875AA
Hexcell Block Assy, LH 		- 1 Enquire
10 ED3310874AA
Hexcell Block Assy, RH 		- 1 Enquire
11 DG435341AA
Bracket, ECU Mounting, LH 		- 1 Enquire
12 DG435340AA
Bracket, ECU Mounting, RH 		- 1 Enquire
13 703194
BOLT M8x45 HEX FLNG CHROME FREE 		- 6 Enquire
14 CD33106160AA
Stud, M6, Threaded 		- 4 Enquire
15 DG43F27A06AA
Plate, Mounting 		- 2 Enquire
16 DG4316A682AA
Reinforcement, Hood Hinge on Body, LH 		- 1 Enquire
17 DG4316A681AA
Reinforcement, Hood Hinge on Body, RH 		- 1 Enquire
18 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 6 Enquire
19 8G43199901AA
Nutplate, M6 Headlamp Bracket 		- 2 Enquire
20 6G3337949AA
DIA 4.8 X 13.9 BLIND RIVET 		- 4 Enquire
21 DG43043B20AA
Tube, Passenger Air Bag Initiator, LH 		- 1 Enquire
22 DG43043B19AA
Tube, Passenger Air Bag Initiator, RH 		- 1 Enquire
23 DG4313069AC
PNL HD/LP MNTG LH 		- 1 Enquire
24 DG4313068AC
PNL HD/LP MTNG RH 		- 1 Enquire
25 GOCD3320416AA
Reinforcement, Door to Sill 		- 2 Enquire
26 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		- 8 Enquire
27 9G4311262BA
Reinforcement Assembly, Floor Pan Front 		- 1 Enquire
28 703268
Screw and Washer, M8 x 21 		- 30 Enquire
29 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
Pack of 20 		- 3 Enquire
30 700229
Bolt, M8 x 35, Hex Flange Head 		- 2 Enquire
31 GODG431660AA
Spacer, Tunnel Reinforcement, Front 		- 2 Enquire
32 GODG43111K36AC
Tunnel Reinforcement, Front 		- 1 Enquire
33 4G43111K37AE
Tunnel Reinforcement, Centre 		- 1 Enquire
34 4G43111C61AE
Panel, Dummy Floor Front, RHD
RHD 		- 1 Enquire
35 701553
Screw, M6 x 16, Pan Head 		- 12 Enquire
36 703169
NUT - M6 HEX FLANGE CHROME FREE 		- 5 Enquire
37 4G43111B48AB
Panel, Dummy Floor Cover, Front 		- 1 Enquire
38 DAC402716AA
Edge Protection Strip, 170mm 		- 1 Enquire
39 ED33L025C51AA
Trough, Upper Front Body Pillar, LH 		- 1 Enquire
40 ED33L025C50AA
Trough, Upper Front Body Pillar, RH 		- 1 Enquire
41 FD33L17C857AB
SHIELD-RR BMPR OPG 		- 1 Enquire
42 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)
Pack of 10 		- 2 Enquire
43 ED3310N660AA
Panel, Battery Cover 		- 1 Enquire
44 703265
Screw, M6 x 16, Hex Flange Head 		- 12 Enquire
45 ED3367518AA
Panel, Rear Seat Heel Board, RH 		- 1 Enquire
