Front Bumper Structure Fed, Gulf And China

Aston Martin Vanquish (2012+)

Find Your Part

Aston Martin Vanquish (2012+) - Front Bumper Structure Fed, Gulf and China

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DG4317757CA Bumper Beam Assembly, Front Enquire To Order
Photo Part No Description Price (each) Stock
703155 SCREW/WASHER M8x25 CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
CD3317B804AC Towing Eye Enquire To Order
Photo Part No Description Price (each) Stock
4G436367912AD NUT PLT ASY FRT CRSH Enquire To Order
Photo Part No Description Price (each) Stock
704495 Screw, M8 x 35, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
DD43V17N800BA Crash Can, Bumper Front Enquire To Order
Photo Part No Description Price (each) Stock
CD333804AC Bracket, Bonnet Latch Mounting Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
7G3319E642AB Sensor, Ambient Air Temperature Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
DG4317E898BA Isolator, Front Bumper Outboard Lower Enquire To Order
Photo Part No Description Price (each) Stock
6G3368676AC Rivet Structural 6.5 x 14, Blind Enquire To Order
Photo Part No Description Price (each) Stock
DG4317E937BB Insert, Front Bumper Isolator, LH Enquire To Order
Photo Part No Description Price (each) Stock
DG4317E936BB Insert, Front Bumper Isolator, RH Enquire To Order
Photo Part No Description Price (each) Stock
703172PK Screw M8 x 25 Pan Head (Pack of 10) Enquire To Order
Photo Part No Description Price (each) Stock
DG4317E952BA Over Rider, Central, Front Bumper Enquire To Order
Photo Part No Description Price (each) Stock
DG4317752AB Bracket, Bumper Beam Front Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
DG4317K906AA Plug & Grip, 15mm Enquire To Order
View All

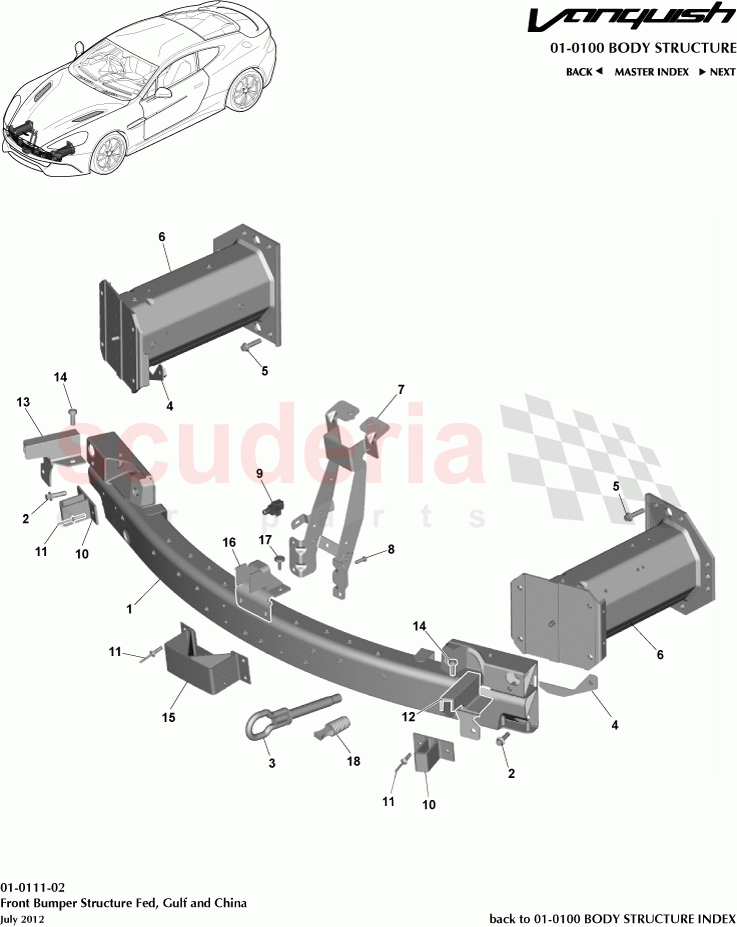

Front Bumper Structure Fed, Gulf and China of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 DG4317757CA
Bumper Beam Assembly, Front 		- 1 Enquire
2 703155
SCREW/WASHER M8x25 CHROME FREE 		- 6 Enquire
3 CD3317B804AC
Towing Eye 		- 1 Enquire
4 4G436367912AD
NUT PLT ASY FRT CRSH 		- 2 Enquire
5 704495
Screw, M8 x 35, Hex Flange Head 		- 12 Enquire
6 DD43V17N800BA
Crash Can, Bumper Front
Structural. Cat A Only 		- 2 Enquire
7 CD333804AC
Bracket, Bonnet Latch Mounting
ARRIVING SOON 		- 1 Enquire
8 703265
Screw, M6 x 16, Hex Flange Head 		- 4 Enquire
9 7G3319E642AB
Sensor, Ambient Air Temperature
ARRIVING SOON 		- 1 Enquire
10 DG4317E898BA
Isolator, Front Bumper Outboard Lower 		- 2 Enquire
11 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		- 8 Enquire
12 DG4317E937BB
Insert, Front Bumper Isolator, LH 		- 1 Enquire
13 DG4317E936BB
Insert, Front Bumper Isolator, RH 		- 1 Enquire
14 703172PK
Screw M8 x 25 Pan Head (Pack of 10)
Pack of 10 		- 4 Enquire
15 DG4317E952BA
Over Rider, Central, Front Bumper 		- 1 Enquire
16 DG4317752AB
Bracket, Bumper Beam Front 		- 1 Enquire
17 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
Pack of 20 		- 4 Enquire
18 DG4317K906AA
Plug & Grip, 15mm 		- 1 Enquire
