Body Ancillary Parts, Coupe - Page 1

Aston Martin Vanquish (2012+)

Find Your Part

Aston Martin Vanquish (2012+) - Body Ancillary Parts, COUPE - Page 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DD43108A75DA Brace Assembly, Front Cross Enquire To Order
Photo Part No Description Price (each) Stock
702209 Bolt, M10 x 25, Torque Drive Enquire To Order
Photo Part No Description Price (each) Stock
GODG43108A87AD Bracket, Front Cross Brace, LH Enquire To Order
Photo Part No Description Price (each) Stock
GODG43108A86AD Bracket, Front Cross Brace, RH Enquire To Order
Photo Part No Description Price (each) Stock
703120 Screw M8-1.25-90 Hex Socket Head Shoulder Enquire To Order
Photo Part No Description Price (each) Stock
DG435341AA Bracket, ECU Mounting, LH Enquire To Order
Photo Part No Description Price (each) Stock
DG435340AA Bracket, ECU Mounting, RH Enquire To Order
Photo Part No Description Price (each) Stock
703194 BOLT M8x45 HEX FLNG CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
DG4316A682AA Reinforcement, Hood Hinge on Body, LH Enquire To Order
Photo Part No Description Price (each) Stock
DG4316A681AA Reinforcement, Hood Hinge on Body, RH Enquire To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free Enquire To Order
Photo Part No Description Price (each) Stock
DD3318178AA Bracket, Gas Damper Mounting Enquire To Order
Photo Part No Description Price (each) Stock
6G3368676AC Rivet Structural 6.5 x 14, Blind Enquire To Order
Photo Part No Description Price (each) Stock
1R12640101AA Ball Stud Enquire To Order
Photo Part No Description Price (each) Stock
8G43199901AA Nutplate, M6 Headlamp Bracket Enquire To Order
Photo Part No Description Price (each) Stock
6G3337949AA DIA 4.8 X 13.9 BLIND RIVET Enquire To Order
Photo Part No Description Price (each) Stock
DG43043B20AA Tube, Passenger Air Bag Initiator, LH Enquire To Order
Photo Part No Description Price (each) Stock
DG43043B19AA Tube, Passenger Air Bag Initiator, RH Enquire To Order
Photo Part No Description Price (each) Stock
DG4313069AC PNL HD/LP MNTG LH Enquire To Order
Photo Part No Description Price (each) Stock
DG4313068AC PNL HD/LP MTNG RH Enquire To Order
Photo Part No Description Price (each) Stock
GOCD3320416AA Reinforcement, Door to Sill Enquire To Order
Photo Part No Description Price (each) Stock
GODG43111K36AC Tunnel Reinforcement, Front Enquire To Order
Photo Part No Description Price (each) Stock
DG4300512AA Screw (Taptite), M10 x 40 Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
GODG431660AA Spacer, Tunnel Reinforcement, Front Enquire To Order
Photo Part No Description Price (each) Stock
4G43111K37AE Tunnel Reinforcement, Centre Enquire To Order
Photo Part No Description Price (each) Stock
4G43111C61AE Panel, Dummy Floor Front, RHD Enquire To Order
Photo Part No Description Price (each) Stock
701553 Screw, M6 x 16, Pan Head Enquire To Order
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
4G43111B48AB Panel, Dummy Floor Cover, Front Enquire To Order
Photo Part No Description Price (each) Stock
3786250 Edge Protection, Switch Harness, 150mm Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
View All

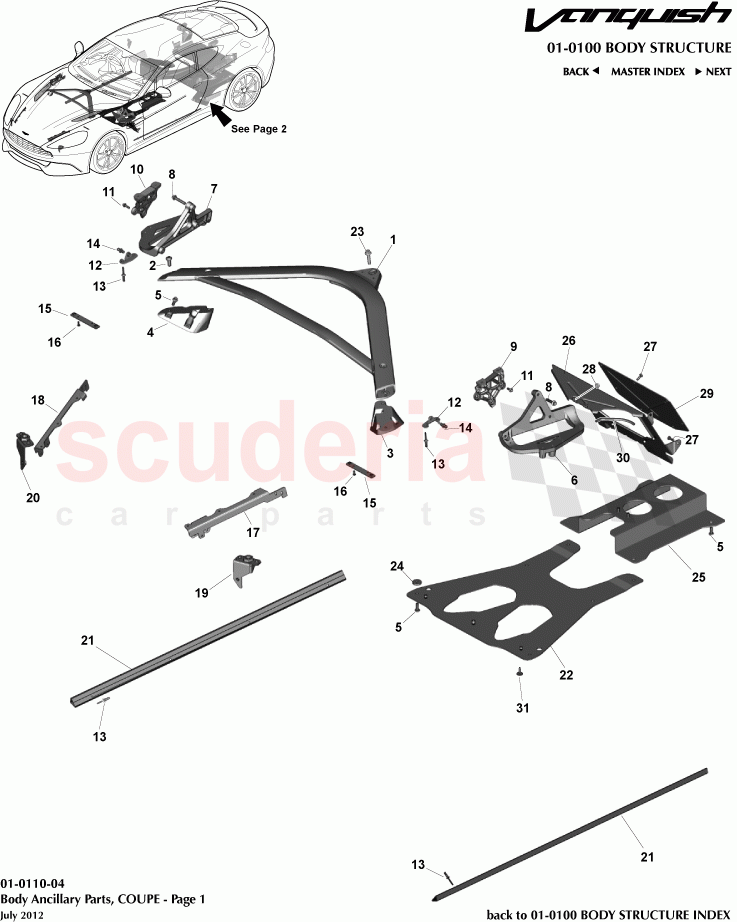

Body Ancillary Parts, COUPE - Page 1 of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9G43111C60GF
Panel, Dummy Floor Front, LHD
LHD 		- 1 Enquire
1 DD43108A75DA
Brace Assembly, Front Cross 		- 1 Enquire
2 702209
Bolt, M10 x 25, Torque Drive 		- 4 Enquire
3 GODG43108A87AD
Bracket, Front Cross Brace, LH 		- 1 Enquire
4 GODG43108A86AD
Bracket, Front Cross Brace, RH 		- 1 Enquire
5 703120
Screw M8-1.25-90 Hex Socket Head Shoulder 		- 8 Enquire
6 DG435341AA
Bracket, ECU Mounting, LH 		- 1 Enquire
7 DG435340AA
Bracket, ECU Mounting, RH 		- 1 Enquire
8 703194
BOLT M8x45 HEX FLNG CHROME FREE 		- 6 Enquire
9 DG4316A682AA
Reinforcement, Hood Hinge on Body, LH 		- 1 Enquire
10 DG4316A681AA
Reinforcement, Hood Hinge on Body, RH 		- 1 Enquire
11 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 6 Enquire
12 DD3318178AA
Bracket, Gas Damper Mounting 		- 2 Enquire
13 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		- 12 Enquire
14 1R12640101AA
Ball Stud 		- 2 Enquire
15 8G43199901AA
Nutplate, M6 Headlamp Bracket 		- 2 Enquire
16 6G3337949AA
DIA 4.8 X 13.9 BLIND RIVET 		- 4 Enquire
17 DG43043B20AA
Tube, Passenger Air Bag Initiator, LH 		- 1 Enquire
18 DG43043B19AA
Tube, Passenger Air Bag Initiator, RH 		- 1 Enquire
19 DG4313069AC
PNL HD/LP MNTG LH 		- 1 Enquire
20 DG4313068AC
PNL HD/LP MTNG RH 		- 1 Enquire
21 GOCD3320416AA
Reinforcement, Door to Sill 		- 2 Enquire
22 GODG43111K36AC
Tunnel Reinforcement, Front 		- 1 Enquire
23 DG4300512AA
Screw (Taptite), M10 x 40 Hex Flange Head 		- 1 Enquire
24 GODG431660AA
Spacer, Tunnel Reinforcement, Front 		- 4 Enquire
25 4G43111K37AE
Tunnel Reinforcement, Centre 		- 1 Enquire
26 4G43111C61AE
Panel, Dummy Floor Front, RHD
RHD 		- 1 Enquire
27 701553
Screw, M6 x 16, Pan Head 		- 12 Enquire
28 703169
NUT - M6 HEX FLANGE CHROME FREE 		- 2 Enquire
29 4G43111B48AB
Panel, Dummy Floor Cover, Front 		- 1 Enquire
30 3786250
Edge Protection, Switch Harness, 150mm
170mm Top, 180mm Bottom 		- A/R Enquire
31 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20) 		- 2 Enquire
