Aston Martin Vanquish (2012+) - Body Ancillary Parts, COUPE - Page 2

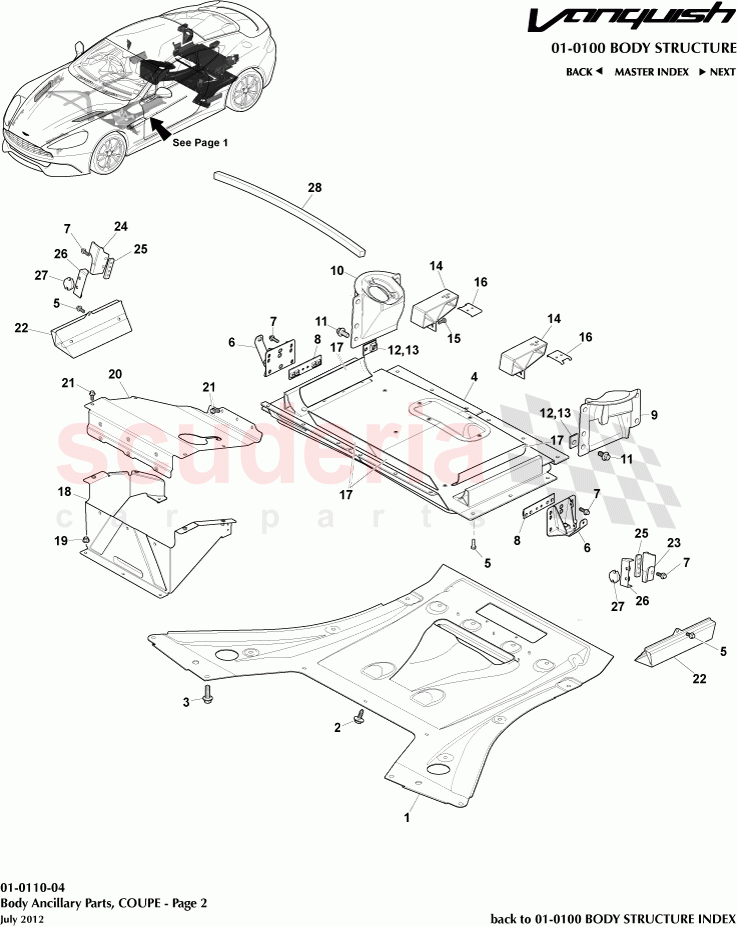

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FD33L17C857AB	SHIELD-RR BMPR OPG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703268	Screw and Washer, M8 x 21	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3338580AB	Panel Assy, Fuel Tank Compartment, Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707134	BOLT-M8x25 HEX FL PL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335N394AB	Nutplate Bracket, Rear Subframe Stabiliser, Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W500443S442	Screw, M12 x 35, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C114B10AB	BRACKET REAR SEAT CHILD SEAT OUTER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43612C58AA	Plate, Child Seat Attachment	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439N070AB	INSULATION - FUEL TANK SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3367518AB	Panel, Rear Seat Heel Board, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3310N660AB	Panel, Battery Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOCD3310230AA	Reinforcement Extrusion, Rear Floor Side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOCD3320E801AC	Body Mount Catcher, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOCD3320E800AC	Body Mount Catcher, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD33393126AC	Mounting Plate, Catcher	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43393126AA	Nutplate Assembly, Striker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F16346BB	SPACER LATCH STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3285306	Seal, Radiator Upper	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	ED3367518AA	Panel, Rear Seat Heel Board, RH	ED3367518AA Panel, Rear Seat Heel Board, RH 14.5MY	-	1	Enquire
-	ED3310N660AA	Panel, Battery Cover	ED3310N660AA Panel, Battery Cover 14.5MY	-	1	Enquire
-	GOED3320E801AA	Body Mount Catcher, LH	GOED3320E801AA Body Mount Catcher, LH 14.5MY	-	1	Enquire
-	GOED3320E800AA	Body Mount Catcher, RH	GOED3320E800AA Body Mount Catcher, RH 14.5MY	-	1	Enquire
-	AD43F16347BB	SPACER LATCH STRIKER	AD43F16347BB SPACER LATCH STRIKER 10.5mm	-	A/R	Enquire
-	AD43F16348BB	SPACER LATCH STRIKER	AD43F16348BB SPACER LATCH STRIKER 9.5mm	-	A/R	Enquire
-	AD43F16349BB	SPACER LATCH STRIKER	AD43F16349BB SPACER LATCH STRIKER 8.5mm	-	A/R	Enquire
-	AD43F16350BB	Spacer	AD43F16350BB Spacer 7.5mm	-	A/R	Enquire
-	AD43F16351BB	Spacer, Latch Striker	AD43F16351BB Spacer, Latch Striker 6.5mm	-	A/R	Enquire
-	DG43F16352BB	Spacer, Latch Striker	DG43F16352BB Spacer, Latch Striker 5.5mm	-	A/R	Enquire
-	DG43F16353BB	Spacer, Latch Striker	DG43F16353BB Spacer, Latch Striker 4.5mm	-	A/R	Enquire
1	FD33L17C857AB	SHIELD-RR BMPR OPG	FD33L17C857AB SHIELD-RR BMPR OPG	-	1	Enquire
2	703268	Screw and Washer, M8 x 21	703268 Screw and Washer, M8 x 21	-	15	Enquire
3	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Pack of 10	-	2	Enquire
4	CD3338580AB	Panel Assy, Fuel Tank Compartment, Lower	CD3338580AB Panel Assy, Fuel Tank Compartment, Lower	-	1	Enquire
5	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	24	Enquire
6	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	6G335D022AD BRACKET REAR SUB FRAME STABILISER	-	2	Enquire
7	707134	BOLT-M8x25 HEX FL PL	707134 BOLT-M8x25 HEX FL PL	-	10	Enquire
8	6G335N394AB	Nutplate Bracket, Rear Subframe Stabiliser, Upper	6G335N394AB Nutplate Bracket, Rear Subframe Stabiliser, Upper	-	2	Enquire
9	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	6G3318A001AD Member, Rear Shock Absorber Mounting, LH	-	1	Enquire
10	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	6G3318A000AD Member, Rear Shock Absorber Mounting, RH	-	1	Enquire
11	W500443S442	Screw, M12 x 35, Hex Flange Head	W500443S442 Screw, M12 x 35, Hex Flange Head	-	8	Enquire
12	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front	-	2	Enquire
13	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	2	Enquire
14	4G43C114B10AB	BRACKET REAR SEAT CHILD SEAT OUTER RH	4G43C114B10AB BRACKET REAR SEAT CHILD SEAT OUTER RH	-	2	Enquire
15	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	703172PK Screw M8 x 25 Pan Head (Pack of 10) Pack of 10	-	4	Enquire
16	4G43612C58AA	Plate, Child Seat Attachment	4G43612C58AA Plate, Child Seat Attachment	-	2	Enquire
17	4G439N070AB	INSULATION - FUEL TANK SUPPORT	4G439N070AB INSULATION - FUEL TANK SUPPORT	-	4	Enquire
18	CD3367518AB	Panel, Rear Seat Heel Board, RH	CD3367518AB Panel, Rear Seat Heel Board, RH	-	1	Enquire
19	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	3	Enquire
20	CD3310N660AB	Panel, Battery Cover	CD3310N660AB Panel, Battery Cover	-	1	Enquire
21	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	12	Enquire
22	GOCD3310230AA	Reinforcement Extrusion, Rear Floor Side	GOCD3310230AA Reinforcement Extrusion, Rear Floor Side	-	2	Enquire
23	GOCD3320E801AC	Body Mount Catcher, LH	GOCD3320E801AC Body Mount Catcher, LH	-	1	Enquire
24	GOCD3320E800AC	Body Mount Catcher, RH	GOCD3320E800AC Body Mount Catcher, RH	-	1	Enquire
25	CD33393126AC	Mounting Plate, Catcher	CD33393126AC Mounting Plate, Catcher	-	2	Enquire
26	DG43393126AA	Nutplate Assembly, Striker	DG43393126AA Nutplate Assembly, Striker	-	2	Enquire
27	AD43F16346BB	SPACER LATCH STRIKER	AD43F16346BB SPACER LATCH STRIKER 11.5mm	-	A/R	Enquire
28	3285306	Seal, Radiator Upper	3285306 Seal, Radiator Upper	-	1	Enquire
