Aston Martin Vanquish (2001-2007) - Harnesses

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3R12370508AB	HARNESS - LEFT FORWARD (RHD)	Enquire	To Order
	3R12370509AB	HARNESS - LEFT FORWARD (LHD)	Enquire	To Order
	1R12370508AE	HARNESS - LEFT FORWARD (RHD)	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3R12370524AA	HARNESS - DOOR (PASSENGER)	Enquire	To Order
	1R12370524AC	HARNESS - DOOR (PASSENGER)	Enquire	To Order
	700468	Grease, Lagermeister SL	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3R12375523AC	LINN ICE HARNESS	Enquire	To Order
	3R12375862AA	LINN ICE LINK LEAD	Enquire	To Order
	1R12373211AD	HARNESS ICE PREMIUM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3R12370517AB	BOOT HARNESS	Enquire	To Order
	1R12370517AE	HARNESS - BOOT	Enquire	To Order
	5R1314403AA	BOOT HARNESS	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3R12370514AA	HARNESS-FACIA RHD	Enquire	To Order
	3R12370515AB	HARNESS-FACIA LHD	Enquire	To Order
	1R12370514AF	HARNESS-FACIA RHD	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3R12370522AA	HARNESS - DOOR (DRIVER)	Enquire	To Order
	1R12370522AC	HARNESS - DOOR (DRIVER)	Enquire	To Order
	700468	Grease, Lagermeister SL	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	5R1314A227AA	Harness, boot lid	Enquire	To Order
	1R12370518AD	HARNESS - BOOT LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91698	ENGINE WIR G HARNESS	Enquire	To Order
	3785921	INJECTOR HRN SLEEVE	Enquire	To Order
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R12376322AA	TRANSMISSION GEAR POSITION LINK LEAD	Enquire	To Order
	3R12370799AB	HARNESS - ASM	Enquire	To Order
	3R12370799AB	HARNESS - ASM	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12370527AD	Lead, fuel tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12375524AB	REAR PARKING SENSOR HARNESS	Enquire	To Order
	3R12375525AB	PARKING SENSOR MODULE LINK	Enquire	To Order
	1R123210113	CYL BLOCK HTR-120v	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12833190AA	HEELBOARD HARNESS COVER RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R12376276AA	ABS SENSOR LINK LEAD	Enquire	To Order
	6R139137AA	BLUETOOTH SWITCHER UNIT LINK	Enquire	To Order
	1R12375247AA	GPS LINKLEAD GROMMET	Enquire	To Order

...and 13 more part variants. See table on right for more details.

View All

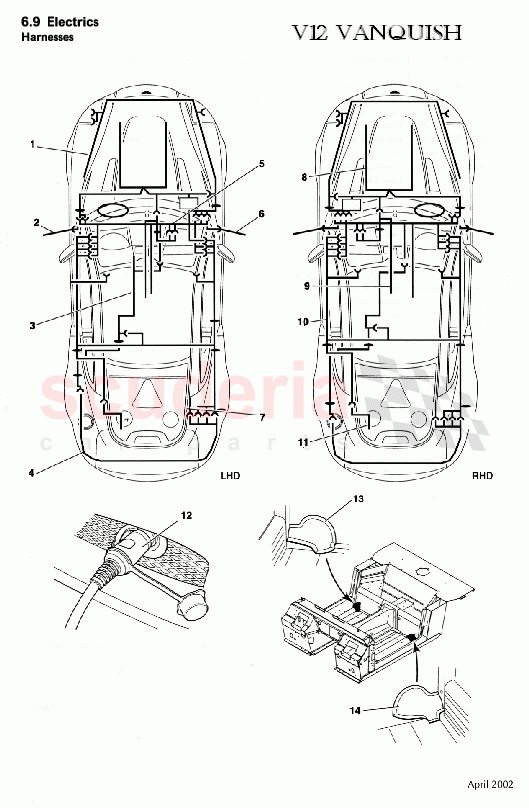

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3R12370508AB	HARNESS - LEFT FORWARD (RHD)	3R12370508AB HARNESS - LEFT FORWARD (RHD) From (V) 500516-21 + 526 onwards, Up to (V) 501285	-	1	Enquire
1	3R12370509AB	HARNESS - LEFT FORWARD (LHD)	3R12370509AB HARNESS - LEFT FORWARD (LHD) From (V) 500516-21 + 526 onwards, Up to (V) 501285	-	1	Enquire
1	1R12370508AE	HARNESS - LEFT FORWARD (RHD)	1R12370508AE HARNESS - LEFT FORWARD (RHD) Up to (V) 500515 + 500522-525	-	1	Enquire
1	1R12370509AE	HARNESS - LEFT FORWARD (LHD)	1R12370509AE HARNESS - LEFT FORWARD (LHD) Up to (V) 500515 + 500522-525	-	1	Enquire
1	4R12370508AA	HARNESS - RIGHT FORWARD (RHD)	4R12370508AA HARNESS - RIGHT FORWARD (RHD) From (V) 501286	-	1	Enquire
1	4R12370509AA	HARNESS - LEFT FORWARD (LHD)	4R12370509AA HARNESS - LEFT FORWARD (LHD) From (V) 501286	-	1	Enquire
2	3R12370524AA	HARNESS - DOOR (PASSENGER)	3R12370524AA HARNESS - DOOR (PASSENGER) From (V) 500516-21 + 526 onwards, Up to (V) 501285	-	1	Enquire
2	1R12370524AC	HARNESS - DOOR (PASSENGER)	1R12370524AC HARNESS - DOOR (PASSENGER) Up to (V) 500515 + 500522-525	-	1	Enquire
2	700468	Grease, Lagermeister SL	700468 Grease, Lagermeister SL For sealing door harness	-	-	Enquire
2	6R1314B631BA	PASSENGER DOOR HARNESS	6R1314B631BA PASSENGER DOOR HARNESS 06MY from (V) 501949	-	1	Enquire
2	4R12370524AB	HARNESS - DOOR (PASSENGER)	4R12370524AB HARNESS - DOOR (PASSENGER) From (V) 501286	-	1	Enquire
3	3R12375523AC	LINN ICE HARNESS	3R12375523AC LINN ICE HARNESS From (V) 500516-21 + 526 onwards, Up to (V) 501285	-	1	Enquire
3	3R12375862AA	LINN ICE LINK LEAD	3R12375862AA LINN ICE LINK LEAD From (V) 500516-21 + 526 onwards	-	1	Enquire
3	1R12373211AD	HARNESS ICE PREMIUM	1R12373211AD HARNESS ICE PREMIUM Up to (V) 500515 + 500522-525	-	1	Enquire
3	1R12370513AD	HARNESS-ICE	1R12370513AD HARNESS-ICE Up to (V) 500515 + 500522-525	-	1	Enquire
3	6R1314588AB	Harness, ICE	6R1314588AB Harness, ICE 06MY from (V) 501949	-	1	Enquire
3	697274PK	TIE STRAP(PK OF 100)	697274PK TIE STRAP(PK OF 100) ICE harness attach	-	3	Enquire
3	1R12373777AA	SPACER - EARTH STUD	1R12373777AA SPACER - EARTH STUD ICE harness earth	-	1	Enquire
3	4R12375523AA	LINN ICE HARNESS	4R12375523AA LINN ICE HARNESS From (V) 501286	-	1	Enquire
4	3R12370517AB	BOOT HARNESS	3R12370517AB BOOT HARNESS From (V) 500516-21 + 526 onwards, Up to (V) 501285	-	1	Enquire
4	1R12370517AE	HARNESS - BOOT	1R12370517AE HARNESS - BOOT Up to (V) 500515 + 500522-525	-	1	Enquire
4	5R1314403AA	BOOT HARNESS	5R1314403AA BOOT HARNESS Vanquish S From (V) 501506	-	1	Enquire
4	6R1314A227AA	BOOT HARNESS	6R1314A227AA BOOT HARNESS 06MY from (V) 501949	-	1	Enquire
4	4R12370517AA	BOOT HARNESS	4R12370517AA BOOT HARNESS From (V) 501286	-	1	Enquire
5	3R12370514AA	HARNESS-FACIA RHD	3R12370514AA HARNESS-FACIA RHD From (V) 500516-21 + 526 onwards, Up to (V) 501285	-	1	Enquire
5	3R12370515AB	HARNESS-FACIA LHD	3R12370515AB HARNESS-FACIA LHD From (V) 500516-21 + 526 onwards, Up to (V) 501285	-	1	Enquire
5	1R12370514AF	HARNESS-FACIA RHD	1R12370514AF HARNESS-FACIA RHD Up to (V) 500515 + 500522-525	-	1	Enquire
5	1R12370515AG	HARNESS-FACIA LHD	1R12370515AG HARNESS-FACIA LHD Up to (V) 500515 + 500522-525	-	1	Enquire
5	697398	TIESTRAP-RELEASEABLE 4.6 x 165	697398 TIESTRAP-RELEASEABLE 4.6 x 165 Facia harness to bracket	-	1	Enquire
5	6R1314401AB	FACIA HARNESS RHD	6R1314401AB FACIA HARNESS RHD 06MY from (V) 501949	-	1	Enquire
5	6R1314401BB	FACIA HARNESS LHD	6R1314401BB FACIA HARNESS LHD 06MY from (V) 501949	-	1	Enquire
5	4R12370514AA	HARNESS-FACIA RHD	4R12370514AA HARNESS-FACIA RHD From (V) 501286	-	1	Enquire
5	4R12370515AA	HARNESS-FACIA LHD	4R12370515AA HARNESS-FACIA LHD From (V) 501286	-	1	Enquire
6	3R12370522AA	HARNESS - DOOR (DRIVER)	3R12370522AA HARNESS - DOOR (DRIVER) From (V) 500516-21 + 526 onwards, Up to (V) 501285	-	1	Enquire
6	1R12370522AC	HARNESS - DOOR (DRIVER)	1R12370522AC HARNESS - DOOR (DRIVER) Up to (V) 500515 + 500522-525	-	1	Enquire
6	700468	Grease, Lagermeister SL	700468 Grease, Lagermeister SL For sealing door harness	-	-	Enquire
6	6R1314B631AA	DRIVERS DOOR HARNESS	6R1314B631AA DRIVERS DOOR HARNESS 06MY from (V) 501949	-	1	Enquire
6	4R12370522AB	HARNESS - DOOR (DRIVER)	4R12370522AB HARNESS - DOOR (DRIVER) From (V) 501286	-	1	Enquire
7	5R1314A227AA	Harness, boot lid	5R1314A227AA Harness, boot lid Vanquish S From (V) 501506	-	1	Enquire
7	1R12370518AD	HARNESS - BOOT LID	1R12370518AD HARNESS - BOOT LID	-	1	Enquire
8	91698	ENGINE WIR G HARNESS	91698 ENGINE WIR G HARNESS	-	1	Enquire
8	3785921	INJECTOR HRN SLEEVE	3785921 INJECTOR HRN SLEEVE	-	12	Enquire
8	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	4	Enquire
9	4R12376322AA	TRANSMISSION GEAR POSITION LINK LEAD	4R12376322AA TRANSMISSION GEAR POSITION LINK LEAD To rework ASM harness to suit latest sensors	-	1	Enquire
9	3R12370799AB	HARNESS - ASM	3R12370799AB HARNESS - ASM From (V) 500516-21 + 526 See SB0185	-	1	Enquire
9	3R12370799AB	HARNESS - ASM	3R12370799AB HARNESS - ASM Up to (V) 500515 + 500522-525	-	1	Enquire
9	5R13372200AA	HARNESS-ASM SWITCHES	5R13372200AA HARNESS-ASM SWITCHES Vanquish S From (V) 501506	-	1	Enquire
9	699209	Tie-wrap, heat proof	699209 Tie-wrap, heat proof Asm harness to bracket	-	1	Enquire
9	6R1314B079AA	ASM SWITCH HARNESS	6R1314B079AA ASM SWITCH HARNESS 06MY from (V) 501949	-	1	Enquire
9	1R12372200AB	HARNESS-ASM SWITCHES	1R12372200AB HARNESS-ASM SWITCHES Up to (V) 501285	-	1	Enquire
9	4R12372200AA	HARNESS-ASM SWITCHES	4R12372200AA HARNESS-ASM SWITCHES From (V) 501286	-	1	Enquire
9	4R12370799AA	HARNESS - ASM	4R12370799AA HARNESS - ASM From See SB0185	-	1	Enquire
10	3R12370520AB	HARNESS - CABIN (COUPE)	3R12370520AB HARNESS - CABIN (COUPE) From (V) 500516-21 + 526 onwards, Up to (V) 501285	-	1	Enquire
10	5R1314A003AA	CABIN HARNESS	5R1314A003AA CABIN HARNESS Vanquish S From (V) 501506 up to (V) 501948	-	1	Enquire
10	1R12370520AE	HARNESS - CABIN MODIFIED	1R12370520AE HARNESS - CABIN MODIFIED Up to (V) 500515 + 500522-525	-	1	Enquire
10	6R1314A003AA	CABIN HARNESS	6R1314A003AA CABIN HARNESS 06MY from (V) 501949	-	1	Enquire
10	4R12370520AA	HARNESS - CABIN (COUPE)	4R12370520AA HARNESS - CABIN (COUPE) From (V) 501286	-	1	Enquire
11	1R12370527AD	Lead, fuel tank	1R12370527AD Lead, fuel tank	-	1	Enquire
12	3R12375524AB	REAR PARKING SENSOR HARNESS	3R12375524AB REAR PARKING SENSOR HARNESS From (V) 500516-21 + 526 onwards	-	1	Enquire
12	3R12375525AB	PARKING SENSOR MODULE LINK	3R12375525AB PARKING SENSOR MODULE LINK From (V) 500516-21 + 526 onwards	-	1	Enquire
12	1R123210113	CYL BLOCK HTR-120v	1R123210113 CYL BLOCK HTR-120v	-	1	Enquire
12	1R12375210AA	220V BLOCK HEATER CORD SET	1R12375210AA 220V BLOCK HEATER CORD SET	-	1	Enquire
12	1R12375211AA	110V BLOCK HEATER CORD SET	1R12375211AA 110V BLOCK HEATER CORD SET	-	1	Enquire
12	1R12370528AA	Braid, security antenna	1R12370528AA Braid, security antenna	-	1	Enquire
12	1R12375274AA	230V EXTENSION CORD	1R12375274AA 230V EXTENSION CORD	-	1	Enquire
12	1R12375275AB	120V EXTENSION CORD	1R12375275AB 120V EXTENSION CORD	-	1	Enquire
12	700077	'P' CLIP	700077 'P' CLIP	-	1	Enquire
12	700162	RIVET POP 4.9mm	700162 RIVET POP 4.9mm	-	2	Enquire
12	699824	CABLE TIE / C CLIP	699824 CABLE TIE / C CLIP	-	2	Enquire
12	700163	RIVET	700163 RIVET	-	2	Enquire
12	699523	P CLIP OPEN (RICHO WHC375-01)	699523 P CLIP OPEN (RICHO WHC375-01)	-	6	Enquire
12	700162	RIVET POP 4.9mm	700162 RIVET POP 4.9mm	-	8	Enquire
13	1R12833190AA	HEELBOARD HARNESS COVER RHS	1R12833190AA HEELBOARD HARNESS COVER RHS	-	1	Enquire
14	4R12376276AA	ABS SENSOR LINK LEAD	4R12376276AA ABS SENSOR LINK LEAD Vanquish S From (V) 501506	-	2	Enquire
14	6R139137AA	BLUETOOTH SWITCHER UNIT LINK	6R139137AA BLUETOOTH SWITCHER UNIT LINK 06MY from (V) 501949	-	1	Enquire
14	1R12375247AA	GPS LINKLEAD GROMMET	1R12375247AA GPS LINKLEAD GROMMET 06MY from (V) 501949	-	1	Enquire
14	6R1310N928AB	CENTRE STACK HARNESS	6R1310N928AB CENTRE STACK HARNESS 06MY from (V) 501949	-	1	Enquire
14	6R1318B605AA	Link lead, microphone	6R1318B605AA Link lead, microphone 06MY from (V) 501949	-	1	Enquire
14	6R1318C950AA	GPS AERIAL LEAD	6R1318C950AA GPS AERIAL LEAD 06MY from (V) 501949	-	1	Enquire
14	6R1318C951AA	MOST LINK LEAD	6R1318C951AA MOST LINK LEAD 06MY from (V) 501949	-	1	Enquire
14	3R12375677AA	DIFF PUMP EXT HARNESS	3R12375677AA DIFF PUMP EXT HARNESS Middle East	-	1	Enquire
14	3R12375737AB	Harness, engine fan overlay	3R12375737AB Harness, engine fan overlay Middle East	-	1	Enquire
14	697274PK	TIE STRAP(PK OF 100)	697274PK TIE STRAP(PK OF 100) Middle East	-	4	Enquire
14	3R12376149AA	BRACKET-CLUTCH POS N SENSOR	3R12376149AA BRACKET-CLUTCH POS N SENSOR	-	1	Enquire
14	1R12833191AA	HEELBOARD HARNESS COVER LHS	1R12833191AA HEELBOARD HARNESS COVER LHS	-	1	Enquire
14	1R12375746AA	ENGINE HARNESS CARRIER	1R12375746AA ENGINE HARNESS CARRIER	-	1	Enquire
14	3785236	Protector, Power Stud	3785236 Protector, Power Stud	-	1	Enquire
14	1R12373359AA	EDGE PROTECTION	1R12373359AA EDGE PROTECTION	-	1	Enquire
14	699233PK	TIE-STRAP HT RES-100	699233PK TIE-STRAP HT RES-100	-	2	Enquire
