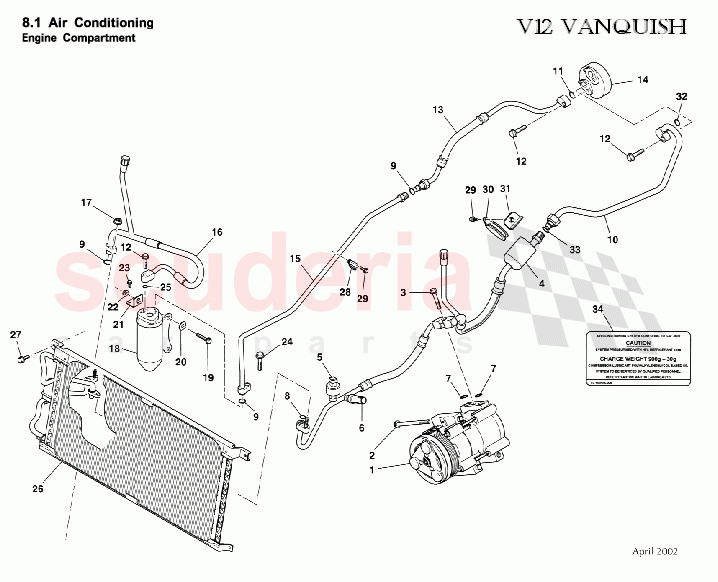

Aston Martin Vanquish (2001-2007) - Engine Compartment Installation

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	5R1319D629AA	AIR CONDITIONING COMPRESSOR & CLUTCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700097	BOLT M8x110 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12892851AD	HOSE ASSY - SUCTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128910192	Switch, A/C High Pressure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6L2419D594BA	Switch, AC, pressure cutoff	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700554	O RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700263	O RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700279	O RING-10.6x2.4 VI75	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699834	O RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699083	SCREW M6 x 30 FLG HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12892848AC	HOSE ASSY - LIQUID LINE - EVAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12830791AA	Air conditioning unit, modified	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12892849AA	TUBE ASSY - LIQUID LINE - DRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R1319D719AA	TUBE ASSY - A/C CONDENSER TO DRIER	Enquire	To Order
	5R1319972AA	TUBE ASSY - A/C CONDENSER TO A/C UNIT	Enquire	To Order
	1R12890719AC	TUBE ASSY - A/C CONDENSOR TO RECEIVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697781	NUT M6 FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8985238	RECEIVER DRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703199	Bolt M6x30 HEX FLG Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	694567	WASHER M6 x 18 OD 0.9 THICK ZINC PLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12891405AA	BRACKET - A/C RECEIVER DRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700731	NUT M6 HEX FLNG 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699834	O RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order
	694567	WASHER M6 x 18 OD 0.9 THICK ZINC PLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699634	P-Clip,13 x 15 x M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12892870AA	Bracket assy, pipe, compressor suction	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700279	O RING-10.6x2.4 VI75	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700280	O RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R1319T559AA	SEAL CONDENSER LOWER	Enquire	To Order
	1R12895720AA	ASSY A/C CONDENSER /PAS COOLER	Enquire	To Order
	1R12895776AA	Seal, condenser lower	Enquire	To Order

...and 12 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	5R1319D629AA	AIR CONDITIONING COMPRESSOR & CLUTCH	5R1319D629AA AIR CONDITIONING COMPRESSOR & CLUTCH	-	1	Enquire
2	700097	BOLT M8x110 HEX FLG	700097 BOLT M8x110 HEX FLG	-	3	Enquire
4	1R12892851AD	HOSE ASSY - SUCTION	1R12892851AD HOSE ASSY - SUCTION	-	1	Enquire
5	1R128910192	Switch, A/C High Pressure	1R128910192 Switch, A/C High Pressure	-	1	Enquire
6	6L2419D594BA	Switch, AC, pressure cutoff	6L2419D594BA Switch, AC, pressure cutoff	-	1	Enquire
7	700554	O RING	700554 O RING	-	2	Enquire
8	700263	O RING	700263 O RING	-	1	Enquire
9	700279	O RING-10.6x2.4 VI75	700279 O RING-10.6x2.4 VI75	-	4	Enquire
10	1R12892850AA	TUBE ASSY - SUCTION LINE - EVAP	1R12892850AA TUBE ASSY - SUCTION LINE - EVAP	-	1	Enquire
11	699834	O RING	699834 O RING	-	2	Enquire
12	699083	SCREW M6 x 30 FLG HD	699083 SCREW M6 x 30 FLG HD	-	3	Enquire
13	1R12892848AC	HOSE ASSY - LIQUID LINE - EVAP	1R12892848AC HOSE ASSY - LIQUID LINE - EVAP	-	1	Enquire
14	1R12830791AA	Air conditioning unit, modified	1R12830791AA Air conditioning unit, modified	-	1	Enquire
15	1R12892849AA	TUBE ASSY - LIQUID LINE - DRIER	1R12892849AA TUBE ASSY - LIQUID LINE - DRIER	-	1	Enquire
16	5R1319D719AA	TUBE ASSY - A/C CONDENSER TO DRIER	5R1319D719AA TUBE ASSY - A/C CONDENSER TO DRIER Vanquish S V12 From (V) 501506	-	1	Enquire
16	5R1319972AA	TUBE ASSY - A/C CONDENSER TO A/C UNIT	5R1319972AA TUBE ASSY - A/C CONDENSER TO A/C UNIT Vanquish S V12 From (V) 501506	-	1	Enquire
16	1R12890719AC	TUBE ASSY - A/C CONDENSOR TO RECEIVER	1R12890719AC TUBE ASSY - A/C CONDENSOR TO RECEIVER	-	1	Enquire
17	697781	NUT M6 FLG	697781 NUT M6 FLG	-	2	Enquire
18	8985238	RECEIVER DRIER	8985238 RECEIVER DRIER	-	1	Enquire
19	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free	-	2	Enquire
20	694567	WASHER M6 x 18 OD 0.9 THICK ZINC PLT	694567 WASHER M6 x 18 OD 0.9 THICK ZINC PLT	-	2	Enquire
21	1R12891405AA	BRACKET - A/C RECEIVER DRIER	1R12891405AA BRACKET - A/C RECEIVER DRIER	-	1	Enquire
22	700731	NUT M6 HEX FLNG 8	700731 NUT M6 HEX FLNG 8	-	1	Enquire
24	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head	-	1	Enquire
25	699834	O RING	699834 O RING	-	1	Enquire
26	5R1319157AA	UPPER BRACKET - CONDENSER	5R1319157AA UPPER BRACKET - CONDENSER Vanquish S From (V) 501506	-	1	Enquire
26	5R1319735AA	LOWER BRACKET - CONDENSER	5R1319735AA LOWER BRACKET - CONDENSER Vanquish S From (V) 501506	-	1	Enquire
26	9G4319710AA	Condenser	9G4319710AA Condenser Vanquish S From (V) 501506	-	1	Enquire
26	8985239	A/C CONDENSER	8985239 A/C CONDENSER	-	1	Enquire
27	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head Condenser to radiator	-	2	Enquire
27	694567	WASHER M6 x 18 OD 0.9 THICK ZINC PLT	694567 WASHER M6 x 18 OD 0.9 THICK ZINC PLT	-	2	Enquire
28	699634	P-Clip,13 x 15 x M6	699634 P-Clip,13 x 15 x M6	-	1	Enquire
29	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD	-	3	Enquire
30	700026	'P' CLIP	700026 'P' CLIP	-	1	Enquire
31	1R12892870AA	Bracket assy, pipe, compressor suction	1R12892870AA Bracket assy, pipe, compressor suction	-	1	Enquire
32	700279	O RING-10.6x2.4 VI75	700279 O RING-10.6x2.4 VI75	-	1	Enquire
33	700280	O RING	700280 O RING	-	4	Enquire
34	5R1319T559AA	SEAL CONDENSER LOWER	5R1319T559AA SEAL CONDENSER LOWER Vanquish S From (V) 501506	-	1	Enquire
34	1R12895720AA	ASSY A/C CONDENSER /PAS COOLER	1R12895720AA ASSY A/C CONDENSER /PAS COOLER Middle East cars	-	1	Enquire
34	1R12895776AA	Seal, condenser lower	1R12895776AA Seal, condenser lower Middle East cars	-	1	Enquire
34	3285306	Seal, Radiator Upper	3285306 Seal, Radiator Upper Middle East cars	-	1	Enquire
34	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head Middle East cars	-	2	Enquire
34	32121299AA	SEAL RADIATOR LH	32121299AA SEAL RADIATOR LH Middle East cars	-	2	Enquire
34	694597	WASHER M8 x 25 x 3	694597 WASHER M8 x 25 x 3 Middle East cars	-	2	Enquire
34	97123155AA	LABEL - AIR CON INFO	97123155AA LABEL - AIR CON INFO	-	1	Enquire
34	699793	GROMMET HVAC CHARGE POINT	699793 GROMMET HVAC CHARGE POINT	-	1	Enquire
34	8982083	DEFLECTOR SHIELD	8982083 DEFLECTOR SHIELD	-	1	Enquire
34	699718	DOUBLE PIPE CLIP	699718 DOUBLE PIPE CLIP	-	2	Enquire
34	699725	GROMMET - SILICONE	699725 GROMMET - SILICONE	-	2	Enquire
34	699657	GROMMET	699657 GROMMET	-	2	Enquire
34	699539	SEMS M6 X 16 C/W 18MM WASHER	699539 SEMS M6 X 16 C/W 18MM WASHER	-	4	Enquire
34	1R12895293AA	PAG OIL DYE	1R12895293AA PAG OIL DYE	-	-	Enquire
