Aston Martin Vanquish (2001-2007) - In Car Entertainment 1

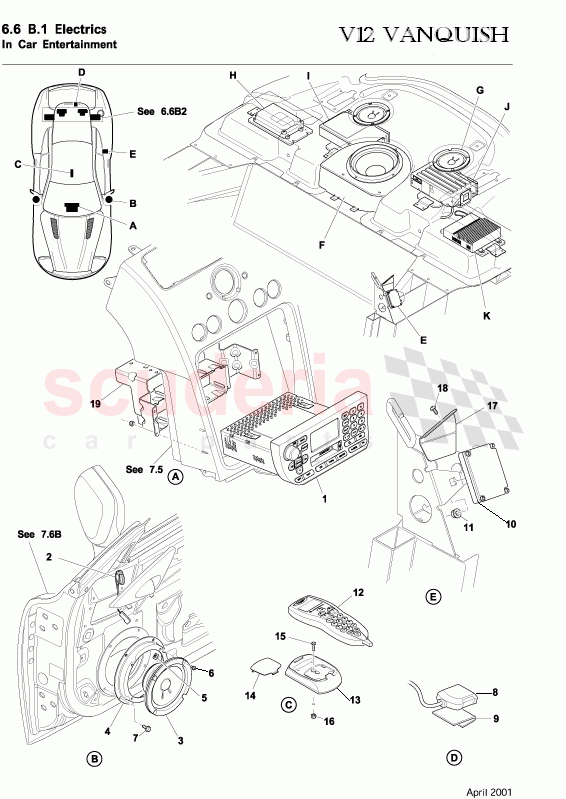

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	91494	RECEIVER	Enquire	To Order
	1R12374079AA	RECEIVER INT MEDIA LHD PREMIUM	Enquire	To Order
	91493	RECEIVER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R123710032	SPEAKER-DOOR TWEETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710033	SPKR-DOOR BASS 6.5in	Enquire	To Order
	1R123710034	SPKR-DOOR BASS 6.5in	Enquire	To Order
	3R12375516AA	DOOR SPEAKER ASSY RH SATIN CHROME	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12370421AA	BRACKET - DOOR SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699293	SPIRE CLIP NO.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700121	SCREW No6x3/4in BLK REC PAN HD S/T	Enquire	To Order
	700429	Screw, M4 x 20 black	Enquire	To Order
	700428	SCREW M4 x 20 STAINLESS STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703278	Screw, M6 x 10, Flange Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710024	AERIAL-GPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4310E921BC	Base Plate, GPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12372037AC	MODULE - ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12375512AA	REAR SHELF BEZEL ASSY RH BLACK	Enquire	To Order
	3R12375511AA	REAR SHELF BEZEL ASSY LH BLACK	Enquire	To Order
	3R12375510AA	MID RANGE SPEAKER ASSY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12374207AB	CORDED HANDSET	Enquire	To Order
	1R12374777AA	TELEPHONE HANDSET VORIZON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710047	TELEPHONE CRADLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710179	Cover, cradle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700100	SCREW M4x12 PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699587	WASHER M4 BLACK GRD 4.8 ZINC & BLK PASS	Enquire	To Order
	697431	NUT M4 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12633337AA	HARNESS PROTECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699695	SCREW N04x10 FLANGE POZI ST SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12835205AA	Packer, radio mounting bracket	Enquire	To Order
	1R12835206AB	ASSY BRACKET COINTRAY / RADIO	Enquire	To Order
	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	91494	RECEIVER	91494 RECEIVER Up to (V) 500515 + 500522-525	-	1	Enquire
1	1R12374079AA	RECEIVER INT MEDIA LHD PREMIUM	1R12374079AA RECEIVER INT MEDIA LHD PREMIUM Up to (V) 500515 + 500522-525	-	1	Enquire
1	91493	RECEIVER	91493 RECEIVER Up to (V) 500515 + 500522-525	-	1	Enquire
1	1R12370417AA	RECEIVER - INTEGRATED MEDIA (LHD)	1R12370417AA RECEIVER - INTEGRATED MEDIA (LHD) Up to (V) 500515 + 500522-525	-	1	Enquire
1	91532	RECEIVER	91532 RECEIVER From (V) 500516-21 + 526 on	-	1	Enquire
1	91497	RECEIVER	91497 RECEIVER From (V) 500516-21 + 526 on	-	1	Enquire
1	91499	RECEIVER	91499 RECEIVER Vanquish S From (V) 501506	-	1	Enquire
1	91498	RECEIVER	91498 RECEIVER Vanquish S From (V) 501506	-	1	Enquire
2	1R123710032	SPEAKER-DOOR TWEETER	1R123710032 SPEAKER-DOOR TWEETER Up to (V) 500515 + 500522-525	-	2	Enquire
3	1R123710033	SPKR-DOOR BASS 6.5in	1R123710033 SPKR-DOOR BASS 6.5in Up to (V) 500515 + 500522-525	-	2	Enquire
3	1R123710034	SPKR-DOOR BASS 6.5in	1R123710034 SPKR-DOOR BASS 6.5in Up to (V) 500515 + 500522-525	-	2	Enquire
3	3R12375516AA	DOOR SPEAKER ASSY RH SATIN CHROME	3R12375516AA DOOR SPEAKER ASSY RH SATIN CHROME From (V) 500516-21 + 526 on	-	1	Enquire
3	3R12375515AA	DOOR SPEAKER ASSY LH SATIN CHROME	3R12375515AA DOOR SPEAKER ASSY LH SATIN CHROME From (V) 500516-21 + 526 on	-	1	Enquire
4	1R12370421AA	BRACKET - DOOR SPEAKER	1R12370421AA BRACKET - DOOR SPEAKER Up to (V) 500515 + 500522-525	-	4	Enquire
5	699293	SPIRE CLIP NO.6	699293 SPIRE CLIP NO.6 Up to (V) 500515 + 500522-525	-	16	Enquire
6	700121	SCREW No6x3/4in BLK REC PAN HD S/T	700121 SCREW No6x3/4in BLK REC PAN HD S/T Up to (V) 500515 + 500522-525	-	8	Enquire
6	700429	Screw, M4 x 20 black	700429 Screw, M4 x 20 black From (V) 500516-21 + 526 on	-	8	Enquire
6	700428	SCREW M4 x 20 STAINLESS STEEL	700428 SCREW M4 x 20 STAINLESS STEEL From (V) 500516-21 + 526 on	-	8	Enquire
7	703278	Screw, M6 x 10, Flange Hex Head	703278 Screw, M6 x 10, Flange Hex Head	-	8	Enquire
8	1R123710024	AERIAL-GPS	1R123710024 AERIAL-GPS	-	1	Enquire
9	4G4310E921BC	Base Plate, GPS	4G4310E921BC Base Plate, GPS	-	1	Enquire
10	1R12372037AC	MODULE - ANTENNA	1R12372037AC MODULE - ANTENNA	-	1	Enquire
11	3R12375512AA	REAR SHELF BEZEL ASSY RH BLACK	3R12375512AA REAR SHELF BEZEL ASSY RH BLACK From (V) 500516-21 + 526 on	-	1	Enquire
11	3R12375511AA	REAR SHELF BEZEL ASSY LH BLACK	3R12375511AA REAR SHELF BEZEL ASSY LH BLACK From (V) 500516-21 + 526 on	-	1	Enquire
11	3R12375510AA	MID RANGE SPEAKER ASSY	3R12375510AA MID RANGE SPEAKER ASSY From (V) 500516-21 + 526 on	-	2	Enquire
11	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	1	Enquire
12	1R12374207AB	CORDED HANDSET	1R12374207AB CORDED HANDSET Up to (V) 500515 + 500522-525	-	1	Enquire
12	1R12374777AA	TELEPHONE HANDSET VORIZON	1R12374777AA TELEPHONE HANDSET VORIZON	-	1	Enquire
13	1R123710047	TELEPHONE CRADLE	1R123710047 TELEPHONE CRADLE Up to (V) 500515 + 500522-525	-	1	Enquire
14	1R123710179	Cover, cradle	1R123710179 Cover, cradle Up to (V) 500515 + 500522-525	-	1	Enquire
15	700100	SCREW M4x12 PAN	700100 SCREW M4x12 PAN	-	2	Enquire
16	699587	WASHER M4 BLACK GRD 4.8 ZINC & BLK PASS	699587 WASHER M4 BLACK GRD 4.8 ZINC & BLK PASS	-	2	Enquire
16	697431	NUT M4 NYLOC	697431 NUT M4 NYLOC	-	2	Enquire
17	1R12633337AA	HARNESS PROTECTOR	1R12633337AA HARNESS PROTECTOR	-	1	Enquire
18	699695	SCREW N04x10 FLANGE POZI ST SCREW	699695 SCREW N04x10 FLANGE POZI ST SCREW	-	1	Enquire
19	1R12835205AA	Packer, radio mounting bracket	1R12835205AA Packer, radio mounting bracket Vanquish S from (V) 501506 up to (V) 501948	-	1	Enquire
19	1R12835206AB	ASSY BRACKET COINTRAY / RADIO	1R12835206AB ASSY BRACKET COINTRAY / RADIO Up to (V) 501948	-	1	Enquire
19	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	700963 SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	-	4	Enquire
20	1R12373560AA	WATER SHEDDER - DOOR SPEAKER	1R12373560AA WATER SHEDDER - DOOR SPEAKER Up to (V) 500515 + 500522-525	-	2	Enquire
20	3R12375702AB	GASKET - SHEDDER DOOR SPEAKER	3R12375702AB GASKET - SHEDDER DOOR SPEAKER From (V) 500516-21 + 526 on	-	2	Enquire
20	3R12375701AB	WATER SHEDDER - DOOR SPEAKER	3R12375701AB WATER SHEDDER - DOOR SPEAKER From (V) 500516-21 + 526 on	-	2	Enquire
21	1R12374219AA	MOTOROLA DIGITAL STARTAC TELEPHONE	1R12374219AA MOTOROLA DIGITAL STARTAC TELEPHONE	-	1	Enquire
