Aston Martin Vanquish (2001-2007) - Instruments and Controls

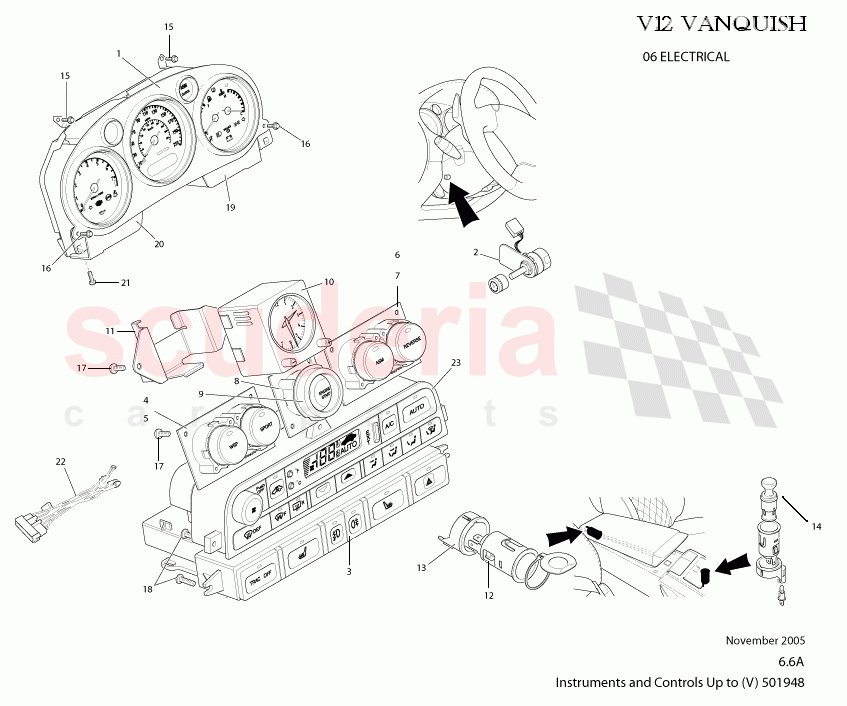

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	91628M	INST PACK-MPH MPS	Enquire	To Order
	91629M	INST PACK KPH MPS	Enquire	To Order
	4R12836046AAW	INSTRUMENT PACK PAINTED FRONT KIT	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710031	SWITCH MODULE- NON HEATED SEATS	Enquire	To Order
	91969	SWITCH MODULE-FOG	Enquire	To Order
	700111	SCREW No6x1/2in POZI	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12374096AB	BUTTON ASSY RHD LS WSP/SPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12374097AB	BUTTON ASSY LHD RS SPORT/WSP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91840	BUTTON ASSY RHD RS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R1314B626AB	CORPORATE SWITCH SPORT MODE	Enquire	To Order
	5R132C419AB	CORPORATE SWITCH WSP MODE	Enquire	To Order
	6G337J175CA	REVERSE SWITCH	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R123710544	STARTER BUTTON CONVERSION KIT- VANQUISH	Enquire	To Order
	1R123710544	STARTER BUTTON CONVERSION KIT- VANQUISH	Enquire	To Order
	4R12836197AA	BRACKET STARTER BUTTON SWITCH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12374101AB	BEZEL RING	Enquire	To Order
	697551	SCREW S.F.	Enquire	To Order
	700112	SCREW 2.9x9.5 PAN ST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12374643AB	CIGAR LIGHTER HOUSING (MODIFIED)	Enquire	To Order
	1R12834614AB	CLOCK BRACKET	Enquire	To Order
	1R12372722AA	SEAL - CHMSL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	37122791AA	ASSY - AUXILIARY SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834821AA	CLAMPING BRACKET - AUXILIARY SOCKET	Enquire	To Order
	1R12375028AB	LINK LEAD - ACCESSORY SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700256	SCREW M5 X 8 FLG HEX GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703204	SCREW M5x16 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700100	SCREW M4x12 PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700110	SCREW No6x3/8in POZI	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697274PK	TIE STRAP(PK OF 100)	Enquire	To Order
	1R12372200AB	HARNESS-ASM SWITCHES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710272	CONTROL PANEL-A/COND (NON HTD FT SCREEN)	Enquire	To Order
	1R123710273	CONTROL PANEL-A/COND (HTD FT SCREEN)	Enquire	To Order
	1R123710275	SWITCH PANEL- PASSENGERS DOOR	Enquire	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	91628M	INST PACK-MPH MPS	91628M INST PACK-MPH MPS Up to (V) 501285	-	1	Enquire
1	91629M	INST PACK KPH MPS	91629M INST PACK KPH MPS Up to (V) 501285	-	1	Enquire
1	4R12836046AAW	INSTRUMENT PACK PAINTED FRONT KIT	4R12836046AAW INSTRUMENT PACK PAINTED FRONT KIT From (V) 501286	-	1	Enquire
1	4R12370202AAW	Instrument pack, MPH, painted	4R12370202AAW Instrument pack, MPH, painted From (V) 501286	-	1	Enquire
1	4R12370203AAW	Instrument pack, KMH, painted	4R12370203AAW Instrument pack, KMH, painted From (V) 501286	-	1	Enquire
1	91628M	INST PACK-MPH MPS	91628M INST PACK-MPH MPS From (V) 501286	-	1	Enquire
1	91629M	INST PACK KPH MPS	91629M INST PACK KPH MPS From (V) 501286	-	1	Enquire
1	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	-	2	Enquire
1	703204	SCREW M5x16 HEX	703204 SCREW M5x16 HEX	-	4	Enquire
2	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel	-	1	Enquire
3	1R123710031	SWITCH MODULE- NON HEATED SEATS	1R123710031 SWITCH MODULE- NON HEATED SEATS	-	1	Enquire
3	91969	SWITCH MODULE-FOG	91969 SWITCH MODULE-FOG	-	1	Enquire
3	700111	SCREW No6x1/2in POZI	700111 SCREW No6x1/2in POZI	-	2	Enquire
3	699499	SPIRE CLIP NO.6	699499 SPIRE CLIP NO.6	-	2	Enquire
4	1R12374096AB	BUTTON ASSY RHD LS WSP/SPORT	1R12374096AB BUTTON ASSY RHD LS WSP/SPORT RHD	-	1	Enquire
5	1R12374097AB	BUTTON ASSY LHD RS SPORT/WSP	1R12374097AB BUTTON ASSY LHD RS SPORT/WSP LHD	-	1	Enquire
6	91840	BUTTON ASSY RHD RS	91840 BUTTON ASSY RHD RS RHD	-	1	Enquire
7	5R1314B626AB	CORPORATE SWITCH SPORT MODE	5R1314B626AB CORPORATE SWITCH SPORT MODE Vanquish S From (V) 501506	-	1	Enquire
7	5R132C419AB	CORPORATE SWITCH WSP MODE	5R132C419AB CORPORATE SWITCH WSP MODE Vanquish S From (V) 501506	-	1	Enquire
7	6G337J175CA	REVERSE SWITCH	6G337J175CA REVERSE SWITCH Vanquish S From (V) 501506	-	1	Enquire
7	6G337J178AC	ASM MODE SWITCH	6G337J178AC ASM MODE SWITCH Vanquish S From (V) 501506	-	1	Enquire
7	91841	BUTTON ASSY LHD LS	91841 BUTTON ASSY LHD LS LHD	-	1	Enquire
8	1R123710544	STARTER BUTTON CONVERSION KIT- VANQUISH	1R123710544 STARTER BUTTON CONVERSION KIT- VANQUISH Up to (V) 501285 See next line	-	1	Enquire
8	1R123710544	STARTER BUTTON CONVERSION KIT- VANQUISH	1R123710544 STARTER BUTTON CONVERSION KIT- VANQUISH Replaces 1R12-374100-AB	-	1	Enquire
8	4R12836197AA	BRACKET STARTER BUTTON SWITCH	4R12836197AA BRACKET STARTER BUTTON SWITCH From (V) 501286	-	1	Enquire
8	4G4311501AB	STARTER SWITCH	4G4311501AB STARTER SWITCH From (V) 501286	-	1	Enquire
9	1R12374101AB	BEZEL RING	1R12374101AB BEZEL RING Up to (V) 501285	-	1	Enquire
9	697551	SCREW S.F.	697551 SCREW S.F.	-	4	Enquire
9	700112	SCREW 2.9x9.5 PAN ST	700112 SCREW 2.9x9.5 PAN ST	-	8	Enquire
10	1R12372207AA	CLOCK	1R12372207AA CLOCK	-	1	Enquire
11	1R12374643AB	CIGAR LIGHTER HOUSING (MODIFIED)	1R12374643AB CIGAR LIGHTER HOUSING (MODIFIED)	-	1	Enquire
11	1R12834614AB	CLOCK BRACKET	1R12834614AB CLOCK BRACKET	-	1	Enquire
11	1R12372722AA	SEAL - CHMSL	1R12372722AA SEAL - CHMSL	-	1	Enquire
11	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	700963 SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	-	2	Enquire
12	37122791AA	ASSY - AUXILIARY SOCKET	37122791AA ASSY - AUXILIARY SOCKET	-	1	Enquire
13	1R12834821AA	CLAMPING BRACKET - AUXILIARY SOCKET	1R12834821AA CLAMPING BRACKET - AUXILIARY SOCKET Up to (V) 500515 + 500522-525	-	1	Enquire
13	1R12375028AB	LINK LEAD - ACCESSORY SOCKET	1R12375028AB LINK LEAD - ACCESSORY SOCKET Up to (V) 500515 + 500522-525	-	1	Enquire
14	1R123710409	CIGAR LIGHTER ELEMENT	1R123710409 CIGAR LIGHTER ELEMENT	-	1	Enquire
14	4G433710890	AUXILIARY SOCKET	4G433710890 AUXILIARY SOCKET	-	1	Enquire
15	700256	SCREW M5 X 8 FLG HEX GRADE 8.8	700256 SCREW M5 X 8 FLG HEX GRADE 8.8	-	2	Enquire
16	703204	SCREW M5x16 HEX	703204 SCREW M5x16 HEX	-	2	Enquire
17	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	700963 SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	-	8	Enquire
18	700100	SCREW M4x12 PAN	700100 SCREW M4x12 PAN	-	5	Enquire
19	1R12372110AA	CABLE COVER - IP RH	1R12372110AA CABLE COVER - IP RH	-	1	Enquire
20	1R12372111AA	CABLE COVER - IP LH	1R12372111AA CABLE COVER - IP LH	-	1	Enquire
21	700110	SCREW No6x3/8in POZI	700110 SCREW No6x3/8in POZI	-	2	Enquire
22	697274PK	TIE STRAP(PK OF 100)	697274PK TIE STRAP(PK OF 100) RHD	-	2	Enquire
22	1R12372200AB	HARNESS-ASM SWITCHES	1R12372200AB HARNESS-ASM SWITCHES	-	1	Enquire
23	1R123710272	CONTROL PANEL-A/COND (NON HTD FT SCREEN)	1R123710272 CONTROL PANEL-A/COND (NON HTD FT SCREEN)	-	1	Enquire
23	1R123710273	CONTROL PANEL-A/COND (HTD FT SCREEN)	1R123710273 CONTROL PANEL-A/COND (HTD FT SCREEN)	-	1	Enquire
23	1R123710275	SWITCH PANEL- PASSENGERS DOOR	1R123710275 SWITCH PANEL- PASSENGERS DOOR	-	1	Enquire
23	91929	SWTC PNL-DRIVER S DR	91929 SWTC PNL-DRIVER S DR	-	1	Enquire
23	1R12834111AA	SEAL -UPPER IP FACIA	1R12834111AA SEAL -UPPER IP FACIA	-	1	Enquire
