Aston Martin Vanquish (2001-2007) - In Car Entertainment 2

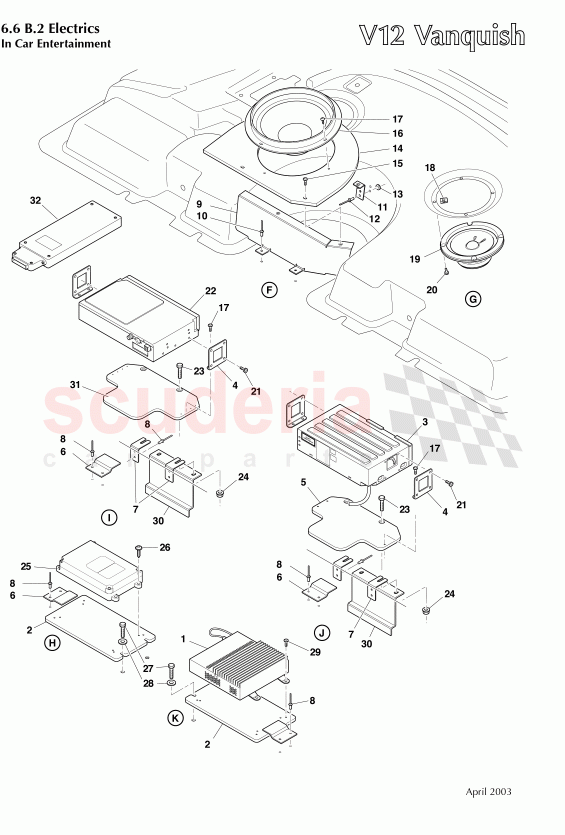

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3R12375519AC	AMPLIFIER ASSEMBLY	Enquire	To Order
	1R12370418AA	Power amplifier	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12375520AB	Cover plate amplifier, anodised	Enquire	To Order
	699305	SCREW M6 X 20 SOCKET HEAD BUTTON	Enquire	To Order
	1R12373920AB	MOUNTING PANEL AMPLIFIER/PHONE MODL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R123710705	CD MULTICHANGER & ENGRAVED PLATE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12375390AB	CD CHANGER / DVD MOUNTING BRACKET RH	Enquire	To Order
	1R12375391AB	CD CHANGER / DVD MOUNTING BRACKET LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12372709AD	MOUNTING PANEL - CD CHANGER	Enquire	To Order
	694567	WASHER M6 x 18 OD 0.9 THICK ZINC PLT	Enquire	To Order
	700161	SCREW M6x25 HEX	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12372711AB	CLAMP-ICE MOUNTING PANELS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12372712AB	BRACKET-ICE MOUNTING PANELS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700162	RIVET POP 4.9mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12374476AB	FRONT SUPPORT PANEL SUB WOOFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700163	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12374642AA	REAR SUPPORT BRACKET SUB WOOFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700164	RIVET POP 4.8x15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699873	WASHER PLAIN 5.3x13	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12374475AA	MOUNTING PANEL - SUB WOOFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	696042	Foam	Enquire	To Order
	697636	M5 x 20 FLG HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12375505AA	BASS DRIVER ASSY	Enquire	To Order
	3R12835503AA	GASKET FOAM SUB WOOFER MOUNTING	Enquire	To Order
	707515	SCREW M5 X 16 PAN HEAD BLACK	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	700165	SCREW No10x9mm S/TAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699293	SPIRE CLIP NO.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710033	SPKR-DOOR BASS 6.5in	Enquire	To Order
	1R123710034	SPKR-DOOR BASS 6.5in	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700121	SCREW No6x3/4in BLK REC PAN HD S/T	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6R13835540AA	FOAM RING SPEAKER MOUNTING PLATE	Enquire	To Order
	700166	SCREW/STAR WASHER CHEMI BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12372960AA	NAVIGATION ECU/DVD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692088	SCREW M6 x 16 HEX HD GRD 8 8 ZINC PLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12374206AE	TRANSCEIVER GSM	Enquire	To Order
	700414	BLANKING GROMMET 32MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692011	SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700161	SCREW M6x25 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697441	WASHER M6 PLAIN `A'	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700165	SCREW No10x9mm S/TAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12835676AA	ASSY BRACKET BOOT TRIM BULKHEAD	Enquire	To Order
	8383387	VELCRO DUAL-LOCK SJ3551 (100mm)	Enquire	To Order
	1R12833823AA	BRACKET - BOOT TRIM BULKHEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12835380AA	LOWER BRACKET LINN AMP	Enquire	To Order
	699819	SCREW M6x25 SKT BUTTON FLANGE	Enquire	To Order
	3R12835379AA	UPPER BRACKET LINN AMP	Enquire	To Order

...and 46 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3R12375519AC	AMPLIFIER ASSEMBLY	3R12375519AC AMPLIFIER ASSEMBLY From (V) 500516-21 + 526 onwards up to (V) 501948	-	1	Enquire
1	1R12370418AA	Power amplifier	1R12370418AA Power amplifier Up to (V) 500515 + 500522-525	-	1	Enquire
2	3R12375520AB	Cover plate amplifier, anodised	3R12375520AB Cover plate amplifier, anodised From (V) 500516-21 + 526 onwards up to (V) 501285	-	1	Enquire
2	699305	SCREW M6 X 20 SOCKET HEAD BUTTON	699305 SCREW M6 X 20 SOCKET HEAD BUTTON From (V) 500516-21 + 526 onwards	-	4	Enquire
2	1R12373920AB	MOUNTING PANEL AMPLIFIER/PHONE MODL	1R12373920AB MOUNTING PANEL AMPLIFIER/PHONE MODL Up to (V) 500515 + 500522-525	-	2	Enquire
2	4R12376225AB	AMP COVER PLATE	4R12376225AB AMP COVER PLATE From (V) 501286	-	1	Enquire
3	1R123710705	CD MULTICHANGER & ENGRAVED PLATE ASSY	1R123710705 CD MULTICHANGER & ENGRAVED PLATE ASSY Up to (V) 501948	-	1	Enquire
4	1R12375390AB	CD CHANGER / DVD MOUNTING BRACKET RH	1R12375390AB CD CHANGER / DVD MOUNTING BRACKET RH Up to (V) 501948	-	2	Enquire
4	1R12375391AB	CD CHANGER / DVD MOUNTING BRACKET LH	1R12375391AB CD CHANGER / DVD MOUNTING BRACKET LH Up to (V) 501948	-	2	Enquire
5	1R12372709AD	MOUNTING PANEL - CD CHANGER	1R12372709AD MOUNTING PANEL - CD CHANGER	-	1	Enquire
5	694567	WASHER M6 x 18 OD 0.9 THICK ZINC PLT	694567 WASHER M6 x 18 OD 0.9 THICK ZINC PLT	-	2	Enquire
5	700161	SCREW M6x25 HEX	700161 SCREW M6x25 HEX	-	2	Enquire
5	692011	SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL	692011 SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL	-	4	Enquire
6	1R12372711AB	CLAMP-ICE MOUNTING PANELS	1R12372711AB CLAMP-ICE MOUNTING PANELS	-	1	Enquire
7	1R12372712AB	BRACKET-ICE MOUNTING PANELS	1R12372712AB BRACKET-ICE MOUNTING PANELS	-	2	Enquire
8	700162	RIVET POP 4.9mm	700162 RIVET POP 4.9mm	-	8	Enquire
9	1R12374476AB	FRONT SUPPORT PANEL SUB WOOFER	1R12374476AB FRONT SUPPORT PANEL SUB WOOFER Up to (V) 500515 + 500522-525	-	1	Enquire
10	700163	RIVET	700163 RIVET	-	2	Enquire
11	1R12374642AA	REAR SUPPORT BRACKET SUB WOOFER	1R12374642AA REAR SUPPORT BRACKET SUB WOOFER Up to (V) 500515 + 500522-525	-	1	Enquire
12	700164	RIVET POP 4.8x15	700164 RIVET POP 4.8x15 Up to (V) 500515 + 500522-525	-	2	Enquire
13	699873	WASHER PLAIN 5.3x13	699873 WASHER PLAIN 5.3x13	-	2	Enquire
14	1R12374475AA	MOUNTING PANEL - SUB WOOFER	1R12374475AA MOUNTING PANEL - SUB WOOFER Up to (V) 500515 + 500522-525	-	1	Enquire
15	696042	Foam	696042 Foam	-	1	Enquire
15	697636	M5 x 20 FLG HD	697636 M5 x 20 FLG HD	-	3	Enquire
16	3R12375505AA	BASS DRIVER ASSY	3R12375505AA BASS DRIVER ASSY From (V) 500516-21 + 526 onwards	-	1	Enquire
16	3R12835503AA	GASKET FOAM SUB WOOFER MOUNTING	3R12835503AA GASKET FOAM SUB WOOFER MOUNTING From (V) 500516-21 + 526 onwards	-	1	Enquire
16	707515	SCREW M5 X 16 PAN HEAD BLACK	707515 SCREW M5 X 16 PAN HEAD BLACK From (V) 500516-21 + 526 onwards	-	8	Enquire
16	1R123710035	SPKR-SUB WOOFER	1R123710035 SPKR-SUB WOOFER Up to (V) 500515 + 500522-525	-	1	Enquire
16	1R12373212AA	Speaker, sub woofer, premium	1R12373212AA Speaker, sub woofer, premium	-	1	Enquire
17	700165	SCREW No10x9mm S/TAP	700165 SCREW No10x9mm S/TAP Up to (V) 500515 + 500522-525	-	12	Enquire
18	699293	SPIRE CLIP NO.6	699293 SPIRE CLIP NO.6	-	8	Enquire
19	1R123710033	SPKR-DOOR BASS 6.5in	1R123710033 SPKR-DOOR BASS 6.5in	-	2	Enquire
19	1R123710034	SPKR-DOOR BASS 6.5in	1R123710034 SPKR-DOOR BASS 6.5in	-	2	Enquire
20	700121	SCREW No6x3/4in BLK REC PAN HD S/T	700121 SCREW No6x3/4in BLK REC PAN HD S/T	-	8	Enquire
21	6R13835540AA	FOAM RING SPEAKER MOUNTING PLATE	6R13835540AA FOAM RING SPEAKER MOUNTING PLATE 06MY from (V) 501949	-	2	Enquire
21	700166	SCREW/STAR WASHER CHEMI BLACK	700166 SCREW/STAR WASHER CHEMI BLACK	-	16	Enquire
22	1R12372960AA	NAVIGATION ECU/DVD	1R12372960AA NAVIGATION ECU/DVD Up to (V) 501948	-	1	Enquire
23	692088	SCREW M6 x 16 HEX HD GRD 8 8 ZINC PLT	692088 SCREW M6 x 16 HEX HD GRD 8 8 ZINC PLT	-	4	Enquire
24	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	4	Enquire
25	1R12374206AE	TRANSCEIVER GSM	1R12374206AE TRANSCEIVER GSM Up to (V) 501948	-	1	Enquire
25	700414	BLANKING GROMMET 32MM	700414 BLANKING GROMMET 32MM	-	1	Enquire
26	692011	SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL	692011 SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL	-	4	Enquire
27	700161	SCREW M6x25 HEX	700161 SCREW M6x25 HEX	-	4	Enquire
28	697441	WASHER M6 PLAIN `A'	697441 WASHER M6 PLAIN `A'	-	4	Enquire
29	700165	SCREW No10x9mm S/TAP	700165 SCREW No10x9mm S/TAP	-	2	Enquire
30	3R12835676AA	ASSY BRACKET BOOT TRIM BULKHEAD	3R12835676AA ASSY BRACKET BOOT TRIM BULKHEAD From (V) 500516-21 + 526 onwards	-	2	Enquire
30	8383387	VELCRO DUAL-LOCK SJ3551 (100mm)	8383387 VELCRO DUAL-LOCK SJ3551 (100mm) From (V) 500516-21 + 526 onwards	-	2	Enquire
30	1R12833823AA	BRACKET - BOOT TRIM BULKHEAD	1R12833823AA BRACKET - BOOT TRIM BULKHEAD Up to (V) 500515 + 500522-525	-	2	Enquire
31	3R12835380AA	LOWER BRACKET LINN AMP	3R12835380AA LOWER BRACKET LINN AMP From (V) 500516-21 + 526 onwards up to (V) 501948	-	1	Enquire
31	699819	SCREW M6x25 SKT BUTTON FLANGE	699819 SCREW M6x25 SKT BUTTON FLANGE From (V) 500516-21 + 526 onwards up to (V) 501948	-	2	Enquire
31	3R12835379AA	UPPER BRACKET LINN AMP	3R12835379AA UPPER BRACKET LINN AMP From (V) 500516-21 + 526 onwards up to (V) 501948	-	2	Enquire
31	700984	Screw, fig M6 x 12	700984 Screw, fig M6 x 12 From (V) 500516-21 + 526 onwards up to (V) 501948	-	2	Enquire
31	700100	SCREW M4x12 PAN	700100 SCREW M4x12 PAN From (V) 500516-21 + 526 onwards up to (V) 501948	-	8	Enquire
31	700018	WASHER M4 - INTERNAL S/PROOF	700018 WASHER M4 - INTERNAL S/PROOF From (V) 500516-21 + 526 onwards up to (V) 501948	-	8	Enquire
31	700272	WASHER M4x9x0.8	700272 WASHER M4x9x0.8 From (V) 500516-21 + 526 onwards up to (V) 501948	-	8	Enquire
31	5R1318985AA	MESH SPEAKER PARCEL SHELF	5R1318985AA MESH SPEAKER PARCEL SHELF Vanquish S From (V) 501506	-	1	Enquire
31	5R1315601A41AA	MESH SPEAKER SUB-WOOFER	5R1315601A41AA MESH SPEAKER SUB-WOOFER Vanquish S From (V) 501506	-	1	Enquire
31	5R1318808AB	TWEETER REAR PARCEL SHELF ASSY	5R1318808AB TWEETER REAR PARCEL SHELF ASSY Vanquish S From (V) 501506	-	2	Enquire
31	5R1319B188AA	Bracket, tweeter locating	5R1319B188AA Bracket, tweeter locating Vanquish S From (V) 501506	-	2	Enquire
31	5R1319081AA	Bracket, tweeter fixing	5R1319081AA Bracket, tweeter fixing Vanquish S From (V) 501506	-	2	Enquire
31	700446	Screw, M4 x 40, black	700446 Screw, M4 x 40, black Vanquish S From (V) 501506	-	2	Enquire
31	6R13375390AA	BRACKET - SUB WOOFER AMPLIFIER SUPPORT	6R13375390AA BRACKET - SUB WOOFER AMPLIFIER SUPPORT 06MY from (V) 501949	-	1	Enquire
31	6R13373920AA	BRACKET - MULTI - MEDIA MODULE SUPPORT	6R13373920AA BRACKET - MULTI - MEDIA MODULE SUPPORT 06MY from (V) 501949	-	1	Enquire
31	6R13375391AA	BRACLET - I.C.E. AMPLIFIER SUPPORT	6R13375391AA BRACLET - I.C.E. AMPLIFIER SUPPORT 06MY from (V) 501949	-	1	Enquire
31	3R12165504AA	CLIP REAR SPEAKER ENCLOSURE	3R12165504AA CLIP REAR SPEAKER ENCLOSURE 06MY from (V) 501949	-	1	Enquire
31	6R13835206AA	BRACKET - CD CHANGER SUPPORT	6R13835206AA BRACKET - CD CHANGER SUPPORT 06MY from (V) 501949	-	1	Enquire
31	1R12372711AB	CLAMP-ICE MOUNTING PANELS	1R12372711AB CLAMP-ICE MOUNTING PANELS 06MY from (V) 501949	-	1	Enquire
31	4G4310E898CC	AUSTRALIAN NAVIGATION DISK	4G4310E898CC AUSTRALIAN NAVIGATION DISK 06MY from (V) 501949	-	1	Enquire
31	6R13165478AA	ASSY SUB WOOFER MOUNTING	6R13165478AA ASSY SUB WOOFER MOUNTING 06MY from (V) 501949	-	1	Enquire
31	6G3318C808CD	Amplifier, Premium Audio, Alpine	6G3318C808CD Amplifier, Premium Audio, Alpine 06MY from (V) 501949	-	1	Enquire
31	4G4310E898AJ	NAVIGATION DISC EUROPE	4G4310E898AJ NAVIGATION DISC EUROPE 06MY from (V) 501949	-	1	Enquire
31	1R123710629	PREMIER SUB AMPLIFIER	1R123710629 PREMIER SUB AMPLIFIER 06MY from (V) 501949	-	1	Enquire
31	4G4310E898BE	NAVIGATION DISC USA	4G4310E898BE NAVIGATION DISC USA 06MY from (V) 501949	-	1	Enquire
31	4G4310E887EJ	MULTIMEDIA MODULE	4G4310E887EJ MULTIMEDIA MODULE 06MY from (V) 501949	-	1	Enquire
31	6R13375516CA	CENTRE SPEAKER	6R13375516CA CENTRE SPEAKER 06MY from (V) 501949	-	1	Enquire
31	6G3314D417AA	AM/FM TUNER	6G3314D417AA AM/FM TUNER 06MY from (V) 501949	-	1	Enquire
31	6R1318808AA	SUB WOOFER	6R1318808AA SUB WOOFER 06MY from (V) 501949	-	1	Enquire
31	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD 06MY from (V) 501949	-	12	Enquire
31	6R13375516BA	REAR SHELF SPEAKER	6R13375516BA REAR SHELF SPEAKER 06MY from (V) 501949	-	2	Enquire
31	6R13375516AA	DOOR SPEAKER	6R13375516AA DOOR SPEAKER 06MY from (V) 501949	-	2	Enquire
31	6R1318808BA	TWEETERS	6R1318808BA TWEETERS 06MY from (V) 501949	-	2	Enquire
31	701765	M4x12 SKT BUTTON HD SCREW - BLACK STAINLESS	701765 M4x12 SKT BUTTON HD SCREW - BLACK STAINLESS 06MY from (V) 501949	-	4	Enquire
31	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD 06MY from (V) 501949	-	4	Enquire
31	703206	SCREW-M5 x 8 HEX FLG CHROME FREE	703206 SCREW-M5 x 8 HEX FLG CHROME FREE 06MY from (V) 501949	-	4	Enquire
31	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking 06MY from (V) 501949	-	4	Enquire
31	699697	Nut, M6, Flg Duralock	699697 Nut, M6, Flg Duralock 06MY from (V) 501949	-	8	Enquire
31	1R12374843AB	NAVIGATION DISC - BELG LUX NETHLNDS	1R12374843AB NAVIGATION DISC - BELG LUX NETHLNDS Up to (V) 501948	-	1	Enquire
31	1R12374844AB	NAV DISC ITL AUS SWT	1R12374844AB NAV DISC ITL AUS SWT Up to (V) 501948	-	1	Enquire
31	1R12375829AA	NAVIGATION DISC SPAIN & PORTUGAL	1R12375829AA NAVIGATION DISC SPAIN & PORTUGAL Up to (V) 501948	-	1	Enquire
31	1R12375830AA	NAVIGATION DISC SWEDEN & DENMARK	1R12375830AA NAVIGATION DISC SWEDEN & DENMARK Up to (V) 501948	-	1	Enquire
31	1R12374840AB	NAVIGATION DISC UNITED KINGDOM	1R12374840AB NAVIGATION DISC UNITED KINGDOM Up to (V) 501948	-	1	Enquire
31	1R12374841AB	NAVIGATION DISC GERMANY	1R12374841AB NAVIGATION DISC GERMANY Up to (V) 501948	-	1	Enquire
31	1R12374842AB	NAVIGATION DISC FRANCE	1R12374842AB NAVIGATION DISC FRANCE Up to (V) 501948	-	1	Enquire
31	1R12374845AB	NAVIGATION DISC - USA	1R12374845AB NAVIGATION DISC - USA Up to (V) 501948	-	1	Enquire
31	1R12372710AC	MOUNTING PANEL - DVD UNIT	1R12372710AC MOUNTING PANEL - DVD UNIT	-	1	Enquire
31	700226	WASHER PLAIN M6x17	700226 WASHER PLAIN M6x17	-	2	Enquire
31	699845	WASHER M5x10x1 PLAIN	699845 WASHER M5x10x1 PLAIN	-	4	Enquire
