Exterior Lamps of Aston Martin Aston Martin Vanquish (2001-2007)

View All

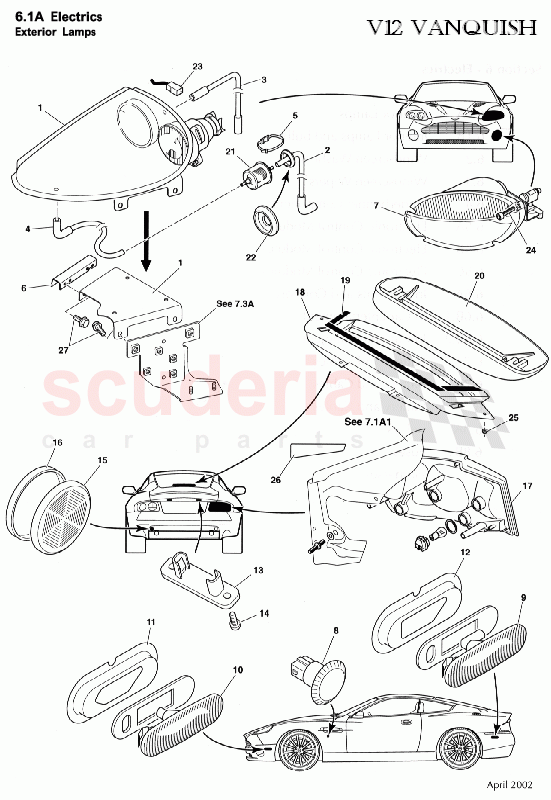

Aston Martin Vanquish (2001-2007) - Exterior Lamps

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	700615	SCREW M8x16 PILOT GRD 10.9	Enquire	To Order
	1R12370490AC	HEADLAMP ASSY-RH NAS	Enquire	To Order
	1R12370491AC	HEADLAMP ASSY-LH NAS	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12371966AB	ASSY TUBE - VENT FRONT (AIR IN)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370492AB	ASSY TUBE-HEADLAMP VENT (FRONT)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370495AB	TUBE ASSY - HEADLAMP VENT (REAR)	Enquire	To Order
	699523	P CLIP OPEN (RICHO WHC375-01)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12373274AC	Bracket, headlamp support, RH	Enquire	To Order
	697274PK	TIE STRAP(PK OF 100)	Enquire	To Order
	699515	RIVET (HUCK ABP-R8-M3)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37121709AA	LHS FRT SIDE/DI/FOG LAMP ROW	Enquire	To Order
	37121710AA	RH Front Fog Lamp	Enquire	To Order
	37122812AA	LHS FRT SIDE - DI - FOG LAMP FED	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12374013AA	SIDE REPEATER	Enquire	To Order
	1R123710126	SIDE REPEATER LAMP	Enquire	To Order
	1R123710127	SIDEMARKER LMP-RR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710130	SIDEMARKER LMP-FT LH	Enquire	To Order
	1R12373588AB	MOULDING FRONT SIDE MARKER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12373589AB	MOULDING FRONT SIDE MARKER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12373590AB	MOULDING REAR SIDE MARKER RH	Enquire	To Order
	1R12373591AB	MOULDING REAR SIDE MARKER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370506AA	LAMP - LICENCE PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700055	SCREW M4x16 SKT BTTN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370503AB	REFLEX REFLECTOR ECE	Enquire	To Order
	1R12370503AB	REFLEX REFLECTOR ECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13373378AA	REAR LAMP ASSY COMPLETE RH	Enquire	To Order
	5R13373379AA	REAR LAMP ASSY COMPLETE LH	Enquire	To Order
	697177	Nut, M6, Flanged	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12372044AA	CARRIER - CHMSL	Enquire	To Order
	700106	SCREW No6x13 S/TAPP	Enquire	To Order
	699293	SPIRE CLIP NO.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12372722AA	SEAL - CHMSL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R1313A503AA	Bracket, CHMSL, TRUNK LID	Enquire	To Order
	5R1313N408AB	CHMSL TRUNK LID	Enquire	To Order
	697470	NUT M5 NYLOC	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12834228AA	SCREW M5x25 SKT HD - POLISHED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700605	NUT M4 HEX FLG BLACK GRD 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12375084AA	FOAM PAD REAR LAMP CLUSTER RH	Enquire	To Order
	1R12375083AA	FOAM PAD REAR LAMP CLUSTER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700615	SCREW M8x16 PILOT GRD 10.9	Enquire	To Order
	697064	KY jelly	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	700615	SCREW M8x16 PILOT GRD 10.9	700615 SCREW M8x16 PILOT GRD 10.9 Headlamp attach	-	8	Enquire
1	1R12370490AC	HEADLAMP ASSY-RH NAS	1R12370490AC HEADLAMP ASSY-RH NAS USA/CDN only	-	1	Enquire
1	1R12370491AC	HEADLAMP ASSY-LH NAS	1R12370491AC HEADLAMP ASSY-LH NAS USA/CDN only	-	1	Enquire
1	1R12370488AC	HEADLAMP ASSY - RH EURO LHD	1R12370488AC HEADLAMP ASSY - RH EURO LHD Not USA/CDN	-	1	Enquire
1	1R12370489AC	HEADLAMP ASSY - LH EURO LHD	1R12370489AC HEADLAMP ASSY - LH EURO LHD Not USA/CDN	-	1	Enquire
1	1R12370486AC	HEADLAMP ASSY-RH RHD	1R12370486AC HEADLAMP ASSY-RH RHD	-	1	Enquire
1	1R12370487AC	HEADLAMP ASSY-LH RHD	1R12370487AC HEADLAMP ASSY-LH RHD	-	1	Enquire
2	1R12371966AB	ASSY TUBE - VENT FRONT (AIR IN)	1R12371966AB ASSY TUBE - VENT FRONT (AIR IN)	-	2	Enquire
3	1R12370492AB	ASSY TUBE-HEADLAMP VENT (FRONT)	1R12370492AB ASSY TUBE-HEADLAMP VENT (FRONT)	-	2	Enquire
4	1R12370495AB	TUBE ASSY - HEADLAMP VENT (REAR)	1R12370495AB TUBE ASSY - HEADLAMP VENT (REAR)	-	2	Enquire
4	699523	P CLIP OPEN (RICHO WHC375-01)	699523 P CLIP OPEN (RICHO WHC375-01)	-	6	Enquire
5	1R12373274AC	Bracket, headlamp support, RH	1R12373274AC Bracket, headlamp support, RH	-	1	Enquire
5	697274PK	TIE STRAP(PK OF 100)	697274PK TIE STRAP(PK OF 100)	-	2	Enquire
5	699515	RIVET (HUCK ABP-R8-M3)	699515 RIVET (HUCK ABP-R8-M3)	-	4	Enquire
6	1R12373275AC	Bracket, headlamp support, LH	1R12373275AC Bracket, headlamp support, LH	-	1	Enquire
6	699531	RIVET (HUCK ABP-R8-M6)	699531 RIVET (HUCK ABP-R8-M6)	-	4	Enquire
7	37121709AA	LHS FRT SIDE/DI/FOG LAMP ROW	37121709AA LHS FRT SIDE/DI/FOG LAMP ROW Not USA/CDN	-	1	Enquire

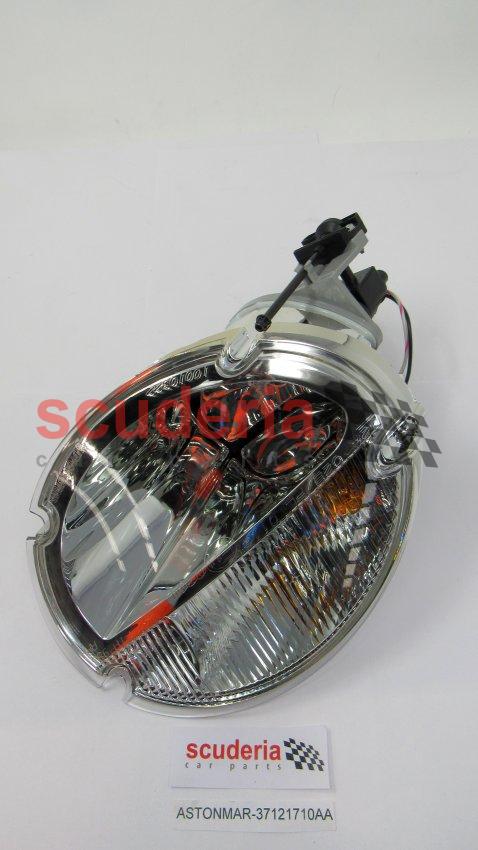

7	37121710AA	RH Front Fog Lamp	37121710AA RH Front Fog Lamp Not USA/CDN	-	1	Enquire
7	37122812AA	LHS FRT SIDE - DI - FOG LAMP FED	37122812AA LHS FRT SIDE - DI - FOG LAMP FED USA/CDN	-	1	Enquire
7	37122813AA	RHS FRT SIDE - DI - FOG LAMP FED	37122813AA RHS FRT SIDE - DI - FOG LAMP FED USA/CDN	-	1	Enquire
7	1R12834228AA	SCREW M5x25 SKT HD - POLISHED	1R12834228AA SCREW M5x25 SKT HD - POLISHED	-	6	Enquire
8	1R12374013AA	SIDE REPEATER	1R12374013AA SIDE REPEATER Not USA/CDN	-	2	Enquire
8	1R123710126	SIDE REPEATER LAMP	1R123710126 SIDE REPEATER LAMP USA/CDN	-	2	Enquire
8	1R123710127	SIDEMARKER LMP-RR RH	1R123710127 SIDEMARKER LMP-RR RH	-	1	Enquire
9	1R123710129	SIDEMARKER LMP-FT RH	1R123710129 SIDEMARKER LMP-FT RH	-	1	Enquire

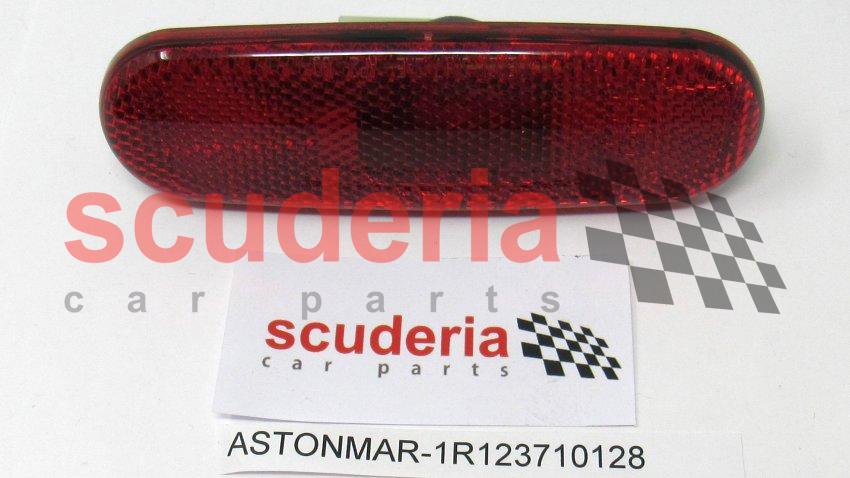

9	1R123710128	Side Marker LMP-RR LH	1R123710128 Side Marker LMP-RR LH	-	1	Enquire
9	697482	SCREW M4 x 20 PAN HEAD THREAD FORM	697482 SCREW M4 x 20 PAN HEAD THREAD FORM	-	8	Enquire
10	1R123710130	SIDEMARKER LMP-FT LH	1R123710130 SIDEMARKER LMP-FT LH	-	1	Enquire
10	1R12373588AB	MOULDING FRONT SIDE MARKER RH	1R12373588AB MOULDING FRONT SIDE MARKER RH	-	1	Enquire
11	1R12373589AB	MOULDING FRONT SIDE MARKER LH	1R12373589AB MOULDING FRONT SIDE MARKER LH	-	1	Enquire
12	1R12373590AB	MOULDING REAR SIDE MARKER RH	1R12373590AB MOULDING REAR SIDE MARKER RH	-	1	Enquire
12	1R12373591AB	MOULDING REAR SIDE MARKER LH	1R12373591AB MOULDING REAR SIDE MARKER LH	-	1	Enquire
13	1R12370506AA	LAMP - LICENCE PLATE	1R12370506AA LAMP - LICENCE PLATE	-	2	Enquire
14	700055	SCREW M4x16 SKT BTTN	700055 SCREW M4x16 SKT BTTN Number plate light	-	4	Enquire
15	1R12370503AB	REFLEX REFLECTOR ECE	1R12370503AB REFLEX REFLECTOR ECE Not USA/CDN	-	2	Enquire
15	1R12370503AB	REFLEX REFLECTOR ECE	1R12370503AB REFLEX REFLECTOR ECE USA/CDN	-	2	Enquire
16	1R12373561AD	FINISHER - REFLEX REFLECTOR ECE	1R12373561AD FINISHER - REFLEX REFLECTOR ECE Not USA/CDN	-	2	Enquire
16	1R12373562AB	FINISHER - REFLEX REFLECTOR SAE	1R12373562AB FINISHER - REFLEX REFLECTOR SAE USA/CDN	-	2	Enquire
17	5R13373378AA	REAR LAMP ASSY COMPLETE RH	5R13373378AA REAR LAMP ASSY COMPLETE RH	-	1	Enquire
17	5R13373379AA	REAR LAMP ASSY COMPLETE LH	5R13373379AA REAR LAMP ASSY COMPLETE LH	-	1	Enquire
17	697177	Nut, M6, Flanged	697177 Nut, M6, Flanged	-	2	Enquire
18	1R12372044AA	CARRIER - CHMSL	1R12372044AA CARRIER - CHMSL	-	1	Enquire
18	700106	SCREW No6x13 S/TAPP	700106 SCREW No6x13 S/TAPP	-	4	Enquire
18	699293	SPIRE CLIP NO.6	699293 SPIRE CLIP NO.6	-	4	Enquire
19	1R12372722AA	SEAL - CHMSL	1R12372722AA SEAL - CHMSL	-	1	Enquire
20	5R1313A503AA	Bracket, CHMSL, TRUNK LID	5R1313A503AA Bracket, CHMSL, TRUNK LID Vanquish S From (V) 501506	-	1	Enquire
20	5R1313N408AB	CHMSL TRUNK LID	5R1313N408AB CHMSL TRUNK LID Vanquish S From (V) 501506	-	1	Enquire
20	697470	NUT M5 NYLOC	697470 NUT M5 NYLOC Vanquish S From (V) 501506	-	2	Enquire
20	5R137D741AA	O RING - CHMSL RETENTION	5R137D741AA O RING - CHMSL RETENTION Vanquish S From (V) 501506	-	2	Enquire
20	697528PK	Washer-M5 Large OD Pack of 20	697528PK Washer-M5 Large OD Pack of 20 Vanquish S From (V) 501506	-	4	Enquire
20	3784982	HIGH MOUNTED STOP LAMP IN BLACK	3784982 HIGH MOUNTED STOP LAMP IN BLACK	-	1	Enquire
20	8390005	Krytox, GPL105	8390005 Krytox, GPL105	-	-	Enquire
21	3783530	FILTER - HEADLAMP VENTING	3783530 FILTER - HEADLAMP VENTING	-	2	Enquire
23	1R123710332	AUTO HEADLAMP LINK LEAD	1R123710332 AUTO HEADLAMP LINK LEAD Up to (V) 501285	-	2	Enquire
23	37111114AC	LINK LEAD - HEADLAMP	37111114AC LINK LEAD - HEADLAMP	-	2	Enquire
24	1R12834228AA	SCREW M5x25 SKT HD - POLISHED	1R12834228AA SCREW M5x25 SKT HD - POLISHED	-	6	Enquire
25	700605	NUT M4 HEX FLG BLACK GRD 8	700605 NUT M4 HEX FLG BLACK GRD 8	-	4	Enquire
26	1R12375084AA	FOAM PAD REAR LAMP CLUSTER RH	1R12375084AA FOAM PAD REAR LAMP CLUSTER RH	-	1	Enquire
26	1R12375083AA	FOAM PAD REAR LAMP CLUSTER LH	1R12375083AA FOAM PAD REAR LAMP CLUSTER LH	-	1	Enquire
27	700615	SCREW M8x16 PILOT GRD 10.9	700615 SCREW M8x16 PILOT GRD 10.9	-	8	Enquire
27	697064	KY jelly	697064 KY jelly	-	-	Enquire
