Aston Martin Vanquish (2001-2007) - Electronic Control Modules 1

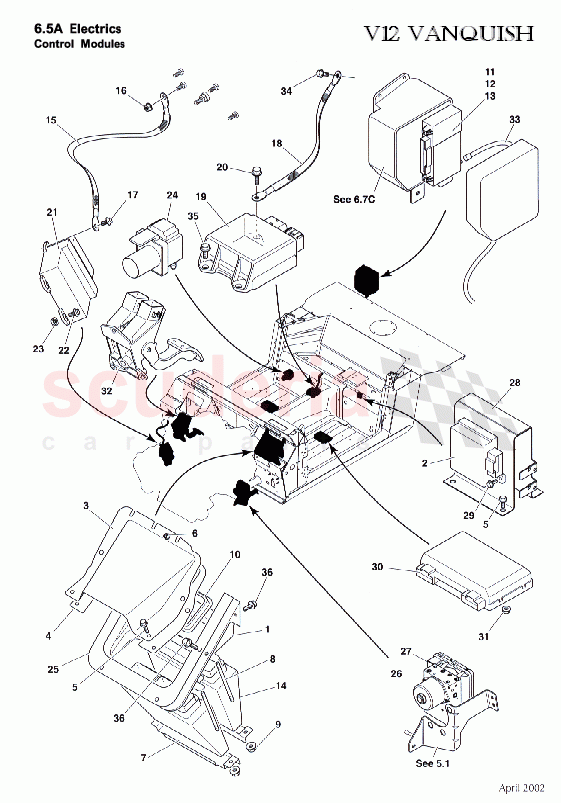

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12391408AH	ADAPTOR-PTEC MODULES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S4A9D372AA	MODULE - FUEL PUMP CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12383609AB	COVER - PTECS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12383585AB	GASKET - PTEC COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703278	Screw, M6 x 10, Flange Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12381429AB	SUPPORT CHANNEL - PTEC MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12381430AB	MOUNTING SPINDLE - PTEC MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710134	SEAL-OUTER-PTEC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710020	Module, security and locking, 315 Mhz	Enquire	To Order
	1R123710436P	SECURITY MODULE 315 PROGRAMMED TO CAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710021	Module, security and locking, 315 Mhz low power	Enquire	To Order
	1R123710437P	SECURITY MODULE 315Mhz LOW POWER PROGRAMMED TO CAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710305P	SECURITY MODULE 433	Enquire	To Order
	1R123710438P	SECURITY MODULE 433 PROGRAMMED TO CAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91719P	MODULE-PTEC PROG TO CHASSIS No. PAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370529AD	EARTH BRAID-MISFIRE DETECTION MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703278	Screw, M6 x 10, Flange Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370530AD	EARTH BRAID - RESTRAINT CONTROL MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R1314B321AC	SIR MODULE RCM262	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3785291	MODULE-MSF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699697	Nut, M6, Flg Duralock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12393606AC	GASKET ADAPTOR PTEC MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R129010106	Modulator, ABS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R129010106P	ABS MODULATOR PROGRAMMED TO CAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12371650AB	BRACKET - FUEL PUMP MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697636	M5 x 20 FLG HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710197	Seat module	Enquire	To Order
	703278	Screw, M6 x 10, Flange Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12382240AC	ASSY ACCEL PEDAL RHD	Enquire	To Order
	1R12382239AD	ASSY ACCEL PEDAL LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710037	LEAD-SECURITY AERIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699522	SCREW 5MM X 12MM THREADFORMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12391408AH	ADAPTOR-PTEC MODULES	1R12391408AH ADAPTOR-PTEC MODULES	-	1	Enquire
2	4S4A9D372AA	MODULE - FUEL PUMP CONTROL	4S4A9D372AA MODULE - FUEL PUMP CONTROL	-	2	Enquire
3	1R12383609AB	COVER - PTECS	1R12383609AB COVER - PTECS	-	2	Enquire
4	1R12383585AB	GASKET - PTEC COVER	1R12383585AB GASKET - PTEC COVER	-	1	Enquire
5	703278	Screw, M6 x 10, Flange Hex Head	703278 Screw, M6 x 10, Flange Hex Head	-	2	Enquire
6	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head LHD	-	2	Enquire
6	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head RHD	-	3	Enquire
7	1R12381429AB	SUPPORT CHANNEL - PTEC MODULE	1R12381429AB SUPPORT CHANNEL - PTEC MODULE	-	2	Enquire
8	1R12381430AB	MOUNTING SPINDLE - PTEC MODULE	1R12381430AB MOUNTING SPINDLE - PTEC MODULE	-	4	Enquire
9	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	4	Enquire
10	1R123710134	SEAL-OUTER-PTEC	1R123710134 SEAL-OUTER-PTEC	-	2	Enquire
11	1R123710020	Module, security and locking, 315 Mhz	1R123710020 Module, security and locking, 315 Mhz Up to (V) 501285	-	1	Enquire
11	1R123710436P	SECURITY MODULE 315 PROGRAMMED TO CAR	1R123710436P SECURITY MODULE 315 PROGRAMMED TO CAR From (V) 501286	-	1	Enquire
12	1R123710021	Module, security and locking, 315 Mhz low power	1R123710021 Module, security and locking, 315 Mhz low power Up to (V) 501285	-	1	Enquire
12	1R123710437P	SECURITY MODULE 315Mhz LOW POWER PROGRAMMED TO CAR	1R123710437P SECURITY MODULE 315Mhz LOW POWER PROGRAMMED TO CAR From (V) 501286	-	1	Enquire
13	1R123710305P	SECURITY MODULE 433	1R123710305P SECURITY MODULE 433 Up to (V) 501285	-	1	Enquire
13	1R123710438P	SECURITY MODULE 433 PROGRAMMED TO CAR	1R123710438P SECURITY MODULE 433 PROGRAMMED TO CAR From (V) 501286	-	1	Enquire
14	91719P	MODULE-PTEC PROG TO CHASSIS No. PAIR	91719P MODULE-PTEC PROG TO CHASSIS No. PAIR	-	1	Enquire
15	1R12370529AD	EARTH BRAID-MISFIRE DETECTION MODULE	1R12370529AD EARTH BRAID-MISFIRE DETECTION MODULE	-	1	Enquire
16	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	1	Enquire
17	703278	Screw, M6 x 10, Flange Hex Head	703278 Screw, M6 x 10, Flange Hex Head	-	1	Enquire
18	1R12370530AD	EARTH BRAID - RESTRAINT CONTROL MODULE	1R12370530AD EARTH BRAID - RESTRAINT CONTROL MODULE	-	1	Enquire
19	1R1314B321AC	SIR MODULE RCM262	1R1314B321AC SIR MODULE RCM262	-	1	Enquire
20	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG Sir module attach	-	3	Enquire
21	3785291	MODULE-MSF	3785291 MODULE-MSF	-	2	Enquire
22	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	-	6	Enquire
23	699697	Nut, M6, Flg Duralock	699697 Nut, M6, Flg Duralock	-	2	Enquire
24	1R123910135	Sensor, Barometric Pressure	1R123910135 Sensor, Barometric Pressure	-	1	Enquire
25	1R12393606AC	GASKET ADAPTOR PTEC MODULE	1R12393606AC GASKET ADAPTOR PTEC MODULE	-	1	Enquire
26	1R129010106	Modulator, ABS	1R129010106 Modulator, ABS	-	1	Enquire
27	1R129010106P	ABS MODULATOR PROGRAMMED TO CAR	1R129010106P ABS MODULATOR PROGRAMMED TO CAR	-	1	Enquire
28	1R12371650AB	BRACKET - FUEL PUMP MODULE	1R12371650AB BRACKET - FUEL PUMP MODULE	-	1	Enquire
29	697636	M5 x 20 FLG HD	697636 M5 x 20 FLG HD	-	2	Enquire
30	1R123710197	Seat module	1R123710197 Seat module	-	2	Enquire
30	703278	Screw, M6 x 10, Flange Hex Head	703278 Screw, M6 x 10, Flange Hex Head	-	4	Enquire
31	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	4	Enquire
32	1R12382240AC	ASSY ACCEL PEDAL RHD	1R12382240AC ASSY ACCEL PEDAL RHD RHD	-	1	Enquire
32	1R12382239AD	ASSY ACCEL PEDAL LHD	1R12382239AD ASSY ACCEL PEDAL LHD LHD	-	1	Enquire
33	1R123710037	LEAD-SECURITY AERIAL	1R123710037 LEAD-SECURITY AERIAL	-	1	Enquire
34	699522	SCREW 5MM X 12MM THREADFORMING	699522 SCREW 5MM X 12MM THREADFORMING	-	1	Enquire
35	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	-	2	Enquire
36	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	2	Enquire
