Aston Martin Vanquish (2001-2007) - Battery and Cables 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4R1314A120AC CABLE-BATTERY TO STARTER Enquire To Order
Photo Part No Description Price (each) Stock
4R1310K337AA Cable assy, bulkhead stud to alternator Enquire To Order
Photo Part No Description Price (each) Stock
1R12371719AA Cable, bulkhead to jump start terminal Enquire To Order
Photo Part No Description Price (each) Stock
1R12371718AD EARTH BRAID - ENGINE Enquire To Order
Photo Part No Description Price (each) Stock
702429 LOCKNUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
697418 NUT M8 HEX Enquire To Order
Photo Part No Description Price (each) Stock
697164 WASHER M8 LOCK SINGLE COIL Enquire IN STOCK
Photo Part No Description Price (each) Stock
9G4310A752AB TERMINAL POST ASSY Enquire To Order
Photo Part No Description Price (each) Stock
697164 WASHER M8 LOCK SINGLE COIL Enquire IN STOCK
Photo Part No Description Price (each) Stock
697418 NUT M8 HEX Enquire To Order
Photo Part No Description Price (each) Stock
702429 LOCKNUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
4R12376276AA ABS SENSOR LINK LEAD Enquire To Order
1R123710180 EARTH LEAD-HUB/CHASS Enquire To Order
Photo Part No Description Price (each) Stock
1R12371730AD BRAID - ENGINE CRADL Enquire To Order
Photo Part No Description Price (each) Stock
703202 Screw,  M8  x 12, Flange Hd Enquire To Order
Photo Part No Description Price (each) Stock
700126 SCREW M6x20 HEX FLG Enquire To Order
692066 WASHER M6 S/PROOF ZINC PLATED Enquire To Order
703169 NUT - M6 HEX FLANGE CHROME FREE Enquire IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G433711382 BATTERY COND AUS/NZ Enquire To Order
4G433711274 BATTERY COND UK/E/HK Enquire To Order
4G433711205 BATT COND USA/CA/JAP Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12374780AA EARTH BRAID ASSY ROOF/CANTRAIL Enquire To Order
Photo Part No Description Price (each) Stock
1R12371730AD BRAID - ENGINE CRADL Enquire To Order
Photo Part No Description Price (each) Stock
703202 Screw,  M8  x 12, Flange Hd Enquire To Order
Photo Part No Description Price (each) Stock
703163 Nut, M6, Hex Flange Head, Locking Enquire IN STOCK
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head Enquire IN STOCK
Photo Part No Description Price (each) Stock
697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8 Enquire IN STOCK
Photo Part No Description Price (each) Stock
1R12644421AA ASSY SCREW WASHER M8x25 BLACK Enquire To Order
View All

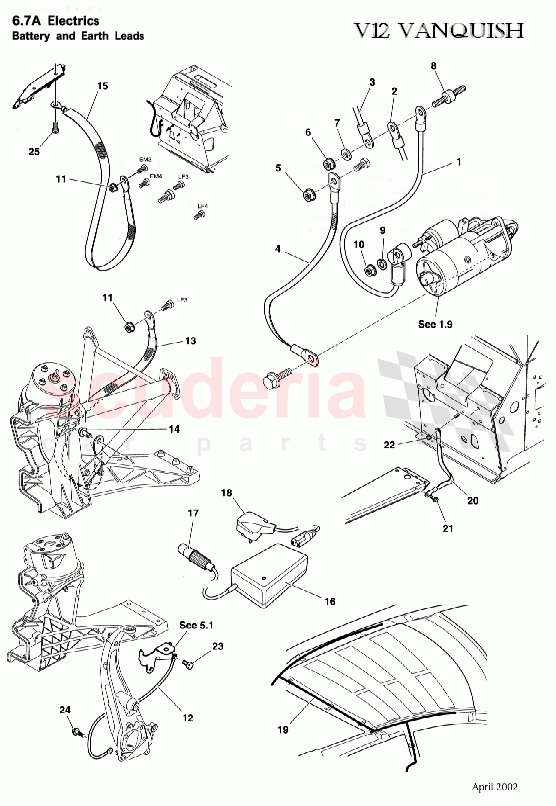

Battery and Cables 1 of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4R1314A120AC
CABLE-BATTERY TO STARTER 		- 1 Enquire
2 4R1310K337AA
Cable assy, bulkhead stud to alternator 		- 1 Enquire
3 1R12371719AA
Cable, bulkhead to jump start terminal 		- 1 Enquire
4 1R12371718AD
EARTH BRAID - ENGINE 		- 1 Enquire
5 702429
LOCKNUT M6 		- 1 Enquire
6 697418
NUT M8 HEX 		- 1 Enquire
7 697164
WASHER M8 LOCK SINGLE COIL
IN STOCK 		- 1 Enquire
8 9G4310A752AB
TERMINAL POST ASSY 		- 1 Enquire
9 697164
WASHER M8 LOCK SINGLE COIL
IN STOCK 		- 1 Enquire
10 697418
NUT M8 HEX 		- 1 Enquire
11 702429
LOCKNUT M6 		- 2 Enquire
12 4R12376276AA
ABS SENSOR LINK LEAD
For uprated brakes 		- 2 Enquire
12 1R123710180
EARTH LEAD-HUB/CHASS 		- 2 Enquire
13 1R12371730AD
BRAID - ENGINE CRADL 		- 1 Enquire
14 703202
Screw,  M8  x 12, Flange Hd 		- 1 Enquire
15 700126
SCREW M6x20 HEX FLG
Earth lead attach 		- 2 Enquire
15 692066
WASHER M6 S/PROOF ZINC PLATED
Earth lead attach 		- 2 Enquire
15 703169
NUT - M6 HEX FLANGE CHROME FREE
Earth lead attach
IN STOCK 		- 2 Enquire
15 1R12371754AC
EARTH BRAID : BONNET RHD 		- 1 Enquire
16 4G433711382
BATTERY COND AUS/NZ
Australia, New Zealand 		- 1 Enquire
16 4G433711274
BATTERY COND UK/E/HK
UK, Eire, Hong Kong 		- 1 Enquire
16 4G433711205
BATT COND USA/CA/JAP
USA, Canada, Japan 		- 1 Enquire
16 4G433711285
BATTERY COND ROW
ROW 		- 1 Enquire
17 37124124AA
BATTERY CONDITIONER LINK LEAD 		- 1 Enquire
19 1R12374780AA
EARTH BRAID ASSY ROOF/CANTRAIL 		- 1 Enquire
20 1R12371730AD
BRAID - ENGINE CRADL 		- 1 Enquire
21 703202
Screw,  M8  x 12, Flange Hd 		- 1 Enquire
22 703163
Nut, M6, Hex Flange Head, Locking
IN STOCK 		- 1 Enquire
23 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		- 1 Enquire
24 697320
SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8
IN STOCK 		- 1 Enquire
25 1R12644421AA
ASSY SCREW WASHER M8x25 BLACK 		- 1 Enquire
