Aston Martin Vanquish (2001-2007) - Interior Installation

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12890792AE Air duct, face level, modified Enquire To Order
Photo Part No Description Price (each) Stock
1R12890756AE DUCT-SIDE FLV RH RHD Enquire To Order
Photo Part No Description Price (each) Stock
1R12890757AE DUCT-SIDE FLV LH RHD Enquire To Order
1R12890754AE DUCT-SIDE FLV RH LHD Enquire To Order
1R12890755AE DUCT-SIDE FLV LH LHD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
91972 AIR COND UNIT Enquire To Order
Photo Part No Description Price (each) Stock
697532 Nut Spring U Type 8x(2.0-2.8) Enquire To Order
Photo Part No Description Price (each) Stock
697616 SCREW FLG HEAD ST Enquire To Order
Photo Part No Description Price (each) Stock
1R12890075AD VENT - FOOTWELL LH Enquire To Order
Photo Part No Description Price (each) Stock
1R12890074AD VENT - FOOTWELL RH Enquire To Order
Photo Part No Description Price (each) Stock
1R12890758AD ADAPTOR - DUCT BLOWER RH Enquire To Order
Photo Part No Description Price (each) Stock
1R12890759AD ADAPTOR - DUCT BLOWER LH Enquire To Order
696290 Foam strip, 10 x 5 Enquire To Order
Photo Part No Description Price (each) Stock
1R128910052 BLOWER MOTOR RH Enquire To Order
Photo Part No Description Price (each) Stock
1R123710213 Harness, blower motor, RH Enquire To Order
1R128910053 BLOWER MOTOR LH Enquire To Order
Photo Part No Description Price (each) Stock
1R123710214 Harness, blower motor, LH Enquire To Order
Photo Part No Description Price (each) Stock
1R123710215 Power transistor Enquire To Order
Photo Part No Description Price (each) Stock
697495 SCREW No8 x 13 FLANGED AB S.T Enquire To Order
Photo Part No Description Price (each) Stock
697495 SCREW No8 x 13 FLANGED AB S.T Enquire To Order
697532 Nut Spring U Type 8x(2.0-2.8) Enquire To Order
697565 Spire Nut Enquire To Order
Photo Part No Description Price (each) Stock
1R12891342AA COND DRAIN TUBE RH Enquire To Order
Photo Part No Description Price (each) Stock
1R12891343AA COND DRAIN TUBE LH Enquire To Order
697286 Washer M6 Large OD Enquire To Order
697468 SCREW/WASHER No8 x19 PAN HD AB Enquire To Order
Photo Part No Description Price (each) Stock
699721 HOSE CLAMP DIA 21 Enquire To Order
1R12895736AA Drain tube, evaporator Enquire To Order
Photo Part No Description Price (each) Stock
1R12892377AB Cover, evaporator drain Enquire To Order
700004 HOSE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
1R12834089AD COVER PANEL - A/C DRAIN TUBE LH Enquire To Order
1R12834088AD COVER PANEL - A/C DRAIN TUBE RH Enquire To Order
Photo Part No Description Price (each) Stock
1R12835093AB COVER PANEL - A/C DRAIN TUBE LHS LHD Enquire To Order
697495 SCREW No8 x 13 FLANGED AB S.T Enquire To Order
Photo Part No Description Price (each) Stock
699539 SEMS M6 X 16 C/W 18MM WASHER Enquire To Order
Photo Part No Description Price (each) Stock
700226 WASHER PLAIN M6x17 Enquire To Order
Photo Part No Description Price (each) Stock
694891 P-CLIP Enquire To Order
Photo Part No Description Price (each) Stock
699539 SEMS M6 X 16 C/W 18MM WASHER Enquire To Order
View All

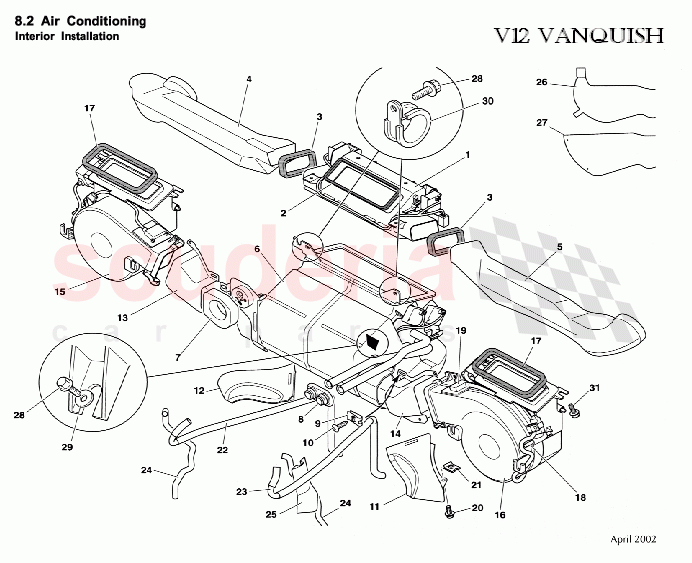

Interior Installation of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R12890792AE
Air duct, face level, modified 		- 1 Enquire
4 1R12890756AE
DUCT-SIDE FLV RH RHD
RHD 		- 1 Enquire
5 1R12890757AE
DUCT-SIDE FLV LH RHD
RHD 		- 1 Enquire
5 1R12890754AE
DUCT-SIDE FLV RH LHD
LHD 		- 1 Enquire
5 1R12890755AE
DUCT-SIDE FLV LH LHD
LHD 		- 1 Enquire
5 700110
SCREW No6x3/8in POZI 		- 4 Enquire
6 91972
AIR COND UNIT 		- 1 Enquire
8 1R128910051
SEAL-BULKHEAD 		- 1 Enquire
9 697532
Nut Spring U Type 8x(2.0-2.8) 		- 8 Enquire
10 697616
SCREW FLG HEAD ST 		- 8 Enquire
11 1R12890075AD
VENT - FOOTWELL LH 		- 1 Enquire
12 1R12890074AD
VENT - FOOTWELL RH 		- 1 Enquire
13 1R12890758AD
ADAPTOR - DUCT BLOWER RH 		- 1 Enquire
14 1R12890759AD
ADAPTOR - DUCT BLOWER LH 		- 1 Enquire
14 696290
Foam strip, 10 x 5 		- 4 Enquire
15 1R128910052
BLOWER MOTOR RH 		- 1 Enquire
16 1R123710213
Harness, blower motor, RH 		- 1 Enquire
16 1R128910053
BLOWER MOTOR LH 		- 1 Enquire
18 1R123710214
Harness, blower motor, LH 		- 1 Enquire
19 1R123710215
Power transistor 		- 1 Enquire
20 697495
SCREW No8 x 13 FLANGED AB S.T 		- 2 Enquire
21 697495
SCREW No8 x 13 FLANGED AB S.T 		- 2 Enquire
21 697532
Nut Spring U Type 8x(2.0-2.8) 		- 2 Enquire
21 697565
Spire Nut 		- 2 Enquire
22 1R12891342AA
COND DRAIN TUBE RH 		- 1 Enquire
23 1R12891343AA
COND DRAIN TUBE LH 		- 1 Enquire
23 697286
Washer M6 Large OD 		- 4 Enquire
23 697468
SCREW/WASHER No8 x19 PAN HD AB 		- 8 Enquire
24 699721
HOSE CLAMP DIA 21
Drain hoses to evaporator 		- 2 Enquire
24 1R12895736AA
Drain tube, evaporator 		- 2 Enquire
25 1R12892377AB
Cover, evaporator drain 		- 2 Enquire
25 700004
HOSE CLAMP 		- 2 Enquire
26 1R12834089AD
COVER PANEL - A/C DRAIN TUBE LH
RHD 		- 1 Enquire
26 1R12834088AD
COVER PANEL - A/C DRAIN TUBE RH 		- 1 Enquire
27 1R12835093AB
COVER PANEL - A/C DRAIN TUBE LHS LHD
LHD 		- 1 Enquire
27 697495
SCREW No8 x 13 FLANGED AB S.T 		- 2 Enquire
28 699539
SEMS M6 X 16 C/W 18MM WASHER 		- 6 Enquire
29 700226
WASHER PLAIN M6x17 		- 3 Enquire
30 694891
P-CLIP 		- 2 Enquire
31 699539
SEMS M6 X 16 C/W 18MM WASHER 		- 4 Enquire
32 4R12322454AA
HOSE-WATER MANIFOLD TO EXPANSION TANK
Vanquish S from (V) 501506 		- 2 Enquire
32 703265
Screw, M6 x 16, Hex Flange Head 		- 1 Enquire
