Windscreen Wipers of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Windscreen Wipers

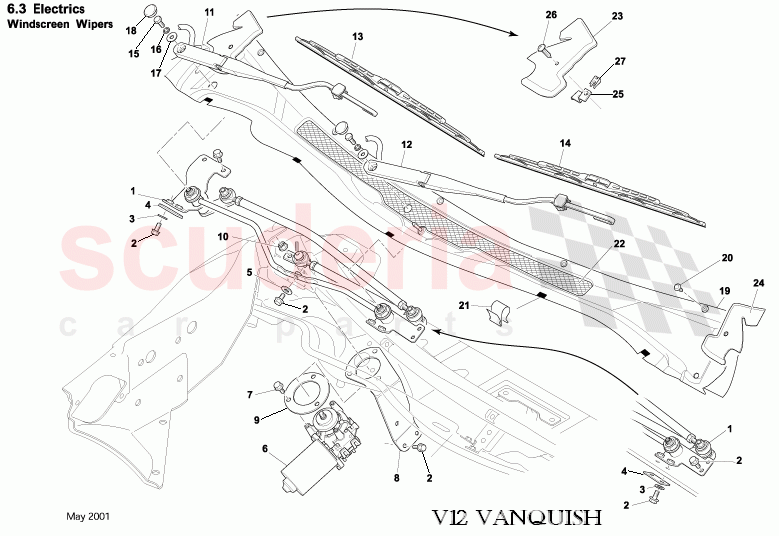

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12370169AH	WIPER MECH. RHD	Enquire	To Order
	1R12370883AG	Wiper mechanism	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700607	Screw Hex Flange Head M6 x 16mm	Enquire	To Order
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	694567	WASHER M6 x 18 OD 0.9 THICK ZINC PLT	Enquire	To Order
	700226	WASHER PLAIN M6x17	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12372563AA	WIPER MOUNTING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700226	WASHER PLAIN M6x17	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12372562AC	WIPER MOTOR ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700158	Screw, M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12371702AD	Mounting bracket, wiper motor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12373947AA	Support plate, wiper motor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370168AF	WIPER ARM DRIVER RHD	Enquire	To Order
	1R12371705AF	WIPER ARM DRIVER LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370167AF	W/ARM PASS RHD	Enquire	To Order
	1R12371704AF	WIPER ARM PASSENGER LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12374106AB	WIPER BLADE - DRIVER RHD	Enquire	To Order
	1R12374107AB	WINDSCREEN WIPER BLADE - DRIVER LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12374108AB	WINDSCREEN WIPER BLADE PASSENGER SIDE	Enquire	To Order
	1R12372626AA	Washer tube, 650mm	Enquire	To Order
	3785226	WASHER JET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710315	WIPER ARM CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12782616AJ	PANEL PLENUM FINISHER ASSY RHD	Enquire	To Order
	1R12782617AJ	PANEL PLENUM FINISHER ASSY LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699508	PINE TREE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699509	EDGE PANEL FASTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12782618AD	PLENUM MESH RH	Enquire	To Order
	1R12782619AD	PLENUM MESH LH	Enquire	To Order
	699302	ADHESIVE-BETAMATE 2700	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12784892AA	PLENUM END CAP RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12784893AA	PLENUM END CAP LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12784894AA	END CAP SUPPORT BRACKET RH	Enquire	To Order
	1R12784895AA	END CAP SUPPORT BRACKET LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order
	W504262S424	Screw, S/T raised hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700226	WASHER PLAIN M6x17	Enquire	To Order
	4R12376318AA	SPACER WIPER SPINDLE	Enquire	To Order
	703025	Screw, M6 x 25, Hex Flange Head	Enquire	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12370169AH	WIPER MECH. RHD	1R12370169AH WIPER MECH. RHD RHD	-	1	Enquire
1	1R12370883AG	Wiper mechanism	1R12370883AG Wiper mechanism LHD	-	1	Enquire
2	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	-	3	Enquire
2	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	6	Enquire
3	694567	WASHER M6 x 18 OD 0.9 THICK ZINC PLT	694567 WASHER M6 x 18 OD 0.9 THICK ZINC PLT	-	1	Enquire
3	700226	WASHER PLAIN M6x17	700226 WASHER PLAIN M6x17	-	5	Enquire
4	1R12372563AA	WIPER MOUNTING PLATE	1R12372563AA WIPER MOUNTING PLATE	-	3	Enquire
5	700226	WASHER PLAIN M6x17	700226 WASHER PLAIN M6x17	-	3	Enquire
6	1R12372562AC	WIPER MOTOR ASSY	1R12372562AC WIPER MOTOR ASSY	-	1	Enquire
7	700158	Screw, M6 x 20	700158 Screw, M6 x 20	-	3	Enquire
8	1R12371702AD	Mounting bracket, wiper motor	1R12371702AD Mounting bracket, wiper motor	-	1	Enquire
9	1R12373947AA	Support plate, wiper motor	1R12373947AA Support plate, wiper motor	-	1	Enquire
11	1R12370168AF	WIPER ARM DRIVER RHD	1R12370168AF WIPER ARM DRIVER RHD RHD	-	1	Enquire
11	1R12371705AF	WIPER ARM DRIVER LHD	1R12371705AF WIPER ARM DRIVER LHD LHD	-	1	Enquire
12	1R12370167AF	W/ARM PASS RHD	1R12370167AF W/ARM PASS RHD RHD	-	1	Enquire
12	1R12371704AF	WIPER ARM PASSENGER LHD	1R12371704AF WIPER ARM PASSENGER LHD LHD	-	1	Enquire
13	1R12374106AB	WIPER BLADE - DRIVER RHD	1R12374106AB WIPER BLADE - DRIVER RHD RHD	-	1	Enquire
13	1R12374107AB	WINDSCREEN WIPER BLADE - DRIVER LHD	1R12374107AB WINDSCREEN WIPER BLADE - DRIVER LHD LHD	-	1	Enquire
14	1R12374108AB	WINDSCREEN WIPER BLADE PASSENGER SIDE	1R12374108AB WINDSCREEN WIPER BLADE PASSENGER SIDE	-	1	Enquire
14	1R12372626AA	Washer tube, 650mm	1R12372626AA Washer tube, 650mm	-	2	Enquire
14	3785226	WASHER JET	3785226 WASHER JET	-	2	Enquire
18	1R123710315	WIPER ARM CAP	1R123710315 WIPER ARM CAP RHD	-	2	Enquire
19	1R12782616AJ	PANEL PLENUM FINISHER ASSY RHD	1R12782616AJ PANEL PLENUM FINISHER ASSY RHD RHD	-	1	Enquire
19	1R12782617AJ	PANEL PLENUM FINISHER ASSY LHD	1R12782617AJ PANEL PLENUM FINISHER ASSY LHD LHD	-	1	Enquire
20	699508	PINE TREE CLIP	699508 PINE TREE CLIP	-	5	Enquire
21	699509	EDGE PANEL FASTENER	699509 EDGE PANEL FASTENER	-	1	Enquire
22	1R12782618AD	PLENUM MESH RH	1R12782618AD PLENUM MESH RH RHD, Part of item 19	-	1	Enquire
22	1R12782619AD	PLENUM MESH LH	1R12782619AD PLENUM MESH LH LHD, Part of item 19	-	1	Enquire
22	699302	ADHESIVE-BETAMATE 2700	699302 ADHESIVE-BETAMATE 2700	-	-	Enquire
23	1R12784892AA	PLENUM END CAP RH	1R12784892AA PLENUM END CAP RH	-	1	Enquire
24	1R12784893AA	PLENUM END CAP LH	1R12784893AA PLENUM END CAP LH	-	1	Enquire
25	1R12784894AA	END CAP SUPPORT BRACKET RH	1R12784894AA END CAP SUPPORT BRACKET RH	-	1	Enquire
25	1R12784895AA	END CAP SUPPORT BRACKET LH	1R12784895AA END CAP SUPPORT BRACKET LH	-	1	Enquire
26	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head Endcap sup brkt to pass end of plen	-	1	Enquire
26	W504262S424	Screw, S/T raised hd	W504262S424 Screw, S/T raised hd	-	2	Enquire
27	700226	WASHER PLAIN M6x17	700226 WASHER PLAIN M6x17	-	1	Enquire
27	4R12376318AA	SPACER WIPER SPINDLE	4R12376318AA SPACER WIPER SPINDLE	-	1	Enquire
27	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head	-	2	Enquire
27	700040	PRESTOLE CLIP ST4.8 C TYPE	700040 PRESTOLE CLIP ST4.8 C TYPE	-	2	Enquire
27	701681	CLIP-WSHR TUBE 10mm	701681 CLIP-WSHR TUBE 10mm	-	2	Enquire
