Aston Martin Vanquish (2001-2007) - Windscreen Washers

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12371970AD WASHER BOTTLE ASSY $529.64 To Order
Photo Part No Description Price (each) Stock
3786509 SCREENWASH PUMP $281.11 To Order
Photo Part No Description Price (each) Stock
37124004AA LOW LEVEL SENSOR $74.63 To Order
Photo Part No Description Price (each) Stock
3785221 GROMMET-S/WASH PUMP $11.11 To Order
Photo Part No Description Price (each) Stock
699903 90 DEGREE CONNECTOR $4.44 To Order
Photo Part No Description Price (each) Stock
1R12374148AA Washer tube, 475mm Enquire To Order
Photo Part No Description Price (each) Stock
699902 Sleeve, 15+1mm long Enquire To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.29 IN STOCK
Photo Part No Description Price (each) Stock
1R12371952AC BRACKET - WASHER BOTTLE LOWER $8.47 To Order
Photo Part No Description Price (each) Stock
700093 SCREW M10x35 BLACK $3.21 To Order
Photo Part No Description Price (each) Stock
703129 Washer Large OD M12 Chrome Free $1.39 IN STOCK
Photo Part No Description Price (each) Stock
1R12371953AC WASHER BOTTLE CONNECTING TUBE $28.72 To Order
Photo Part No Description Price (each) Stock
690358 CLIP 25-40mm JUBILEE $12.27 To Order
Photo Part No Description Price (each) Stock
6G3313K175BA Filler Neck Assembly $97.15 IN STOCK
Photo Part No Description Price (each) Stock
1R12632477AB BRACKET - STRUCTURE TO FENDER LH Enquire To Order
Photo Part No Description Price (each) Stock
697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8 $1.93 IN STOCK
Photo Part No Description Price (each) Stock
1R12371978AB Washer tube, 1750mm Enquire To Order
Photo Part No Description Price (each) Stock
1R12370170AH WASHER TUBE ASSY RHD $77.18 To Order
699181 HOSE CLIP - HOSE TO N. VALVE $0.98 To Order
700372 RETAINING CLIP $0.12 To Order
Photo Part No Description Price (each) Stock
3784762 T-PIECE $6.63 To Order
Photo Part No Description Price (each) Stock
1R12373726AF WASHER TUBE ASY LHD $77.18 To Order
3784762 T-PIECE $6.63 To Order
1R12373725AA Washer tube, 1250mm Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
699716 PIPE CLIP EDGE TYPE $2.48 To Order
699716 PIPE CLIP EDGE TYPE $2.48 To Order
Photo Part No Description Price (each) Stock
699717 Grommet, Washer Jet Pipes $2.32 To Order
Photo Part No Description Price (each) Stock
699523 P CLIP OPEN (RICHO WHC375-01) $1.89 To Order
700162 RIVET POP 4.9mm $0.66 To Order
697274PK TIE STRAP(PK OF 100) $67.05 To Order
View All

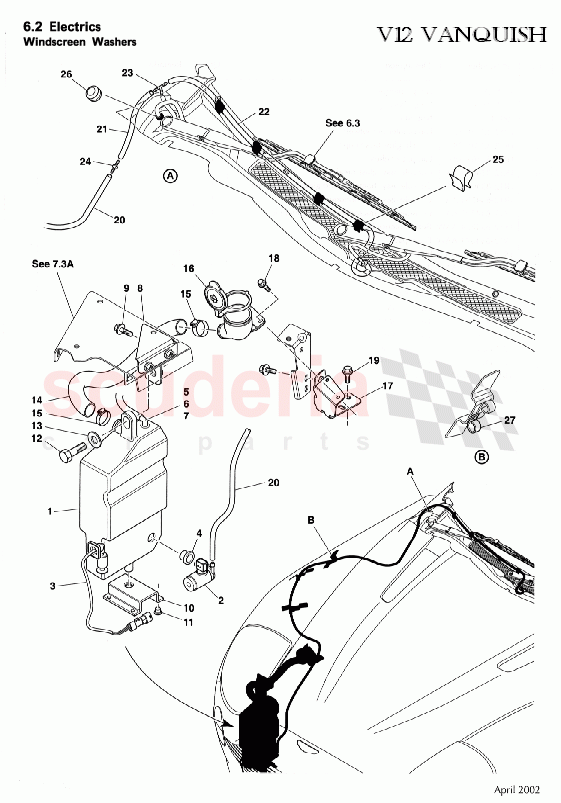

Windscreen Washers of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 1R12371970AD
WASHER BOTTLE ASSY 		$529.64 1
1 1R12371970AD
WASHER BOTTLE ASSY 		$529.64 1
2 3786509
SCREENWASH PUMP 		$281.11 1
3 37124004AA
LOW LEVEL SENSOR 		$74.63 1
4 3785221
GROMMET-S/WASH PUMP 		$11.11 1
5 699903
90 DEGREE CONNECTOR 		$4.44 1
6 1R12374148AA
Washer tube, 475mm 		- 1 Enquire
7 699902
Sleeve, 15+1mm long 		- 1 Enquire
8 1R12372634AD
Bracket, washer bottle, upper 		- 1 Enquire
9 703121
Screw, M8 x 25, Hex Flange Head
IN STOCK 		$0.29 2
10 1R12371952AC
BRACKET - WASHER BOTTLE LOWER 		$8.47 1
11 699818PK
SCREW M6x20 SKT (10) 		$67.00 3
11 697781
NUT M6 FLG 		$0.11 3
12 700093
SCREW M10x35 BLACK 		$3.21 1
13 703129
Washer Large OD M12 Chrome Free
IN STOCK 		$1.39 1
14 1R12371953AC
WASHER BOTTLE CONNECTING TUBE 		$28.72 1
15 690358
CLIP 25-40mm JUBILEE 		$12.27 2
16 6G3313K175BA
Filler Neck Assembly
IN STOCK 		$97.15 1
17 1R12632477AB
BRACKET - STRUCTURE TO FENDER LH 		- 1 Enquire
18 697320
SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8
Filler neck
IN STOCK 		$1.93 2
19 1R12370170AH
WASHER TUBE ASSY RHD
RHD 		$77.18 1
19 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.36 4
20 1R12371978AB
Washer tube, 1750mm
RHD 		- 1 Enquire
21 1R12371979AB
Washer tube, 50mm
RHD 		- 1 Enquire
22 1R12370170AH
WASHER TUBE ASSY RHD
RHD 		$77.18 1
22 699181
HOSE CLIP - HOSE TO N. VALVE
RHD 		$0.98 1
22 700372
RETAINING CLIP
RHD 		$0.12 9
23 3784762
T-PIECE
RHD 		$6.63 1
24 1R12373726AF
WASHER TUBE ASY LHD
LHD 		$77.18 1
24 3784762
T-PIECE
LHD 		$6.63 1
24 1R12373725AA
Washer tube, 1250mm
LHD 		- 1 Enquire
24 1R12371978AB
Washer tube, 1750mm
LHD 		- 1 Enquire
24 1R12371979AB
Washer tube, 50mm
LHD 		- 1 Enquire
24 1R12371980AB
Washer tube, 950mm
LHD 		- 1 Enquire
24 699181
HOSE CLIP - HOSE TO N. VALVE
LHD 		$0.98 1
24 3784773
DIAPHRAGM VALVE
RHD 		$27.90 2
24 3784773
DIAPHRAGM VALVE
LHD 		$27.90 2
24 700372
RETAINING CLIP
LHD 		$0.12 9
25 699716
PIPE CLIP EDGE TYPE
RHD 		$2.48 4
25 699716
PIPE CLIP EDGE TYPE
LHD 		$2.48 8
26 699717
Grommet, Washer Jet Pipes 		$2.32 1
27 699523
P CLIP OPEN (RICHO WHC375-01)
Washer tube only 		$1.89 3
27 700162
RIVET POP 4.9mm
Washer tube only 		$0.66 3
27 697274PK
TIE STRAP(PK OF 100) 		$67.05 4
