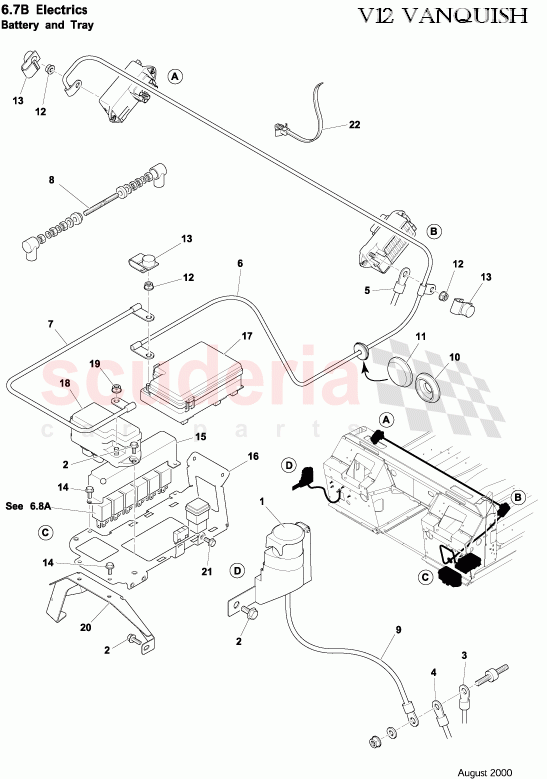

Aston Martin Vanquish (2001-2007) - Battery and Cables 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12371962AD	TERMINAL ASSY JUMP START	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R1314A120AC	CABLE-BATTERY TO STARTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370404AD	BATTERY +VE - BULKHEAD STUD TO ALTERNATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370407AD	BATTERY +VE - REAR JUNCTION BLOCK TO LH FACIA FUSEBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370408AE	BATTERY +VE - LH FACIA F/BOX TO RH FACIA F/BOX RHD	Enquire	To Order
	1R12372740AD	CABLE-LH TO RH FACIA FUSEBOX LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12372741AB	CABLE - U/B FUSEBOX LHD	Enquire	To Order
	1R12370409AD	BATTERY +VE - EMS TO FRONT FUSEBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12375342AA	Terminal post assy	Enquire	To Order
	986517	BOOT RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12371719AA	Cable, bulkhead to jump start terminal	Enquire	To Order
	697064	KY jelly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781850	Grommet, battery vent tube	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700414	BLANKING GROMMET 32MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703739	Nut, M8, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3785236	Protector, Power Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703278	Screw, M6 x 10, Flange Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710343	Cover, relay, 3 way	Enquire	To Order
	1R12372680AE	COVER-RELAYS RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12371642AG	BRACKET - ENGINE BAY FUSEBOXES RHD	Enquire	To Order
	1R12371643AE	BRKT-ENG BAY F/BOXES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12370533AB	UNDER BONNET F/BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370535AD	F/BOX 18 WAY EMS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703162	NUT M8 HF 8 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12375796AB	Support leg, fusebox bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703179	SCREW-M5x10 PAN HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3785236	Protector, Power Stud	Enquire	To Order
	700169	WIRING CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12371962AD	TERMINAL ASSY JUMP START	1R12371962AD TERMINAL ASSY JUMP START	-	1	Enquire
2	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	4	Enquire
3	4R1314A120AC	CABLE-BATTERY TO STARTER	4R1314A120AC CABLE-BATTERY TO STARTER	-	1	Enquire
4	1R12370404AD	BATTERY +VE - BULKHEAD STUD TO ALTERNATOR	1R12370404AD BATTERY +VE - BULKHEAD STUD TO ALTERNATOR	-	1	Enquire
5	1R12370407AD	BATTERY +VE - REAR JUNCTION BLOCK TO LH FACIA FUSEBOX	1R12370407AD BATTERY +VE - REAR JUNCTION BLOCK TO LH FACIA FUSEBOX	-	1	Enquire
6	1R12370408AE	BATTERY +VE - LH FACIA F/BOX TO RH FACIA F/BOX RHD	1R12370408AE BATTERY +VE - LH FACIA F/BOX TO RH FACIA F/BOX RHD RHD	-	1	Enquire
6	1R12372740AD	CABLE-LH TO RH FACIA FUSEBOX LHD	1R12372740AD CABLE-LH TO RH FACIA FUSEBOX LHD LHD	-	1	Enquire
7	1R12372741AB	CABLE - U/B FUSEBOX LHD	1R12372741AB CABLE - U/B FUSEBOX LHD LHD	-	1	Enquire
7	1R12370409AD	BATTERY +VE - EMS TO FRONT FUSEBOX	1R12370409AD BATTERY +VE - EMS TO FRONT FUSEBOX	-	1	Enquire
8	1R12375342AA	Terminal post assy	1R12375342AA Terminal post assy	-	1	Enquire
8	986517	BOOT RUBBER	986517 BOOT RUBBER	-	1	Enquire
9	1R12371719AA	Cable, bulkhead to jump start terminal	1R12371719AA Cable, bulkhead to jump start terminal	-	1	Enquire
9	697064	KY jelly	697064 KY jelly	-	1	Enquire
10	3781850	Grommet, battery vent tube	3781850 Grommet, battery vent tube	-	1	Enquire
11	700414	BLANKING GROMMET 32MM	700414 BLANKING GROMMET 32MM	-	1	Enquire
12	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head	-	3	Enquire
13	3785236	Protector, Power Stud	3785236 Protector, Power Stud	-	3	Enquire
14	703278	Screw, M6 x 10, Flange Hex Head	703278 Screw, M6 x 10, Flange Hex Head	-	4	Enquire
15	1R123710343	Cover, relay, 3 way	1R123710343 Cover, relay, 3 way RHD	-	1	Enquire
15	1R12372680AE	COVER-RELAYS RH	1R12372680AE COVER-RELAYS RH	-	1	Enquire
16	1R12371642AG	BRACKET - ENGINE BAY FUSEBOXES RHD	1R12371642AG BRACKET - ENGINE BAY FUSEBOXES RHD RHD	-	1	Enquire
16	1R12371643AE	BRKT-ENG BAY F/BOXES	1R12371643AE BRKT-ENG BAY F/BOXES LHD	-	1	Enquire
17	3R12370533AB	UNDER BONNET F/BOX	3R12370533AB UNDER BONNET F/BOX	-	1	Enquire
18	1R12370535AD	F/BOX 18 WAY EMS	1R12370535AD F/BOX 18 WAY EMS	-	1	Enquire
19	703162	NUT M8 HF 8 CHROME FREE	703162 NUT M8 HF 8 CHROME FREE	-	1	Enquire
20	1R12375796AB	Support leg, fusebox bracket	1R12375796AB Support leg, fusebox bracket	-	1	Enquire
21	703179	SCREW-M5x10 PAN HEAD CHROME FREE	703179 SCREW-M5x10 PAN HEAD CHROME FREE	-	1	Enquire
22	3785236	Protector, Power Stud	3785236 Protector, Power Stud	-	1	Enquire
22	700169	WIRING CLIP	700169 WIRING CLIP	-	1	Enquire
