Fuses of Aston Martin Aston Martin Vanquish (2001-2007)

View All

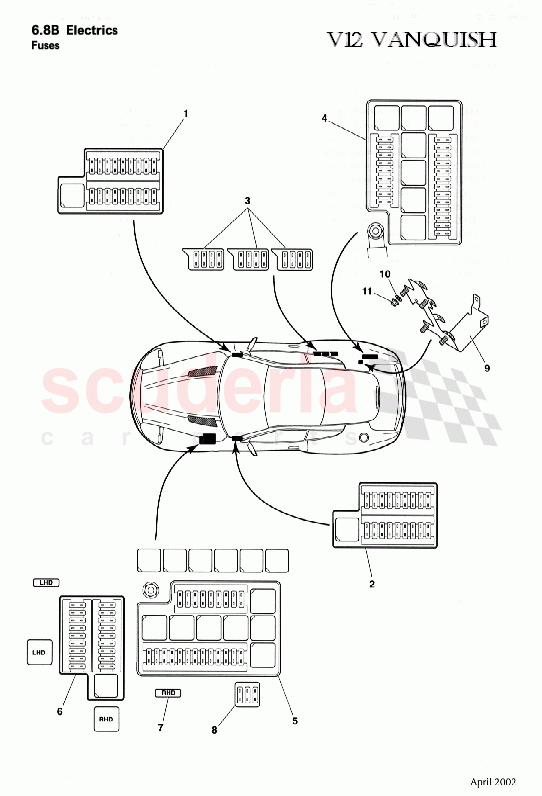

Aston Martin Vanquish (2001-2007) - Fuses

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12370536AF	F/BOX 18WAY FACIA RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370537AC	F/BOX 18WAY FACIA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12370534AA	BOOT FUSEBOX	Enquire	To Order
	1R12370534AD	FUSEBOX 22 WAY-BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12370533AB	UNDER BONNET F/BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370535AD	F/BOX 18 WAY EMS	Enquire	To Order
	3723424	Fuse, Midi 10A	Enquire	To Order
	3723425	Fuse, Midi 15A	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R123710207	FUSE 60 AMP COOLING FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12371986AD	BRACKET - CONNECTOR TRUNK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	694567	WASHER M6 x 18 OD 0.9 THICK ZINC PLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R1313B525AA	BRACKET - FUSEBOX SHIELD -RHD	Enquire	To Order
	5R1313B525BA	BRACKET - FUSEBOX LID - LHD	Enquire	To Order
	5R1313B524AA	FUSEBOX SHIELD -RHD	Enquire	To Order

...and 7 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12370536AF	F/BOX 18WAY FACIA RH	1R12370536AF F/BOX 18WAY FACIA RH	-	1	Enquire
2	1R12370537AC	F/BOX 18WAY FACIA	1R12370537AC F/BOX 18WAY FACIA	-	1	Enquire
4	3R12370534AA	BOOT FUSEBOX	3R12370534AA BOOT FUSEBOX From (V) 500516-21 + 526 onwards	-	1	Enquire
4	1R12370534AD	FUSEBOX 22 WAY-BOOT	1R12370534AD FUSEBOX 22 WAY-BOOT Up to (V) 500515 + 500522-525	-	1	Enquire
5	3R12370533AB	UNDER BONNET F/BOX	3R12370533AB UNDER BONNET F/BOX	-	1	Enquire
6	1R12370535AD	F/BOX 18 WAY EMS	1R12370535AD F/BOX 18 WAY EMS	-	1	Enquire
6	3723424	Fuse, Midi 10A	3723424 Fuse, Midi 10A	-	1	Enquire
6	3723425	Fuse, Midi 15A	3723425 Fuse, Midi 15A	-	1	Enquire
6	3723426	Fuse, Midi 20A	3723426 Fuse, Midi 20A	-	1	Enquire
6	3723427	Fuse, Midi 25A	3723427 Fuse, Midi 25A	-	1	Enquire
6	3723428	Fuse, Midi 30A	3723428 Fuse, Midi 30A	-	1	Enquire
6	3723422	Fuse, Midi 5A	3723422 Fuse, Midi 5A	-	1	Enquire
7	1R123710207	FUSE 60 AMP COOLING FAN	1R123710207 FUSE 60 AMP COOLING FAN Cooling fans	-	1	Enquire
9	1R12371986AD	BRACKET - CONNECTOR TRUNK	1R12371986AD BRACKET - CONNECTOR TRUNK	-	1	Enquire
10	694567	WASHER M6 x 18 OD 0.9 THICK ZINC PLT	694567 WASHER M6 x 18 OD 0.9 THICK ZINC PLT	-	2	Enquire
11	5R1313B525AA	BRACKET - FUSEBOX SHIELD -RHD	5R1313B525AA BRACKET - FUSEBOX SHIELD -RHD RHD	-	1	Enquire
11	5R1313B525BA	BRACKET - FUSEBOX LID - LHD	5R1313B525BA BRACKET - FUSEBOX LID - LHD LHD	-	1	Enquire
11	5R1313B524AA	FUSEBOX SHIELD -RHD	5R1313B524AA FUSEBOX SHIELD -RHD RHD	-	1	Enquire
11	5R1313B524BA	FUSEBOX SHIELD LHD	5R1313B524BA FUSEBOX SHIELD LHD LHD	-	1	Enquire
11	1R12375796AC	SUPPORT LEG-FUSEBOX BRACKET RHD	1R12375796AC SUPPORT LEG-FUSEBOX BRACKET RHD	-	1	Enquire
11	1R12372775AA	BRACKET - MAXIFUSE HOLDER	1R12372775AA BRACKET - MAXIFUSE HOLDER	-	1	Enquire
11	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	-	1	Enquire
11	696504PK	TRIM RETAINER-(10)	696504PK TRIM RETAINER-(10)	-	1	Enquire
11	696503PK	TRIM PIN PACK (10)	696503PK TRIM PIN PACK (10)	-	1	Enquire
11	699697	Nut, M6, Flg Duralock	699697 Nut, M6, Flg Duralock	-	2	Enquire
