Rear Seats and Belts of Aston Martin Aston Martin DB7 (1997)

View All

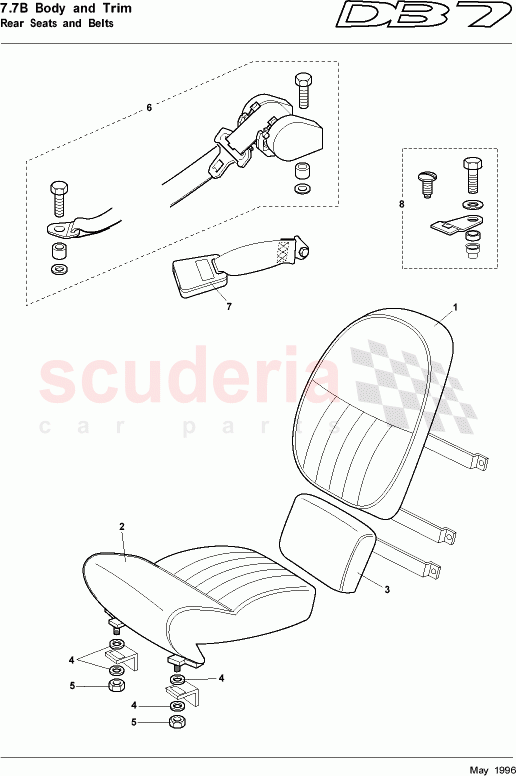

Aston Martin DB7 (1997) - Rear Seats and Belts

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7482688/XXX	Cushion assembly, complete, rear seat - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7482692/XXX	Squab lower assembly, rear seat - complete	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8084509	SEAT BELT REAR COUPE USA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8084510	SEAT BELT BUCKLE REAR USA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8084911	BRKT-BELT ANCHORAGE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8084915	NUT 3/16in UNC HEX ST/STEEL	8084915 NUT 3/16in UNC HEX ST/STEEL Volante AUS only From (V) 202282	-	2	Enquire
-	8084911	BRKT-BELT ANCHORAGE	8084911 BRKT-BELT ANCHORAGE Volante AUS only From (V) 202282	-	2	Enquire
-	697134	WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	697134 WASHER M8 X 25 X 1.8 PLAIN ZINC YELL Volante AUS only From (V) 202282	-	2	Enquire
-	8084913	BOLT-STAINLESS	8084913 BOLT-STAINLESS Volante AUS only From (V) 202282	-	2	Enquire
-	8084912	SPACER	8084912 SPACER Volante AUS only From (V) 202282	-	2	Enquire
-	8084914	WASHER	8084914 WASHER Volante AUS only From (V) 202282	-	2	Enquire
-	17111697AA	Tether, support bar assembly	17111697AA Tether, support bar assembly Volante AUS only From EC80244	-	1	Enquire
-	17111691AA	Support bar, tether kit	17111691AA Support bar, tether kit Volante AUS only From EC80123	-	1	Enquire
-	8084517	SEAT BELT REAR COUPE EURO	8084517 SEAT BELT REAR COUPE EURO Coupe Not USA/CDN/J	-	2	Enquire
-	8084518	SEAT BELT BUCKLE COUPE EURO	8084518 SEAT BELT BUCKLE COUPE EURO Coupe Not USA/CDN/J	-	2	Enquire
-	697563	Adhesive, Plexus A0420	697563 Adhesive, Plexus A0420 Leather retention	-	-	Enquire
-	8390147/XXX	Cushion assembly, complete, rear seat - RH	8390147/XXX Cushion assembly, complete, rear seat - RH Volante J only	-	1	Enquire
-	8390148/XXX	Cushion assembly, complete, rear seat - LH	8390148/XXX Cushion assembly, complete, rear seat - LH Volante J only	-	1	Enquire
-	7483662/XXX	Cushion assembly, complete, rear seat - RH	7483662/XXX Cushion assembly, complete, rear seat - RH Volante Not J	-	1	Enquire
-	7483663/XXX	Cushion assembly, complete, rear seat - LH	7483663/XXX Cushion assembly, complete, rear seat - LH Volante Not J	-	1	Enquire
-	7484348/XXX	Cushion assembly, complete, rear seat - RH	7484348/XXX Cushion assembly, complete, rear seat - RH Coupe J only	-	1	Enquire
-	7484349/XXX	Cushion assembly, complete, rear seat - LH	7484349/XXX Cushion assembly, complete, rear seat - LH Coupe J only	-	1	Enquire
-	7482689/XXX	Cushion assembly, complete, rear seat - LH	7482689/XXX Cushion assembly, complete, rear seat - LH Coupe Not J	-	1	Enquire
-	7483664/XXX	Squab assembly, complete, rear seat - RH	7483664/XXX Squab assembly, complete, rear seat - RH Volante	-	1	Enquire
-	7483665/XXX	Squab assembly, complete, rear seat - LH	7483665/XXX Squab assembly, complete, rear seat - LH Volante	-	1	Enquire
-	7483661/XXX	Squab lower assembly, rear seat - complete	7483661/XXX Squab lower assembly, rear seat - complete Volante	-	2	Enquire
-	8084511	SEAT BELT REAR CONV	8084511 SEAT BELT REAR CONV Volante	-	2	Enquire
-	7483194	VELCRO HOOKS	7483194 VELCRO HOOKS	-	6	Enquire
2	7482688/XXX	Cushion assembly, complete, rear seat - RH	7482688/XXX Cushion assembly, complete, rear seat - RH Coupe Not J	-	1	Enquire
3	7482692/XXX	Squab lower assembly, rear seat - complete	7482692/XXX Squab lower assembly, rear seat - complete Coupe	-	2	Enquire
6	8084509	SEAT BELT REAR COUPE USA	8084509 SEAT BELT REAR COUPE USA Coupe USA/CDN/J	-	2	Enquire
7	8084510	SEAT BELT BUCKLE REAR USA	8084510 SEAT BELT BUCKLE REAR USA Coupe USA/CDN/J	-	2	Enquire
8	8084911	BRKT-BELT ANCHORAGE	8084911 BRKT-BELT ANCHORAGE CDN/AUS only	-	1	Enquire
