Coupe Centre Console and Trim of Aston Martin Aston Martin DB7 (1997)

View All

Aston Martin DB7 (1997) - Coupe Centre Console and Trim

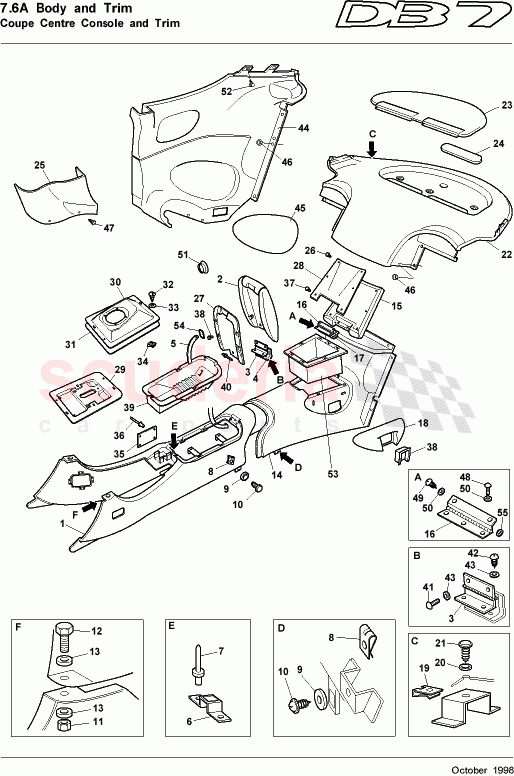

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8382788/xxx	Console assembly, trimmed front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383793/XXX	Armrest lid assembly, front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382795	LINK CHECK LID FT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383794	BRACKET-LATCH/STRIKR MTG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382800/XXX	Armrest lid assembly, rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382804/XXX	Bolster assembly complete, console rear - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383578/XXX	Trim assembly, lower A post - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88123445AA	NUT SPRINT 3/4 INCH SUPPLIERS NO 12004- 100-300	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83110949AA	RIVET-EXPANSION TYPE	Enquire	To Order
	83110949AA	RIVET-EXPANSION TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382840	RECEPTACLE RR S/BELT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83111426AAW	COMP ASSY PANEL REAR QUARTER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383195/XXX	Bolster, rear quarter - RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8383579/XXX	Trim assembly, lower A post - RH	8383579/XXX Trim assembly, lower A post - RH LHD Not USA/CDN	-	1	Enquire
-	8383581/XXX	Trim assembly, lower A post - LH	8383581/XXX Trim assembly, lower A post - LH LHD Not USA/CDN	-	1	Enquire
-	80110536AAW	FRONT CONSOLE ASSY- TRIMMED	80110536AAW FRONT CONSOLE ASSY- TRIMMED From (V) 101621	-	1	Enquire
-	83110570AAW	CARPET-FRT FOOTWELL RH LHD	83110570AAW CARPET-FRT FOOTWELL RH LHD From EC70712	-	1	Enquire
-	83111334AAW	Armrest lid assembly, rear	83111334AAW Armrest lid assembly, rear From EC80116	-	1	Enquire
-	8382796	LINK CHECK LID FT LH	8382796 LINK CHECK LID FT LH From EC70712	-	1	Enquire
-	8383675/XXX	Trim assembly, lower A post - RH	8383675/XXX Trim assembly, lower A post - RH LHD USA/CDN	-	1	Enquire
-	8383576/XXX	Trim assembly, lower A post - LH	8383576/XXX Trim assembly, lower A post - LH LHD USA/CDN	-	1	Enquire
-	83111853AAW	Console assembly, complete front	83111853AAW Console assembly, complete front Dunhill	-	1	Enquire
-	80111745AAW	Pen stowage assembly, complete	80111745AAW Pen stowage assembly, complete Dunhill	-	1	Enquire
-	83111603AA	BRACKET MOUNTING - LATCH/STRIKER	83111603AA BRACKET MOUNTING - LATCH/STRIKER Dunhill	-	2	Enquire
-	697574	RETAINING RING- G/LEVER GAITER	697574 RETAINING RING- G/LEVER GAITER Manual	-	1	Enquire
-	8383580/XXX	Trim assembly, lower A post - LH	8383580/XXX Trim assembly, lower A post - LH RHD	-	1	Enquire
-	8382805/XXX	Bolster assembly complete, console rear - LH	8382805/XXX Bolster assembly complete, console rear - LH	-	1	Enquire
-	83111425AAW	COMP ASSY PANEL REAR QUARTER LH	83111425AAW COMP ASSY PANEL REAR QUARTER LH	-	1	Enquire
-	8382841	RECEPTACLE RR S/BELT LH	8382841 RECEPTACLE RR S/BELT LH	-	1	Enquire
-	8382848/XXX	Bolster, rear quarter - LH	8382848/XXX Bolster, rear quarter - LH	-	1	Enquire
1	8382788/xxx	Console assembly, trimmed front	8382788/xxx Console assembly, trimmed front Up to (V) 101620	-	1	Enquire
2	8383793/XXX	Armrest lid assembly, front	8383793/XXX Armrest lid assembly, front Up to EC70712	-	1	Enquire
5	8382795	LINK CHECK LID FT RH	8382795 LINK CHECK LID FT RH	-	1	Enquire
6	8383794	BRACKET-LATCH/STRIKR MTG	8383794 BRACKET-LATCH/STRIKR MTG	-	1	Enquire
15	8382800/XXX	Armrest lid assembly, rear	8382800/XXX Armrest lid assembly, rear Up to EC80116	-	1	Enquire
18	8382804/XXX	Bolster assembly complete, console rear - RH	8382804/XXX Bolster assembly complete, console rear - RH	-	1	Enquire
25	8383578/XXX	Trim assembly, lower A post - RH	8383578/XXX Trim assembly, lower A post - RH RHD	-	1	Enquire
34	88123445AA	NUT SPRINT 3/4 INCH SUPPLIERS NO 12004- 100-300	88123445AA NUT SPRINT 3/4 INCH SUPPLIERS NO 12004- 100-300	-	6	Enquire
37	83110949AA	RIVET-EXPANSION TYPE	83110949AA RIVET-EXPANSION TYPE From (V) 101621	-	1	Enquire
37	83110949AA	RIVET-EXPANSION TYPE	83110949AA RIVET-EXPANSION TYPE	-	1	Enquire
38	8382840	RECEPTACLE RR S/BELT RH	8382840 RECEPTACLE RR S/BELT RH	-	1	Enquire
44	83111426AAW	COMP ASSY PANEL REAR QUARTER RH	83111426AAW COMP ASSY PANEL REAR QUARTER RH	-	1	Enquire
45	8383195/XXX	Bolster, rear quarter - RH	8383195/XXX Bolster, rear quarter - RH	-	1	Enquire
