Volante Front End Panels of Aston Martin Aston Martin DB7 (1997)

View All

Aston Martin DB7 (1997) - Volante Front End Panels

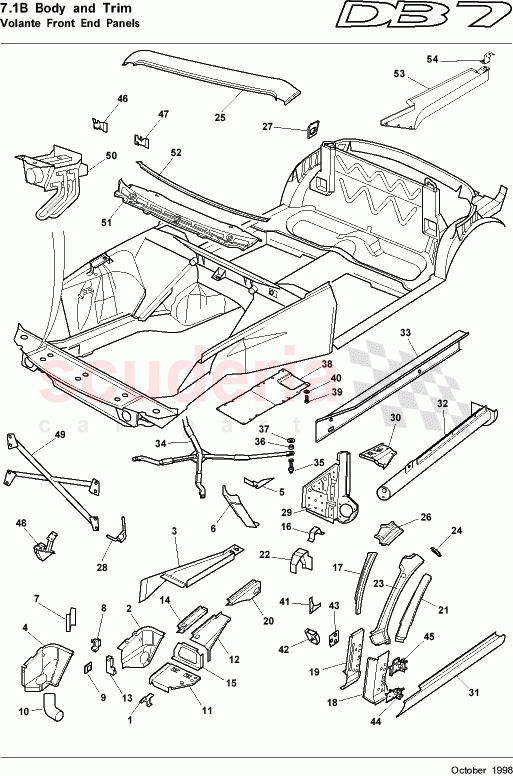

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6183721	N/A PANEL VALANCE FT RH	Enquire	To Order
	6183722	N/A PANEL VALANCE FT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1982955	ASSEMBLY HEADLAMP INR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1982955	ASSEMBLY HEADLAMP INR RH	Enquire	To Order
	1982956	ASSEMBLY HEADLAMP INR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6183723	GUSSET REINF VAL TO X-MBR BUMPER MTG RH	Enquire	To Order
	6183724	GUSSET REINF VAL TO X-MBR BUMPER MTG LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6183725	BRACE BMPR MTG RR TO X-MBR FRNT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1982957	ASSEMBLY HEADLAMP OTR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1982957	ASSEMBLY HEADLAMP OTR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1982957	ASSEMBLY HEADLAMP OTR RH	Enquire	To Order
	1982958	ASSEMBLY HEADLAMP OTR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1982957	ASSEMBLY HEADLAMP OTR RH	Enquire	To Order
	1982958	ASSEMBLY HEADLAMP OTR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1982957	ASSEMBLY HEADLAMP OTR RH	Enquire	To Order
	1982958	ASSEMBLY HEADLAMP OTR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2080663	Panel, A post support extension - RH	Enquire	To Order
	2080664	Panel, A post support extension - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6180721	Panel A post inner - RH	Enquire	To Order
	6180722	Panel A post inner - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2083704	PANEL A POST LOWER RH	Enquire	To Order
	2083705	PANEL A POST LOWER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2083689	PNL REINF A POST LWR RH	Enquire	To Order
	2083690	PNL REINF A POST LWR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6180727	VALANCE REINF UPPER RH	Enquire	To Order
	6180728	VALANCE REINF UPPER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6180674	PANEL A POST OUTER RH	Enquire	To Order
	6180675	PANEL A POST OUTER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2080588	PANEL SUPPORT A POST -RH	Enquire	To Order
	2080589	PANEL SUPPORT A POST -LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6183695	PANEL A POST REINF RH	Enquire	To Order
	6183696	PANEL A POST REINF LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6183697	Extension, "A" post reinforcement - RH	Enquire	To Order
	6183698	Extension, "A" post reinforcement - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6183699	Panel, front header inner - RH	Enquire	To Order
	6183700	Panel, front header inner - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2080590	Panel closing, dash side - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2083606P	ASY-REINF.W/ARCH RH	Enquire	To Order
	2083607P	ASY-REINF.W/ARCH-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6183687	ASSY EXTN SILL FRONT RH	Enquire	To Order
	6183688	ASSY EXTN SILL FRONT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6183702	PNL SILL OTR RH	Enquire	To Order
	6183703	PNL SILL OTR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2183608	ASSY-SILL TUBE INNER RH	Enquire	To Order
	2183609	ASSY-SILL TUBE INNER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2183610	Sill, inner - RH	Enquire	To Order
	2183611	Sill, inner - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697186	SCREW M8 x 20 HEX HEAD GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	694597	WASHER M8 x 25 x 3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2080715	Closing gussett, inner A post - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2080759	BAFFLE-`A'POST LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6580799	SHIM-HINGE UPPER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6580736	ASSY DOOR HINGE LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6580738	ASSY DOOR HINGE UPPER-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1984393	ASSY-BUMPER FRONT MTG BRKT RH WITH TOWING HOOK DB7 I6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2084980	BRACKET-UNDERTRAY EXTENSION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6384741	BODY COMPLETE WITH DOORS-CONV 96.5MY	6384741 BODY COMPLETE WITH DOORS-CONV 96.5MY Up to (V) 101620	-	1	Enquire
-	60110620BA	Bodyshell, less doors, wings, bonnet, & trunk lid	60110620BA Bodyshell, less doors, wings, bonnet, & trunk lid From (V) 101621	-	1	Enquire
-	697186	SCREW M8 x 20 HEX HEAD GRADE 8.8	697186 SCREW M8 x 20 HEX HEAD GRADE 8.8 From (V) 202282	-	10	Enquire
-	694597	WASHER M8 x 25 x 3	694597 WASHER M8 x 25 x 3 From (V) 202282	-	6	Enquire
-	697524PK	Screw No8 x 25 FLANGE PACK (20)	697524PK Screw No8 x 25 FLANGE PACK (20) From EC80076	-	1	Enquire
-	698985	BOLT FLG	698985 BOLT FLG From EC80076	-	1	Enquire
-	697497PK	Screw-No8x19 FLG(20)	697497PK Screw-No8x19 FLG(20) From EC80076	-	2	Enquire
-	697528PK	Washer-M5 Large OD Pack of 20	697528PK Washer-M5 Large OD Pack of 20 From EC80076	-	3	Enquire
-	698346	Adhesive, Bondit BIA7050	698346 Adhesive, Bondit BIA7050 From EC80076	-	-	Enquire
-	1982956	ASSEMBLY HEADLAMP INR LH	1982956 ASSEMBLY HEADLAMP INR LH LHS only	-	1	Enquire
-	1982958	ASSEMBLY HEADLAMP OTR LH	1982958 ASSEMBLY HEADLAMP OTR LH	-	1	Enquire
-	2080716	Closing gussett, inner A post - LH	2080716 Closing gussett, inner A post - LH	-	1	Enquire
-	6580737	ASSY-DOOR HINGE LOWER LH	6580737 ASSY-DOOR HINGE LOWER LH	-	1	Enquire
-	6580739	ASSY-DOOR HINGE UPPER-LH	6580739 ASSY-DOOR HINGE UPPER-LH	-	1	Enquire
-	1982955	ASSEMBLY HEADLAMP INR RH	1982955 ASSEMBLY HEADLAMP INR RH	-	1	Enquire
-	1982957	ASSEMBLY HEADLAMP OTR RH	1982957 ASSEMBLY HEADLAMP OTR RH	-	1	Enquire
-	2080591	Panel closing, dash side - LH	2080591 Panel closing, dash side - LH	-	1	Enquire
-	2080760	BAFFLE-`A'POST LOWER LH	2080760 BAFFLE-`A'POST LOWER LH	-	1	Enquire
-	1984394	ASSY-BUMPER FRONT MTG BRKT LH DB7 I6	1984394 ASSY-BUMPER FRONT MTG BRKT LH DB7 I6	-	1	Enquire
-	1982956	ASSEMBLY HEADLAMP INR LH	1982956 ASSEMBLY HEADLAMP INR LH	-	1	Enquire
-	6584355	DOOR HINGE CIRCLIP	6584355 DOOR HINGE CIRCLIP	-	2	Enquire
-	6580800	SHIM-HINGE UPPER LH	6580800 SHIM-HINGE UPPER LH	-	-	Enquire
2	6183721	N/A PANEL VALANCE FT RH	6183721 N/A PANEL VALANCE FT RH	-	1	Enquire
2	6183722	N/A PANEL VALANCE FT LH	6183722 N/A PANEL VALANCE FT LH	-	1	Enquire
3	1982955	ASSEMBLY HEADLAMP INR RH	1982955 ASSEMBLY HEADLAMP INR RH	-	1	Enquire
4	1982955	ASSEMBLY HEADLAMP INR RH	1982955 ASSEMBLY HEADLAMP INR RH	-	1	Enquire
4	1982956	ASSEMBLY HEADLAMP INR LH	1982956 ASSEMBLY HEADLAMP INR LH	-	1	Enquire
5	6183723	GUSSET REINF VAL TO X-MBR BUMPER MTG RH	6183723 GUSSET REINF VAL TO X-MBR BUMPER MTG RH	-	1	Enquire
5	6183724	GUSSET REINF VAL TO X-MBR BUMPER MTG LH	6183724 GUSSET REINF VAL TO X-MBR BUMPER MTG LH	-	1	Enquire
10	6183725	BRACE BMPR MTG RR TO X-MBR FRNT RH	6183725 BRACE BMPR MTG RR TO X-MBR FRNT RH	-	1	Enquire
11	1982957	ASSEMBLY HEADLAMP OTR RH	1982957 ASSEMBLY HEADLAMP OTR RH	-	1	Enquire
12	1982957	ASSEMBLY HEADLAMP OTR RH	1982957 ASSEMBLY HEADLAMP OTR RH	-	1	Enquire
13	1982957	ASSEMBLY HEADLAMP OTR RH	1982957 ASSEMBLY HEADLAMP OTR RH	-	1	Enquire
13	1982958	ASSEMBLY HEADLAMP OTR LH	1982958 ASSEMBLY HEADLAMP OTR LH	-	1	Enquire
14	1982957	ASSEMBLY HEADLAMP OTR RH	1982957 ASSEMBLY HEADLAMP OTR RH	-	1	Enquire
14	1982958	ASSEMBLY HEADLAMP OTR LH	1982958 ASSEMBLY HEADLAMP OTR LH	-	1	Enquire
15	1982957	ASSEMBLY HEADLAMP OTR RH	1982957 ASSEMBLY HEADLAMP OTR RH	-	1	Enquire
15	1982958	ASSEMBLY HEADLAMP OTR LH	1982958 ASSEMBLY HEADLAMP OTR LH	-	1	Enquire
16	2080663	Panel, A post support extension - RH	2080663 Panel, A post support extension - RH	-	1	Enquire
16	2080664	Panel, A post support extension - LH	2080664 Panel, A post support extension - LH	-	1	Enquire
17	6180721	Panel A post inner - RH	6180721 Panel A post inner - RH	-	1	Enquire
17	6180722	Panel A post inner - LH	6180722 Panel A post inner - LH	-	1	Enquire
18	2083704	PANEL A POST LOWER RH	2083704 PANEL A POST LOWER RH	-	1	Enquire
18	2083705	PANEL A POST LOWER LH	2083705 PANEL A POST LOWER LH	-	1	Enquire
19	2083689	PNL REINF A POST LWR RH	2083689 PNL REINF A POST LWR RH	-	1	Enquire
19	2083690	PNL REINF A POST LWR LH	2083690 PNL REINF A POST LWR LH	-	1	Enquire
20	6180727	VALANCE REINF UPPER RH	6180727 VALANCE REINF UPPER RH	-	1	Enquire
20	6180728	VALANCE REINF UPPER LH	6180728 VALANCE REINF UPPER LH	-	1	Enquire
21	6180674	PANEL A POST OUTER RH	6180674 PANEL A POST OUTER RH	-	1	Enquire
21	6180675	PANEL A POST OUTER LH	6180675 PANEL A POST OUTER LH	-	1	Enquire
22	2080588	PANEL SUPPORT A POST -RH	2080588 PANEL SUPPORT A POST -RH	-	1	Enquire
22	2080589	PANEL SUPPORT A POST -LH	2080589 PANEL SUPPORT A POST -LH	-	1	Enquire
23	6183695	PANEL A POST REINF RH	6183695 PANEL A POST REINF RH	-	1	Enquire
23	6183696	PANEL A POST REINF LH	6183696 PANEL A POST REINF LH	-	1	Enquire
24	6183697	Extension, "A" post reinforcement - RH	6183697 Extension, "A" post reinforcement - RH	-	1	Enquire
24	6183698	Extension, "A" post reinforcement - LH	6183698 Extension, "A" post reinforcement - LH	-	1	Enquire
26	6183699	Panel, front header inner - RH	6183699 Panel, front header inner - RH	-	1	Enquire
26	6183700	Panel, front header inner - LH	6183700 Panel, front header inner - LH	-	1	Enquire
27	2080590	Panel closing, dash side - RH	2080590 Panel closing, dash side - RH	-	1	Enquire
29	2083606P	ASY-REINF.W/ARCH RH	2083606P ASY-REINF.W/ARCH RH	-	1	Enquire
29	2083607P	ASY-REINF.W/ARCH-LH	2083607P ASY-REINF.W/ARCH-LH	-	1	Enquire
30	6183687	ASSY EXTN SILL FRONT RH	6183687 ASSY EXTN SILL FRONT RH	-	1	Enquire
30	6183688	ASSY EXTN SILL FRONT LH	6183688 ASSY EXTN SILL FRONT LH	-	1	Enquire
31	6183702	PNL SILL OTR RH	6183702 PNL SILL OTR RH	-	1	Enquire
31	6183703	PNL SILL OTR LH	6183703 PNL SILL OTR LH	-	1	Enquire
32	2183608	ASSY-SILL TUBE INNER RH	2183608 ASSY-SILL TUBE INNER RH	-	1	Enquire
32	2183609	ASSY-SILL TUBE INNER LH	2183609 ASSY-SILL TUBE INNER LH	-	1	Enquire
33	2183610	Sill, inner - RH	2183610 Sill, inner - RH	-	1	Enquire
33	2183611	Sill, inner - LH	2183611 Sill, inner - LH	-	1	Enquire
39	697186	SCREW M8 x 20 HEX HEAD GRADE 8.8	697186 SCREW M8 x 20 HEX HEAD GRADE 8.8 Up to (V) 202281	-	14	Enquire
40	694597	WASHER M8 x 25 x 3	694597 WASHER M8 x 25 x 3 Up to (V) 202281	-	14	Enquire
41	2080715	Closing gussett, inner A post - RH	2080715 Closing gussett, inner A post - RH	-	1	Enquire
42	2080759	BAFFLE-`A'POST LOWER RH	2080759 BAFFLE-`A'POST LOWER RH	-	1	Enquire
43	6580799	SHIM-HINGE UPPER RH	6580799 SHIM-HINGE UPPER RH	-	-	Enquire
44	6580736	ASSY DOOR HINGE LOWER RH	6580736 ASSY DOOR HINGE LOWER RH	-	1	Enquire
45	6580738	ASSY DOOR HINGE UPPER-RH	6580738 ASSY DOOR HINGE UPPER-RH	-	1	Enquire
50	1984393	ASSY-BUMPER FRONT MTG BRKT RH WITH TOWING HOOK DB7 I6	1984393 ASSY-BUMPER FRONT MTG BRKT RH WITH TOWING HOOK DB7 I6	-	1	Enquire
54	2084980	BRACKET-UNDERTRAY EXTENSION	2084980 BRACKET-UNDERTRAY EXTENSION From EC80076	-	1	Enquire
