Facia and Trim of Aston Martin Aston Martin DB7 (1997)

View All

Aston Martin DB7 (1997) - Facia and Trim

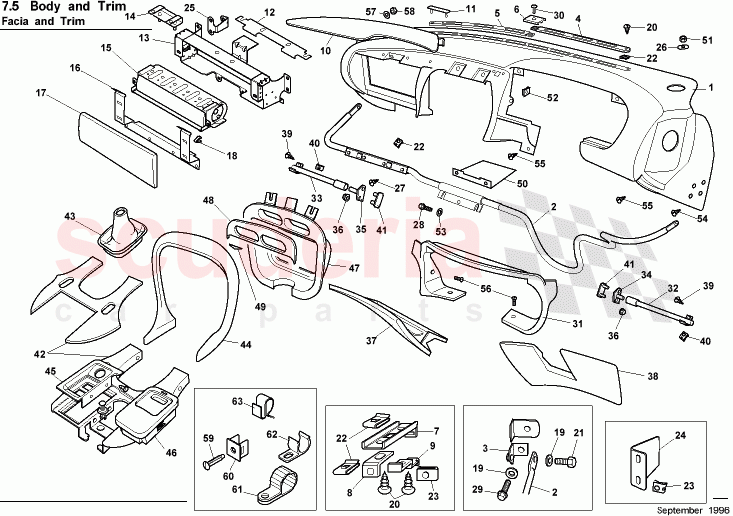

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8383868/XXX	Facia assembly, complete	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6982872	TUBE COMP ASSY FACIA SUPRT RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6982876	BRACKET ASSY FACIA SUPPORT LH	Enquire	To Order
	6982875	BRACKET ASSY FACIA SUPPORT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383875	FACIA VENEER PANEL ASY RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983915	SUPPORT FACIA VENEER PANEL RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983909	CARRIER ASY PASSENGR AIRBAG RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983907	MOUNTING FRAME DEPLOYMENT DOOR RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383913/XXX	Deployment door, passenger airbag	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6982898	BRACKET-FACIA END LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6984810	INST FINISHER RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6984574	ASSY-LWR TUBE BOLSTER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382906/XXX	Underscuttle assembly complete, passenger	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382910/XXX	Underscuttle assembly complete, driver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383375	FINISHER TOP PNL ASY -RHD - AUTO	Enquire	To Order
	8383376	FINISHER TOP PNL ASY -LHD-AUTO	Enquire	To Order
	80110522AA	CONSOLE TOP FINISHER PANEL RHD AUTO	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8085292	ASHTRAY CLIP	Enquire	To Order
	6983367	FOAM STRIP-1445 mm	Enquire	To Order
	6983173	ASHTRAY ASSY COMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8090046	FRONT PANEL- CONSOLE SURROUND	Enquire	To Order
	80110861AA	PANEL-FRONT CONSOLE SURROUND (SEAT HEATER SWITCH)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83111659AA	A/C AIRVENT SURROUND PANEL (DUNHILL)	Enquire	To Order
	8390031	VENEER-AIRVENT SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8090018	CONSOLE BADGE- ASTON MARTIN	Enquire	To Order
	697290	PUSH ON FIXER-M3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3783291	Clip, knee bolster pivot	Enquire	To Order
	3783291	Clip, knee bolster pivot	Enquire	To Order
	83111417AA	CLIP PIPE RETENTION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9784614	Label, scan tool connectors	9784614 Label, scan tool connectors USA/CDN only, fitted to knee bolster	-	1	Enquire
-	8383672/XXX	Underscuttle assembly complete, passenger	8383672/XXX Underscuttle assembly complete, passenger LHD Volante, not USA/CDN	-	1	Enquire
-	8383674/XXX	Underscuttle assembly complete, driver	8383674/XXX Underscuttle assembly complete, driver LHD Volante, not USA/CDN	-	1	Enquire
-	8382907/XXX	Underscuttle assembly complete, passenger	8382907/XXX Underscuttle assembly complete, passenger LHD Coupe, not USA/CDN	-	1	Enquire
-	8382911/XXX	Underscuttle assembly complete, driver	8382911/XXX Underscuttle assembly complete, driver LHD Coupe, not USA/CDN	-	1	Enquire
-	8383914/XXX	Deployment door, passenger airbag	8383914/XXX Deployment door, passenger airbag LHD, not USA/CDN	-	1	Enquire
-	8383869/XXX	Facia assembly, complete	8383869/XXX Facia assembly, complete LHD not USA/CDN	-	1	Enquire
-	8383809	ASSY LOWER STRUT	8383809 ASSY LOWER STRUT USA/CDN only	-	1	Enquire
-	8383870/XXX	Facia assembly, complete	8383870/XXX Facia assembly, complete USA/CDN only	-	1	Enquire
-	8383812/XXX	Knee bolster, passenger	8383812/XXX Knee bolster, passenger USA/CDN only	-	1	Enquire
-	8383810/XXX	Knee bolster, driver	8383810/XXX Knee bolster, driver USA/CDN only	-	1	Enquire
-	8383671/XXX	Underscuttle assembly complete, passenger	8383671/XXX Underscuttle assembly complete, passenger RHD Volante	-	1	Enquire
-	8383673/XXX	Underscuttle assembly complete, driver	8383673/XXX Underscuttle assembly complete, driver RHD Volante	-	1	Enquire
-	83111661AA	FACIA RAIL LHD (DUNHILL)	83111661AA FACIA RAIL LHD (DUNHILL) RHD Dunhill	-	1	Enquire
-	83111660AA	FACIA RAIL RHD (DUNHILL)	83111660AA FACIA RAIL RHD (DUNHILL) LHD Dunhill	-	1	Enquire
-	6983872	TUBE ASSY FACIA SUPPORT LHD	6983872 TUBE ASSY FACIA SUPPORT LHD LHD	-	1	Enquire
-	6983910	CARRIER ASY PASSENGR AIRBAG LHD	6983910 CARRIER ASY PASSENGR AIRBAG LHD LHD	-	1	Enquire
-	6983908	MOUNTING FRAME DEPLOYMENT DOOR LHD	6983908 MOUNTING FRAME DEPLOYMENT DOOR LHD LHD	-	1	Enquire
-	8383876	FACIA VENEER PANEL ASY LHD	8383876 FACIA VENEER PANEL ASY LHD LHD	-	1	Enquire
-	6983916	SUPPORT FACIA VENEER PANEL LHD	6983916 SUPPORT FACIA VENEER PANEL LHD LHD	-	1	Enquire
-	6983874	ASSY FINISHER INST. PACK LHD TRY 69-84811	6983874 ASSY FINISHER INST. PACK LHD TRY 69-84811 LHD	-	1	Enquire
-	6982899	BRACKET-FACIA END RH	6982899 BRACKET-FACIA END RH LHD	-	1	Enquire
-	8972290	IN CAR SENSOR	8972290 IN CAR SENSOR	-	1	Enquire
1	8383868/XXX	Facia assembly, complete	8383868/XXX Facia assembly, complete RHD	-	1	Enquire
2	6982872	TUBE COMP ASSY FACIA SUPRT RHD	6982872 TUBE COMP ASSY FACIA SUPRT RHD RHD	-	1	Enquire
3	6982876	BRACKET ASSY FACIA SUPPORT LH	6982876 BRACKET ASSY FACIA SUPPORT LH	-	1	Enquire
3	6982875	BRACKET ASSY FACIA SUPPORT RH	6982875 BRACKET ASSY FACIA SUPPORT RH	-	1	Enquire
10	8383875	FACIA VENEER PANEL ASY RHD	8383875 FACIA VENEER PANEL ASY RHD RHD	-	1	Enquire
12	6983915	SUPPORT FACIA VENEER PANEL RHD	6983915 SUPPORT FACIA VENEER PANEL RHD RHD	-	1	Enquire
13	6983909	CARRIER ASY PASSENGR AIRBAG RHD	6983909 CARRIER ASY PASSENGR AIRBAG RHD RHD	-	1	Enquire
16	6983907	MOUNTING FRAME DEPLOYMENT DOOR RHD	6983907 MOUNTING FRAME DEPLOYMENT DOOR RHD RHD	-	1	Enquire
17	8383913/XXX	Deployment door, passenger airbag	8383913/XXX Deployment door, passenger airbag RHD	-	1	Enquire
24	6982898	BRACKET-FACIA END LH	6982898 BRACKET-FACIA END LH RHD	-	1	Enquire
31	6984810	INST FINISHER RHD	6984810 INST FINISHER RHD RHD	-	1	Enquire
33	6984574	ASSY-LWR TUBE BOLSTER LH	6984574 ASSY-LWR TUBE BOLSTER LH	-	1	Enquire
37	8382906/XXX	Underscuttle assembly complete, passenger	8382906/XXX Underscuttle assembly complete, passenger RHD Coupe	-	1	Enquire
38	8382910/XXX	Underscuttle assembly complete, driver	8382910/XXX Underscuttle assembly complete, driver RHD Coupe	-	1	Enquire
42	8383375	FINISHER TOP PNL ASY -RHD - AUTO	8383375 FINISHER TOP PNL ASY -RHD - AUTO RHD Veneered Up to (V) 101620	-	1	Enquire
42	8383376	FINISHER TOP PNL ASY -LHD-AUTO	8383376 FINISHER TOP PNL ASY -LHD-AUTO LHD Veneered Up to (V) 101620	-	1	Enquire
42	80110522AA	CONSOLE TOP FINISHER PANEL RHD AUTO	80110522AA CONSOLE TOP FINISHER PANEL RHD AUTO RHD Veneered From (V) 101621	-	1	Enquire
42	80110523AA	CONSOLE TOP FINISHER PANEL LHD AUTO	80110523AA CONSOLE TOP FINISHER PANEL LHD AUTO LHD Veneered From (V) 101621	-	1	Enquire
42	8383374	Console top finisher - manual	8383374 Console top finisher - manual Veneered Up to (V) 101620	-	1	Enquire
42	80110521AA	CONSOLE TOP FINISHER PANEL MANUAL	80110521AA CONSOLE TOP FINISHER PANEL MANUAL Veneered From (V) 101621	-	1	Enquire
42	83111709AA	GEARSHIFT SURROUND PANEL - RHD AUTO (DUNHILL)	83111709AA GEARSHIFT SURROUND PANEL - RHD AUTO (DUNHILL) RHD Dunhill	-	1	Enquire
42	83111710AA	Gearshift surround panel, auto	83111710AA Gearshift surround panel, auto LHD Dunhill	-	1	Enquire
42	83111708AA	GEARSHIFT SURROUND PANEL - MANUAL (DUNHILL)	83111708AA GEARSHIFT SURROUND PANEL - MANUAL (DUNHILL) Dunhill	-	1	Enquire
46	8085292	ASHTRAY CLIP	8085292 ASHTRAY CLIP Cut to length	-	1	Enquire
46	6983367	FOAM STRIP-1445 mm	6983367 FOAM STRIP-1445 mm Cut to length	-	1	Enquire

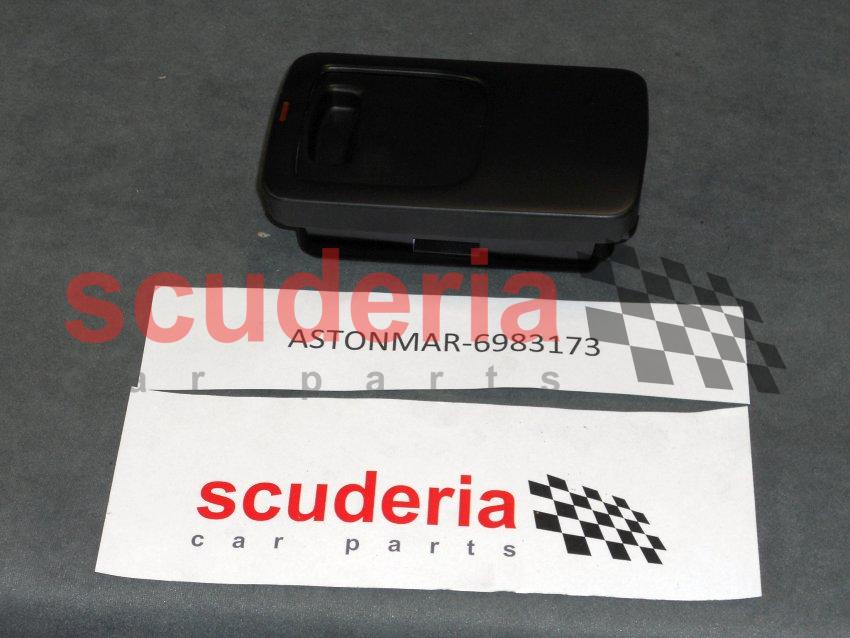

46	6983173	ASHTRAY ASSY COMP	6983173 ASHTRAY ASSY COMP	-	1	Enquire
47	8090046	FRONT PANEL- CONSOLE SURROUND	8090046 FRONT PANEL- CONSOLE SURROUND Without seat heater switches	-	1	Enquire
47	80110861AA	PANEL-FRONT CONSOLE SURROUND (SEAT HEATER SWITCH)	80110861AA PANEL-FRONT CONSOLE SURROUND (SEAT HEATER SWITCH) With seat heater switches	-	1	Enquire
48	83111659AA	A/C AIRVENT SURROUND PANEL (DUNHILL)	83111659AA A/C AIRVENT SURROUND PANEL (DUNHILL) Dunhill	-	1	Enquire
48	8390031	VENEER-AIRVENT SURROUND	8390031 VENEER-AIRVENT SURROUND	-	1	Enquire
49	8090018	CONSOLE BADGE- ASTON MARTIN	8090018 CONSOLE BADGE- ASTON MARTIN	-	1	Enquire
49	697290	PUSH ON FIXER-M3	697290 PUSH ON FIXER-M3	-	2	Enquire
62	3783291	Clip, knee bolster pivot	3783291 Clip, knee bolster pivot Up to EC 80323	-	4	Enquire
62	3783291	Clip, knee bolster pivot	3783291 Clip, knee bolster pivot From EC 80323	-	2	Enquire
62	83111417AA	CLIP PIPE RETENTION	83111417AA CLIP PIPE RETENTION From EC 80323	-	2	Enquire
