Aston Martin DB7 (1997) - Volante Rear End Panels

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6283691 ASSY TONNEAU PANEL RH-DB7 I6 VOLANTE $2,146.04 To Order
6283692 ASSY TONNEAU PANEL LH-DB7 I6 VOLANTE $2,146.04 To Order
Photo Part No Description Price (each) Stock
6183716 S/ASSY `B'POST INNER RH $164.45 To Order
6183717 S/ASSY `B'POST INNER LH $164.45 To Order
Photo Part No Description Price (each) Stock
6183718 ASSY RR QTR INNER COMPLETE RH $301.75 To Order
6183719 ASSY REAR QTR INNER COMPLETE LH $301.75 To Order
Photo Part No Description Price (each) Stock
6280695 PNL TONNEAU-EXTN- BOOT FLOOR-RH $35.89 To Order
6280696 PANEL TONNEAU EXTN- BOOT FLOOR-LH $42.34 To Order
Photo Part No Description Price (each) Stock
6185650 ASY-PNL TONN/SILL-RH $138.37 To Order
Photo Part No Description Price (each) Stock
6183713 EXTN SEAL FLANGE LWR RH $19.97 To Order
6183714 EXTN SEAL FLANGE LWR LH $19.97 To Order
Photo Part No Description Price (each) Stock
2283636 ASSY LONGITUDINAL MEMBER REAR RH (DB7CONV) $1,058.20 To Order
Photo Part No Description Price (each) Stock
2282949 ASSY REAR LONGIT EXTN RH $235.48 To Order
Photo Part No Description Price (each) Stock
2283638 BOOT FLOOR ASSY (DB7CONV) $3,177.84 To Order
Photo Part No Description Price (each) Stock
2283616 ASSY STRUT REAR $226.82 To Order
Photo Part No Description Price (each) Stock
2284790 BOLT M12 x 90 $1.50 To Order
Photo Part No Description Price (each) Stock
2283711 PNL W/ARCH OTR RH $455.62 To Order
Photo Part No Description Price (each) Stock
6183709 PNL EXTN SIDE CLOSING RH $160.28 To Order
6183710 PNL EXTN SIDE CLOSING LH $160.28 To Order
Photo Part No Description Price (each) Stock
6180702 PANEL CLSG LIGHT BOX UPPER RH $23.73 To Order
Photo Part No Description Price (each) Stock
6180704 PNL CLSG LIGHT BOX UPPR OUTER-RH $35.89 To Order
Photo Part No Description Price (each) Stock
6180706 PANEL CLOSING LIGHT BOX RH $47.78 To Order
Photo Part No Description Price (each) Stock
6183693 S/A PNL DRAIN CHNL RH $169.55 To Order
6183694 S/A PNL DRAIN CHNL LH $169.55 To Order
Photo Part No Description Price (each) Stock
2280755 REINF BRKT BUMPER MTG REAR RH $21.63 To Order
2280756 REINF BRKT BUMPER MTG REAR LH $21.63 To Order
Photo Part No Description Price (each) Stock
2280757 EXTN BOOT FLOOR RH $97.35 To Order
2280758 EXTN BOOT FLOOR LH $84.63 To Order
Photo Part No Description Price (each) Stock
2280592 PANEL CLSG-LUGGAGE FLOOR SIDE-RH $375.08 To Order
2280593 PANEL CLSG-LUGGAGE FLOOR SIDE-LH $375.08 To Order
Photo Part No Description Price (each) Stock
6182948 ASSY TAIL LAMP X-MEMBER $669.85 To Order
Photo Part No Description Price (each) Stock
6182948 ASSY TAIL LAMP X-MEMBER $669.85 To Order
Photo Part No Description Price (each) Stock
6183727 ASSY BRACE TONNU TO W/ARCH RH $156.23 To Order
6183728 ASSY BRACE TONNU TO W/ARCH LH $156.23 To Order
View All

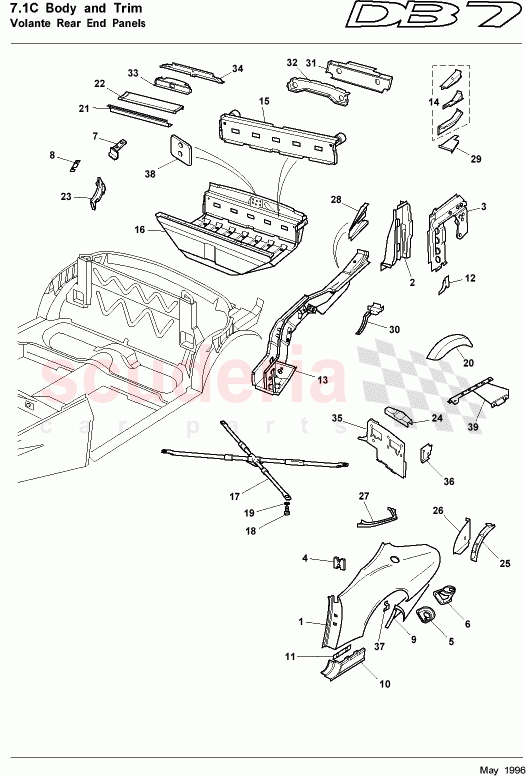

Volante Rear End Panels of Aston Martin Aston Martin DB7 (1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 2283637
ASSY LONGITUDINAL MEMBER REAR LH (DB7CONV)
Up to (V) 101620 		$1,058.20 1
- 21110856BA
ASSY - REAR LONGIT RH
From (V) 101621 		$1,095.23 1
- 21110857BA
ASSY - REAR LONGIT LH
From (V) 101621 		$1,132.28 1
- 21110848BA
ASSY-BOOT FLOOR (CONV)
From (V) 101621 		$3,390.34 1
- 21110844BA
ASSY-REAR CROSSBRACE (CONV)
From (V) 101621 		$266.97 1
- 2284791
BOLT M12 x 40
From (V) 101621 		$1.52 2
- 6180705
PNL CLSG LIGHT BOX UPPR OUTER-LH 		$57.32 1
- 6180703
PANEL CLSG LIGHT BOX UPPER LH 		$25.50 1
- 6180707
PANEL CLOSING LIGHT BOX LH 		$19.50 1
- 2282950
ASSY REAR LONGIT EXTN LH 		$273.39 1
- 2283712
PNL W/ARCH OTR LH 		$455.62 1
- 6185651
ASY-PNL TONN/SILL-LH 		$138.37 1
- 697331
SCREW M5 x 12 SOCKET CAP
From (V) 101621 		$0.89 2
- 697332
SCREW M6 x 12 SOCKET CAP HEAD
From (V) 101621 		$9.81 2
- 8884471
Plate, trunk wall sealing 		$6.04 4
1 6283691
ASSY TONNEAU PANEL RH-DB7 I6 VOLANTE 		$2,146.04 1
1 6283692
ASSY TONNEAU PANEL LH-DB7 I6 VOLANTE 		$2,146.04 1
2 6183716
S/ASSY `B'POST INNER RH 		$164.45 1
2 6183717
S/ASSY `B'POST INNER LH 		$164.45 1
3 6183718
ASSY RR QTR INNER COMPLETE RH 		$301.75 1
3 6183719
ASSY REAR QTR INNER COMPLETE LH 		$301.75 1
9 6280695
PNL TONNEAU-EXTN- BOOT FLOOR-RH 		$35.89 1
9 6280696
PANEL TONNEAU EXTN- BOOT FLOOR-LH 		$42.34 1
10 6185650
ASY-PNL TONN/SILL-RH 		$138.37 1
12 6183713
EXTN SEAL FLANGE LWR RH 		$19.97 1
12 6183714
EXTN SEAL FLANGE LWR LH 		$19.97 1
13 2283636
ASSY LONGITUDINAL MEMBER REAR RH (DB7CONV)
Up to (V) 101620 		$1,058.20 1
14 2282949
ASSY REAR LONGIT EXTN RH 		$235.48 1
16 2283638
BOOT FLOOR ASSY (DB7CONV)
Up to (V) 101620 		$3,177.84 1
17 2283616
ASSY STRUT REAR
Up to (V) 101620 		$226.82 1
19 2284790
BOLT M12 x 90
From (V) 101621 		$1.50 2
20 2283711
PNL W/ARCH OTR RH 		$455.62 1
23 6183709
PNL EXTN SIDE CLOSING RH 		$160.28 1
23 6183710
PNL EXTN SIDE CLOSING LH 		$160.28 1
24 6180702
PANEL CLSG LIGHT BOX UPPER RH 		$23.73 1
25 6180704
PNL CLSG LIGHT BOX UPPR OUTER-RH 		$35.89 1
26 6180706
PANEL CLOSING LIGHT BOX RH 		$47.78 1
27 6183693
S/A PNL DRAIN CHNL RH 		$169.55 1
27 6183694
S/A PNL DRAIN CHNL LH 		$169.55 1
28 2280755
REINF BRKT BUMPER MTG REAR RH 		$21.63 1
28 2280756
REINF BRKT BUMPER MTG REAR LH 		$21.63 1
29 2280757
EXTN BOOT FLOOR RH 		$97.35 1
29 2280758
EXTN BOOT FLOOR LH 		$84.63 1
30 2280592
PANEL CLSG-LUGGAGE FLOOR SIDE-RH 		$375.08 1
30 2280593
PANEL CLSG-LUGGAGE FLOOR SIDE-LH 		$375.08 1
35 6182948
ASSY TAIL LAMP X-MEMBER 		$669.85 1
36 6182948
ASSY TAIL LAMP X-MEMBER 		$669.85 1
39 6183727
ASSY BRACE TONNU TO W/ARCH RH 		$156.23 1
39 6183728
ASSY BRACE TONNU TO W/ARCH LH 		$156.23 1
