Doors of Aston Martin Aston Martin DB7 (1997)

View All

Aston Martin DB7 (1997) - Doors

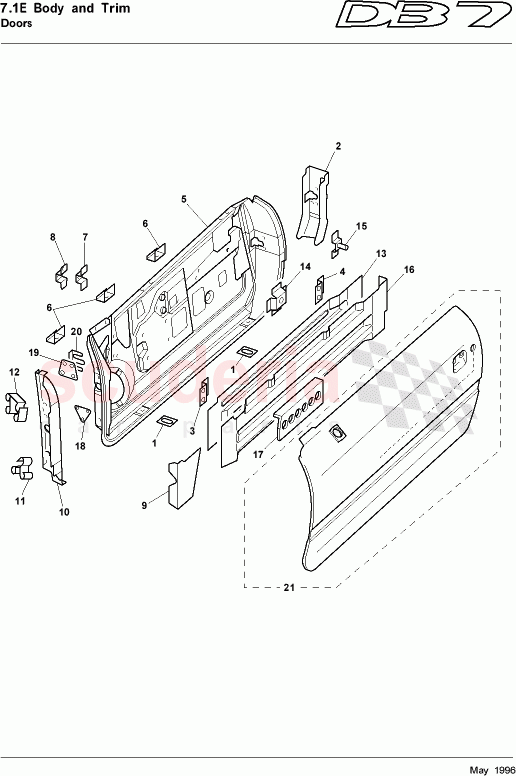

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6580771	PANEL-LATCH REINF DOOR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6580773	BRKT-GLASS CHANNEL FRONT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6580775	BRKT-GLASS CHANNEL REAR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6580777	ASSY-PANEL DOOR INNER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6580782	PANEL SUPPORT-SIDE INTRUSION BEAM RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6580784	PANEL-DOOR HINGE REINF RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6580787	Spacer, upper door hinge - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6580789	STUD ASSY-CLOSURE SIDE INTRUSION BEAM RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6580793	PANEL-DOOR BEAM INNER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6580799	SHIM-HINGE UPPER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582960	Assembly, door outer - RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6580783	PANEL SUPPORT-SIDE INTRUSION BEAM LH	6580783 PANEL SUPPORT-SIDE INTRUSION BEAM LH	-	1	Enquire
-	6580790	STUD ASSY-CLOSURE SIDE INTRUSION BEAM LH	6580790 STUD ASSY-CLOSURE SIDE INTRUSION BEAM LH	-	1	Enquire
-	6580772	PANEL-LATCH REINF DOOR LH	6580772 PANEL-LATCH REINF DOOR LH	-	1	Enquire
-	6580785	PANEL-DOOR HINGE REINF LH	6580785 PANEL-DOOR HINGE REINF LH	-	1	Enquire
-	6580774	BRKT-GLASS CHANNEL FRONT LH	6580774 BRKT-GLASS CHANNEL FRONT LH	-	1	Enquire
-	6580776	BRKT-GLASS CHANNEL REAR LH	6580776 BRKT-GLASS CHANNEL REAR LH	-	1	Enquire
-	6580788	Spacer, upper door hinge - LH	6580788 Spacer, upper door hinge - LH	-	1	Enquire
-	6580794	PANEL-DOOR BEAM INNER LH	6580794 PANEL-DOOR BEAM INNER LH	-	1	Enquire
-	6582961	Assembly, door outer - LH	6582961 Assembly, door outer - LH	-	1	Enquire
-	6580778	ASSY-PANEL DOOR INNER LH	6580778 ASSY-PANEL DOOR INNER LH	-	1	Enquire
-	6580800	SHIM-HINGE UPPER LH	6580800 SHIM-HINGE UPPER LH	-	1	Enquire
-	6580768	ASSEMBLY DOOR SHELL RH DB7 I6	6580768 ASSEMBLY DOOR SHELL RH DB7 I6	-	1	Enquire
-	6580769	ASSEMBLY DOOR SHELL LH DB7 I6	6580769 ASSEMBLY DOOR SHELL LH DB7 I6	-	1	Enquire
2	6580771	PANEL-LATCH REINF DOOR RH	6580771 PANEL-LATCH REINF DOOR RH	-	1	Enquire
3	6580773	BRKT-GLASS CHANNEL FRONT RH	6580773 BRKT-GLASS CHANNEL FRONT RH	-	1	Enquire
4	6580775	BRKT-GLASS CHANNEL REAR RH	6580775 BRKT-GLASS CHANNEL REAR RH	-	1	Enquire
5	6580777	ASSY-PANEL DOOR INNER RH	6580777 ASSY-PANEL DOOR INNER RH	-	1	Enquire
9	6580782	PANEL SUPPORT-SIDE INTRUSION BEAM RH	6580782 PANEL SUPPORT-SIDE INTRUSION BEAM RH	-	1	Enquire
10	6580784	PANEL-DOOR HINGE REINF RH	6580784 PANEL-DOOR HINGE REINF RH	-	1	Enquire
12	6580787	Spacer, upper door hinge - RH	6580787 Spacer, upper door hinge - RH	-	1	Enquire
13	6580789	STUD ASSY-CLOSURE SIDE INTRUSION BEAM RH	6580789 STUD ASSY-CLOSURE SIDE INTRUSION BEAM RH	-	1	Enquire
16	6580793	PANEL-DOOR BEAM INNER RH	6580793 PANEL-DOOR BEAM INNER RH	-	1	Enquire
20	6580799	SHIM-HINGE UPPER RH	6580799 SHIM-HINGE UPPER RH	-	1	Enquire
21	6582960	Assembly, door outer - RH	6582960 Assembly, door outer - RH	-	1	Enquire
