Volante Centre Console and Trim of Aston Martin Aston Martin DB7 (1997)

View All

Aston Martin DB7 (1997) - Volante Centre Console and Trim

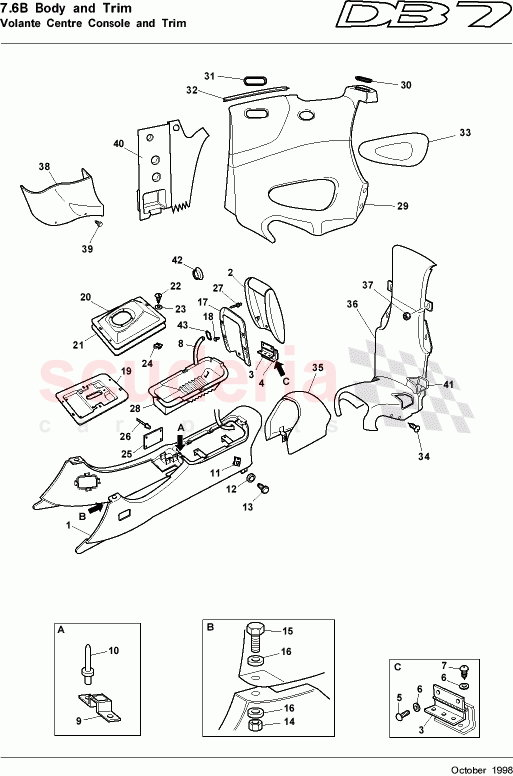

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8382788/xxx	Console assembly, trimmed front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383793/XXX	Armrest lid assembly, front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382795	LINK CHECK LID FT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88123445AA	NUT SPRINT 3/4 INCH SUPPLIERS NO 12004- 100-300	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383737/XXX	Casing, rear quarter - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383736	ESCUTCHEON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7783739	SEAL INNER REAR QTR WINDOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383742/XXX	Bolster assembly - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383797/XXX	Console assembly rear, complete	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383677/XXX	Trim assembly, lower A post - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7784417	Water curtain, rear quarter - RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8383679/XXX	Trim assembly, lower A post - RH	8383679/XXX Trim assembly, lower A post - RH LHD Not USA/CDN Up to (V) 101620	-	1	Enquire
-	8383680/XXX	Trim assembly, lower A post - LH	8383680/XXX Trim assembly, lower A post - LH LHD Not USA/CDN Up to (V) 101620	-	1	Enquire
-	83110614AAW	Trim assembly, lower A post - RH	83110614AAW Trim assembly, lower A post - RH LHD Not USA/CDN From (V) 101621	-	1	Enquire
-	83110615AAW	Trim assembly, lower A post - RH	83110615AAW Trim assembly, lower A post - RH LHD Not USA/CDN From (V) 101621	-	1	Enquire
-	83111019BAW	Console assembly rear, complete	83111019BAW Console assembly rear, complete With glass break sensor grille	-	1	Enquire
-	80111108BAW	PNL RR QTR ASSY RH TRIMMED	80111108BAW PNL RR QTR ASSY RH TRIMMED From (V) 201773 Up to EC80114	-	1	Enquire
-	80111109BAW	PNL RR QTR ASSY LH TRIMMED	80111109BAW PNL RR QTR ASSY LH TRIMMED From (V) 201773 Up to EC80114	-	1	Enquire
-	8383681/XXX	Trim assembly, lower A post - RH	8383681/XXX Trim assembly, lower A post - RH LHD USA/CDN Up to (V) 101620	-	1	Enquire
-	8383682/XXX	Trim assembly, lower A post - LH	8383682/XXX Trim assembly, lower A post - LH LHD USA/CDN Up to (V) 101620	-	1	Enquire
-	83110616AAW	Trim assembly, lower A post - RH	83110616AAW Trim assembly, lower A post - RH LHD USA/CDN From (V) 101621	-	1	Enquire
-	83110617AAW	Trim assembly, lower A post - RH	83110617AAW Trim assembly, lower A post - RH LHD USA/CDN From (V) 101621	-	1	Enquire
-	697672	SCREW-SELF DRILLING	697672 SCREW-SELF DRILLING Fixing rear quarter casing	-	2	Enquire
-	697495	SCREW No8 x 13 FLANGED AB S.T	697495 SCREW No8 x 13 FLANGED AB S.T Fixing rear quarter casing	-	4	Enquire
-	697496	NUT	697496 NUT Fixing rear quarter casing	-	4	Enquire
-	8383678/XXX	Trim assembly, lower A post - LH	8383678/XXX Trim assembly, lower A post - LH RHD Up to (V) 101620	-	1	Enquire
-	83110612AAW	Trim assembly, lower A post - RH	83110612AAW Trim assembly, lower A post - RH RHD From (V) 101621	-	1	Enquire
-	83110613AAW	Trim assembly, lower A post - RH	83110613AAW Trim assembly, lower A post - RH RHD From (V) 101621	-	1	Enquire
-	8383738/XXX	Casing, rear quarter - LH	8383738/XXX Casing, rear quarter - LH Up to (V) 201772	-	1	Enquire
-	80110536AAW	FRONT CONSOLE ASSY- TRIMMED	80110536AAW FRONT CONSOLE ASSY- TRIMMED From (V) 101621	-	1	Enquire
-	8090364	ESCUTCHEON-SEAT BELT	8090364 ESCUTCHEON-SEAT BELT From (V) 201773	-	2	Enquire
-	83110570AAW	CARPET-FRT FOOTWELL RH LHD	83110570AAW CARPET-FRT FOOTWELL RH LHD From EC70712	-	1	Enquire
-	80111346BAW	Casing, rear quarter - RH	80111346BAW Casing, rear quarter - RH From EC80114	-	1	Enquire
-	80111347BAW	Casing, rear quarter - LH	80111347BAW Casing, rear quarter - LH From EC80114	-	1	Enquire
-	8382796	LINK CHECK LID FT LH	8382796 LINK CHECK LID FT LH From EC70712	-	1	Enquire
-	697574	RETAINING RING- G/LEVER GAITER	697574 RETAINING RING- G/LEVER GAITER Manual	-	1	Enquire
-	7784418	Water curtain, rear quarter - LH	7784418 Water curtain, rear quarter - LH	-	1	Enquire
-	8383740	RETAINER SEAL RR QTR RH	8383740 RETAINER SEAL RR QTR RH	-	1	Enquire
-	8383741	RETAINER SEAL RR QTR LH	8383741 RETAINER SEAL RR QTR LH	-	1	Enquire
-	8383743/XXX	Bolster assembly - LH	8383743/XXX Bolster assembly - LH	-	1	Enquire
1	8382788/xxx	Console assembly, trimmed front	8382788/xxx Console assembly, trimmed front	-	1	Enquire
2	8383793/XXX	Armrest lid assembly, front	8383793/XXX Armrest lid assembly, front Up to EC70712	-	1	Enquire
8	8382795	LINK CHECK LID FT RH	8382795 LINK CHECK LID FT RH	-	1	Enquire
24	88123445AA	NUT SPRINT 3/4 INCH SUPPLIERS NO 12004- 100-300	88123445AA NUT SPRINT 3/4 INCH SUPPLIERS NO 12004- 100-300	-	6	Enquire
29	8383737/XXX	Casing, rear quarter - RH	8383737/XXX Casing, rear quarter - RH Up to (V) 201772	-	1	Enquire
31	8383736	ESCUTCHEON	8383736 ESCUTCHEON Up to (V) 201772	-	2	Enquire
32	7783739	SEAL INNER REAR QTR WINDOW	7783739 SEAL INNER REAR QTR WINDOW	-	1	Enquire
33	8383742/XXX	Bolster assembly - RH	8383742/XXX Bolster assembly - RH	-	1	Enquire
36	8383797/XXX	Console assembly rear, complete	8383797/XXX Console assembly rear, complete Without glass break sensor grille	-	1	Enquire
38	8383677/XXX	Trim assembly, lower A post - RH	8383677/XXX Trim assembly, lower A post - RH RHD Up to (V) 101620	-	1	Enquire
40	7784417	Water curtain, rear quarter - RH	7784417 Water curtain, rear quarter - RH	-	1	Enquire
