Door Glass and Frames of Aston Martin Aston Martin DB7 (1997)

View All

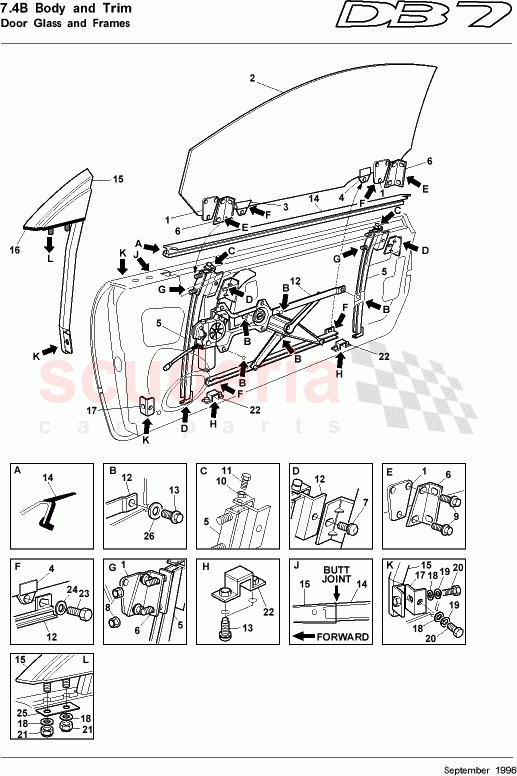

Aston Martin DB7 (1997) - Door Glass and Frames

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7682225	GLASS ASSY DOOR RH 500 x 980 x 3mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582230	Guide assy, door glass - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582232	BRACKET ATTACH DOOR GLASS RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	693432	SCREW M5 x 25 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91689	REGULATOR ASSY DR-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	77124148BA	WAIST SEAL RH CONV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6584059	CHEATER COMP ASSY RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65121786AA	SEAL CHEATER BASE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65124531AA	Bracket, glass stop	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	697464	ADHESIVE-SIKAFLEX260	697464 ADHESIVE-SIKAFLEX260 Cheater inner to outer, & seals to retainer	-	-	Enquire
-	693155	Primer, Sikaflex 205	693155 Primer, Sikaflex 205 Cheater inner to outer, & seals to retainer	-	-	Enquire
-	697028	ALPHA SEAL 132	697028 ALPHA SEAL 132 Cheater inner to door inner	-	-	Enquire
-	6582250	BUSH FRICTION	6582250 BUSH FRICTION Inner finisher to cheater	-	4	Enquire
-	697957	Screw, pan hd thread forming M3.5 x 8	697957 Screw, pan hd thread forming M3.5 x 8 Outer finisher to cheater	-	6	Enquire
-	698689	ALPHABOND 1004	698689 ALPHABOND 1004 Waist seal to outer door	-	-	Enquire
-	695326	LOCTITE 406 ADHESIVE	695326 LOCTITE 406 ADHESIVE Seal to cheater channel	-	-	Enquire
-	697462	JOINT SEALER (127)	697462 JOINT SEALER (127) Cheater base to door	-	-	Enquire
-	698992	Sem strip, 3 x 12	698992 Sem strip, 3 x 12 regulator sealing	-	-	Enquire
-	77124148BA	WAIST SEAL RH CONV	77124148BA WAIST SEAL RH CONV Volante	-	1	Enquire
-	77124147BA	WAIST SEAL LH CONV	77124147BA WAIST SEAL LH CONV Volante	-	1	Enquire
-	77124147BA	WAIST SEAL LH CONV	77124147BA WAIST SEAL LH CONV Coupe	-	1	Enquire
-	7784061	SEAL ASSY CHEATER CHANNEL RH	7784061 SEAL ASSY CHEATER CHANNEL RH	-	1	Enquire
-	7784062	SEAL ASSY CHEATER CHANNEL LH	7784062 SEAL ASSY CHEATER CHANNEL LH	-	1	Enquire
-	8084065	FINISHER INNER CHEATER RH	8084065 FINISHER INNER CHEATER RH	-	1	Enquire
-	8084066	FINISHER INNER CHEATER LH	8084066 FINISHER INNER CHEATER LH	-	1	Enquire
-	7884063	FINISHER OUTER CHEATER RH	7884063 FINISHER OUTER CHEATER RH	-	1	Enquire
-	7884064	FINISHER OUTER CHEATER LH	7884064 FINISHER OUTER CHEATER LH	-	1	Enquire
-	7682225	GLASS ASSY DOOR RH 500 x 980 x 3mm	7682225 GLASS ASSY DOOR RH 500 x 980 x 3mm	-	1	Enquire
-	7682226	GLASS ASSY DOOR LH 500 x 980 x 3mm	7682226 GLASS ASSY DOOR LH 500 x 980 x 3mm	-	1	Enquire
-	65121787AA	SEAL CHEATER BASE LH	65121787AA SEAL CHEATER BASE LH	-	1	Enquire
-	6584060	CHEATER COMP ASSY LH	6584060 CHEATER COMP ASSY LH	-	1	Enquire
-	6582231	Guide assy, door glass - LH	6582231 Guide assy, door glass - LH	-	2	Enquire
-	6582233	BRACKET ATTACH DOOR GLASS LH	6582233 BRACKET ATTACH DOOR GLASS LH	-	2	Enquire
-	6582234	SHIM-DOOR GLASS ATTACH REAR	6582234 SHIM-DOOR GLASS ATTACH REAR	-	2	Enquire
-	91689	REGULATOR ASSY DR-RH	91689 REGULATOR ASSY DR-RH	-	2	Enquire
-	7790215PK	RIVET-W/RAIL OTR(20)	7790215PK RIVET-W/RAIL OTR(20)	-	6	Enquire
-	697459	Greasil 4000	697459 Greasil 4000	-	-	Enquire
2	7682225	GLASS ASSY DOOR RH 500 x 980 x 3mm	7682225 GLASS ASSY DOOR RH 500 x 980 x 3mm	-	1	Enquire
5	6582230	Guide assy, door glass - RH	6582230 Guide assy, door glass - RH	-	2	Enquire
6	6582232	BRACKET ATTACH DOOR GLASS RH	6582232 BRACKET ATTACH DOOR GLASS RH	-	2	Enquire
11	693432	SCREW M5 x 25 HEX	693432 SCREW M5 x 25 HEX Assembled to top of guide rail	-	4	Enquire
12	91689	REGULATOR ASSY DR-RH	91689 REGULATOR ASSY DR-RH	-	2	Enquire
14	77124148BA	WAIST SEAL RH CONV	77124148BA WAIST SEAL RH CONV Coupe	-	1	Enquire
15	6584059	CHEATER COMP ASSY RH	6584059 CHEATER COMP ASSY RH	-	1	Enquire
16	65121786AA	SEAL CHEATER BASE RH	65121786AA SEAL CHEATER BASE RH	-	1	Enquire
22	65124531AA	Bracket, glass stop	65124531AA Bracket, glass stop	-	4	Enquire
