Glass of Aston Martin Aston Martin DB7 (1997)

View All

Aston Martin DB7 (1997) - Glass

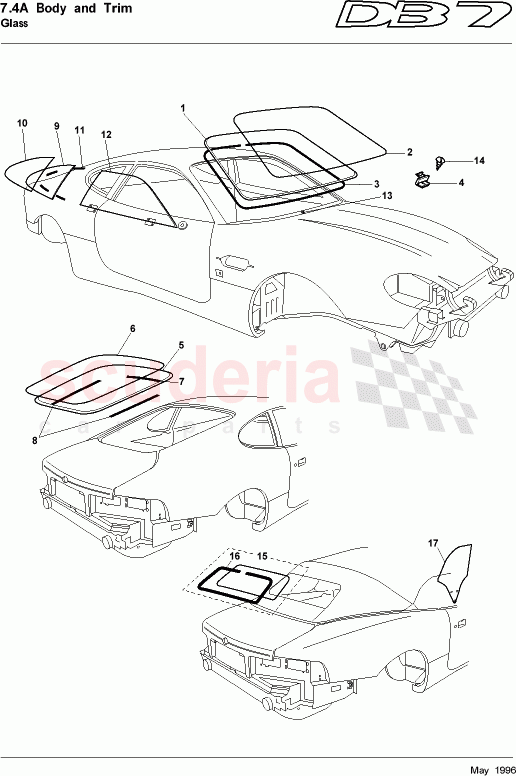

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7681323	WINDSCREEN-TINTED HEATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7882630	CLIP-WINDSCREEN SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7681894	GLASS BACKLIGHT W/OUT CHMSL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7681895	GLASS REAR QUARTER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7883213	FINISHER -GLASS REAR QTR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7682225	GLASS ASSY DOOR RH 500 x 980 x 3mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7761541	SEAL STRIP-RR SCREEN	Enquire	To Order
	699266	Screen adhesive/sealant M5212	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7690254	ASSY-COMP RR QTR GLASS RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	76111706AA	GLASS BACKLIGHT - CHMSL	76111706AA GLASS BACKLIGHT - CHMSL Coupe With CHMSL Up to (V) 202472	-	1	Enquire
-	76111706AA	GLASS BACKLIGHT - CHMSL	76111706AA GLASS BACKLIGHT - CHMSL Coupe With CHMSL From (V) 202473	-	1	Enquire
-	7690348	WINDSCREEN - NON HEATED 1470x740x3mm	7690348 WINDSCREEN - NON HEATED 1470x740x3mm From (V) 101621	-	1	Enquire
-	6983367	FOAM STRIP-1445 mm	6983367 FOAM STRIP-1445 mm From (V) 101621	-	1	Enquire
-	7682226	GLASS ASSY DOOR LH 500 x 980 x 3mm	7682226 GLASS ASSY DOOR LH 500 x 980 x 3mm See section 7.1	-	1	Enquire
-	7690253	ASSY-COMP RR QTR GLASS LH	7690253 ASSY-COMP RR QTR GLASS LH Volante	-	1	Enquire
-	7681896	GLASS REAR QUARTER LH	7681896 GLASS REAR QUARTER LH Coupe	-	1	Enquire
-	7883214	FINISHER -GLASS REAR QTR	7883214 FINISHER -GLASS REAR QTR	-	1	Enquire
-	7683380	Kit, Betaseal	7683380 Kit, Betaseal	-	-	Enquire
1	7681323	WINDSCREEN-TINTED HEATED	7681323 WINDSCREEN-TINTED HEATED Up to (V) 101620 (Optional after this (V))	-	1	Enquire
4	7882630	CLIP-WINDSCREEN SUPPORT	7882630 CLIP-WINDSCREEN SUPPORT	-	2	Enquire
5	7681894	GLASS BACKLIGHT W/OUT CHMSL	7681894 GLASS BACKLIGHT W/OUT CHMSL Coupe Not CHMSL	-	1	Enquire
9	7681895	GLASS REAR QUARTER RH	7681895 GLASS REAR QUARTER RH Coupe	-	1	Enquire
10	7883213	FINISHER -GLASS REAR QTR	7883213 FINISHER -GLASS REAR QTR	-	1	Enquire
12	7682225	GLASS ASSY DOOR RH 500 x 980 x 3mm	7682225 GLASS ASSY DOOR RH 500 x 980 x 3mm See section 7.1	-	1	Enquire
16	7761541	SEAL STRIP-RR SCREEN	7761541 SEAL STRIP-RR SCREEN	-	1	Enquire
16	699266	Screen adhesive/sealant M5212	699266 Screen adhesive/sealant M5212	-	-	Enquire
17	7690254	ASSY-COMP RR QTR GLASS RH	7690254 ASSY-COMP RR QTR GLASS RH Volante	-	1	Enquire
