Door Casings, Fittings and Seals of Aston Martin Aston Martin DB7 (1997)

View All

Aston Martin DB7 (1997) - Door Casings, Fittings and Seals

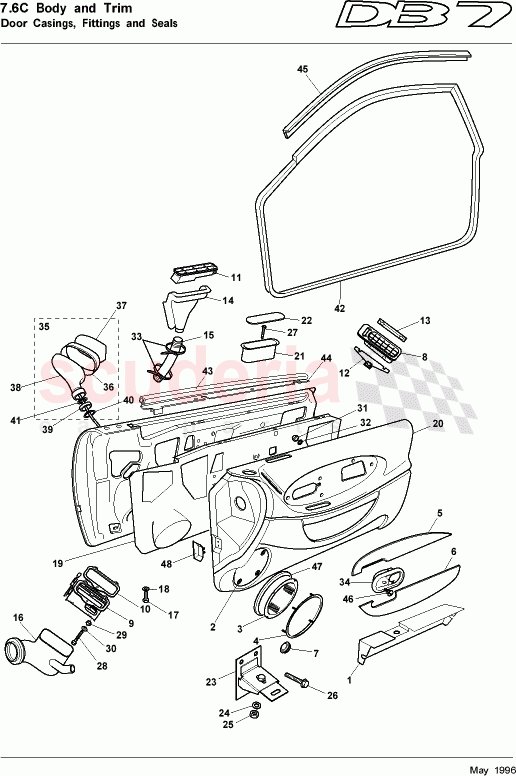

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8384935	DOOR POCKET-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383130	VENEER UPPR DOOR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382311/XXX	Lower insert assembly, door - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382316	Vent lower, door - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982318	BOX VENT LOWER DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982320	GASKET VENT LWR DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982322	VENT UPPER DOOR CASE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982326	VENT UPPER DUCT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982329	VENT LOWER DUCT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	77123532AA	DOOR WATER SHEDDER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382337/XXX	Door casing assembly - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3783381/XXX	Door mirror assembly - RH flat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3782354	BEZEL DOOR MIRROR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3782159	LENS DOOR MIRROR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3782356/XXX	Case, door mirror - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7784316	ASSY SEAL-DOOR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7790122	WAISTRAIL INNER-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6583141	RETAINER WAIST SEAL ASSY INR DR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383563	ASSY-RETAINER WEATHERSTRIP RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697613	SCREW M4 x 10 REC CSK HEAD-BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382348	FOAM SEAL SPEAKER DR TO TRIM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	83110672AAW	Door casing assembly - RH	83110672AAW Door casing assembly - RH LHD Not USA/CDN From (V) 101621 Up to (V) 202682	-	1	Enquire
-	83110673AAW	CASING ASSY DOOR LH LHD (NON FED)	83110673AAW CASING ASSY DOOR LH LHD (NON FED) LHD Not USA/CDN From (V) 101621 Up to (V) 202682	-	1	Enquire
-	83110596AAW	CASING ASSY DOOR RH LHD FED	83110596AAW CASING ASSY DOOR RH LHD FED LHD USA/CDN From (V) 101621 Up to (V) 202571	-	1	Enquire
-	83110597AAW	CASING ASSY DOOR LH LHD FED	83110597AAW CASING ASSY DOOR LH LHD FED LHD USA/CDN From (V) 101621 Up to (V) 202571	-	1	Enquire
-	83110668AAW	CASING ASSY DOOR RH RHD	83110668AAW CASING ASSY DOOR RH RHD RHD From (V) 101621 Up to (V) 202892	-	1	Enquire
-	83110669AAW	CASING ASSY DOOR LH RHD	83110669AAW CASING ASSY DOOR LH RHD RHD From (V) 101621 Up to (V) 202892	-	1	Enquire
-	8383136/XXX	Door casing assembly - RH	8383136/XXX Door casing assembly - RH LHD Not USA/CDN Up to (V) 101620	-	1	Enquire
-	8383137/XXX	Door casing assembly - LH	8383137/XXX Door casing assembly - LH LHD Not USA/CDN Up to (V) 101620	-	1	Enquire
-	83111338AAW	CASING ASSY DOOR RH LHD (NON FED)	83111338AAW CASING ASSY DOOR RH LHD (NON FED) LHD Not USA/CDN From (V) 202683	-	1	Enquire
-	83111339AAW	CASING ASSY DOOR LH LHD (NON FED)	83111339AAW CASING ASSY DOOR LH LHD (NON FED) LHD Not USA/CDN From (V) 202683	-	1	Enquire
-	8383666/XXX	Door casing assembly - RH	8383666/XXX Door casing assembly - RH LHD USA/CDN Up to (V) 101620	-	1	Enquire
-	8383667/XXX	Door casing assembly - LH	8383667/XXX Door casing assembly - LH LHD USA/CDN Up to (V) 101620	-	1	Enquire
-	83111856AAW	Door casing assembly - RH	83111856AAW Door casing assembly - RH LHD USA/CDN From (V) 202572	-	1	Enquire
-	83111857AAW	Door casing assembly - LH	83111857AAW Door casing assembly - LH LHD USA/CDN From (V) 202572	-	1	Enquire
-	7784317	ASSY SEAL-DOOR LH	7784317 ASSY SEAL-DOOR LH Coupe: for Volante see 7.6D	-	1	Enquire
-	83111788AAW	Door casing assembly, complete - RH	83111788AAW Door casing assembly, complete - RH LHD Dunhill Non-federal	-	1	Enquire
-	83111789AAW	Door casing assembly, complete - LH	83111789AAW Door casing assembly, complete - LH LHD Dunhill Non-federal	-	1	Enquire
-	8382338/XXX	Door casing assembly - LH	8382338/XXX Door casing assembly - LH RHD Up to (V) 101620	-	1	Enquire
-	83111790AAW	Door casing assembly, complete - RH	83111790AAW Door casing assembly, complete - RH LHD Dunhill Federal	-	1	Enquire
-	83111791AAW	Door casing assembly, complete - LH	83111791AAW Door casing assembly, complete - LH LHD Dunhill Federal	-	1	Enquire
-	83111342AAW	CASING ASSY DOOR RH RHD	83111342AAW CASING ASSY DOOR RH RHD RHD From (V) 202893	-	1	Enquire
-	83111343AAW	CASING ASSY DOOR LH RHD	83111343AAW CASING ASSY DOOR LH RHD RHD From (V) 202893	-	1	Enquire
-	3783382/XXX	Door mirror assembly - RH convex	3783382/XXX Door mirror assembly - RH convex LHD Not USA/CDN	-	1	Enquire
-	3782159	LENS DOOR MIRROR RH	3782159 LENS DOOR MIRROR RH LHD Not USA/CDN	-	1	Enquire
-	7890258/XXX	Door mirror assembly - RH	7890258/XXX Door mirror assembly - RH LHD GCC only	-	1	Enquire
-	7890387	LENS-DOOR MIRROR RH LHD (GCC)	7890387 LENS-DOOR MIRROR RH LHD (GCC) LHD GCC only	-	1	Enquire
-	83111786AAW	Door casing assembly, complete - RH	83111786AAW Door casing assembly, complete - RH RHD Dunhill	-	1	Enquire
-	83111787AAW	Door casing assembly, complete - LH	83111787AAW Door casing assembly, complete - LH RHD Dunhill	-	1	Enquire
-	3783383/XXX	Door mirror assembly - RH convex	3783383/XXX Door mirror assembly - RH convex LHD USA/CDN	-	1	Enquire
-	3783139	LENS DOOR MIRROR RH LHD CONVEX USA INSCRIBED GLASS	3783139 LENS DOOR MIRROR RH LHD CONVEX USA INSCRIBED GLASS LHD USA/CDN	-	1	Enquire
-	8990366	BEZEL ASSY-VENT AIR CONTROL RH	8990366 BEZEL ASSY-VENT AIR CONTROL RH Later cars	-	1	Enquire
-	8990367	BEZEL ASSY VENT AIR CONTROL LH	8990367 BEZEL ASSY VENT AIR CONTROL LH Later cars	-	1	Enquire
-	83111662AA	DOOR RAIL RH (DUNHILL)	83111662AA DOOR RAIL RH (DUNHILL) Dunhill	-	1	Enquire
-	83111663AA	DOOR RAIL LH (DUNHILL)	83111663AA DOOR RAIL LH (DUNHILL) Dunhill	-	1	Enquire
-	3783384/XXX	Door mirror assembly - LH convex	3783384/XXX Door mirror assembly - LH convex RHD	-	1	Enquire
-	3783385/XXX	Door mirror assembly - LH flat	3783385/XXX Door mirror assembly - LH flat LHD	-	1	Enquire
-	3782160	LENS DOOR MIRROR LH LHD FLAT	3782160 LENS DOOR MIRROR LH LHD FLAT RHD	-	1	Enquire
-	3782160	LENS DOOR MIRROR LH LHD FLAT	3782160 LENS DOOR MIRROR LH LHD FLAT LHD	-	1	Enquire
-	8383131	VENEER UPPR DOOR LH	8383131 VENEER UPPR DOOR LH	-	1	Enquire
-	8383564	ASSY-RETAINER WEATHERSTRIP LH	8383564 ASSY-RETAINER WEATHERSTRIP LH	-	1	Enquire
-	8382312/XXX	Lower insert assembly, door - LH	8382312/XXX Lower insert assembly, door - LH	-	1	Enquire
-	8382313/XXX	Cover, insert lower door - RH	8382313/XXX Cover, insert lower door - RH	-	1	Enquire
-	8382314/XXX	Cover, insert lower door - LH	8382314/XXX Cover, insert lower door - LH	-	1	Enquire
-	8982323	VENT UPPER DOOR CASE LH	8982323 VENT UPPER DOOR CASE LH	-	1	Enquire
-	65123822AA	INSULATION FOAM PANEL DOOR RH	65123822AA INSULATION FOAM PANEL DOOR RH	-	1	Enquire
-	65123823AA	INSULATION FOAM PANEL DOOR LH	65123823AA INSULATION FOAM PANEL DOOR LH	-	1	Enquire
-	7790121	WAISTRAIL INNER-LH	7790121 WAISTRAIL INNER-LH	-	1	Enquire
-	8384936	DOOR POCKET-LH	8384936 DOOR POCKET-LH	-	1	Enquire
-	8982319	BOX VENT LOWER DOOR	8982319 BOX VENT LOWER DOOR	-	1	Enquire
-	6583142	RETAINER WAIST SEAL ASSY INR DR LH	6583142 RETAINER WAIST SEAL ASSY INR DR LH	-	1	Enquire
-	8982327	VENT UPPER DUCT LH	8982327 VENT UPPER DUCT LH	-	1	Enquire
-	8982330	VENT LOWER DUCT LH	8982330 VENT LOWER DUCT LH	-	1	Enquire
-	3782355	BEZEL DOOR MIRROR LH	3782355 BEZEL DOOR MIRROR LH	-	1	Enquire
-	3782357/XXX	Case, door mirror - LH	3782357/XXX Case, door mirror - LH	-	1	Enquire
-	8382317	Vent lower, door - LH	8382317 Vent lower, door - LH	-	1	Enquire
-	77123531AA	DOOR WATER SHEDDER LH	77123531AA DOOR WATER SHEDDER LH	-	1	Enquire
-	77111956AA	A POST AREA - SECONDARY SEAL	77111956AA A POST AREA - SECONDARY SEAL	-	2	Enquire
-	8383144	Bracket, front vertical door	8383144 Bracket, front vertical door	-	2	Enquire
-	8982321	FOAM INSERT LOWER DOOR	8982321 FOAM INSERT LOWER DOOR	-	2	Enquire
-	8382331	Seal, door speaker	8382331 Seal, door speaker	-	2	Enquire
-	697591	SCREW No8 x 9.5 FLANGED AB S.T.	697591 SCREW No8 x 9.5 FLANGED AB S.T.	-	4	Enquire
-	697485	WASHER M6 PLAIN FORM C	697485 WASHER M6 PLAIN FORM C	-	-	Enquire
-	697472	SCREW M6 x 12 REC PAN HEAD 4.8	697472 SCREW M6 x 12 REC PAN HEAD 4.8	-	-	Enquire
-	698689	ALPHABOND 1004	698689 ALPHABOND 1004	-	-	Enquire
1	8384935	DOOR POCKET-RH	8384935 DOOR POCKET-RH	-	1	Enquire
5	8383130	VENEER UPPR DOOR RH	8383130 VENEER UPPR DOOR RH	-	1	Enquire
6	8382311/XXX	Lower insert assembly, door - RH	8382311/XXX Lower insert assembly, door - RH	-	1	Enquire
8	8382316	Vent lower, door - RH	8382316 Vent lower, door - RH	-	1	Enquire
9	8982318	BOX VENT LOWER DOOR	8982318 BOX VENT LOWER DOOR	-	1	Enquire
10	8982320	GASKET VENT LWR DOOR	8982320 GASKET VENT LWR DOOR	-	2	Enquire
11	8982322	VENT UPPER DOOR CASE RH	8982322 VENT UPPER DOOR CASE RH	-	1	Enquire
14	8982326	VENT UPPER DUCT RH	8982326 VENT UPPER DUCT RH	-	1	Enquire
16	8982329	VENT LOWER DUCT RH	8982329 VENT LOWER DUCT RH	-	1	Enquire
19	77123532AA	DOOR WATER SHEDDER RH	77123532AA DOOR WATER SHEDDER RH	-	1	Enquire
20	8382337/XXX	Door casing assembly - RH	8382337/XXX Door casing assembly - RH RHD Up to (V) 101620	-	1	Enquire
35	3783381/XXX	Door mirror assembly - RH flat	3783381/XXX Door mirror assembly - RH flat RHD	-	1	Enquire
36	3782354	BEZEL DOOR MIRROR RH	3782354 BEZEL DOOR MIRROR RH	-	1	Enquire
37	3782159	LENS DOOR MIRROR RH	3782159 LENS DOOR MIRROR RH RHD	-	1	Enquire
38	3782356/XXX	Case, door mirror - RH	3782356/XXX Case, door mirror - RH	-	1	Enquire
42	7784316	ASSY SEAL-DOOR RH	7784316 ASSY SEAL-DOOR RH Coupe: for Volante see 7.6D	-	1	Enquire
43	7790122	WAISTRAIL INNER-RH	7790122 WAISTRAIL INNER-RH	-	1	Enquire
44	6583141	RETAINER WAIST SEAL ASSY INR DR RH	6583141 RETAINER WAIST SEAL ASSY INR DR RH	-	1	Enquire
45	8383563	ASSY-RETAINER WEATHERSTRIP RH	8383563 ASSY-RETAINER WEATHERSTRIP RH	-	1	Enquire
46	697613	SCREW M4 x 10 REC CSK HEAD-BLACK	697613 SCREW M4 x 10 REC CSK HEAD-BLACK	-	2	Enquire
47	8382348	FOAM SEAL SPEAKER DR TO TRIM	8382348 FOAM SEAL SPEAKER DR TO TRIM	-	2	Enquire
