Aston Martin DB7 (1997) - Bonnet

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
697246 WASHER PLAIN FORM C $0.09 To Order
697811 WASHER M6 PLAIN LARGE OD S/LESS BLK $0.50 To Order
Photo Part No Description Price (each) Stock
697518 SCREW M6 x 16 HEX HEAD BLACK GRADE 8.8 $0.68 To Order
697728 SCREW-S/STEEL $3.12 To Order
Photo Part No Description Price (each) Stock
6483192 BONNET LATCH MTG BRACKET RH $20.54 To Order
Photo Part No Description Price (each) Stock
85121478AD BONNET LINER $1,100.29 To Order
8583867 BONNET LINER $1,086.40 To Order
Photo Part No Description Price (each) Stock
7783392 SEAL-BONNET FRONT $24.62 To Order
Photo Part No Description Price (each) Stock
6183828 PANEL - ENGINE - BAY - LH RHD $540.14 To Order
Photo Part No Description Price (each) Stock
697520 RETAINER WASHER-DZUS $1.34 To Order
699107 STUD-DZUS $10.68 To Order
Photo Part No Description Price (each) Stock
697669 FASTENER RECEPTACLE DZUS 336 200 190 $4.58 To Order
6182513 BRACKET - PANEL REAR FIXING LH $19.26 To Order
Photo Part No Description Price (each) Stock
698987 SCREW FLG M10x20 BTN SKT HD $2.71 To Order
View All

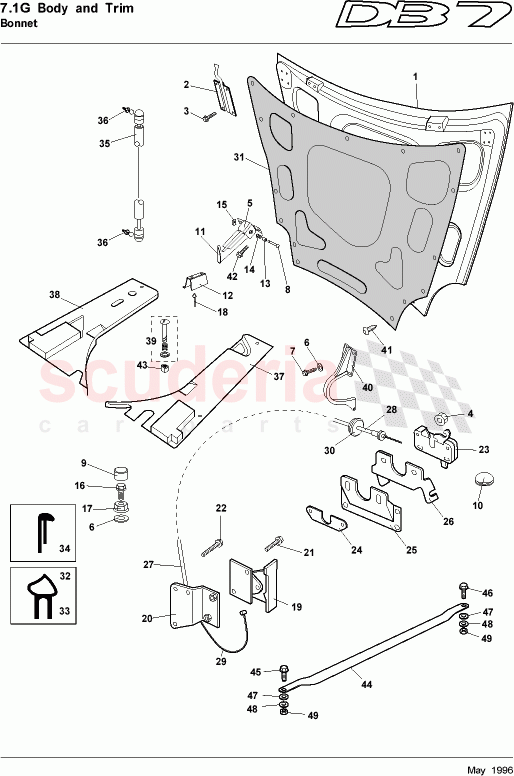

Bonnet of Aston Martin Aston Martin DB7 (1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9784570
CERTIFICATION LABEL
Gulf states only 		- 1 Enquire
- 9784566
LABEL-BAR CODE V.I.N
USA/CDN only 		$20.91 1
- 6183830
PANEL - ENGINE - BAY - LH LHD - MANUAL
LHD Manual 		$372.87 1
- 9784110
LABEL-FUEL ECONOMY & BUMPER STATEMENT
AUS only 		$7.08 1
- 9784568
COMPLIANCE LBL-RADIO INTERFERENCE
CDN only 		$11.82 1
- 97111322AB
LABEL-EMISSION
USA only 		$35.34 1
- 9783792
LABEL- MADE IN BRITAIN (UNION JACK FLAG)
AUS only 		$3.24 1
- 6183831
PANEL - ENGINE - BAY - LH LHD - AUTO
LHD Auto 		$372.87 1
- 9784565
CERTIFICATION LABEL - NORTH AMERICA
USA only 		$26.78 1
- 9784569
Label, certification
CDN only 		- 1 Enquire
- 9784567
ENGINE DATA LABEL - AUSTRALIA
AUS only 		$5.17 1
- 6183829
PANEL - ENGINE - BAY - RH LHD
LHD 		$567.17 1
- 6483193
BONNET LATCH MTG BRACKET LH 		$20.54 1
- 698987
SCREW FLG M10x20 BTN SKT HD 		$2.71 1
- 9783790
LABEL-VAC HOSE ROUTEING 96.5my 		$7.36 1
- 7783393
SEAL ASSY- BONNET FRONT 		$24.96 1
- 9783787S
VIN PLATE-STAMPED 		$153.47 1
- 697274PK
TIE STRAP(PK OF 100) 		$67.05 6
6 697246
WASHER PLAIN FORM C 		$0.09 10
6 697811
WASHER M6 PLAIN LARGE OD S/LESS BLK 		$0.50 8
7 697518
SCREW M6 x 16 HEX HEAD BLACK GRADE 8.8 		$0.68 10
7 697728
SCREW-S/STEEL 		$3.12 10
25 6483192
BONNET LATCH MTG BRACKET RH 		$20.54 1
31 85121478AD
BONNET LINER 		$1,100.29 1
31 8583867
BONNET LINER 		$1,086.40 1
34 7783392
SEAL-BONNET FRONT
If fitted 		$24.62 1
38 6183828
PANEL - ENGINE - BAY - LH RHD
RHD 		$540.14 1
39 697520
RETAINER WASHER-DZUS 		$1.34 4
39 699107
STUD-DZUS 		$10.68 4
43 697669
FASTENER RECEPTACLE DZUS 336 200 190 		$4.58 4
43 6182513
BRACKET - PANEL REAR FIXING LH 		$19.26 4
44 698987
SCREW FLG M10x20 BTN SKT HD 		$2.71 1
