Front Seats and Belts (To VIN 101620) of Aston Martin Aston Martin DB7 (1997)

View All

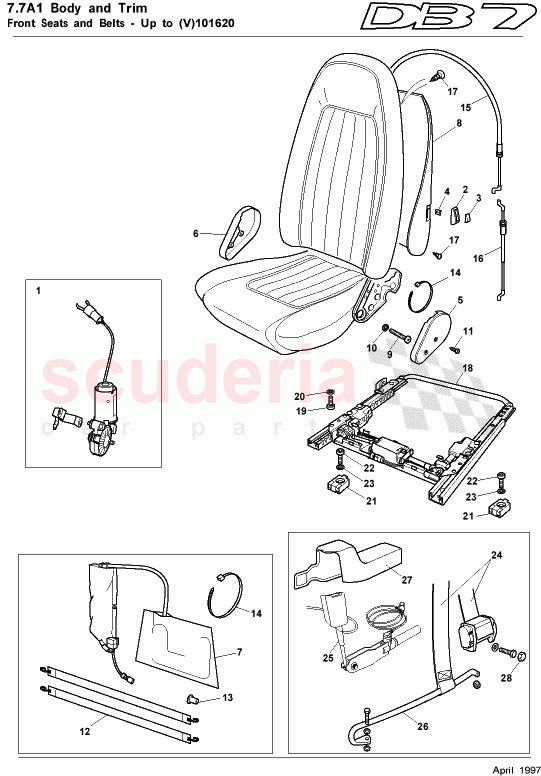

Aston Martin DB7 (1997) - Front Seats and Belts (To VIN 101620)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7451227	CLIP - TILT KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7484013/XXX	Cover, squab mechanism outer - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7484015/XXX	Cover, squab mechanism inner - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7482659	ASSY DIAPHRAGM LUMBAR SUPPT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7482661/XXX	Squab back cover assembly - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698520	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7482656	ASSY SEAT SLIDE ELEC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8084500	SEAT BELT FT RH RHD COUPE USA DRIVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8084502	SEAT BELT BUCKLE PBP DRIVER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8084498	SLIDER BAR RH - FRT SEAT BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7484669/XXX	Cover, pretensioner - RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7484668/XXX	Cover, recline mechanism - RH	7484668/XXX Cover, recline mechanism - RH LHD with seatbelt pretensioner	-	1	Enquire
-	7484666/XXX	Cover, recline mechanism - LH	7484666/XXX Cover, recline mechanism - LH RHD with seatbelt pretensioner	-	1	Enquire
-	8084507	SEAT BELT FRONT CONV FED DRIVER	8084507 SEAT BELT FRONT CONV FED DRIVER RH, RHD / LH, LHD USA/CDN/J	-	1	Enquire
-	8084508	SEAT BELT FRONT CONV FED PASSENGER	8084508 SEAT BELT FRONT CONV FED PASSENGER LH, RHD / RH, LHD USA/CDN/J	-	1	Enquire
-	74110826AA	SEAT BELT BUCKLE- PASSENGER (FED)	74110826AA SEAT BELT BUCKLE- PASSENGER (FED) LH, RHD / RH, LHD USA/CDN/J	-	1	Enquire
-	8582503PK	FIRTREE FASTENER(20)	8582503PK FIRTREE FASTENER(20) Fixing, recline cover	-	1	Enquire
-	697563	Adhesive, Plexus A0420	697563 Adhesive, Plexus A0420 Leather retention	-	-	Enquire
-	8084504	SEAT BELT FT RH LHD COUPE USA PASSENGER	8084504 SEAT BELT FT RH LHD COUPE USA PASSENGER LHD USA/CDN/J	-	1	Enquire
-	8084505	SEAT BELT FT LH LHD COUPE USA DRIVER	8084505 SEAT BELT FT LH LHD COUPE USA DRIVER LHD USA/CDN/J	-	1	Enquire
-	8084513	SEAT BELT FRONT RH COUPE EURO	8084513 SEAT BELT FRONT RH COUPE EURO Not USA/CDN/J	-	1	Enquire
-	8084514	SEAT BELT FRONT LH COUPE EURO	8084514 SEAT BELT FRONT LH COUPE EURO Not USA/CDN/J	-	1	Enquire
-	74110607AA	SEAT BELT BUCKLE-PBP DRIVER S LH	74110607AA SEAT BELT BUCKLE-PBP DRIVER S LH LHD USA/CDN/J	-	1	Enquire
-	8084515	SEAT BELT FRONT CONV EURO	8084515 SEAT BELT FRONT CONV EURO Not USA/CDN/J	-	2	Enquire
-	8084516	SEAT BELT BUCKLE FRONT	8084516 SEAT BELT BUCKLE FRONT Not USA/CDN/J	-	2	Enquire
-	8084501	SEAT BELT FT LH RHD COUPE USA PASSENGER	8084501 SEAT BELT FT LH RHD COUPE USA PASSENGER RHD J only	-	1	Enquire
-	7484010/XXX	Seat assembly, complete, front - RH	7484010/XXX Seat assembly, complete, front - RH	-	1	Enquire
-	7484011/XXX	Seat assembly, complete, front - LH	7484011/XXX Seat assembly, complete, front - LH	-	1	Enquire
-	7482657	ASSY SEAT SLIDE ELEC	7482657 ASSY SEAT SLIDE ELEC	-	1	Enquire
-	7484014/XXX	Cover, squab mechanism outer - LH	7484014/XXX Cover, squab mechanism outer - LH	-	1	Enquire
-	7484016/XXX	Cover, squab mechanism inner - LH	7484016/XXX Cover, squab mechanism inner - LH	-	1	Enquire
-	8084499	SLIDER BAR LH - FRT SEAT BELT	8084499 SLIDER BAR LH - FRT SEAT BELT	-	1	Enquire
-	7482662/XXX	Squab back cover assembly - LH	7482662/XXX Squab back cover assembly - LH	-	1	Enquire
-	7482660	ASSY DIAPHRAGM LUMBAR SUPPT LH	7482660 ASSY DIAPHRAGM LUMBAR SUPPT LH	-	1	Enquire
-	7484667/XXX	Cover, pretensioner - LH	7484667/XXX Cover, pretensioner - LH	-	1	Enquire
-	697619	Tie strap	697619 Tie strap	-	12	Enquire
-	7482666	Internal cover, recline mechanism - RH	7482666 Internal cover, recline mechanism - RH	-	2	Enquire
-	7482667	Internal cover, recline mechanism - LH	7482667 Internal cover, recline mechanism - LH	-	2	Enquire
-	7482647/XXX	Cover assembly, cushion sides	7482647/XXX Cover assembly, cushion sides	-	2	Enquire
-	7482646/XXX	Cover assembly, cushion	7482646/XXX Cover assembly, cushion	-	2	Enquire
-	7484012/XXX	Squab cover assembly	7484012/XXX Squab cover assembly	-	2	Enquire
-	7482668	DIAPHRAGM - CUSHION UNIT	7482668 DIAPHRAGM - CUSHION UNIT	-	2	Enquire
-	7482665	Diaphragm, squab	7482665 Diaphragm, squab	-	2	Enquire
-	697562	GROMMET 12mm ID	697562 GROMMET 12mm ID	-	2	Enquire
-	7483172	Tensioner assembly	7483172 Tensioner assembly	-	4	Enquire
-	697290	PUSH ON FIXER-M3	697290 PUSH ON FIXER-M3	-	4	Enquire
4	7451227	CLIP - TILT KNOB	7451227 CLIP - TILT KNOB	-	2	Enquire
5	7484013/XXX	Cover, squab mechanism outer - RH	7484013/XXX Cover, squab mechanism outer - RH	-	1	Enquire
6	7484015/XXX	Cover, squab mechanism inner - RH	7484015/XXX Cover, squab mechanism inner - RH	-	1	Enquire
7	7482659	ASSY DIAPHRAGM LUMBAR SUPPT RH	7482659 ASSY DIAPHRAGM LUMBAR SUPPT RH	-	1	Enquire
8	7482661/XXX	Squab back cover assembly - RH	7482661/XXX Squab back cover assembly - RH	-	1	Enquire
13	698520	BUSH	698520 BUSH	-	8	Enquire
18	7482656	ASSY SEAT SLIDE ELEC	7482656 ASSY SEAT SLIDE ELEC	-	1	Enquire
24	8084500	SEAT BELT FT RH RHD COUPE USA DRIVER	8084500 SEAT BELT FT RH RHD COUPE USA DRIVER RHD J only	-	1	Enquire
25	8084502	SEAT BELT BUCKLE PBP DRIVER RH	8084502 SEAT BELT BUCKLE PBP DRIVER RH RHD USA/CDN/J	-	1	Enquire
26	8084498	SLIDER BAR RH - FRT SEAT BELT	8084498 SLIDER BAR RH - FRT SEAT BELT	-	1	Enquire
27	7484669/XXX	Cover, pretensioner - RH	7484669/XXX Cover, pretensioner - RH	-	1	Enquire
