Front Bumper and Apron of Aston Martin Aston Martin DB7 (1997)

View All

Aston Martin DB7 (1997) - Front Bumper and Apron

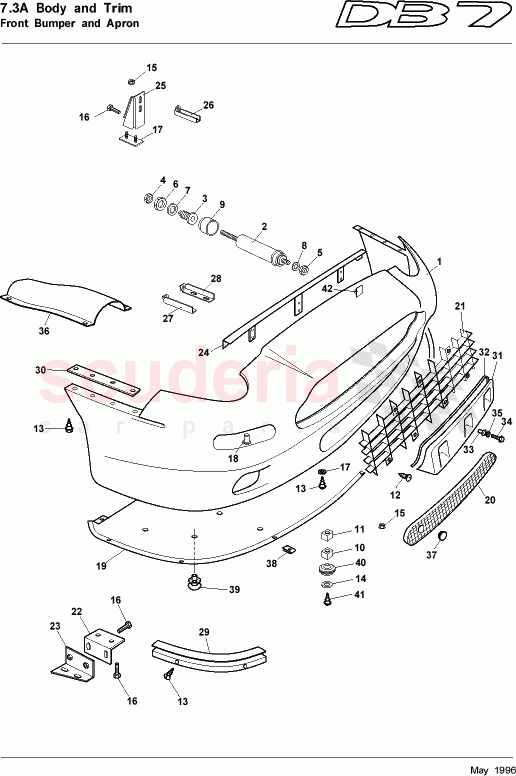

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6284362	FRONT APRON ASSY- COMPLETE EURO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7182530	GRILLE RADIATOR- UPPER BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6182533	BRACKET ASSY SIDE LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7782542	FOAM STRIP FRONT APRON RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7882545	HOUSING NO. PLATE FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697530PK	INSERT-THREADED (5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2882547	DUCT BRAKE COOLING RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6284363	FRONT APRON ASSY- COMPLETE USA	6284363 FRONT APRON ASSY- COMPLETE USA USA/CDN/GCC	-	1	Enquire
-	7883404	HOUSING ASSY- REG.PLATE FRONT-USA	7883404 HOUSING ASSY- REG.PLATE FRONT-USA USA only	-	1	Enquire
-	71111599AA	GRILLE RADIATOR - UPPER (DUNHILL)	71111599AA GRILLE RADIATOR - UPPER (DUNHILL) Dunhill	-	1	Enquire
-	72121789AA	HOUSING ASSY REG PLATE FRONT	72121789AA HOUSING ASSY REG PLATE FRONT J only	-	1	Enquire
-	3786315	S/MARKR MLDG CARKT(4	3786315 S/MARKR MLDG CARKT(4 USA	-	1	Enquire
-	6182534	BRACKET ASSY SIDE LOWER LH	6182534 BRACKET ASSY SIDE LOWER LH	-	1	Enquire
-	7782543	FOAM STRIP FRONT APRON LH	7782543 FOAM STRIP FRONT APRON LH	-	1	Enquire
-	2882548	DUCT BRAKE COOLING LH	2882548 DUCT BRAKE COOLING LH	-	1	Enquire
-	697722	BOLT M10 x 35 BUTTON HEAD	697722 BOLT M10 x 35 BUTTON HEAD	-	1	Enquire
-	4281652	M6 FLEXLOC BUSH	4281652 M6 FLEXLOC BUSH	-	2	Enquire
1	6284362	FRONT APRON ASSY- COMPLETE EURO	6284362 FRONT APRON ASSY- COMPLETE EURO Not USA/CDN/GCC	-	1	Enquire
21	7182530	GRILLE RADIATOR- UPPER BLACK	7182530 GRILLE RADIATOR- UPPER BLACK	-	1	Enquire
23	6182533	BRACKET ASSY SIDE LOWER RH	6182533 BRACKET ASSY SIDE LOWER RH	-	1	Enquire
30	7782542	FOAM STRIP FRONT APRON RH	7782542 FOAM STRIP FRONT APRON RH	-	1	Enquire
31	7882545	HOUSING NO. PLATE FRONT	7882545 HOUSING NO. PLATE FRONT Not USA/J	-	1	Enquire
33	697530PK	INSERT-THREADED (5)	697530PK INSERT-THREADED (5) Not USA/J	-	3	Enquire
36	2882547	DUCT BRAKE COOLING RH	2882547 DUCT BRAKE COOLING RH	-	1	Enquire
