Engine & Transmission Mounts- CVT of Aston Martin Aston Martin Cygnet

View All

Aston Martin Cygnet - Engine & Transmission Mounts- CVT

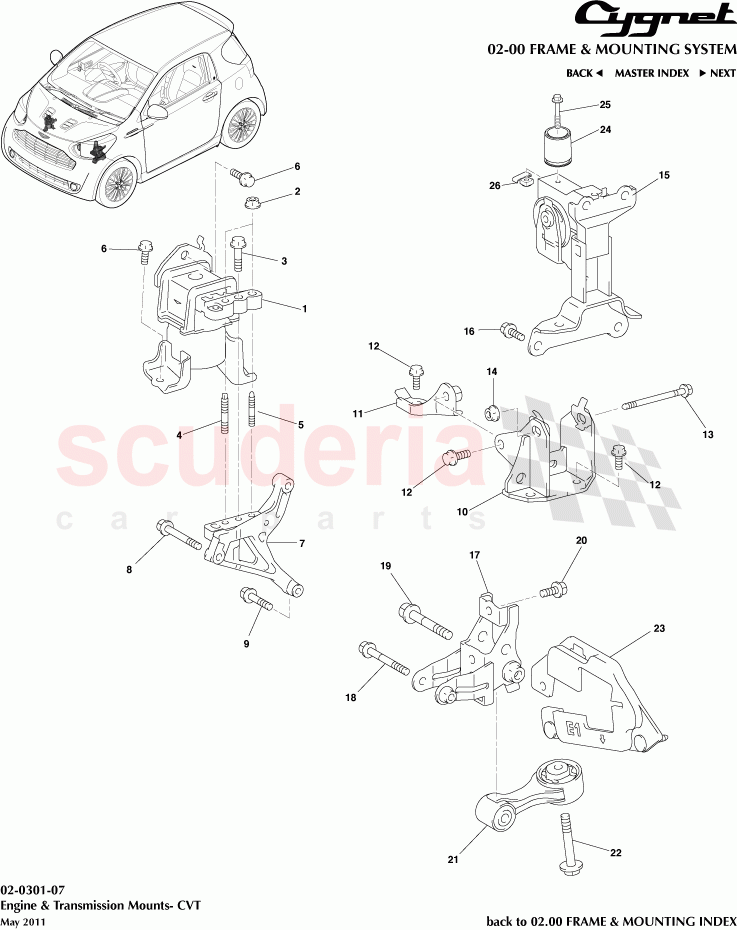

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1230547051	Insulator Sub-assy, Engine Mounting	Enquire	To Order
	9415121041	Nut, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010510469	Bolt, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9011610230	Bolt, Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9011610216	Bolt, Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9011910866	Bolt, with Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1231547050	Bracket, Engine Mounting, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9155281080	Bolt, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9155180840	Bolt, Flange, A805	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1232547070	Bracket, Engine Mounting LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1231840010	Stay Engine Mounting LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010510494	Bolt, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010510550	Bolt, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9017810029	Nut, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1237247060	Insulator, Engine Mounting LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9011910866	Bolt, with Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1231340040	Bracket, Engine Moving Control Rod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010510538	Bolt, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010514178	Bolt, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91552K1025	Bolt, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1236347010	Rod, Engine Moving Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9011914139	Bolt, with Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1236540020	Cover, Engine Moving Control Rod, Cold Climate Spec	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AVA1096	Mass Damper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY2Y108121AA	Bolt, M8 x 50, Hex Head With Patch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY2Y38171AA	Nutplate, M8	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1230547051	Insulator Sub-assy, Engine Mounting	1230547051 Insulator Sub-assy, Engine Mounting	-	1	Enquire
1	9415121041	Nut, Flange	9415121041 Nut, Flange	-	2	Enquire
3	9010510469	Bolt, Flange	9010510469 Bolt, Flange	-	2	Enquire
4	9011610230	Bolt, Stud	9011610230 Bolt, Stud	-	1	Enquire
5	9011610216	Bolt, Stud	9011610216 Bolt, Stud	-	1	Enquire
6	9011910866	Bolt, with Washer	9011910866 Bolt, with Washer	-	3	Enquire
7	1231547050	Bracket, Engine Mounting, RH	1231547050 Bracket, Engine Mounting, RH	-	1	Enquire
8	9155281080	Bolt, Flange	9155281080 Bolt, Flange	-	1	Enquire
9	9155180840	Bolt, Flange, A805	9155180840 Bolt, Flange, A805	-	2	Enquire
10	1232547070	Bracket, Engine Mounting LH	1232547070 Bracket, Engine Mounting LH	-	1	Enquire
11	1231840010	Stay Engine Mounting LH	1231840010 Stay Engine Mounting LH	-	1	Enquire
12	9010510494	Bolt, Flange	9010510494 Bolt, Flange	-	5	Enquire
13	9010510550	Bolt, Flange	9010510550 Bolt, Flange	-	1	Enquire
14	9017810029	Nut, Flange	9017810029 Nut, Flange	-	1	Enquire
15	1237247060	Insulator, Engine Mounting LH	1237247060 Insulator, Engine Mounting LH	-	1	Enquire
16	9011910866	Bolt, with Washer	9011910866 Bolt, with Washer	-	5	Enquire
17	1231340040	Bracket, Engine Moving Control Rod	1231340040 Bracket, Engine Moving Control Rod	-	1	Enquire
18	9010510538	Bolt, Flange	9010510538 Bolt, Flange	-	1	Enquire
19	9010514178	Bolt, Flange	9010514178 Bolt, Flange	-	1	Enquire
20	91552K1025	Bolt, Flange	91552K1025 Bolt, Flange	-	3	Enquire
21	1236347010	Rod, Engine Moving Control	1236347010 Rod, Engine Moving Control	-	1	Enquire
22	9011914139	Bolt, with Washer	9011914139 Bolt, with Washer	-	1	Enquire
23	1236540020	Cover, Engine Moving Control Rod, Cold Climate Spec	1236540020 Cover, Engine Moving Control Rod, Cold Climate Spec	-	1	Enquire
24	AVA1096	Mass Damper	AVA1096 Mass Damper	-	1	Enquire
25	CY2Y108121AA	Bolt, M8 x 50, Hex Head With Patch	CY2Y108121AA Bolt, M8 x 50, Hex Head With Patch	-	1	Enquire
26	CY2Y38171AA	Nutplate, M8	CY2Y38171AA Nutplate, M8	-	1	Enquire
