GOP & Front Sheet Metal of Aston Martin Aston Martin Cygnet

View All

Aston Martin Cygnet - GOP & Front Sheet Metal

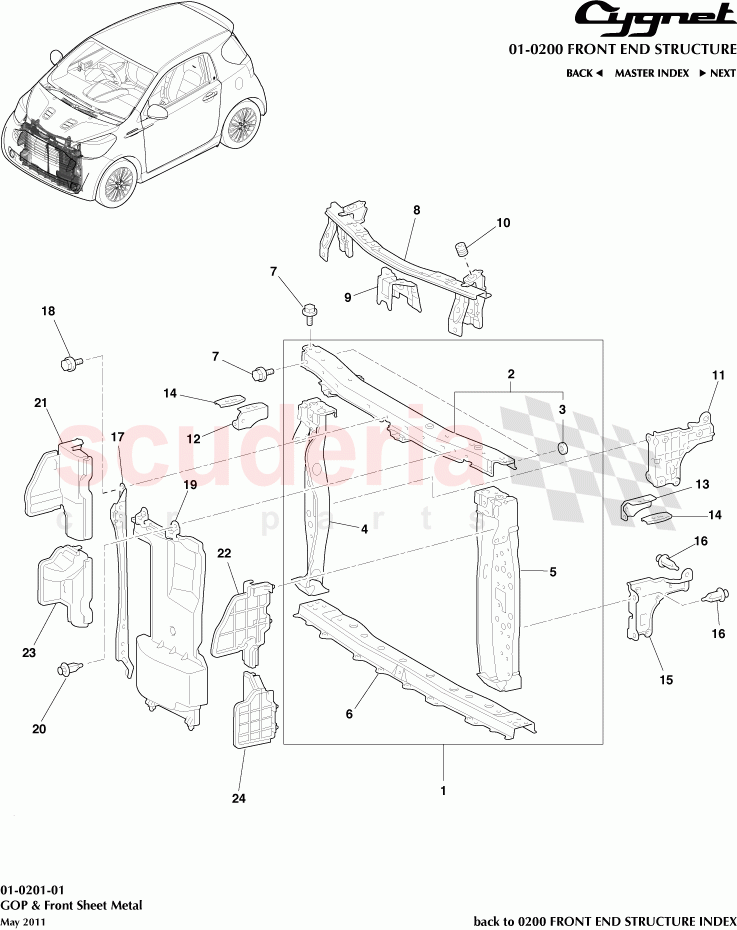

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	5321074011	Support, Sub-assy Radiator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5320874010	Support Sub-Assy, Hood Lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5328330010	Reinforcement, Radiator Support, lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5320274010	Support Sub-Assy, Radiator RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5320374010	Support Sub-Assy, Radiator LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5302874010	Support Sub-Assy, Radiator Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010906380	Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5320574011	Support Sub-Assy, Radiator Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5320974010	Brace Sub-Assy, Hood Lock Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9054115038	Cushion	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5145174010	Cover, Engine under, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5327174010	Cover, Engine Under LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5327274010	Bracket, Headlamp Mounting LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5324574010	Bracket, Headlamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5145274010	Cover, Engine under, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9046709227	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5321574010	Support, Hood Lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010906328	Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5329574010	Deflector Radiator Lower Air No.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9046707164	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5328574011	Seal, Radiator Side Air, No.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5328674011	Seal, Radiator Side Air, No.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5328774011	Extension, Radiator Support RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5328874011	Extension, Radiator Support LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	5321074011	Support, Sub-assy Radiator	5321074011 Support, Sub-assy Radiator	-	1	Enquire
2	5320874010	Support Sub-Assy, Hood Lock	5320874010 Support Sub-Assy, Hood Lock	-	1	Enquire
3	5328330010	Reinforcement, Radiator Support, lower	5328330010 Reinforcement, Radiator Support, lower	-	1	Enquire
4	5320274010	Support Sub-Assy, Radiator RH	5320274010 Support Sub-Assy, Radiator RH	-	1	Enquire
5	5320374010	Support Sub-Assy, Radiator LH	5320374010 Support Sub-Assy, Radiator LH	-	1	Enquire
6	5302874010	Support Sub-Assy, Radiator Lower	5302874010 Support Sub-Assy, Radiator Lower	-	1	Enquire
7	9010906380	Bolt	9010906380 Bolt	-	8	Enquire
8	5320574011	Support Sub-Assy, Radiator Upper	5320574011 Support Sub-Assy, Radiator Upper	-	1	Enquire
9	5320974010	Brace Sub-Assy, Hood Lock Support	5320974010 Brace Sub-Assy, Hood Lock Support	-	1	Enquire
10	9054115038	Cushion	9054115038 Cushion	-	2	Enquire
11	5145174010	Cover, Engine under, RH	5145174010 Cover, Engine under, RH	-	1	Enquire
12	5327174010	Cover, Engine Under LH	5327174010 Cover, Engine Under LH	-	1	Enquire
13	5327274010	Bracket, Headlamp Mounting LH	5327274010 Bracket, Headlamp Mounting LH	-	1	Enquire
14	5324574010	Bracket, Headlamp	5324574010 Bracket, Headlamp	-	2	Enquire
15	5145274010	Cover, Engine under, LH	5145274010 Cover, Engine under, LH	-	1	Enquire
16	9046709227	Clip	9046709227 Clip	-	6	Enquire
17	5321574010	Support, Hood Lock	5321574010 Support, Hood Lock	-	1	Enquire
18	9010906328	Bolt	9010906328 Bolt	-	2	Enquire
19	5329574010	Deflector Radiator Lower Air No.1	5329574010 Deflector Radiator Lower Air No.1	-	1	Enquire
20	9046707164	Clip	9046707164 Clip	-	1	Enquire
21	5328574011	Seal, Radiator Side Air, No.1	5328574011 Seal, Radiator Side Air, No.1	-	1	Enquire
22	5328674011	Seal, Radiator Side Air, No.2	5328674011 Seal, Radiator Side Air, No.2	-	1	Enquire
23	5328774011	Extension, Radiator Support RH	5328774011 Extension, Radiator Support RH	-	1	Enquire
24	5328874011	Extension, Radiator Support LH	5328874011 Extension, Radiator Support LH	-	1	Enquire
