Fuel Filler Mechanism of Aston Martin Aston Martin Cygnet

View All

Aston Martin Cygnet - Fuel Filler Mechanism

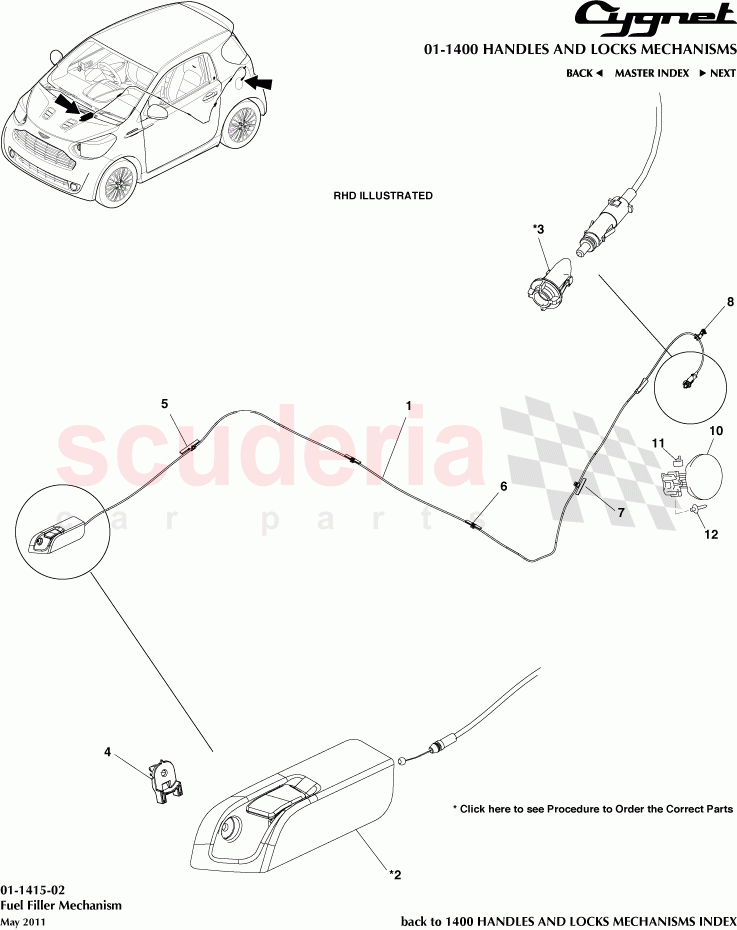

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7703574020	Cable Sub Assy, Fuel Lid Lock Control, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7730652030	Lever Sub Assy, Fuel Lid Lock Opening, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7737752020	Retainer, Fuel Filler Opening Lid Lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6464812020	Grommet, Luggage Door Lock Opening	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7733374010	Clamp, Fuel Lid Lock Control Cable, No.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7733374020	Clamp, Fuel Lid Lock Control Cable, No.2, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	827112A250	Clamp, Fuel Lid Lock Control Cable	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7733374030	Retainer, Fuel Filler Opening Lid Lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7735074011	Lid Assy, Fuel Filler Opening	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7736652010	Spring, Fuel Filler Opening Lid Hinge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9026906013	Rivet, Fuel Filler Opening Lid, MCV20	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7703574010	Cable Sub Assy, Fuel Lid Lock Control, LHD	7703574010 Cable Sub Assy, Fuel Lid Lock Control, LHD	-	1	Enquire
-	7730652050	Lever Sub Assy, Fuel Lid Lock Opening, RHD	7730652050 Lever Sub Assy, Fuel Lid Lock Opening, RHD *From 09/2010	-	1	Enquire
-	7730652040	Lever Sub Assy, Fuel Lid Lock Opening, LHD	7730652040 Lever Sub Assy, Fuel Lid Lock Opening, LHD *To 09/2010	-	1	Enquire
-	7730652060	Lever Sub Assy, Fuel Lid Lock Opening, LHD	7730652060 Lever Sub Assy, Fuel Lid Lock Opening, LHD *From 09/2010	-	1	Enquire
-	7737775010	Retainer, Fuel Filler Opening Lid Lock	7737775010 Retainer, Fuel Filler Opening Lid Lock *From 08/2010	-	1	Enquire
-	827112A250	Clamp, Fuel Lid Lock Control Cable	827112A250 Clamp, Fuel Lid Lock Control Cable	-	1	Enquire
1	7703574020	Cable Sub Assy, Fuel Lid Lock Control, RHD	7703574020 Cable Sub Assy, Fuel Lid Lock Control, RHD	-	1	Enquire
2	7730652030	Lever Sub Assy, Fuel Lid Lock Opening, RHD	7730652030 Lever Sub Assy, Fuel Lid Lock Opening, RHD *To 09/2010	-	1	Enquire
3	7737752020	Retainer, Fuel Filler Opening Lid Lock	7737752020 Retainer, Fuel Filler Opening Lid Lock *To 07/2010	-	1	Enquire
4	6464812020	Grommet, Luggage Door Lock Opening	6464812020 Grommet, Luggage Door Lock Opening	-	1	Enquire
5	7733374010	Clamp, Fuel Lid Lock Control Cable, No.1	7733374010 Clamp, Fuel Lid Lock Control Cable, No.1	-	1	Enquire
6	7733374020	Clamp, Fuel Lid Lock Control Cable, No.2, RHD	7733374020 Clamp, Fuel Lid Lock Control Cable, No.2, RHD	-	2	Enquire
7	827112A250	Clamp, Fuel Lid Lock Control Cable	827112A250 Clamp, Fuel Lid Lock Control Cable	-	1	Enquire
8	7733374030	Retainer, Fuel Filler Opening Lid Lock	7733374030 Retainer, Fuel Filler Opening Lid Lock	-	1	Enquire
9	9015960602	Screw, with Washer	9015960602 Screw, with Washer	-	1	Enquire
10	7735074011	Lid Assy, Fuel Filler Opening	7735074011 Lid Assy, Fuel Filler Opening	-	1	Enquire
11	7736652010	Spring, Fuel Filler Opening Lid Hinge	7736652010 Spring, Fuel Filler Opening Lid Hinge	-	1	Enquire
12	9026906013	Rivet, Fuel Filler Opening Lid, MCV20	9026906013 Rivet, Fuel Filler Opening Lid, MCV20	-	2	Enquire
