Bodyside and Quarter Panel, LHS of Aston Martin Aston Martin Cygnet

View All

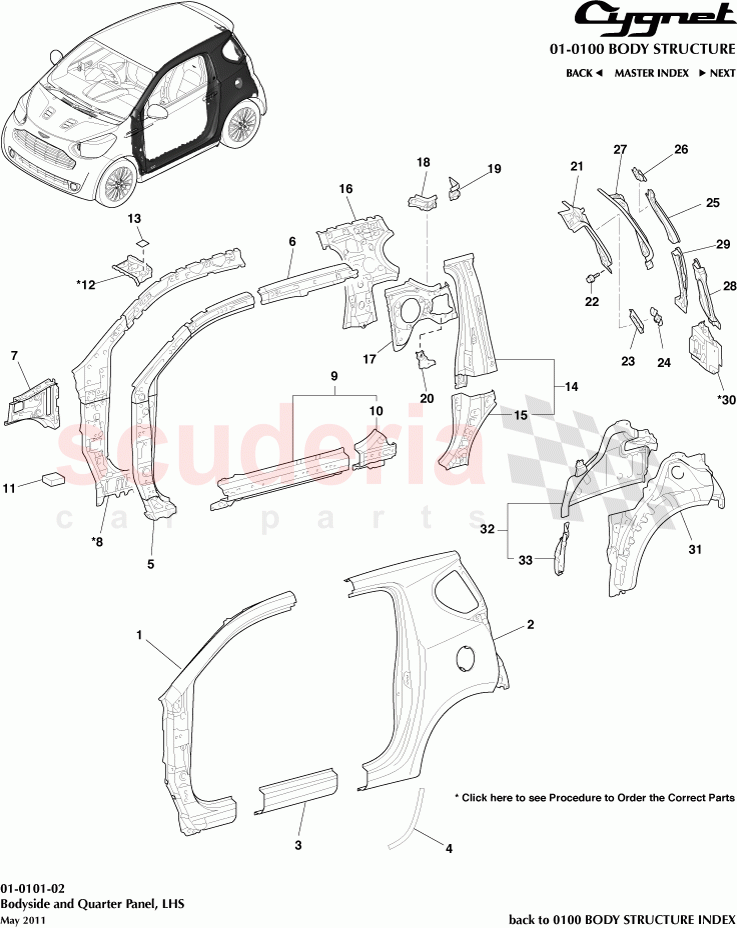

Aston Martin Cygnet - Bodyside and Quarter Panel, LHS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6113274010	Pillar, Front Body, Upper Outer LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6160274010	Panel, Quarter LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6141274010	Panel, Rocker, Outer LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5874274010	Protector, Quarter Panel, front LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6110974010	Reinforce Sub-Assy, Front body Pillar, Lower LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6121274010	Rail, Roof Side, Outer LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5570674010	Panel Sub-Assy, Cowl Top Side LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6102474900	Pillar Sub-Assy, Front Body, Inner LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6140474010	Reinforce Sub-Assy, Rocker, Outer LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6138474010	Extension, Centre Body Pillar, Outer LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6215152030	Pad, Cowl Side Silencer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6117674011	Reinforcement, Front Pillar, Upper Outer No.2 LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6182412070	Plate, noise Control, No.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6103874902	Reinforcement Sub-Assy, Centre Body Pillar LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6132474010	Reinforcement, Centre Body Pillar, Lower LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6134474011	Pillar, Centre Body, Inner LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6134674011	Pillar, Centre Body, Inner Lower LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6171874010	Reinforcement, Quarter Panel Extension LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6173874010	Reinforcement, Roof Side, Inner LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6176974010	Reinforce, Belt Anchor to Roof Side, Inner Rear LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6173274011	Panel, Roof Side, Inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9164180816	Bolt, W/Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6176774011	Reinforcement, Belt Anchor to Roof Side, Inner LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6167574010	Reinforce, Seat Belt Anchor, No.2 Upper RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6162674010	Extension, Quarter Panel, Upper LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6898274010	Retainer, Back Door Stay LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6174474011	Reinforcement, Back Door Opening Side LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6162274010	Trough, Back Door Opening LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6103674010	Reinforcement Sub-Assy, Back Door Opening LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6173674010	Extension, Quarter Panel, Inner LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6163274011	Panel, Quarter Wheel House, Outer LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6160874011	Panel, Quarter Wheel House, Inner LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6164274011	Gusset, Quarter Wheel House, Front LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6102474903	Pillar Sub-Assy, Front Body, Inner LH	6102474903 Pillar Sub-Assy, Front Body, Inner LH From 08/2010	-	1	Enquire
-	6117574011	Reinforcement, Front Pillar, Upper Outer No.2 RH	6117574011 Reinforcement, Front Pillar, Upper Outer No.2 RH From 10/2010	-	1	Enquire
-	6173674011	Extension, Quarter Panel, Inner LH	6173674011 Extension, Quarter Panel, Inner LH From 08/2010	-	1	Enquire
1	6113274010	Pillar, Front Body, Upper Outer LH	6113274010 Pillar, Front Body, Upper Outer LH	-	1	Enquire
2	6160274010	Panel, Quarter LH	6160274010 Panel, Quarter LH	-	1	Enquire
3	6141274010	Panel, Rocker, Outer LH	6141274010 Panel, Rocker, Outer LH	-	1	Enquire
4	5874274010	Protector, Quarter Panel, front LH	5874274010 Protector, Quarter Panel, front LH	-	1	Enquire
5	6110974010	Reinforce Sub-Assy, Front body Pillar, Lower LH	6110974010 Reinforce Sub-Assy, Front body Pillar, Lower LH	-	1	Enquire
6	6121274010	Rail, Roof Side, Outer LH	6121274010 Rail, Roof Side, Outer LH	-	1	Enquire
7	5570674010	Panel Sub-Assy, Cowl Top Side LH	5570674010 Panel Sub-Assy, Cowl Top Side LH	-	1	Enquire
8	6102474900	Pillar Sub-Assy, Front Body, Inner LH	6102474900 Pillar Sub-Assy, Front Body, Inner LH To 08/2010	-	1	Enquire
9	6140474010	Reinforce Sub-Assy, Rocker, Outer LH	6140474010 Reinforce Sub-Assy, Rocker, Outer LH	-	1	Enquire
10	6138474010	Extension, Centre Body Pillar, Outer LH	6138474010 Extension, Centre Body Pillar, Outer LH	-	1	Enquire
11	6215152030	Pad, Cowl Side Silencer	6215152030 Pad, Cowl Side Silencer	-	1	Enquire
12	6117674011	Reinforcement, Front Pillar, Upper Outer No.2 LH	6117674011 Reinforcement, Front Pillar, Upper Outer No.2 LH To 09/2010	-	1	Enquire
13	6182412070	Plate, noise Control, No.1	6182412070 Plate, noise Control, No.1	-	1	Enquire
14	6103874902	Reinforcement Sub-Assy, Centre Body Pillar LH	6103874902 Reinforcement Sub-Assy, Centre Body Pillar LH	-	1	Enquire
15	6132474010	Reinforcement, Centre Body Pillar, Lower LH	6132474010 Reinforcement, Centre Body Pillar, Lower LH	-	1	Enquire
16	6134474011	Pillar, Centre Body, Inner LH	6134474011 Pillar, Centre Body, Inner LH	-	1	Enquire
17	6134674011	Pillar, Centre Body, Inner Lower LH	6134674011 Pillar, Centre Body, Inner Lower LH	-	1	Enquire
18	6171874010	Reinforcement, Quarter Panel Extension LH	6171874010 Reinforcement, Quarter Panel Extension LH	-	1	Enquire
19	6173874010	Reinforcement, Roof Side, Inner LH	6173874010 Reinforcement, Roof Side, Inner LH	-	1	Enquire
20	6176974010	Reinforce, Belt Anchor to Roof Side, Inner Rear LH	6176974010 Reinforce, Belt Anchor to Roof Side, Inner Rear LH	-	1	Enquire
21	6173274011	Panel, Roof Side, Inner	6173274011 Panel, Roof Side, Inner	-	1	Enquire
22	9164180816	Bolt, W/Washer	9164180816 Bolt, W/Washer	-	2	Enquire
23	6176774011	Reinforcement, Belt Anchor to Roof Side, Inner LH	6176774011 Reinforcement, Belt Anchor to Roof Side, Inner LH	-	1	Enquire
24	6167574010	Reinforce, Seat Belt Anchor, No.2 Upper RH	6167574010 Reinforce, Seat Belt Anchor, No.2 Upper RH	-	1	Enquire
25	6162674010	Extension, Quarter Panel, Upper LH	6162674010 Extension, Quarter Panel, Upper LH	-	1	Enquire
26	6898274010	Retainer, Back Door Stay LH	6898274010 Retainer, Back Door Stay LH	-	1	Enquire
27	6174474011	Reinforcement, Back Door Opening Side LH	6174474011 Reinforcement, Back Door Opening Side LH	-	1	Enquire
28	6162274010	Trough, Back Door Opening LH	6162274010 Trough, Back Door Opening LH	-	1	Enquire
29	6103674010	Reinforcement Sub-Assy, Back Door Opening LH	6103674010 Reinforcement Sub-Assy, Back Door Opening LH	-	1	Enquire
30	6173674010	Extension, Quarter Panel, Inner LH	6173674010 Extension, Quarter Panel, Inner LH To 07/2010	-	1	Enquire
31	6163274011	Panel, Quarter Wheel House, Outer LH	6163274011 Panel, Quarter Wheel House, Outer LH	-	1	Enquire
32	6160874011	Panel, Quarter Wheel House, Inner LH	6160874011 Panel, Quarter Wheel House, Inner LH	-	1	Enquire
33	6164274011	Gusset, Quarter Wheel House, Front LH	6164274011 Gusset, Quarter Wheel House, Front LH	-	1	Enquire
