Floor Pan and Lower Back Panel of Aston Martin Aston Martin Cygnet

View All

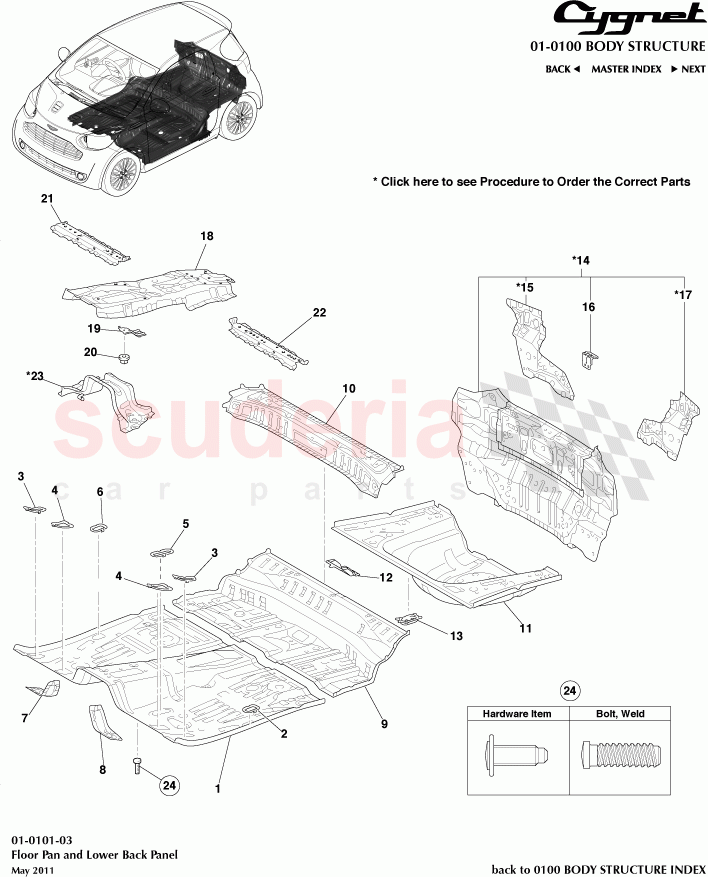

Aston Martin Cygnet - Floor Pan and Lower Back Panel

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	5811174010	Pan, Front Floor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5814974010	Plate, Front Floor Side Rear LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5811974010	Plate, Front Floor Side RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5512974010	Cover, Front Floor Hole, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5813674010	Cover, Front Floor Hole	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5813974010	Plate, Front Floor Side Rear RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5811774010	Reinforcement, Front Floor Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5811874010	Reinforcement, Front Floor Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5760574011	Member Sub-Assy, Rear Floor Cross	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5760674010	Member, Rear Floor Cross, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5831174010	Pan, Rear Floor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5766574010	Reinforcement, Rear Floor Crossmember, No.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5835774010	Bracket, Actuator Cover, No.3 RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5830774010	Panel Sub-Assy, Body Lower Back	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5837574011	Reinforcement, Body Lower Back Panel RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5838674010	Bracket, Rear Bumper Cover, No.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5837674011	Reinforcement, Body Lower Back RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5810474011	Bracket Sub-Assy, Front Seat Mounting, Inside LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5833274010	Bracket, Rear Floor Heat Insulator, No.4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9017906219	Nut, EL91	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5705174010	Member Sub-Assy Front Floor Cross RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5705274010	Member Sub-Assy Front Floor Cross LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5806174010	Support Sub-Assy, Fuel Tank, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9011506166	Hardware Item	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	5812974010	Plate, Front Floor Side LH	5812974010 Plate, Front Floor Side LH	-	1	Enquire
-	5513974010	Cover, Front Floor Hole, LH	5513974010 Cover, Front Floor Hole, LH	-	1	Enquire
-	5830774031	Panel Sub-Assy, Body Lower Back	5830774031 Panel Sub-Assy, Body Lower Back *From 10/2010	-	1	Enquire
-	5837574020	Reinforcement, Body Lower Back Panel RH	5837574020 Reinforcement, Body Lower Back Panel RH *From 10/2010	-	1	Enquire
-	5837674021	Reinforcement, Body Lower Back RH	5837674021 Reinforcement, Body Lower Back RH *From 10/2010	-	1	Enquire
-	5806174011	Support Sub-Assy, Fuel Tank, Front	5806174011 Support Sub-Assy, Fuel Tank, Front *From 05/2011	-	1	Enquire
-	9011506219	Bolt, Weld	9011506219 Bolt, Weld	-	3	Enquire
1	5811174010	Pan, Front Floor	5811174010 Pan, Front Floor	-	1	Enquire
2	5814974010	Plate, Front Floor Side Rear LH	5814974010 Plate, Front Floor Side Rear LH	-	1	Enquire
3	5811974010	Plate, Front Floor Side RH	5811974010 Plate, Front Floor Side RH	-	1	Enquire
4	5512974010	Cover, Front Floor Hole, RH	5512974010 Cover, Front Floor Hole, RH	-	1	Enquire
5	5813674010	Cover, Front Floor Hole	5813674010 Cover, Front Floor Hole	-	1	Enquire
6	5813974010	Plate, Front Floor Side Rear RH	5813974010 Plate, Front Floor Side Rear RH	-	1	Enquire
7	5811774010	Reinforcement, Front Floor Side, RH	5811774010 Reinforcement, Front Floor Side, RH	-	1	Enquire
8	5811874010	Reinforcement, Front Floor Side, LH	5811874010 Reinforcement, Front Floor Side, LH	-	1	Enquire
9	5760574011	Member Sub-Assy, Rear Floor Cross	5760574011 Member Sub-Assy, Rear Floor Cross	-	1	Enquire
10	5760674010	Member, Rear Floor Cross, Front	5760674010 Member, Rear Floor Cross, Front	-	1	Enquire
11	5831174010	Pan, Rear Floor	5831174010 Pan, Rear Floor	-	1	Enquire
12	5766574010	Reinforcement, Rear Floor Crossmember, No.2	5766574010 Reinforcement, Rear Floor Crossmember, No.2	-	1	Enquire
13	5835774010	Bracket, Actuator Cover, No.3 RH	5835774010 Bracket, Actuator Cover, No.3 RH	-	1	Enquire
14	5830774010	Panel Sub-Assy, Body Lower Back	5830774010 Panel Sub-Assy, Body Lower Back *To 10/2010	-	1	Enquire
15	5837574011	Reinforcement, Body Lower Back Panel RH	5837574011 Reinforcement, Body Lower Back Panel RH *To 10/2010	-	1	Enquire
16	5838674010	Bracket, Rear Bumper Cover, No.2	5838674010 Bracket, Rear Bumper Cover, No.2	-	1	Enquire
17	5837674011	Reinforcement, Body Lower Back RH	5837674011 Reinforcement, Body Lower Back RH *To 10/2010	-	1	Enquire
18	5810474011	Bracket Sub-Assy, Front Seat Mounting, Inside LH	5810474011 Bracket Sub-Assy, Front Seat Mounting, Inside LH	-	1	Enquire
19	5833274010	Bracket, Rear Floor Heat Insulator, No.4	5833274010 Bracket, Rear Floor Heat Insulator, No.4	-	1	Enquire
20	9017906219	Nut, EL91	9017906219 Nut, EL91	-	1	Enquire
21	5705174010	Member Sub-Assy Front Floor Cross RH	5705174010 Member Sub-Assy Front Floor Cross RH	-	1	Enquire
22	5705274010	Member Sub-Assy Front Floor Cross LH	5705274010 Member Sub-Assy Front Floor Cross LH	-	1	Enquire
23	5806174010	Support Sub-Assy, Fuel Tank, Front	5806174010 Support Sub-Assy, Fuel Tank, Front *To 04/2011	-	1	Enquire
24	9011506166	Hardware Item	9011506166 Hardware Item	-	5	Enquire
