Front Door Glass of Aston Martin Aston Martin Cygnet

View All

Aston Martin Cygnet - Front Door Glass

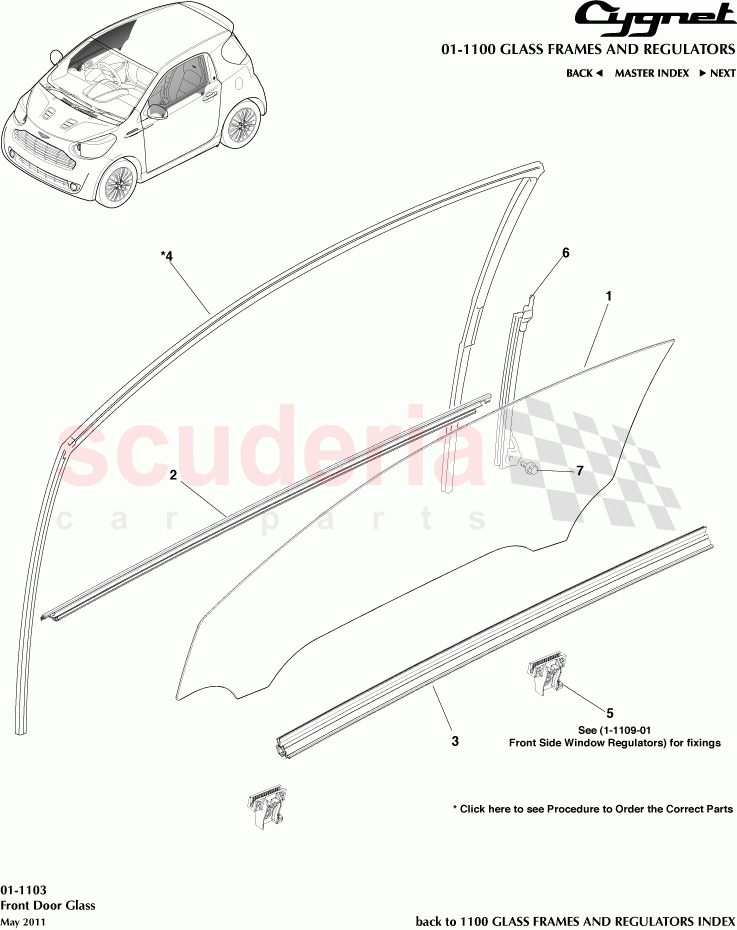

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY2YC21410AA	Glass Assy Front Door RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6816074030	Weatherstrip Assy, Front Door Glass, Outer RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6817174010	Weatherstrip Assy, Front Door Glass, Inner RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6814174010	Run, Front Door Glass, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6995174010	Channel, Front Door Glass, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6740374010	Frame Sub-Assy, Front Door Rear lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9011906983	Bolt, Washerhead	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AY2YC21411AA	Glass Assy Front Door LH	AY2YC21411AA Glass Assy Front Door LH	-	1	Enquire
-	6821074030	Weatherstrip Assy, Front Door Glass, Outer LH	6821074030 Weatherstrip Assy, Front Door Glass, Outer LH	-	1	Enquire
-	6817274010	Weatherstrip Assy, Front Door Glass, Inner LH	6817274010 Weatherstrip Assy, Front Door Glass, Inner LH	-	1	Enquire
-	6814174011	Run, Front Door Glass, RH	6814174011 Run, Front Door Glass, RH *from 01/2011	-	1	Enquire
-	6815174010	Run, Front Door Glass, LH	6815174010 Run, Front Door Glass, LH *11/2008 to 12/2010	-	1	Enquire
-	6815174011	Run, Front Door Glass, LH	6815174011 Run, Front Door Glass, LH *from 01/2011	-	1	Enquire
-	6995274010	Channel, Front Door Glass, LH	6995274010 Channel, Front Door Glass, LH	-	2	Enquire
-	6740474010	Frame Sub-Assy, Front Door Rear lower, LH	6740474010 Frame Sub-Assy, Front Door Rear lower, LH	-	1	Enquire
1	AY2YC21410AA	Glass Assy Front Door RH	AY2YC21410AA Glass Assy Front Door RH	-	1	Enquire
2	6816074030	Weatherstrip Assy, Front Door Glass, Outer RH	6816074030 Weatherstrip Assy, Front Door Glass, Outer RH	-	1	Enquire
3	6817174010	Weatherstrip Assy, Front Door Glass, Inner RH	6817174010 Weatherstrip Assy, Front Door Glass, Inner RH	-	1	Enquire
4	6814174010	Run, Front Door Glass, RH	6814174010 Run, Front Door Glass, RH *11/2008 to 12/2010	-	1	Enquire
5	6995174010	Channel, Front Door Glass, RH	6995174010 Channel, Front Door Glass, RH	-	2	Enquire
6	6740374010	Frame Sub-Assy, Front Door Rear lower, RH	6740374010 Frame Sub-Assy, Front Door Rear lower, RH	-	1	Enquire
7	9011906983	Bolt, Washerhead	9011906983 Bolt, Washerhead	-	2	Enquire
